Oil Radar FOIL-200

FOIL-200 oil spill detection radar is compatible with standard Furuno FAR-2xx7 or FAR-3000 X-band navigation radar.

Video

Features

Oil radar for offshore and onshore installations

Oil spill detection radar can be used in offshore and onshore installations together with standard navigation radar.

The installation can be done onboard the vessels, oil rigs or any other platform where the radar is needed to detect oil spills.



Mark oil spills

The Oil Radar detects oil spills automatically and creates a polygon to mark the spill. You can also mark the oil spills manually with polygons and update them whenever it is required.

You can also take screenshots from the screen and record the raw radar video to the external hard disc or memory stick for future evaluation or training purpose.



Process and analyze raw radar video

FOIL-200 uses raw radar video from the navigation radar. The special high performance algorithm is used to process and analyze the raw video to detect oil spills.

To achieve the most efficient image to detect oil, you can change between different Fusion modes and see the result in real time on the screen. Oil spill image is created with an integration of up to 100 radar antenna scans. Generated image is based on motion compensated Fusion scans. Adjust the Fusion Scan number together with Fusion Mode.

Screenshots

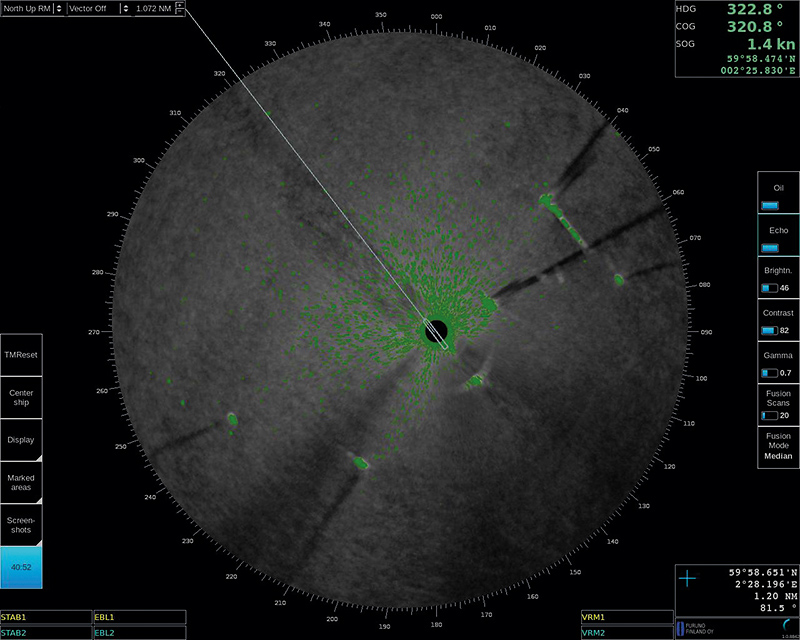

  • Navigation + oil radar picture. Green echoes from navigation radar, the rest is oil radar picture.
    Navigation + oil radar picture. Green echoes from navigation radar, the rest is oil radar picture.

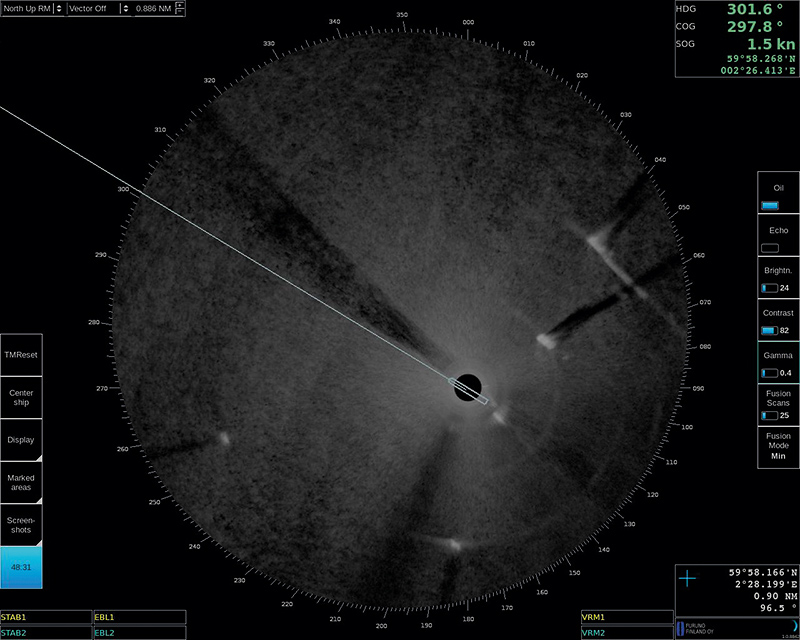

  • Bright echoes are other ships with black shadow areas behind them. Dark area shown on the right side of the heading line is oil spill.
    Bright echoes are other ships with black shadow areas behind them. Dark area shown on the right side of the heading line is oil spill.

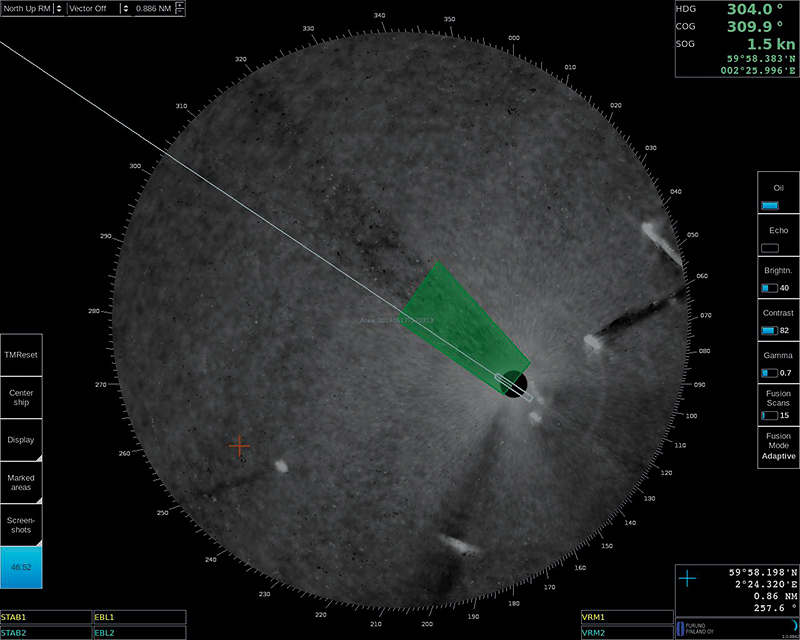

  • Green polygon is marked by user.
    Green polygon is marked by user.

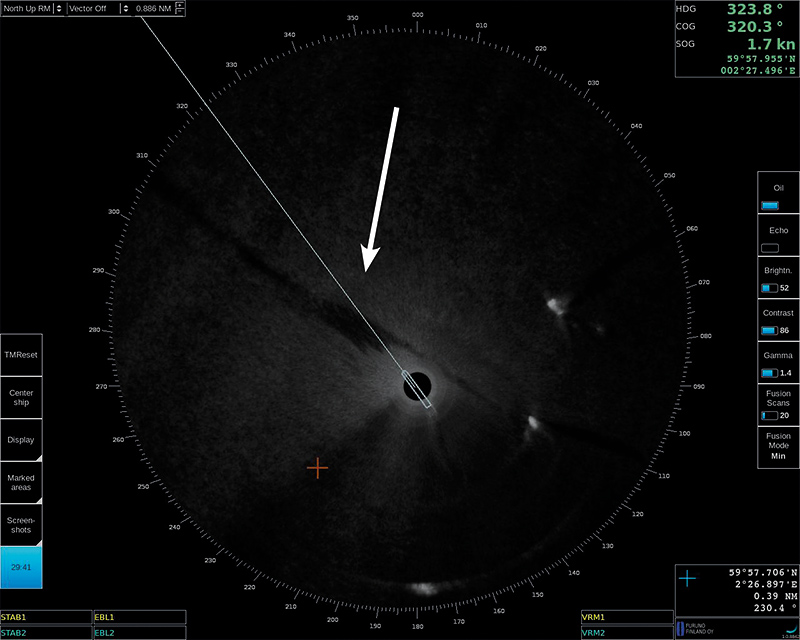

  • Oil spill is indicated as dark no-echo area on the screen
    Oil spill is indicated as dark no-echo area on the screen

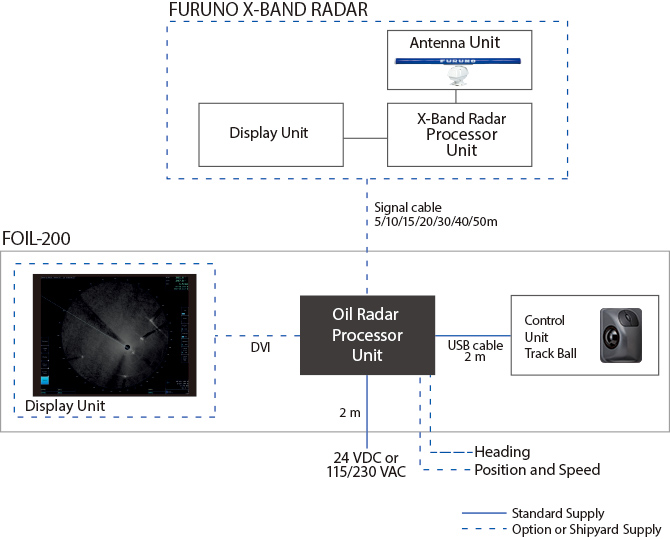

Interconnection Diagram



Contact Information

This product is sold, supported and manufactured by Furuno Finland.
