FURUNO RD-20/50 give a unified look for the sensor displays that carries an array of important navigation information from onboard sensors.

RD-50

RD-50
  • High-contrast 8.4-inch color LCD
  • Digital/graph/analog/ display available
  • Display orientation of up to 4-way split screen
  • Viewable under the direct sunlight at wing console
  • Adjustable display background color for use in both daytime and night time.
  • Up to 10 display can be connected with a daisy chain cable.
  • Display brilliance can be collectively controlled from one dimmer controller under the daisy chain connection.
  • Night mode available

RD-50 Data to be displayed

Disital display

  • Ship speed [ kn, km/h, m/s ]
  • Heading (HDG) [ deg ]
  • Course (COG) [ deg ]
  • Actual / Ordered rudder angle [ deg ]
  • Depth [ m, ft, fm ]
  • Total distance [ NM, km ]
  • Trip distance [ NM, km ]
  • Water temperature [ °C, °F ]
  • Rate of turn (ROT) [ deg/min ]
  • Wind Direction [ deg ] / Speed [ kn, km/h, m/s, mph ]
  • Propeller pitch [ % ]
  • Engine revolutions [ rpm ]
  • Shaft revolutions [ rpm ]
  • Time
  • Latitude and Longitude
  • Destination
  • 1 / 2 / 3-axes ship speed



Analog display

  • Wind Direction [ deg ] / Speed [ kn, km/h, m/s, mph ]
  • Propeller pitch [ % ]
  • Rate of turn (ROT) [ deg/min ]
  • Ship speed [ kn, km/h, m/s ]
  • Engine revolutions [ rpm ]
  • Shaft revolutions [ rpm ]
  • Actual / Ordered rudder angle [ deg ]
  • Drift / HDG / COG [ deg ]
  • Time



Graph display

  • Water temperature [ °C, °F ]
  • Depth [ m, ft, fm ]

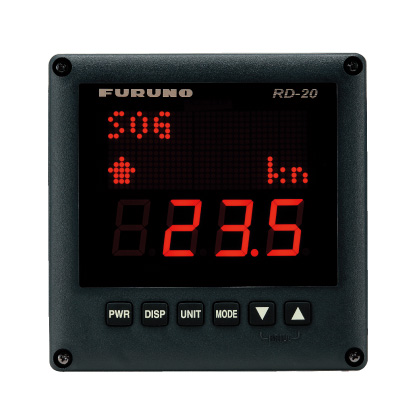

RD-20

RD-20
  • Red LED display
  • Up to 10 display can be connected with a daisy chain cable.
  • Display brilliance can be collectively controlled from one dimmer controller under the daisy chain connection.

RD-20 Data to be displayed

Disital display

  • Ship speed [ kn, km/h, m/s ]
  • Heading (HDG) [ deg ]
  • Course (COG) [ deg ]
  • Actual / Ordered rudder angle [ deg ]
  • Depth [ m, ft, fm ]
  • Total distance [ NM, km ]
  • Trip distance [ NM, km ]
  • Water temperature [ °C, °F ]
  • Rate of turn (ROT) [ deg/min ]
  • Wind Direction [ deg ] / Speed [ kn, km/h, m/s, mph ]
  • Engine revolutions [ rpm ]
  • Propeller pitch [ % ]
  • Shaft revolutions [ rpm ]

Suggestion for installation

The RD-20/50 can be mounted on the overhead console as well as on the desktop. Both units come with an optional bracket for desktop mounting. The RD-50 can also be installed overboard with the optional waterproof box.

  • Overhead console
    Overhead console
  • Desktop
    Desktop
