WASSP MULTI BEAM SONAR Model F3 SeriesNEW

For Fishing Vessels

Outstanding performance, versatility and value.
That's what you expect and exactly what you get with the new WASSP F3 series.

This next generation multi beam sonar has been redesigned from the ground up around a new fully digital DRX transceiver. It delivers on every front - accurate, versatile, user-friendly and most importantly, scalable to your exact needs. The only thing that hasn't changed with the F3 series is our commitment to bring you a multi beam sonar at a cost-effective price.

【Models WMB-1320F/WMB-1320Fi/WMB-1320FL/WMB-1320FLi】

MULTI BEAM Auto Tuning (Sensitivity)

Related Contents

Features

  • Generate your own personal Multibeam Chart

    The F3 series is set to revolutionise inshore fisheries with its Wideband CHIRP technology. Scanning a 120 degrees swath port to starboard and using 224 beams, the F3 series delivers each and every time. By using advanced signal processing, you get a complete picture of seafloor bathymetry with ease.

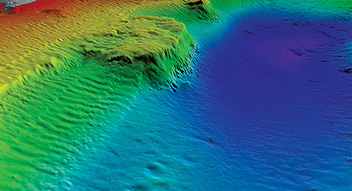

    WASSP 3D

    • Capability to save chart into the CDX software
    • TIMEZERO compatible with optional licence

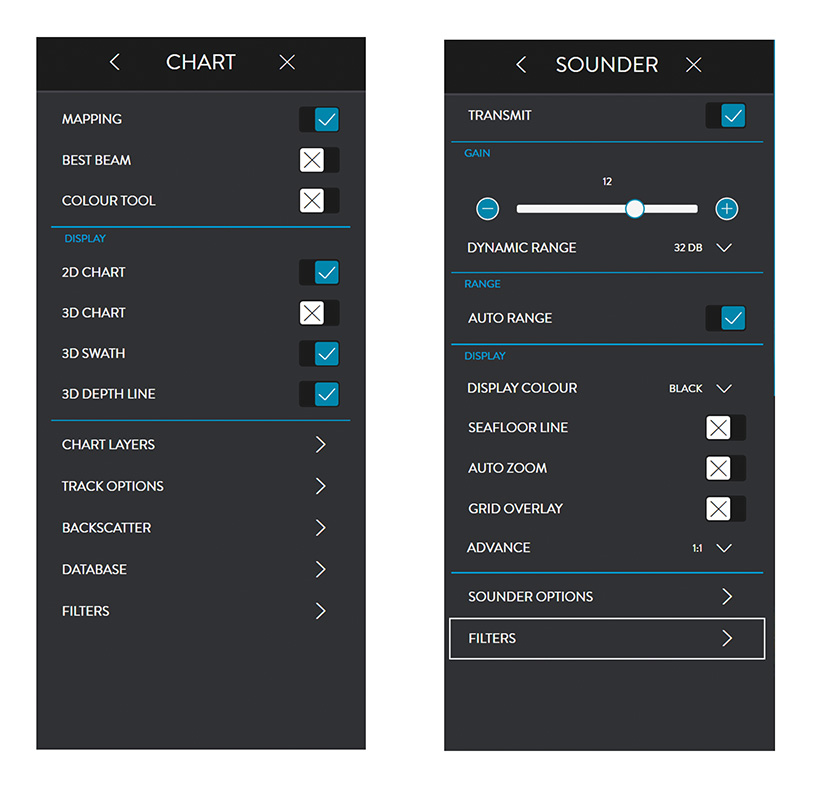

  • New easy-to-use interface

    The F3 series inctoduce a new simplified software “WASSP CDX” for control, visualisation and data management while still providing a comprehensive set of functions to meet the most demanding fishing requirements.

    • Cost-effective solution for multiple applications
    • Choose your own functions with new licensing options
  • Various presentations

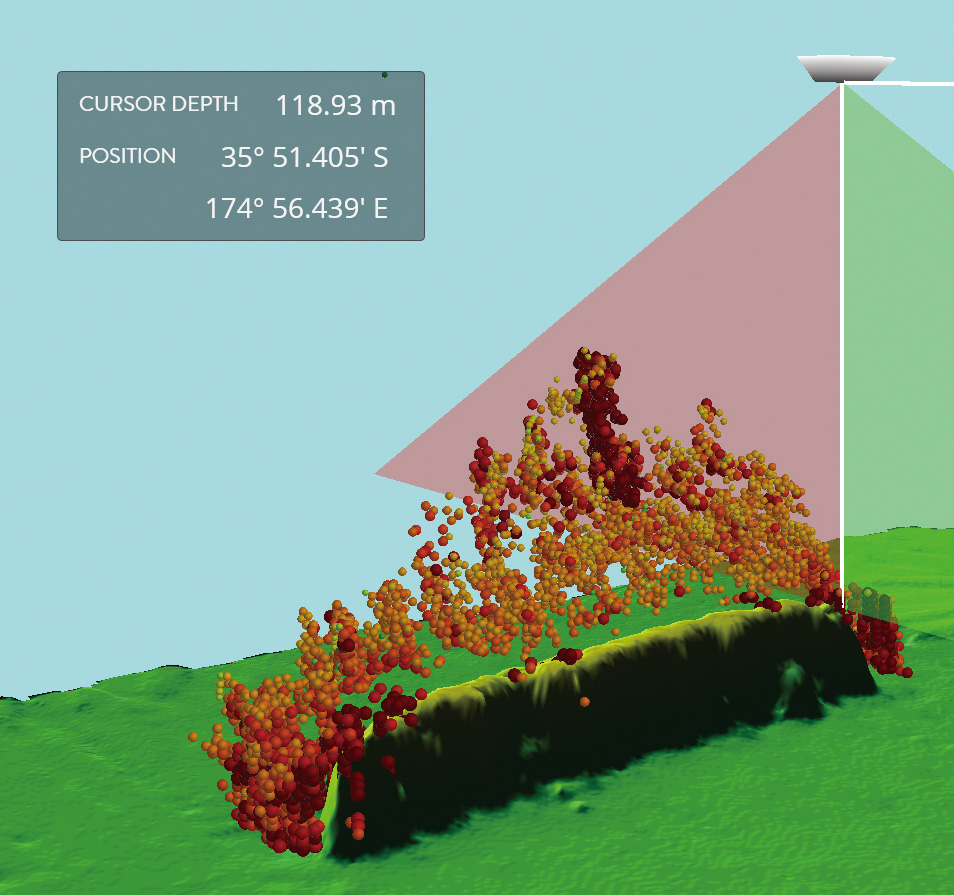

    Fish Density Overlay

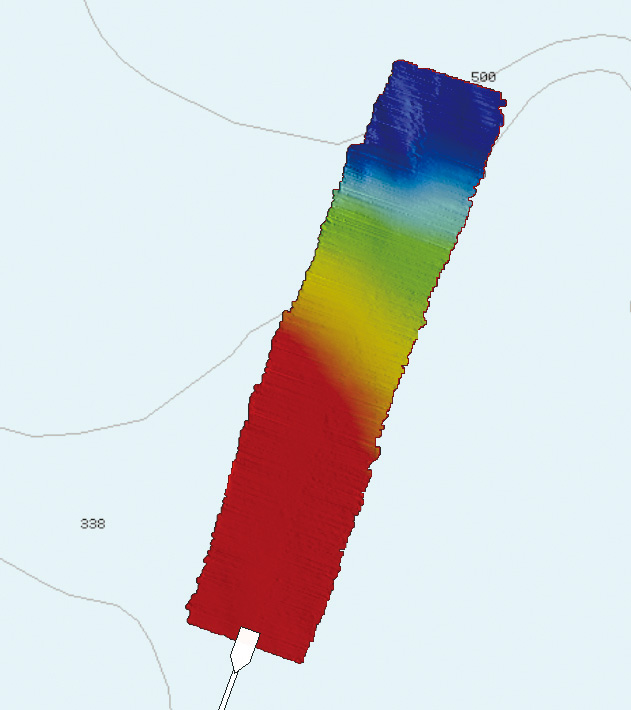

    2D Mapping to 500 m

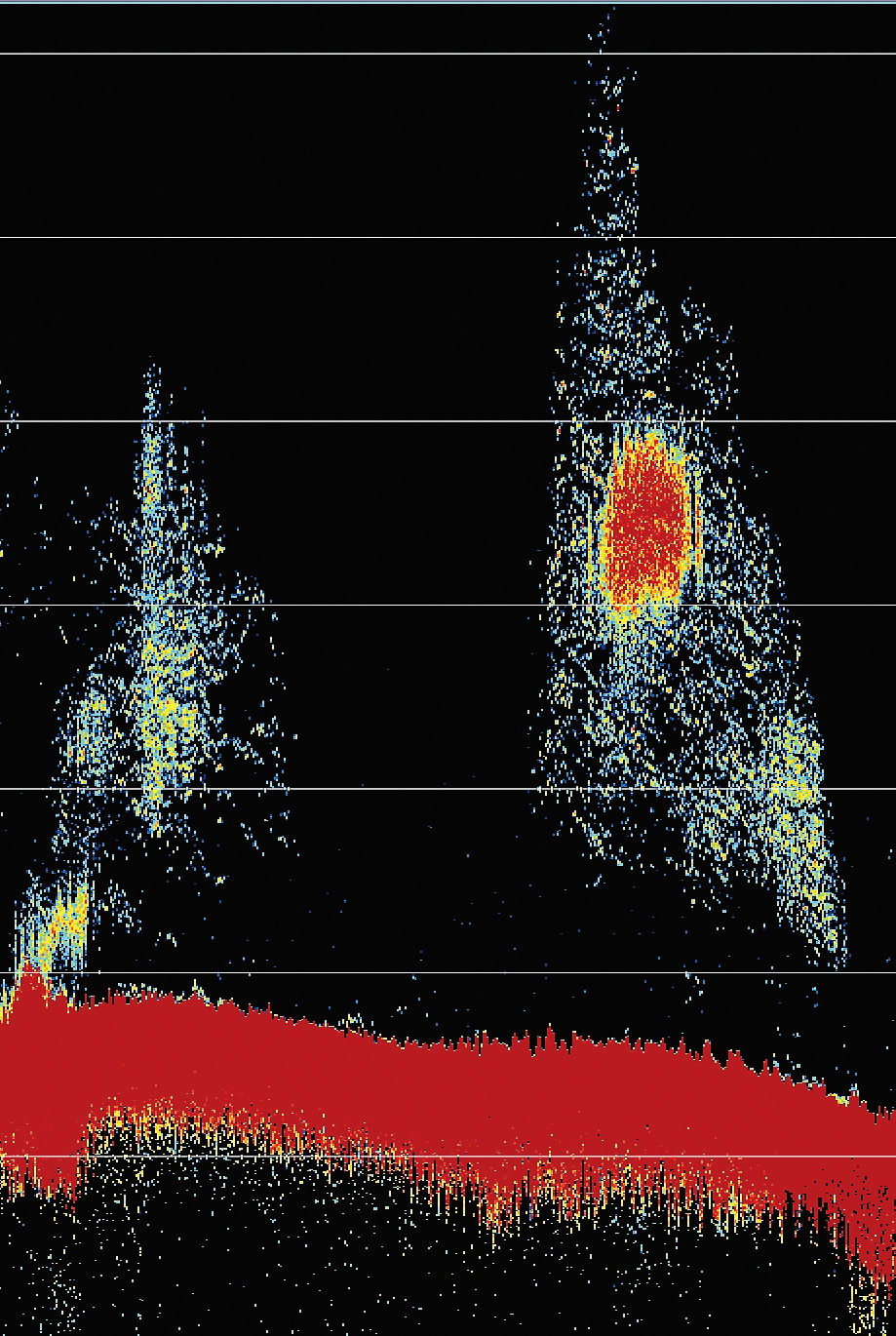

    Sounder (60 kHz)

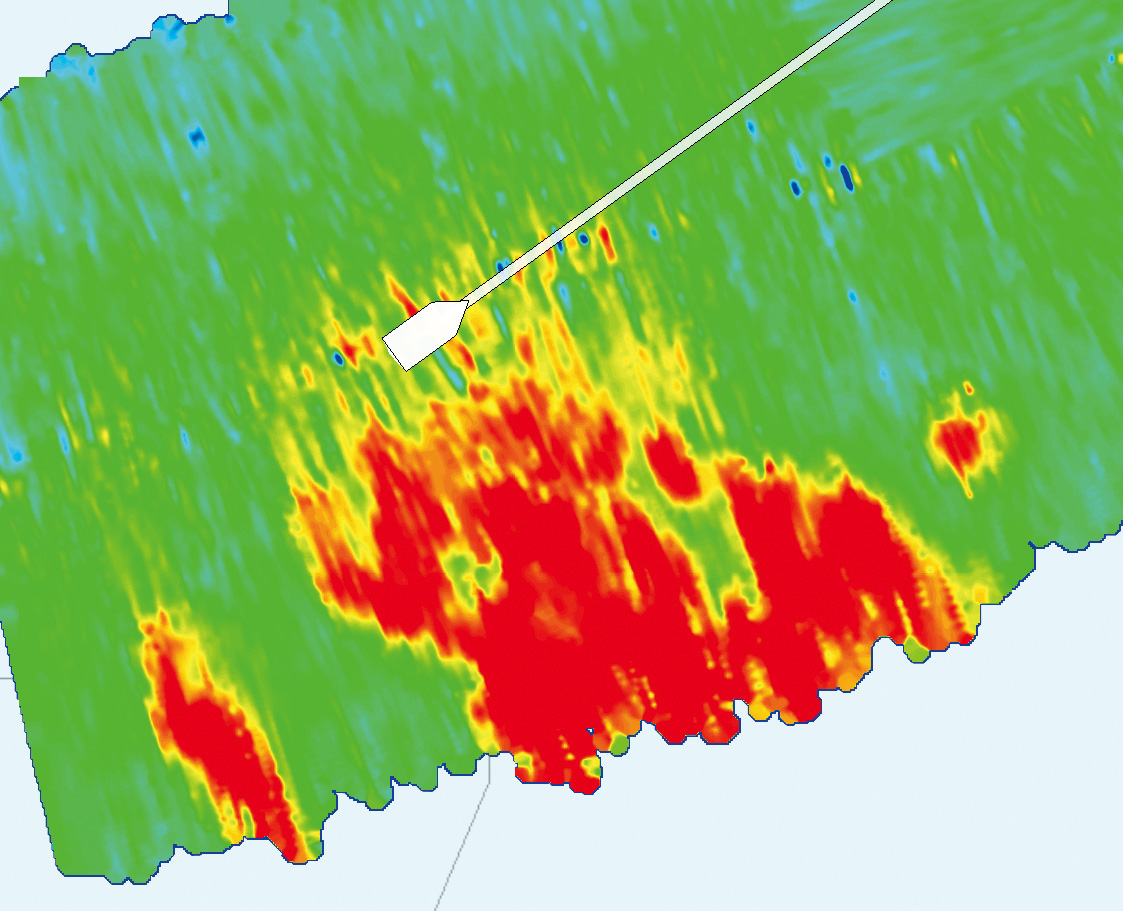

    Backscatter (Bottom Hardness) at 200 m

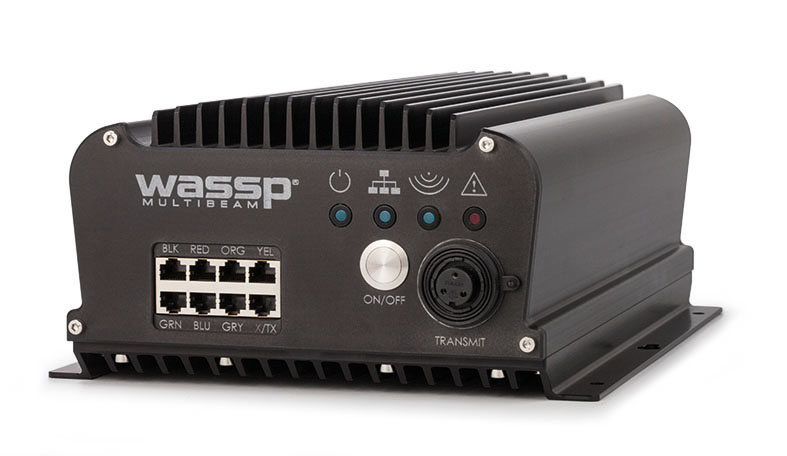

  • All-in-one DRX transceiver, incredibly versatile and ready for the next technology advances

    This innovative all-in-one “BlackBox” is not just a robust hardware platform but also introduces cutting-edge technical innovations and incredible versatility for finding your catch. This opens countless new possibilities for your operations.

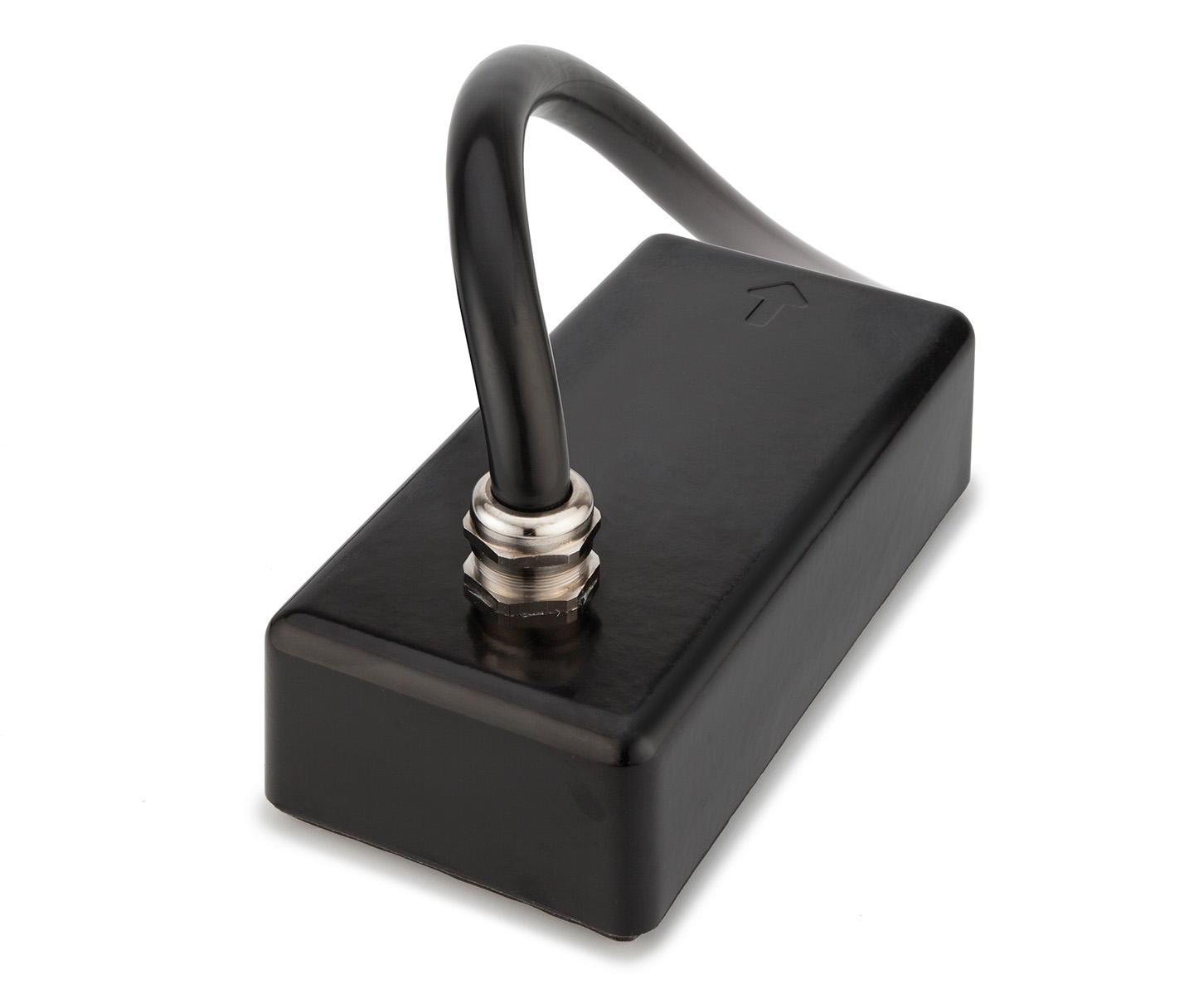

  • WASSP transducer

    The WASSP sonar transducer is available in 2 frequencies.

    -    136-184 kHz Wideband (160 kHz center)
    -    68-92 kHz Wideband (80 kHz center)

Specifications

General

TX FrequencyWide band
F3/F3i: 160 kHz
F3L/F3Li: 80 kHz
Detection RangeF3: 200 m* (Side Beam Best Performance)
400 m* (Main Beam Directly Under Boat)
F3L: 450 m* (Side Beam Best Performance)
900 m* (Main Beam Directly Under Boat)

*Depth capability subject to a variety of external factors.
Beam Width120° x 4° (Athwartships x Fore-aft)
PS: 4.4°

Interface

NMEA0183GGA, GGK, GLL, HDG, HDM, HDT, HVE, PASHR, PTNL PFEC, RMC, RCD, TSS1, ZDA

Display

Display ModeBathymetry, Sonar polar view, Sounder (single, triple & quint beam)

(Licensing options)
Backscatter, Open Client Support, Water Column Targets, Uncorrected Data, XYZ export, Sidescan, RTK tides,
other export formats*
* available in 2017

Minimum PC Specs

OSWindows 8.1, 10
CPU2 Ghz, 4 Cores/4 Threads
Memory8 GB (Min. 4 GB)
Screen ResolutionFull HD 1920 x 1080 (Min. XGA 1024 x 768)

Environment

Temperature0°C to +50°C (storage:-20°C to +85°C)
Relative humidityIEC60945, 93 % or less at +40°C
WaterproofingIP53, Bulkhead mounted (IP67 option available)
VibrationIEC60945 Ed.4

Power Supply

Transceiver Unit9 to 32 VDC

Others

SizeTransceiver Unit: 216(W) x 260 (D) x 205 (H) mm
Transducer:
WMB-160 (160 kHz) ; 98 (H) x 330 (W) x 168 (D) mm
WMB-80 (80 kHz); 133 (H) x 533 (W) x 340 (D) mm
WeightTransceiver Unit: 8.3 kg 18.3 lb
Transducer:
WMB-160 (160 kHz) ; 15 kg 33.1 lb
WMB-80 (80 kHz); 39 kg 86 lb

Equipment List

Standard

  • Transceiver unit
    DRX (F3 DRX/WSP-603-200)
  • WASSP CDX
    (PC application)
  • Transducer unit F3 or F3L
    F3 (G3 Transducer: 160 kHz) with 10 m cable
    or
    F3L (G3 Transducer: 80 kHz) with 20 m cable
  • WASSP sensor package*
    *For F3i (WMB-1320Fi)/F3Li (WMB-1320FLi)

Option

  • F3 (G3 TRANSDUCER: 160 kHz) with 20 m cable
  • Gland (aluminum/plastic/steel)
  • Satellite Compass plus cable with WASSP sensor box* *For F3 (WMB-1320F)/F3L (WMB-1320FL).
  • WASSP sensor box

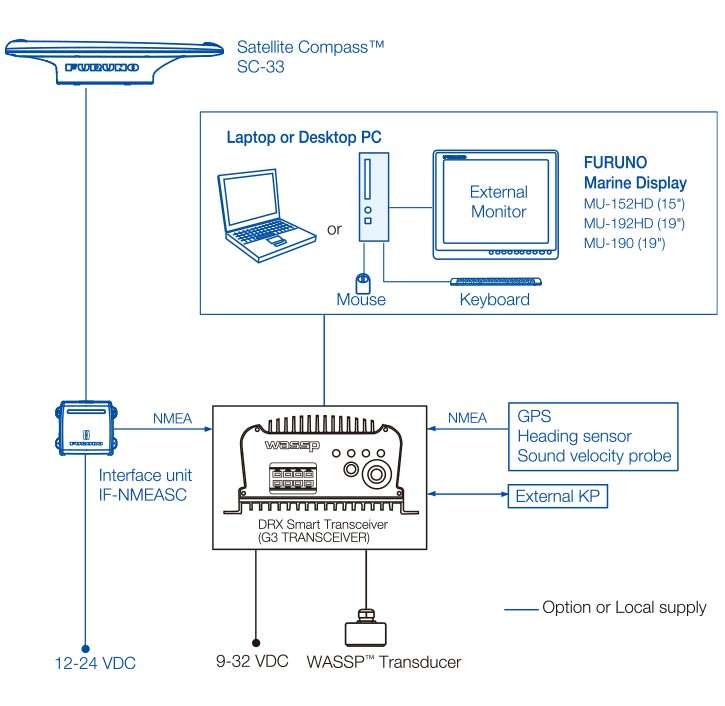

Interconnection Diagram

Documentation

Contact

Locate a Distributor Contact a local distributor for further details.

* Specifications subject to change without notice.
