Fish Finder

TruEcho CHIRP WITH UNIQUE FISH SIZE INDICATOR Model FCV-1900G

For Fishing Vessels

High precision fish size graph for effcient and sustainable fishing

FCV-1900G features a unique fish size indicator that utilizes TruEcho CHIRP™ technology for precise estimations of fish size and size distribution in schools of fish. You can accurately analyze schools of fish all the way from shallow to deep waters.

TruEcho CHIRP technology FURUNO Digital Filter ACCU-FISH™ Auto Tuning (Sensitivity) Black Box

Related Contents

Features

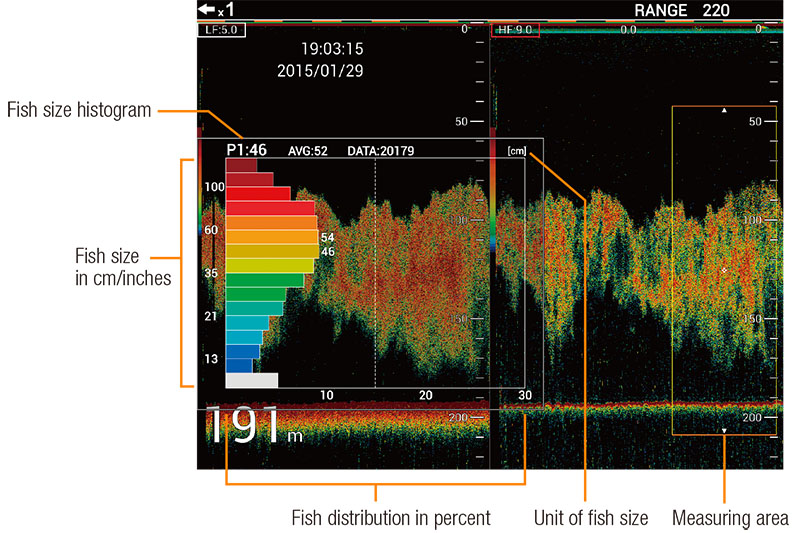

  • Identify size and distribution with the fish size graph for increased efficiency at sea

    With a quick glance at the simple and efficient graph, you can get all the information you need to identify fish size and distribution. Once you know the fish size and its distribution, you can use this information to estimate the species and whether it's a viable target or not. Together with the TruEcho CHIRP™ technology, the FCV-1900G allows you to choose the best position to throw your net. Then, based on the fish size graph, you can choose the right mesh size for efficient operation.

    (Recommended transducers: CM265LH or CM599LH)

  • High resolution echoes from shallow to deep waters made possible with TruEcho CHIRP™ technology

    Experience incredibly accurate echoes, even in deep waters thanks to our TruEcho CHIRP™ technology. The FCV-1900G is well suited for trawlers where accurate and reliable information about the sea bottom is necessary. Utilizing the fish size graph, choosing the right target is simple, allowing you to maximize your time at sea, while avoiding unnecessary bycatches.



  • Display up to four different frequencies

    Display up to four different frequencies together in a compact and easy way by connecting a required network fish finder. Since there is no need to install additional displays, this system is especially useful for small vessels.

  • Simultaneous gain setting for increased visibility

    Display two different gain settings simultaneously for increased visibility in changing water conditions and when changing vessel speed.

  • Zero Line Rejection

    Observe clear echoes from just 3 meters below your vessel with Zero Line Rejection, allowing you to better analyze the water column from near to far.
  • Improved control unit for simple and intuitive operation

    The control unit features a water resistant touch pad that works even when wearing rubber gloves. You can use the touch pad for setting up VRM and TLL in an instant.

Specifications

DISPLAY

Pixel numberLandscape XGA(1024×768)
Landscape SXGA(1280×1024)
Landscape FHD(1920x1080)
Portrait SXGA(1024×1280)

FISH FINDER

Frequency15 kHz to 200 kHz, Free Syntheziser
Transducer1,2 or 3 kW
Range ScaleDepth range : 5 to 3000 m
Expansion range : 2 to 200 m
Pulselength & PRR10 to 2700 pulses/min (5 to 3000 m range, normal mode)
Display ModeSingle mode (high/low frequency), Dual-frequency, Zoom, User 1/2
User 1/2 available to use mixture, multi-gain, telesounder and external
sounder display
Range Shift2000 m max.
ACCU-FISH™2 m depth or more, specified transducer required
Bottom DiscriminationRange : 5 to 100 m, Speed : 10 kn or less, BBDS1 required

OTHERS

Power Supply12-24 VDC: 8.3-3.9 A
SizeProcessor Unit : 339 (H) x 280 (W) x 300 (D)
Control Unit : 45 (H) x 310 (W) x 100 (D)
WeightProcessor Unit : 10.2 kg
Control Unit : 1.1 kg

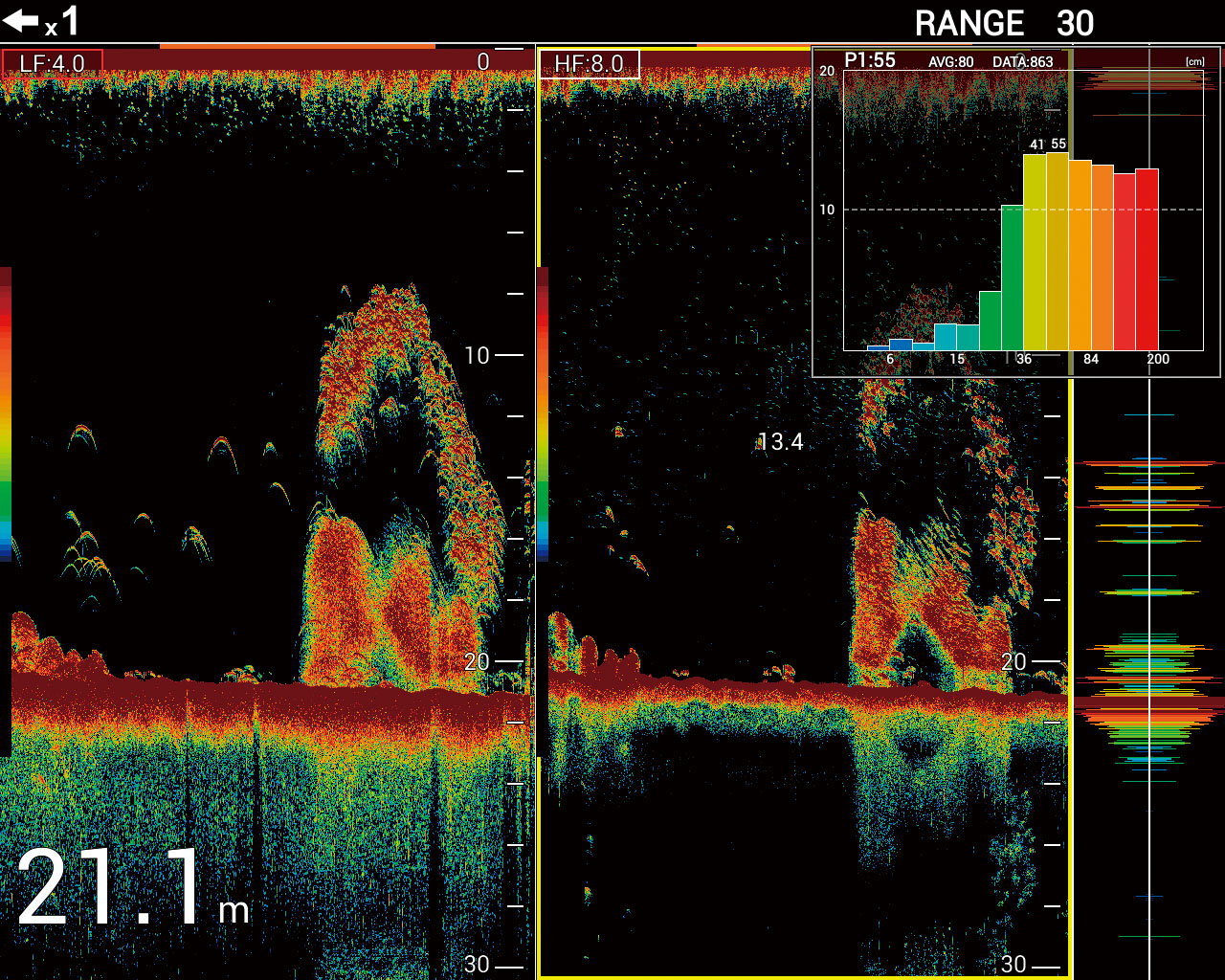

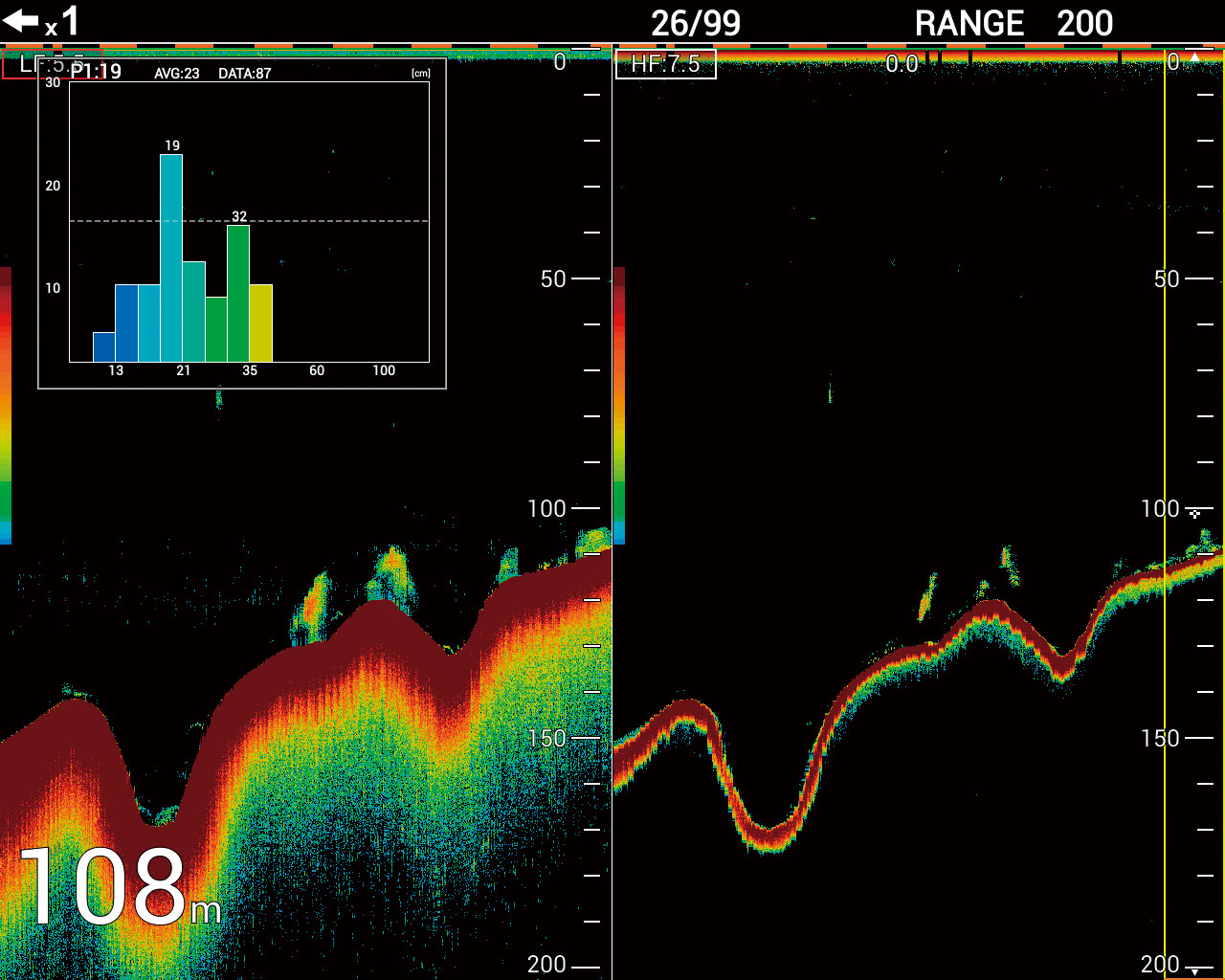

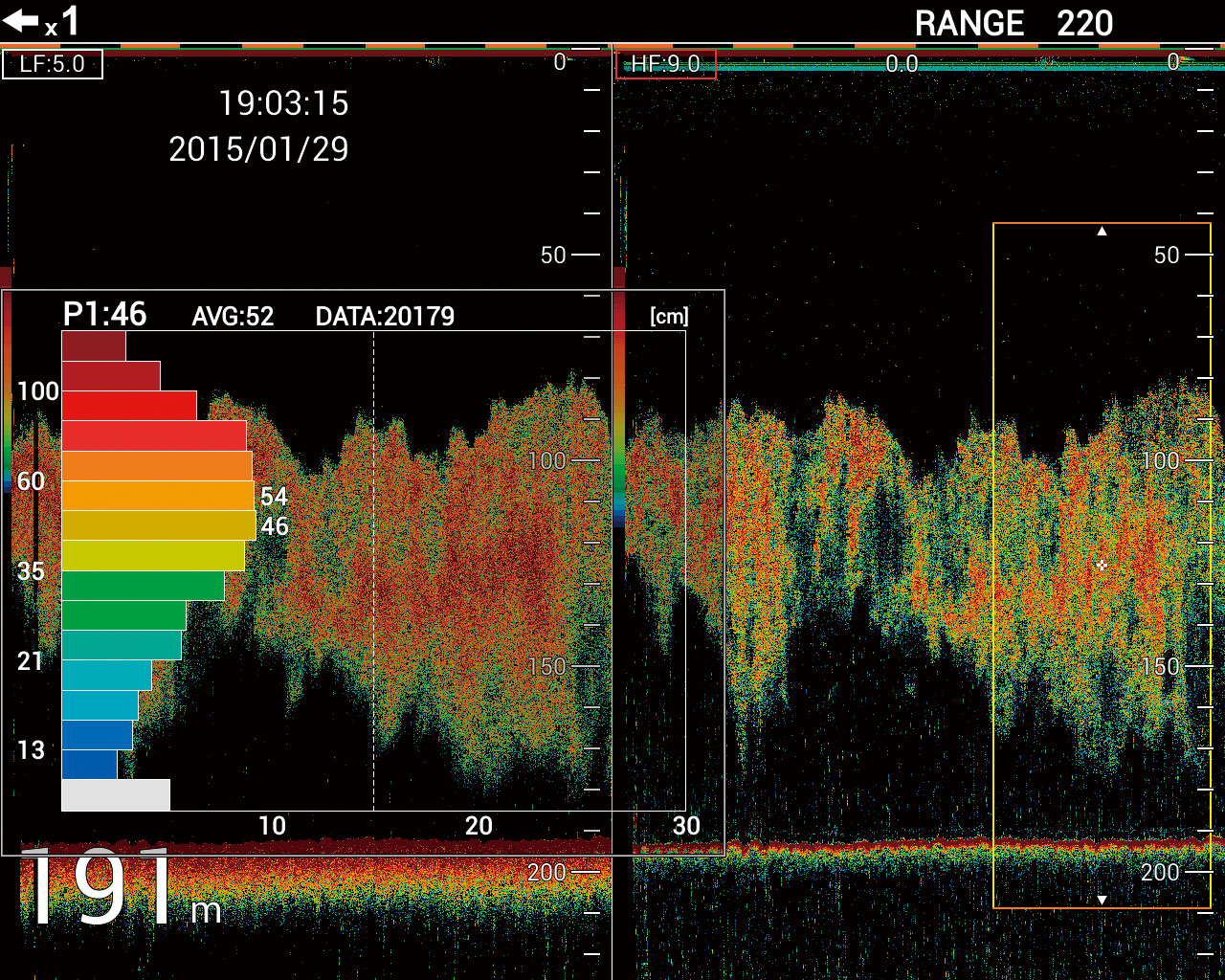

Screenshots

Equipment List

Standard

  • PROCESSOR UNIT (FCV-1901)
    1 UNIT
  • CONTROL UNIT (FCV-1902)
    1 UNIT
  • INSTALLATION MATERIALS
    1 SET
  • SPARE PARTS
    1 SET

Option

  • TRANSDUCER
  • INTERFACE UNIT FCV-1903
  • ETHERNET HUBHUB-101
  • JUNCTION BOXRJB-002
  • BOOSTER BOXBT-5-1/2
  • TEMPERATURE SENSORT-04MSB
    T-04MTB
  • AC/DC POWER SUPPLY UNITPR-240
  • RECTIFIERRU-1746B-2
  • INSTALLATION MATERIAL
  • CABLE ASSEMBLY
  • CABLE (FOR TRANSDUCER EXTENSION)

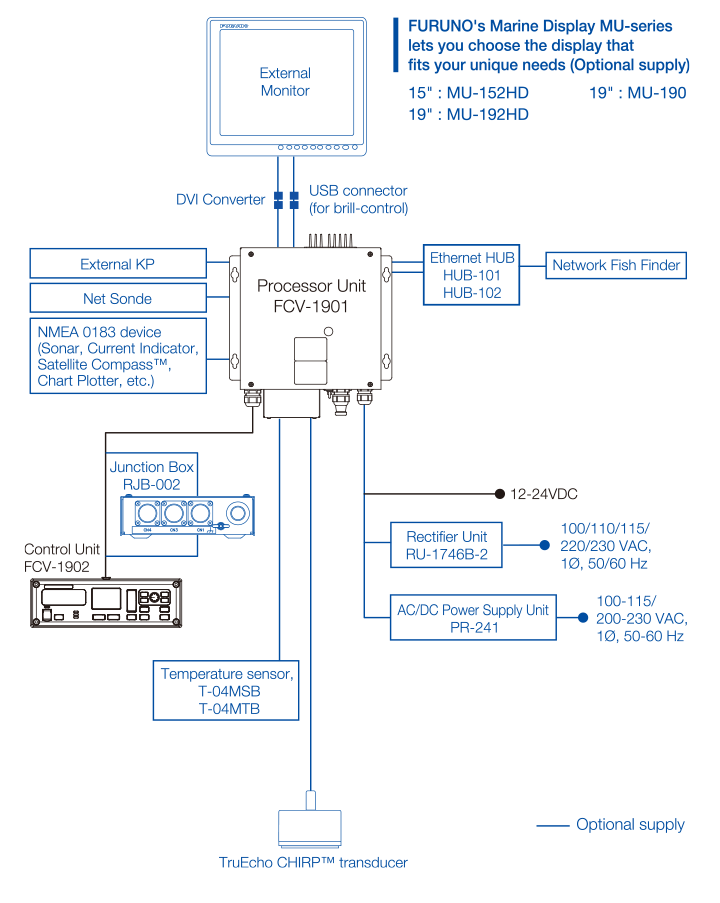

Interconnection Diagram

Connectable Products

Documentation

Contact

Locate a Distributor Contact a local distributor for further details.

* Specifications subject to change without notice.
