GPS Receiver Chip eRideOPUS 5 Model ePV5800BDiscontinued Products

For Automotive/Industrial For Consumer

Ultra high-sensitivity, single-die GPS/A-GPS receiver chip

eRideOPUS 5 (ePV5800B) is a high-sensitivity GPS/AGPS receiver System-in-a-Package (SiP) that combines single-die receiver. It delivers fast, accurate positioning data in challenging locations such as indoor environments and deep urban canyons.

Features

  • Ultra-high Sensitivity: -161 dBm acquisition sensitivity ensures position fix availability indoors, outdoors and in urban canyons

  • Fast: <2 sec TTFF ensures user satisfaction

  • Easy Integration and Miniature Size: Optimized RF and Digital design ensures GPS performance while on-chip LNA minimizes BOM

  • Supports WAAS:2 Channel capable SBAS (EGNOS, WAAS and MSAS)

  • Assisted GPS function is available.

  • Advanced Features:PPS output and Dead Reckoning for uninterrupted positioning

  • Configurable up to 5Hz

Specifications

GENERAL

GNSS Reception CapabilityGPS L1 C/A, SBAS L1 C/A
GNSS Reception14 channels (GPS, SBAS)
Update RateGNSS: 1 / 2 / 5 Hz
Dead Reckoning: 1 Hz
SensitivityGPS
Tracking: -161 dBm
Hot Start: -161 dBm
Warm Start: -147 dBm
Cold Start: -147 dBm
Reacquisition: -161 dBm
Position Accuracy (Horizontal)2.5m (CEP)
TTFF (Typical)Hot Start: <2 sec (@-130 dBm)
Warm Start: 33 sec (@-130 dBm)
Cold Start: 38 sec (@-130 dBm)
Supply Voltage1.8VDC
Power ConsumptionAcquisition Mode: 58 mW
Backup Supply1.4 to 2.75VDC / 20 μA (Typ)
Operating Temperature-40°C to +85°C
PackageSize: TFBGA 9.0mm x 9.0mm, Pins: 141balls, Ball Pitch: 0.65mm
ProtocoleSIP (NMEA 0183 Standard Ver 3.01)
InterfacesUART, I2C, Forward/Reverse signal, Speed Pulse, Time Pulse, Clock

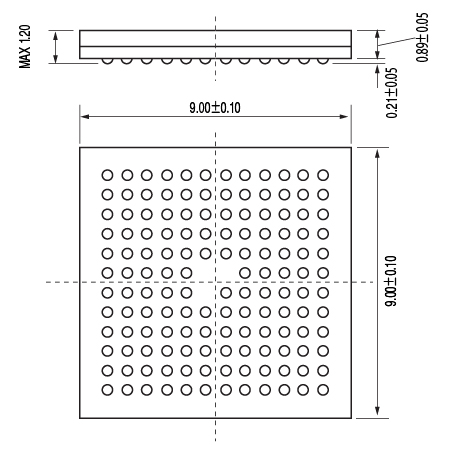

Drawing

Contact

Locate a Distributor Contact a local distributor for further details.

* Specifications subject to change without notice.
