Multi-GNSS Receiver Chip eRideOPUS 7 Model ePV7000BNEW

For Consumer

Concurrent Multi-GNSS Receiver Chip

eRideOPUS 7SD provides the world’s most-accurate positioning and navigation solution using simultaneous Multi-GNSS technology in combination with active anti-jamming, advanced multipath mitigation and dead reckoning.

Related Contents

Features

  • Multi-GNSS, Concurrent reception of GPS and GLONASS

    • The best positioning accuracy and smoothest ground tracking
    • Improved of robustness thanks to concurrent reception of GPS and GLONASS signals
    • Supports concurrent GPS, GLONASS, SBAS and QZSS
  • Receivable Galileo E1B/E1C

    Galileo E1B and E1C signals receivable (ref. "Galileo OS SIS ICD Issue 1 Revision 1 September 2010")
  • Position available even in the tunnels, underground parking lots. Effective in urban canyons

    • Reduces degradation of position accuracy in harsh environments thanks to a combination of concurrent Multi-GNSS and Dead-Reckoning
    • Provides instant position at startup in underground parking lot type environments (Garage Start function)
    • Dead Reckoning positioning accuracy can be improved with feedback from the navigation application (Map Matching Feedback function)
  • Emphasis on usability of Dead Reckoning, no need for sensor processing on host CPU

    ・Selectable from 3 different sensor configurations depending on customer’s product concept
    1. 3-Aixs Gyro Sensor + 3-Aixs Accelerometer + Speed Pulse
    2. 1-Aixs Gyro Sensor + 3-Aixs Accelerometer + Speed Pulse
    3. 1-Aixs Gyro Sensor + Speed Pulse

    ・Autonomous, self-calibrating, tightly coupled Dead-Reckoning.
    ・Dead Reckoning calculation is performed on the receiver and the results outputted in NMEA data
  • Fast TTFF

    Hot start: <1 sec
  • High Positioning Rate

    Configurable position output update rate up to 10Hz (10 times per sec.)
  • Improved Noise Tolerance

    Reduces effects of internal and external noise
    Active Anti-Jamming
    Advanced Multipath Mitigation
  • Time Pulse Output

    • Suitable for system synchronization with low jitter clock in addition to high accuracy time pulse
    • PPS output synchronized to UTC time
    • Clock output coherent with time pulse (e.g. 10MHz)
  • Android™ driver and API

    Furuno can provide Android driver and API, which can be used with Furuno's GNSS chip/module for Android application developers.
    Android driver may help to reduce the development cost to install the GNSS chip/module in the navigation devices or the automotive devices based on Android.
    for more details, click here
  • Pin compatible with eRideOPUS 5 (ePV5800B)


  • *Provide software suitable for you application.

Specifications

GENERAL

GNSS Reception CapabilityGPS L1 C/A, GLONASS L1OF, QZSS L1 C/A, SBAS L1 C/A
Galileo E1B/E1C*
(Ready): QZSS L1S

*ref. "Galileo OS SIS ICD Issue 1 Revision 1 September 2010"
GNSS Reception32 channels (GPS, GLONASS, Galileo, QZSS, SBAS)
Update RateGNSS: 1 / 2 / 5 / 10 Hz
Dead Reckoning: 1 / 2 / 5 / 10 Hz
SensitivityGPS
Tracking: -161 dBm
Hot Start: -161 dBm
Warm Start: -147 dBm
Cold Start: -147 dBm
Reacquisition: -161 dBm

GLONASS
Tracking: -157 dBm
Hot Start: -157 dBm
Warm Start: -143 dBm
Cold Start: -143 dBm
Reacquisition: -157 dBm

*Measurement platform with recommended active antenna
Position Accuracy (Horizontal)GPS: 2.5m(CEP)
GPS + SBAS: 2.0m(CEP)
GPS + SBAS + GLONASS: 2.0m(CEP)

*Measurement platform with recommended active antenna
*Update rate: 1 Hz
TTFF (Typical)Hot Start: <1 sec (@-130 dBm)
Warm Start: 30 sec (@-130 dBm)
Cold Start: 33 sec (@-130 dBm)

*Measurement platform with recommended active antenna
Supply Voltage1.8VDC / 3.3VDC
Power ConsumptionAcquisition Mode: 61 mA (@ DC 3.3V)
Backup Supply1.4 to 3.6 VDC / 10 μA (Typ)
Operating Temperature-40°C to +85°C
PackageSize: TFBGA 9.0mm x 9.0mm, Pins:141balls, Ball Pitch: 0.65mm
ProtocoleSIP (NMEA 0183 Standard Ver. 4.10)
FURUNO Binary
M12 Binary
InterfacesUART, I2C, Forward/Reverse signal, Speed Pulse, Time Pulse, Clock
Anti-JammingAvailable
Multipath MitigationAvailable

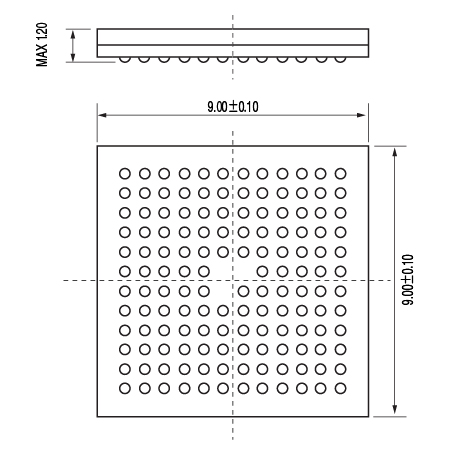

Drawing

Evaluation Kit

GN-87F Evaluation KitePV7000B Evaluation Kit is available to evaluate the performance of ePV7000B.
The Evaluation Kit can supply power and communicate with USB interface.

FEATURES
  • 5VDC Power supply through USB bus power
  • Serial communication through USB
  • 1PPS output from the SMA connectors
  • SMA antenna connection
  • Outer size is (w) 110mm x (D) 112mm x (H) 30mm
  • Weight is about 260g
  • Accessories are USB cable, GPS-GLONASS Antenna and CD ROM containing the Communication Software, the USB driver and the documentations

Documentation

Contact

Locate a Distributor Contact a local distributor for further details.

* Specifications subject to change without notice.
