Multi-GNSS Receiver Chip eRideOPUS 7 Model ePV7010B Old Products (available)

Features

• Multi-GNSS, Concurrent reception of GPS and GLONASS

  • The best positioning accuracy and smoothest ground tracking
  • Improved of robustness thanks to concurrent reception of GPS and GLONASS signals
  • Supports concurrent GPS, GLONASS, SBAS and QZSS

• Receivable Galileo E1B/E1C

  Galileo E1B and E1C signals receivable (ref. "Galileo OS SIS ICD Issue 1 Revision 1 September 2010")

• Position available even in the tunnels, underground parking lots. Effective in urban canyons

  • Reduces degradation of position accuracy in harsh environments thanks to a combination of concurrent Multi-GNSS and Dead-Reckoning
  • Provides instant position at startup in underground parking lot type environments (Garage Start function)
  • Dead Reckoning positioning accuracy can be improved with feedback from the navigation application (Map Matching Feedback function)

• Emphasis on usability of Dead Reckoning, no need for sensor processing on host CPU

  ・Autonomous, self-calibrating, tightly coupled Dead-Reckoning.
  ・Dead Reckoning calculation is performed on the receiver and the results outputted in NMEA data

• Fast TTFF

  Hot start: <1 sec

• High Positioning Rate

  Configurable position output update rate up to 10Hz (10 times per sec.)

• Improved Noise Tolerance

  Reduces effects of internal and external noise
  ・Active Anti-Jamming
  ・Advanced Multipath Mitigation

• Android™ driver and API

  Furuno can provide Android driver and API, which can be used with Furuno's GNSS chip/module for Android application developers.
  Android driver may help to reduce the development cost to install the GNSS chip/module in the navigation devices or the automotive devices based on Android.
  for more details, click here

• Embedded Flash ROM

  Suitable for long-term use backed by FURUNO’s continuous support and function enhancement

•
  *Provide software suitable for you application.

Specifications

General

GNSS Reception Capability

GPS L1 C/A, GLONASS L1OF, QZSS L1 C/A, SBAS L1 C/A
Galileo E1B/E1C*

*ref. "Galileo OS SIS ICD Issue 1 Revision 1 September 2010"

GNSS Reception

32 channels (GPS, GLONASS, Galileo, QZSS, SBAS)

Update Rate

GNSS: 1 / 2 / 5 / 10 Hz
Dead Reckoning: 1 / 2 / 5 / 10 Hz

Sensitivity

GPS
Tracking: -161 dBm
Hot Start: -161 dBm
Warm Start: -147 dBm
Cold Start: -147 dBm
Reacquisition: -161 dBm

GLONASS
Tracking: -157 dBm
Hot Start: -157 dBm
Warm Start: -143 dBm
Cold Start: -143 dBm
Reacquisition: -157 dBm

*Measurement platform with recommended active antenna

Position Accuracy (Horizontal)

GPS: 2.5m(CEP)
GPS + SBAS: 2.0m(CEP)
GPS + SBAS + GLONASS: 2.0m(CEP)

*Measurement platform with recommended active antenna
*Update rate: 1 Hz

TTFF (Typical)

Hot Start: <1 sec (@-130 dBm)
Warm Start: 30 sec (@-130 dBm)
Cold Start: 33 sec (@-130 dBm)

*Measurement platform with recommended active antenna

Supply Voltage

1.8VDC / 3.3VDC

Current Consumption

Acquisition Mode: 61 mA (@ DC 3.3V)

Backup Supply

1.4 to 3.6 VDC / 10 μA (Typ)

Operating Temperature

-40°C to +85°C

Package

Size: LFBGA 7.0mm x 7.0mm, Pins: 64balls, Ball Pitch: 0.8mm

Protocol

eSIP (NMEA 0183 Standard Ver. 4.10)
FURUNO Binary

Interfaces

UART, I2C, Forward/Reverse signal, Speed Pulse

Anti-Jamming

Available

Multipath Mitigation

Available

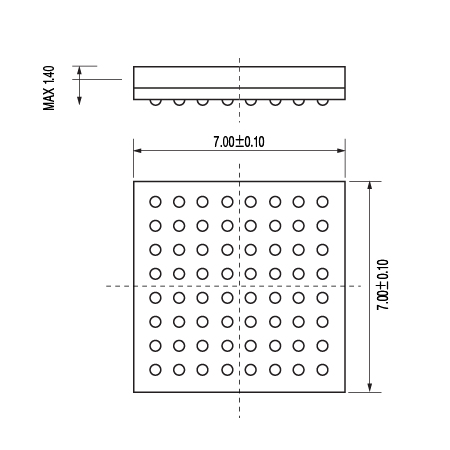

Drawing

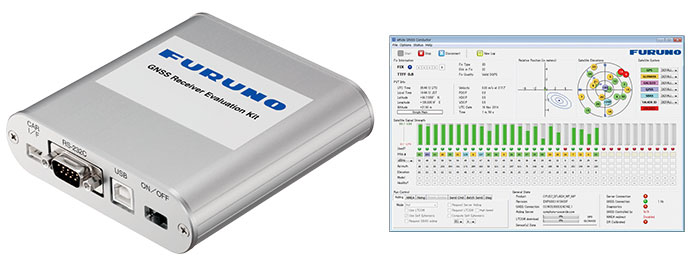

Evaluation Kit

ePV7010B Evaluation Kit is available to evaluate the performance of ePV7010B.
The Evaluation Kit can supply power and communicate with USB interface.

FEATURES

• 5VDC Power supply through USB bus power
• Serial communication through USB
• 1PPS output from the SMA connectors
• SMA antenna connection
• Outer size is (w) 110mm x (D) 112mm x (H) 30mm
• Weight is about 260g
• Accessories are USB cable, GPS-GLONASS Antenna and CD ROM containing the Communication Software, the USB driver and the documentations

Documents, Software

Download documents and software related to this product and other GPS/GNSS products (Specifications document, Drivers and Monitor software).


Download page

Contact

Locate a Distributor Contact a local distributor for further details.

* Specifications subject to change without notice.
