DR/GPS Receiver Module Model GV-84HDiscontinued Products

For Automotive/Industrial For Consumer

The Furuno GV-84H is the Hybrid DR(Dead Reckoning)/GPS receiver module equipped with the inertial gyro and acceleration sensors and a passive antenna.

GV-84H is available to use the dead reckoning function by itself, and accomplishes the hybrid positioning along with GPS

Features

  • The GV-84H is a DR(Dead Reckoning)/GPS module equipped with inertial sensors and the passive antenna.

  • High performance Dead Reckoning is realized thanks to the combination of GPS, Gyro sensor and acceleration sensor

  • High accuracy positioning is available in tunnels and urban canyons where GPS receivers cannot receive GPS signals

  • Designed specially for PND (Personal Navigation Device)

Specifications

GENERAL

GNSS Reception CapabilityGPS L1 C/A
GNSS Reception12 channels (GPS)
Update Rate1 Hz
SensitivityGPS
Tracking: -157 dBm
TTFF (Typical)Hot Start: <3 sec (@-130 dBm)
Warm Start: 34 sec (@-130 dBm)
Cold Start: 45 sec (@-130 dBm)
Supply Voltage3.3VDC
Power ConsumptionAcquisition Mode: 57 mA
Backup Supply1.8 to 3.6 VDC / 20 μA (Typ) (VCC=0V)
Operating Temperature-30°C to +85°C
Package15.0mm×64.0mm×5.7mm
ProtocolNMEA0183 Standard Ver. 2.3

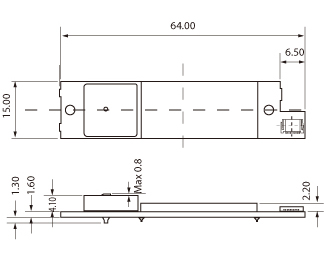

Drawing

Contact

Locate a Distributor Contact a local distributor for further details.

* Specifications subject to change without notice.
