DR/GPS Receiver Module Model GV-85Discontinued Products

For Automotive/Industrial For Consumer

High-sensitivity, complete DR(Dead Reckoning)/GPS receiver module.

The Furuno GV-85 is a miniature high-sensitivity, low power DR(Dead Reckoning)/GPS receiver, enabling uninterrupted accurate positioning in harsh environments

Features

  • PVT (Position, Velocity, & Time) in a single package solution

  • Provides uninterrupted accurate positioning even in tunnels, in underground parking lots, or under an overpass thanks to Furuno Advanced Dead Reckoning technology.

  • Interface with inertial sensors (Gyro sensor/Accelerometer), wheel speed pulse, forward/reverse signal and CAN Bus is available.

  • Ultra-high sensitivity (-160dBm Typical) with active antenna

  • Two Channel SBAS available

  • Assist GPS function is available.

  • Available of active and passive antenna

  • Low profile, small SMT package reducing the mounting area and mounting cost.

Specifications

GENERAL

GNSS Reception CapabilityGPS L1 C/A, SBAS L1 C/A
GNSS Reception14 channels (GPS, SBAS)
Update Rate1 Hz
SensitivityGPS
Tracking: -160 dBm
Reacquisition: -160 dBm
TTFF (Typical)Hot Start: <2 sec (@-130 dBm)
Warm Start: 33 sec (@-130 dBm)
Cold Start: 38 sec (@-130 dBm)
Supply Voltage1.8VDC
Power ConsumptionAcquisition Mode: 60 mA
Backup Supply1.4 to 2.7 VDC / 20 μA (Typ) (VCC=0V)
Operating Temperature-40°C to +85°C
Package18.0mm×21.5mm×3.0mm
ProtocoleSIP (NMEA 0183 Standard Ver. 3.01)

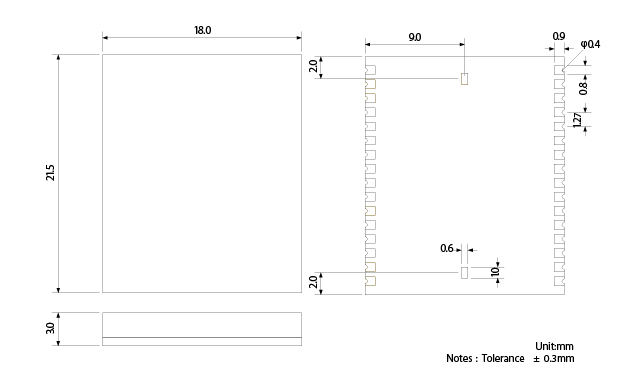

Drawing

Contact

Locate a Distributor Contact a local distributor for further details.

* Specifications subject to change without notice.
