DR/GPS Receiver module Model GV-86NEW

For Automotive/Industrial For Consumer

Small Package, High Sensitivity DR (Dead Reckoning) + GPS Module

GV-86 is the high sensitivity GPS Receiver Module supporting Dead Reckoning (DR) function enabling positioning in environments where no satellite signals are received

Related Contents

Features

  • Supports GPS, QZSS and SBAS

    ・In addition to high position accuracy, GV-86 achieves superior performance as regular GPS Receiver Modules such as fast TTFF, highly improved Noise Tolerance ・Galileo Ready. The software can be upgraded to support concurrent Multi-GNSS reception with GPS, Galileo, QZSS and SBAS
  • Advanced DR Performance

    ・Achieved DR performance in car navigation systems with a stand-alone GPS module
    ・Offsets misalignments and position jumps of GPS, complements position during GPS signal outages
    ・Dead Reckoning positioning accuracy can be improved with feedback from the navigation application (Map Matching Feedback function)
  • Emphasis on usability of Dead Reckoning, no need for sensor processing on host CPU

    ・Selectable from 3 different sensor configurations depending on customer’s product concept
    1. 3-Aixs Gyro Sensor + 3-Aixs Accelerometer + Speed Pulse
    2. 1-Aixs Gyro Sensor + 3-Aixs Accelerometer + Speed Pulse
    3. 1-Aixs Gyro Sensor + Speed Pulse

    ・Autonomous, self-calibrating, tightly coupled Dead-Reckoning.
    ・Dead Reckoning calculation is performed on the module and the results outputted in NMEA data
  • Link to the Smartphone(Apple CarPlay, Google Android Auto)

    Ideal for the solutions to achieve highly-accurate Dead Reckoning positioning like car navigation system with CarPlay and Android Auto.
    Try and see the performance of Dead Reckoning with Android Application connecting to the GV-86 Evaluation Kit VN-861.
    Download GNSS Conductor for Android

    *Android and Android Auto are the registered brand of Google Inc. Apple CarPlay is the registered brand of Apple Inc.
  • Auto Orientation Function

    Flexible installation with original axial correction
    ・Sensors can be mounted sideways, on inclined surfaces, upside-down
    ・Adapted for installation on inclined surface of the dashboards
  • Designed for real-life usage

    Evaluates driving patterns under actual environment
    ・Adapted for various cases causing large position errors such as “turn table”, “low-speed U-turn” etc.
  • Fast TTFF

    Hot start: <1 sec
  • High Positioning Rate

    Configurable position output update rate up to 10Hz (10 times per sec.)
  • Improved Noise Tolerance

    Reduces effects of internal and external noise
    Active Anti-Jamming
    Advanced Multipath Mitigation
  • Android™ driver and API

    Furuno can provide Android driver and API, which can be used with Furuno's GNSS chip/module for Android application developers.
    Android driver may help to reduce the development cost to install the GNSS chip/module in the navigation devices or the automotive devices based on Android.
    for more details, click here
  • Embedded Flash ROM

    Suitable for long-term use backed by FURUNO’s continuous support and function enhancement
  • Suitable for Automotive Applications

    Market’s standard size, superior design for assembly
    ・24Pin LCC (Leadless Chip Carrier)
    ・12.2mm x 16.0mm x 2.8mm
    ・Visible soldering condition with end-face electrodes

Specifications

GENERAL

GNSS Reception CapabilityGPS L1 C/A, QZSS L1 C/A, SBAS L1 C/A
(Ready): Galileo E1B/E1C, QZSS L1S
GNSS Reception16 channels (GPS, QZSS, SBAS)
Update RateGNSS: 1 / 2 / 5 / 10 Hz
Dead Reckoning: 1 / 2 / 5 / 10 Hz
SensitivityGPS
Tracking: -161 dBm
Hot Start: -161 dBm
Warm Start: -147 dBm
Cold Start: -147 dBm
Reacquisition: -161 dBm

*Measurement platform with recommended active antenna
Position Accuracy (Horizontal)GPS: 2.5m (CEP)
GPS + SBAS: 2.0m (CEP)

*Measurement platform with recommended active antenna
*Update rate: 1Hz
Dead Reckoning PerformanceGround Tracking Distance * 1%
TTFF (Typical)Hot Start: <1 sec (@-130 dBm)
Warm Start: 30 sec (@-130 dBm)
Cold Start: 33 sec (@-130 dBm)

*Measurement platform with recommended active antenna
Supply Voltage3.3VDC
Power ConsumptionAcquisition Mode: 68 mA
Backup Supply1.4 to 3.6VDC / 10 μA (Typ)
Operating Temperature-40°C to +85°C
Storage Temperature-40°C to +85°C
Package24Pin LCC (Leadless Chip Carrier)
12.2mm x 16.0mm x 2.8mm
ProtocoleSIP (NMEA 0183 Standard Ver. 4.10)
InterfacesUART, I2C, Forward/Reverse signal, Speed Pulse, Time Pulse, Clock
Anti-JammingAvailable
Multipath MitigationAvailable

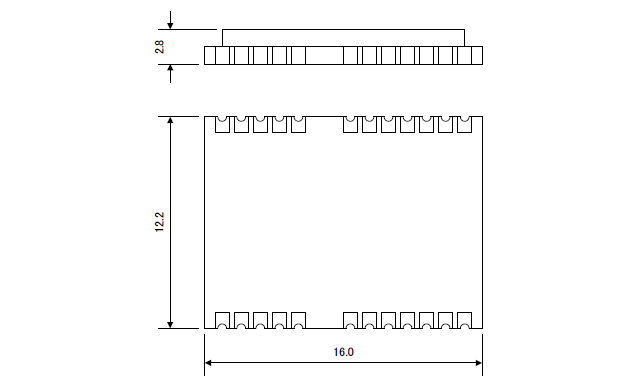

Drawing

Evaluation Kit

GN-87F Evaluation KitGV-86 Evaluation Kit is available to evaluate the performance of GV-86.
The Evaluation Kit can supply power and communicate with USB interface.

FEATURES
  • 5VDC Power supply through USB bus power
  • Serial communication through USB
  • 1PPS output from the SMA connectors
  • SMA antenna connection
  • Outer size is (w) 110mm x (D) 112mm x (H) 30mm
  • Weight is about 260g
  • Accessories are USB cable, GPS Antenna, CAR I/F cable and CD ROM containing the Communication Software, the USB driver and the documentations

Documentation
