DR/Multi-GNSS Receiver Module Model GV-87NEW

For Automotive/Industrial For Consumer

Dead Reckoning + Concurrent Multi-GNSS Receiver Module

GV-87 is the concurrent Multi-GNSS Receiver Module supporting Dead Reckoning (DR) function, enabling high accuracy positioning with Multi-GNSS and also positioning in environments where no satellite signals are received.

Related Contents

Features

  • Multi-GNSS, Concurrent reception of GPS and GLONASS

    ・The best positioning accuracy and smoothest ground tracking
    ・Improved of robustness thanks to concurrent reception of GPS and GLONASS signals
    ・Supports concurrent GPS, GLONASS, SBAS and QZSS. Galileo Ready
  • Position available even in the tunnels, underground parking lots. Effective in urban canyons

    ・Reduces degradation of position accuracy in harsh environments thanks to a combination of concurrent Multi-GNSS and Dead-Reckoning
    ・Provides instant position at startup in underground parking lot type environments (Garage Start function)
    ・Dead Reckoning positioning accuracy can be improved with feedback from the navigation application (Map Matching Feedback function)
  • Position accuracy of 2.5m (1σ) has been achieved in urban canyon

    To improve the Dead Reckoning performance, it enables to keep high accuracy positiong even in very harsh environment
    for more details, click here
  • Emphasis on usability of Dead Reckoning, no need for sensor processing on host CPU

    ・Selectable from 3 different sensor configurations depending on customer’s product concept
    1. 3-Aixs Gyro Sensor + 3-Aixs Accelerometer + Speed Pulse
    2. 1-Aixs Gyro Sensor + 3-Aixs Accelerometer + Speed Pulse
    3. 1-Aixs Gyro Sensor + Speed Pulse

    ・Autonomous, self-calibrating, tightly coupled Dead-Reckoning.
    ・Dead Reckoning calculation is performed on the module and the results outputted in NMEA data
  • Link to the Smartphone(Apple CarPlay, Google Android Auto)

    Ideal for the solutions to achieve highly-accurate Dead Reckoning positioning like car navigation system with CarPlay and Android Auto.
    Try and see the performance of Dead Reckoning with Android Application connecting to the GV-87 Evaluation Kit VN-871.
    Download GNSS Conductor for Android

    *Android and Android Auto are the registered brand of Google Inc. Apple CarPlay is the registered brand of Apple Inc.
  • Auto Orientation Function

    Flexible installation with original axial correction
    ・Sensors can be mounted sideways, on inclined surfaces, upside-down
    ・Adapted for installation on inclined surface of the dashboards
  • Designed for real-life usage

    Evaluates driving patterns under actual environment
    ・Adapted for various cases causing large position errors such as “turn table”, “low-speed U-turn” etc.
  • Fast TTFF

    Hot start: <1 sec
  • High Positioning Rate

    Configurable position output update rate up to 10Hz (10 times per sec.)
  • Improved Noise Tolerance

    Reduces effects of internal and external noise
    Active Anti-Jamming
    Advanced Multipath Mitigation
  • Android™ driver and API

    Furuno can provide Android driver and API, which can be used with Furuno's GNSS chip/module for Android application developers.
    Android driver may help to reduce the development cost to install the GNSS chip/module in the navigation devices or the automotive devices based on Android.
    for more details, click here
  • Embedded Flash ROM

    Suitable for long-term use backed by FURUNO’s continuous support and function enhancement
  • Suitable for Automotive Applications

    Market’s standard size, superior design for assembly
    ・24Pin LCC (Leadless Chip Carrier)
    ・12.2mm x 16.0mm x 2.8mm
    ・Visible soldering condition with end-face electrodes

Specifications

GENERAL

GNSS Reception CapabilityGPS L1 C/A, GLONASS L1OF, QZSS L1 C/A, SBAS L1 C/A
(Ready): Galileo E1B/E1C, QZSS L1S
GNSS Reception26 channels (GPS, GLONASS, QZSS, SBAS)
Update RateGNSS: 1 / 2 / 5 / 10 Hz
Dead Reckoning: 1 / 2 / 5 / 10 Hz
SensitivityGPS
Tracking: -161 dBm
Hot Start: -161 dBm
Warm Start: -147 dBm
Cold Start: -147 dBm
Reacquisition: -161 dBm

GLONASS
Tracking: -157 dBm
Hot Start: -157 dBm
Warm Start: -143 dBm
Cold Start: -143 dBm
Reacquisition: -157 dBm

*Measurement platform with recommended active antenna
Position Accuracy (Horizontal)GPS: 2.5m (CEP)
GPS + SBAS: 2.0m (CEP)
GPS + SBAS + GLONASS: 2.0m (CEP)

*Measurement platform with recommended active antenna
*Update rate: 1 Hz
Dead Reckoning PerformanceGround Tracking Distance * 1%
Position Accuracy (urban canion): 2.5m (1σ)
TTFF (Typical)Hot Start: <1 sec (@-130 dBm)
Warm Start: 30 sec (@-130 dBm)
Cold Start: 33 sec (@-130 dBm)

*Measurement platform with recommended active antenna
Supply Voltage3.3VDC
Power ConsumptionAcquisition Mode: 72 mA
Backup Supply1.4 to 3.6VDC / 10 μA (Typ)
Operating Temperature-40°C to +85°C
Storage Temperature-40°C to +85°C
Package24Pin LCC (Leadless Chip Carrier)
12.2mm x 16.0mm x 2.8mm
ProtocoleSIP (NMEA 0183 Standard Ver. 4.10)
InterfacesUART, I2C, Forward/Reverse signal, Speed Pulse, Time Pulse, Clock
Anti-JammingAvailable
Multipath MitigationAvailable

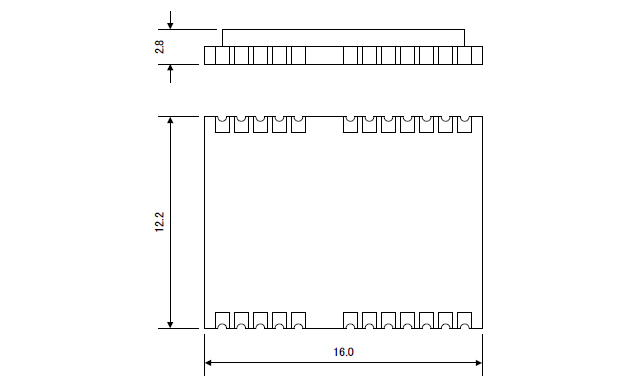

Drawing

Evaluation Kit


GV-87
 Evaluation Kit is available to evaluate the performance of GV-87.
The Evaluation Kit can supply power and communicate with USB interface.

FEATURES
  • 5VDC Power supply through USB bus power
  • Serial communication through USB
  • 1PPS output from the SMA connectors
  • SMA antenna connection
  • Outer size is (w) 110mm x (D) 112mm x (H) 30mm
  • Weight is about 260g
  • Accessories are USB cable, GPS-GLONASS Antenna, CAR I/F cable and CD ROM containing the Communication Software, the USB driver and the documentations
