COLOR SECTOR SCANNING SONAR Model CH-37BB

For Fishing Vessels

Full-circle, sector or vertical-fan scanning modes.|Histrical seabed image using unique 3D graohics processor.

High-speed multi-sector scanning and variety of presentation mode. Available in 60, 113 or 162 kHz.

Black Box VIDEO OUT

Related Contents

Features

  • Full-circle, sector or vertical-fan scanning display modes

  • Historical seabed image using unique 3D graphics processor

  • Choice of 60, 113 or 162 kHz

  • Normal or fast scanning

  • 8 or 16 color presentation

  • Displays ship's position, heading, intended course line, and water currents when interfaced with appropriate sensors

  • One-touch selection of optimum sonar settings with user-programmable "custom" function keys

  • The optional MS-100 motion sensor electronically stabilizes the sounding beam for up to 20 degree roll/pitch for a steady picture presentation.

  • The dual mode for easy evaluation of distribution of fish school at vertical/horizontal planes

Specifications

General

Basic RangeFull-circle mode: 12 ranges from 30 to 1600 m (100 to 6000 ft, 20 to 1000 fa)
Vertical-fan mode: 12 ranges from 10 to 1000 m (30 to 3000 ft, 10 to 500 fa)

Transceiver Unit

Output Power60 kHz: 0.8 kW, 113 kHz: 1.3 kW, 162 kHz: 1.5 kW

Power Supply

Processor Unit24 VDC: 16.5 A (340 W when lowering or raising transducer)
100/110/115/200/220/240 VAC, 50-60 Hz with 2 x Rectifier

Others

WeightProcessor unit: 18 kg
Transceiver unit: 8.5 kg
Hull unit: 55 kg

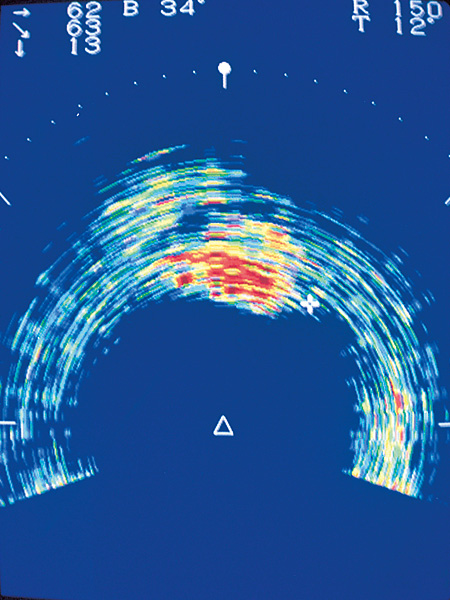

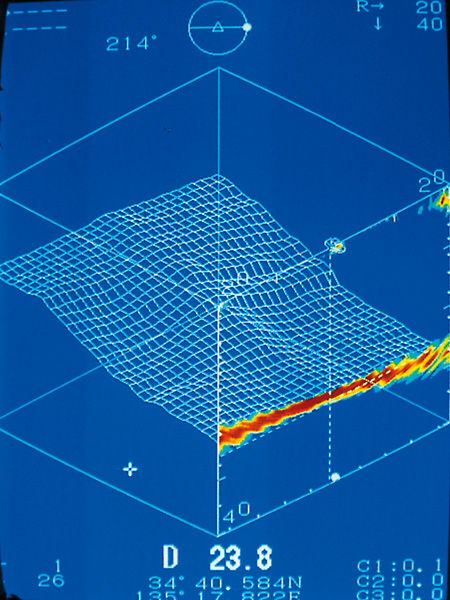

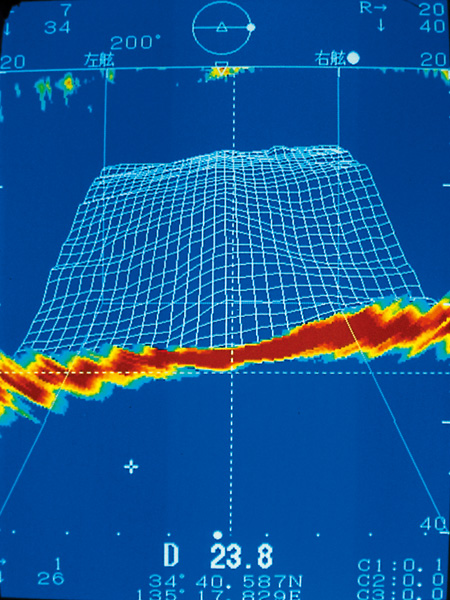

Screenshots

Equipment List

Standard

  • Processor unit
    CH-371
  • TRANSCEIVER UNIT
    CH-341
  • HULL UNIT with 2.2 m SHAFT
    CH-342
  • STANDARD INSTALLATION MATERIALS
    1 SET
  • STANDARD SPARE PARTS
    1 SET
  • STANDARD ACCESSORIES
    1 SET

Option

  • Marine Display MU-190V
  • RETRACTION TANK 1M STEEL
    3.5M STEEL
    1.8M FRP
  • RETRACTION TANK (STRAIGHT) 1.0M FRP
  • CLINOMETER BS-704
  • REMOTE CONTROL CH-343-E with Hanger
  • 5P TWISTED PAIR CABLE 5M、10M、15M、20M
  • SIGNAL CABLE ASSEMBLY 03S9202-2
    03S9226-2
    64S4071-2
    64S4071-1
  • MOTION SENSOR MS-100
  • RECTIFIER (CHINA) RU-1746B2 (100/240 VAC)
    RU-3423 (100/240 VAC)
  • LOUDSPEAKER
    SC-05WR (KOREA)
    4 OHM

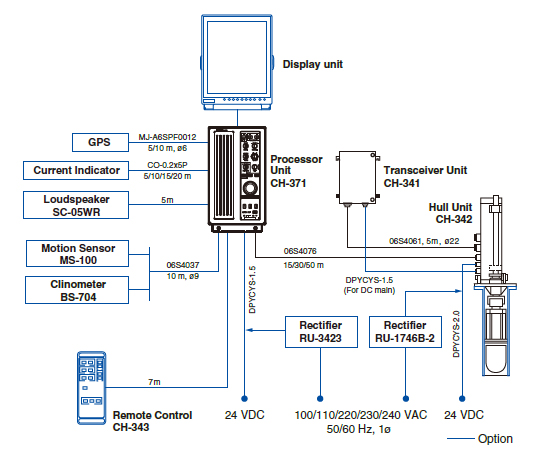

Interconnection Diagram
