Dual Frequency, Dual views of the Searchlight's Sonar power

Faster, easier, more reliable than ever

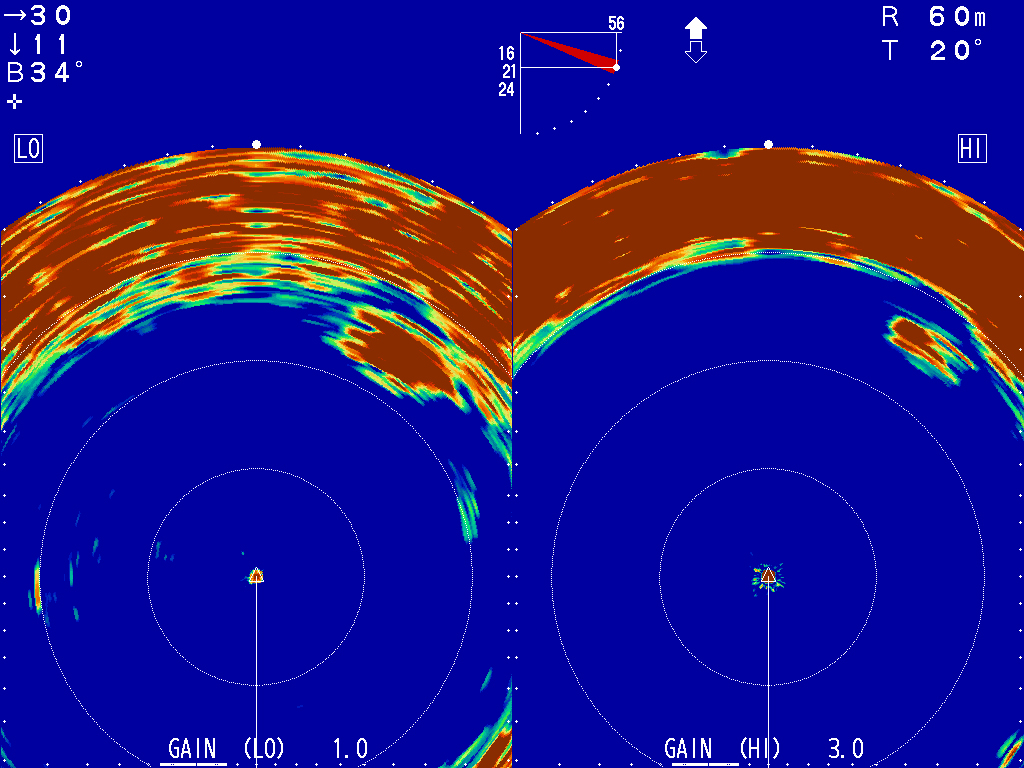

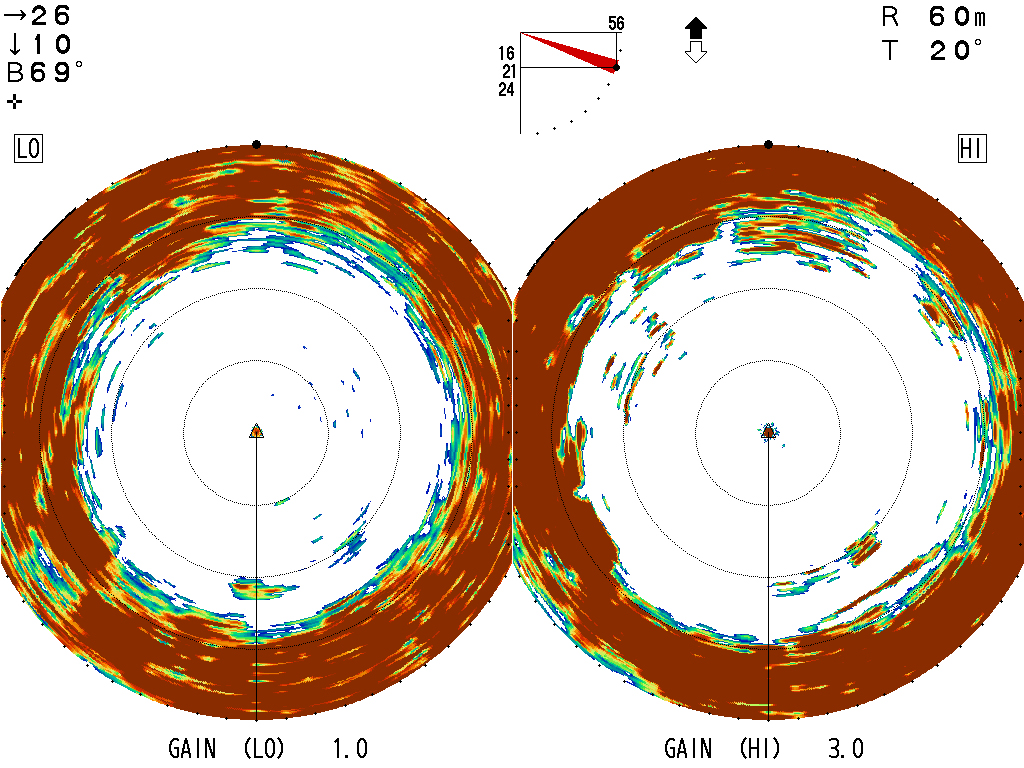

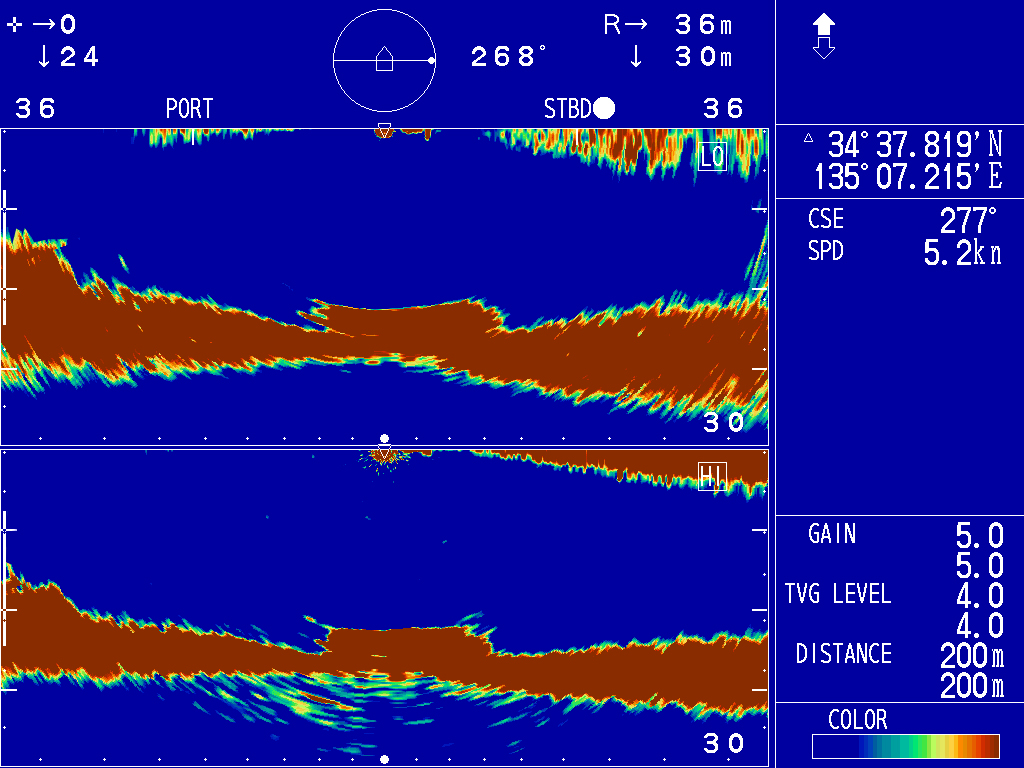

  • Two frequencies combined to increase your chances of finding fish

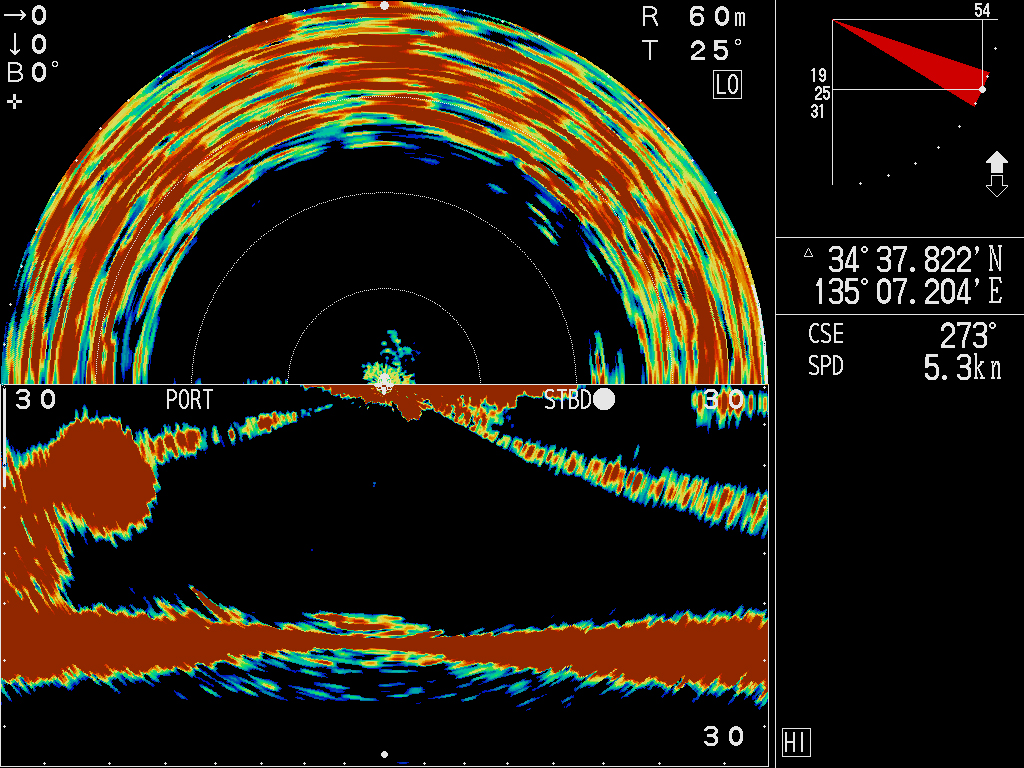

    The low frequency will serve to cover a wide area horizontally around the ship, while the high frequency can be used in a vertical profile mode to help identify fish school, including their size and their movement. This information can help in properly deploying a net or steering a better course to reach the targeted school.

    *Dual-frequency 60/153 kHz or 85/215 kHz to be selected

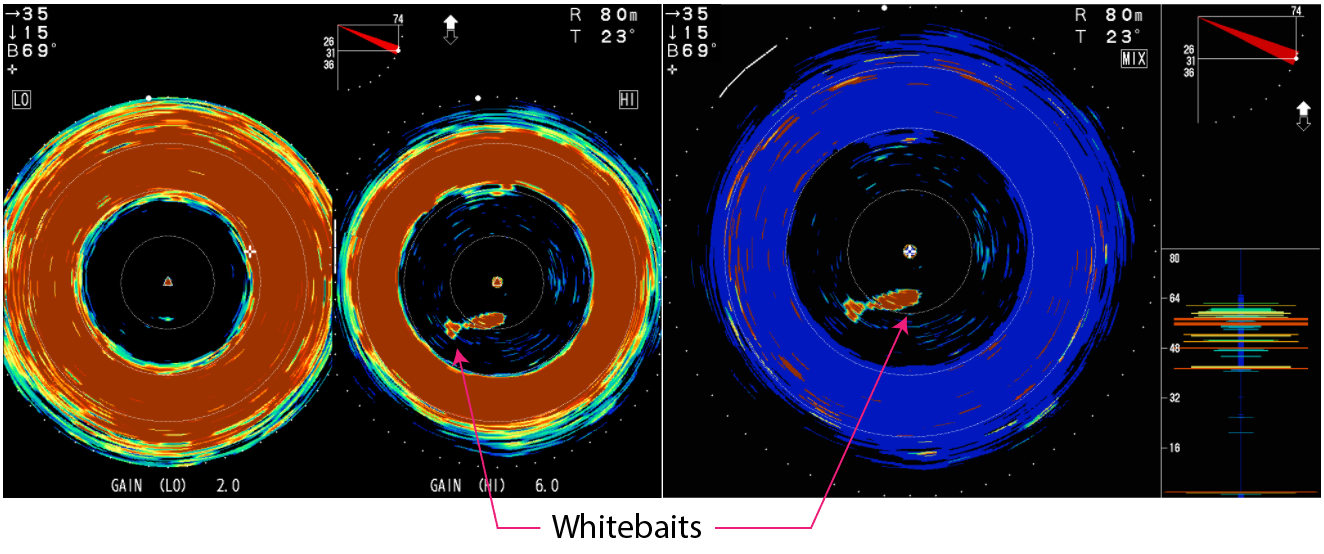

  • The dual-frequency can reveal the presence of sardines and whitebait

    The use of both low and high frequencies shows the echoes that matter most to the fisherman. By comparing the two frequencies, or simply overlaying them, it becomes easy to locate and identify whitebaits.
  • Incredibly fast training speed means less tracking failures.

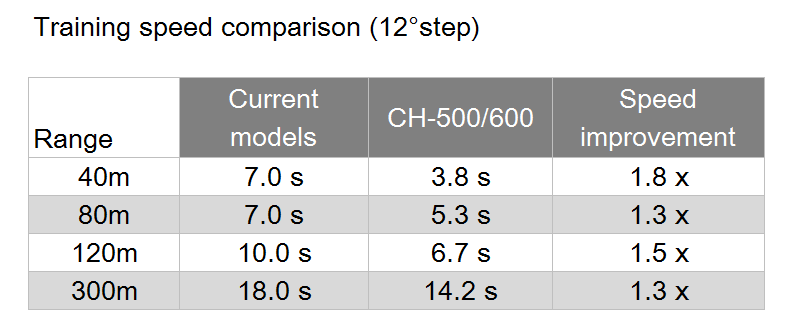

    ■ Faster motor delivering quicker training speed 【NEW】
    Quick train speeds allow the sonar display to be refreshed at a faster rate aiding in earlier detection of fish and obstructions.

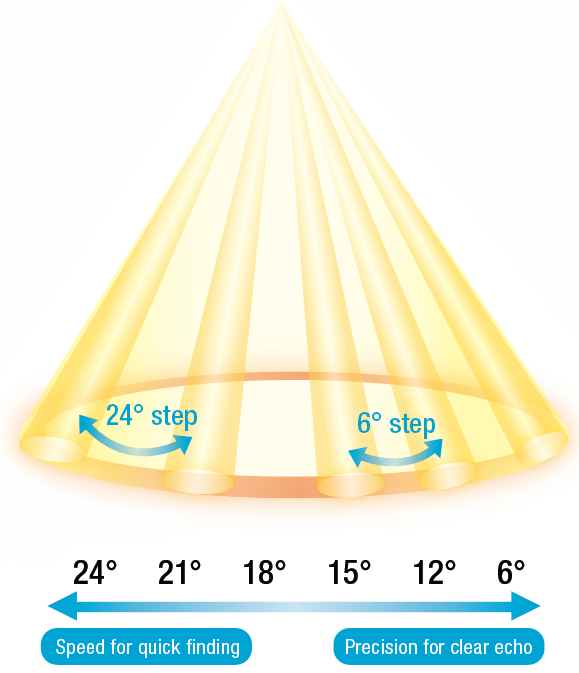

    ■ 6 step angles for speed adjustement according to user's needs 【NEW】

    The CH-600 is one of the most comprehensive and fastest sonars of its kind. It provides 6 selectable step variations (6°, 12°, 15°, 18°, 21° or 24°) for high scanning speed that can cover sector widths from 24° to 360° in a couple of seconds. Thanks to its high training speeds, the CH-600 can rapidly scan a large area providing the ultimate fishing and navigational experience.

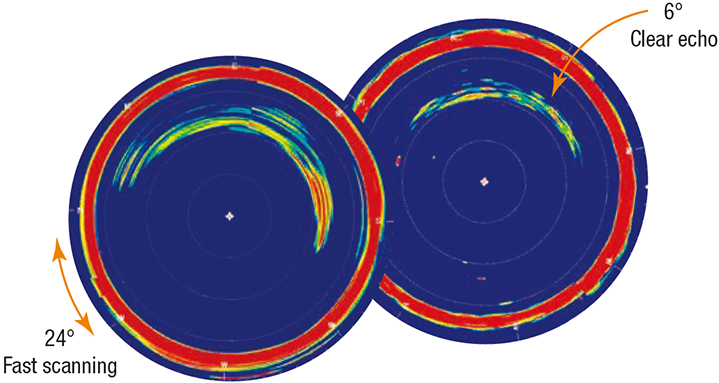

    Expert tip:  When moving fast, you can use a wider step angle in order to get a glimpse of the surrounding area. If you detect sonething interesting, slow down and switch to a decreased step angle for clearer echoes.

  • Smart features to efficiently catch fish

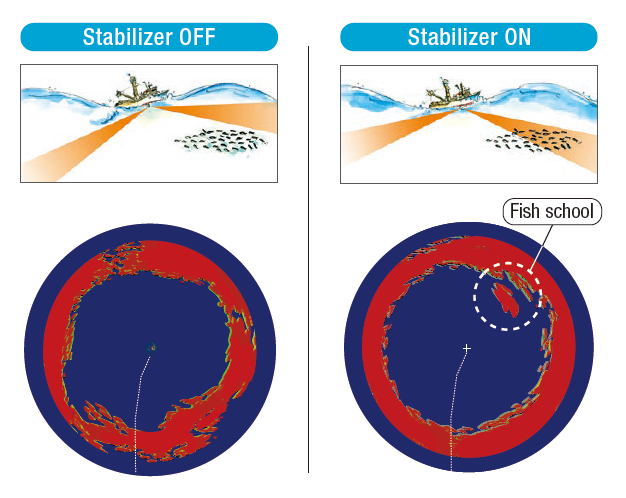

    ■ Built-in motion sensors provide a stabilized target presentation in rough sea conditions
    【Standard equipment】 ​

    The CH-600 searchlight sonar is the first of its class to have integrated motion sensors.
    In rough seas, vessels tend to move in every direction. This movement can cause inaccurate target information to be displayed. The role of the integrated motion sensors is to precisely compensate for those negative effects and provide accurate data to the user.

    In the right hand picture above, you can see that once the stabilizer is activated, the bottom echo recovers its circular shape. The sonar is then able to provide accurate data in different sea conditions. Thanks to its integrated motion sensors, the CH-600 is able to detect fish that didn’t appear with the non-stabilized echo.

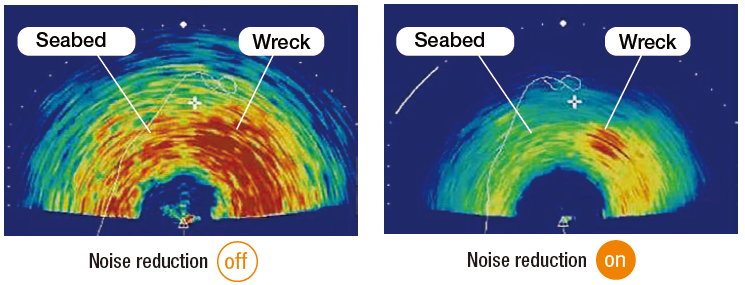

    ■ Reverberation reduction function 【NEW】

    The reverberation reduction offers both better understanding and better appreciation of
    the nature of detected echoes. Below is an example of how the Reverberation reduction function highlights the wreck from the surrounding seabed. .

    *The echo may be subject to interferences from other Fish Finders
    *Schools with excessivly high density may appear with a weaker echo color

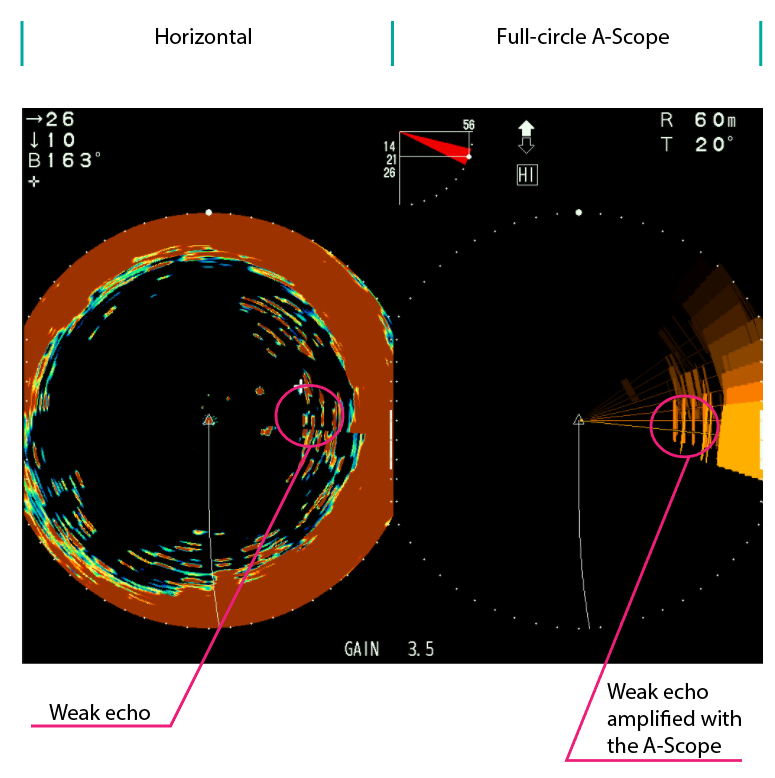

    ■  Full-circle A-Scope mode and audible target detection

    The A-Scope mode shows the last detected echoes with one single color. The nature of the target can be quickly understood as the size of the echo is greatly amplified and even the smallest echoes are shown.
    *The more opaque the color, the latest the echo.

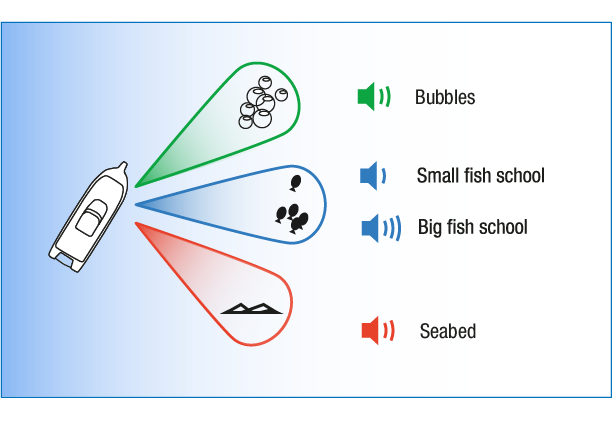

    The CH-600 also features fish and obstacle audio signals depending on the nature and the size of the detected object. Whether there are air bubbles, big or small fish schools, and seabed, the emitted sound is different. This feature shows its usefulness when used with the Full-circle A-scope mode, our recommanded combination to know the nature of the target with precision, and during long sea trips, as it frees the user from continuously watching the screen.

    Small fish school

    Big fish school



    *Optional Loudspeaker required

    ■ Quick Gain Control

    ■ Various display modes

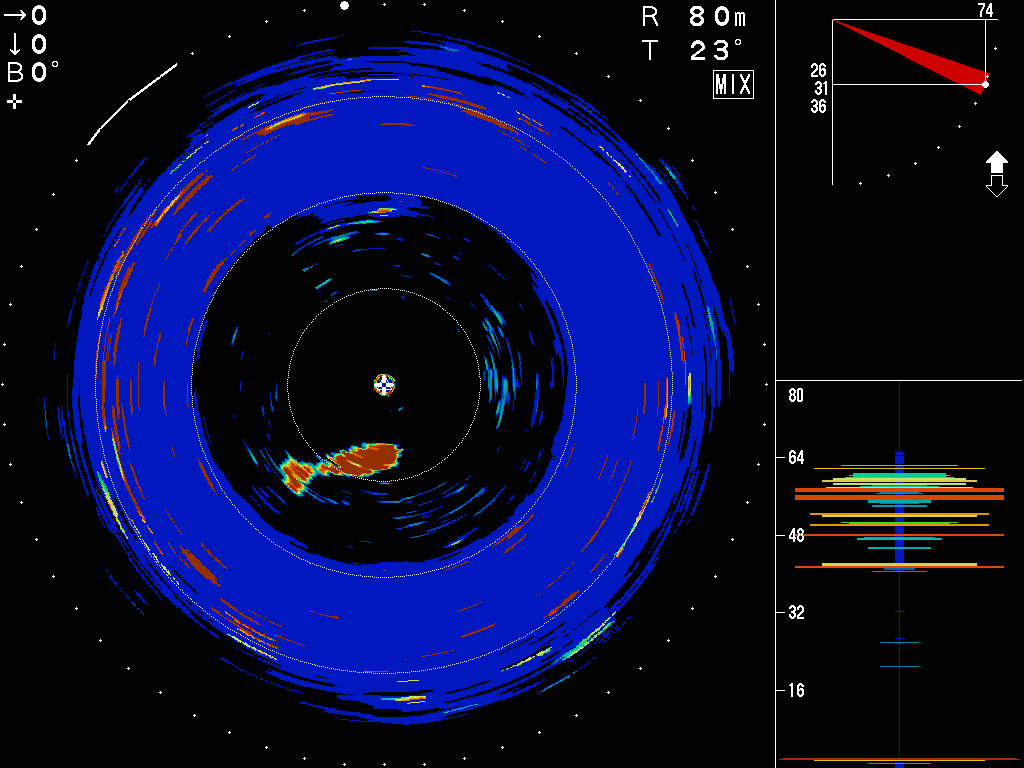

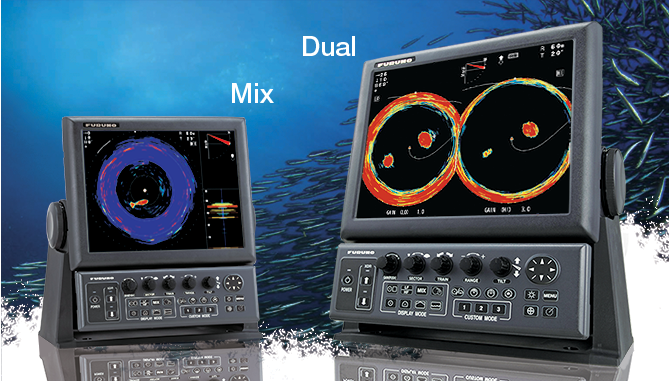

    MIX Displays

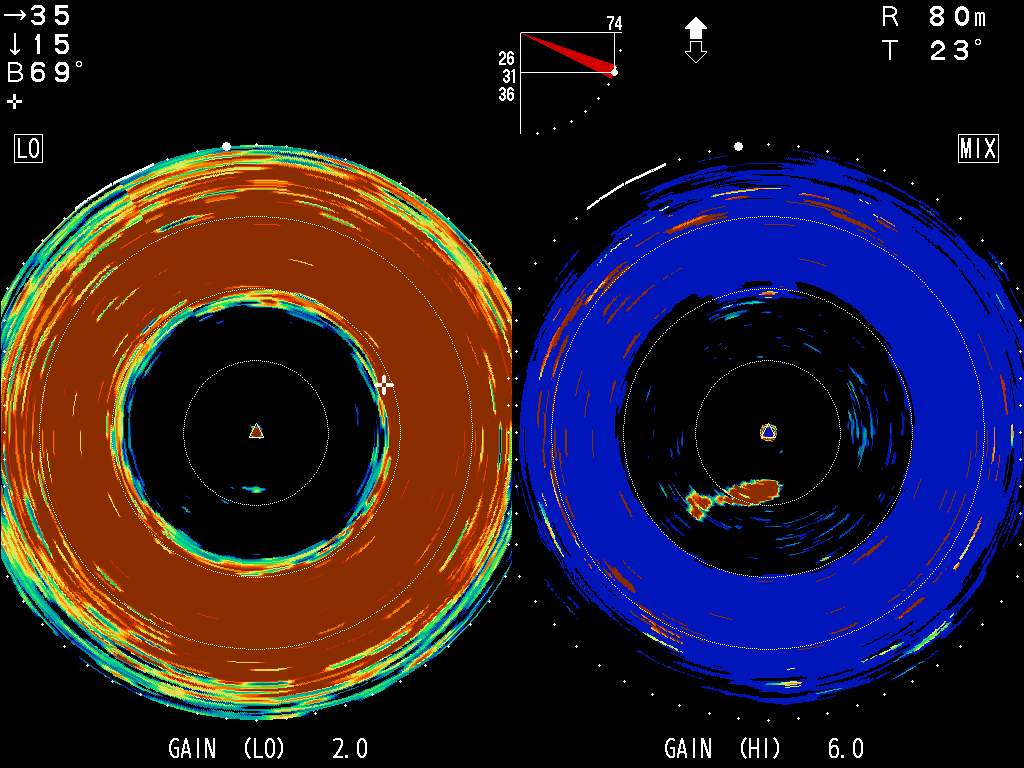

    ・Low Freq./MIX

    Dual-Frequency Displays

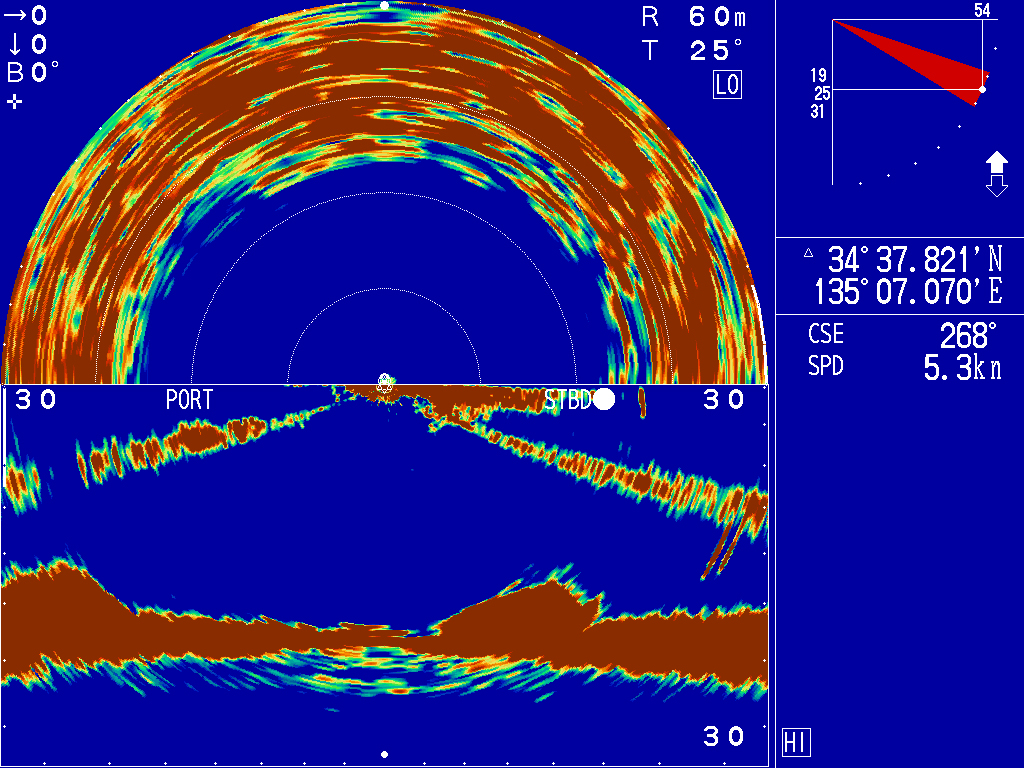

    ・Dual Horizontal/Vertical
    ・Dual Horizontal
    ・Dual Horizontal (zoom)
    ・Dual Vertical

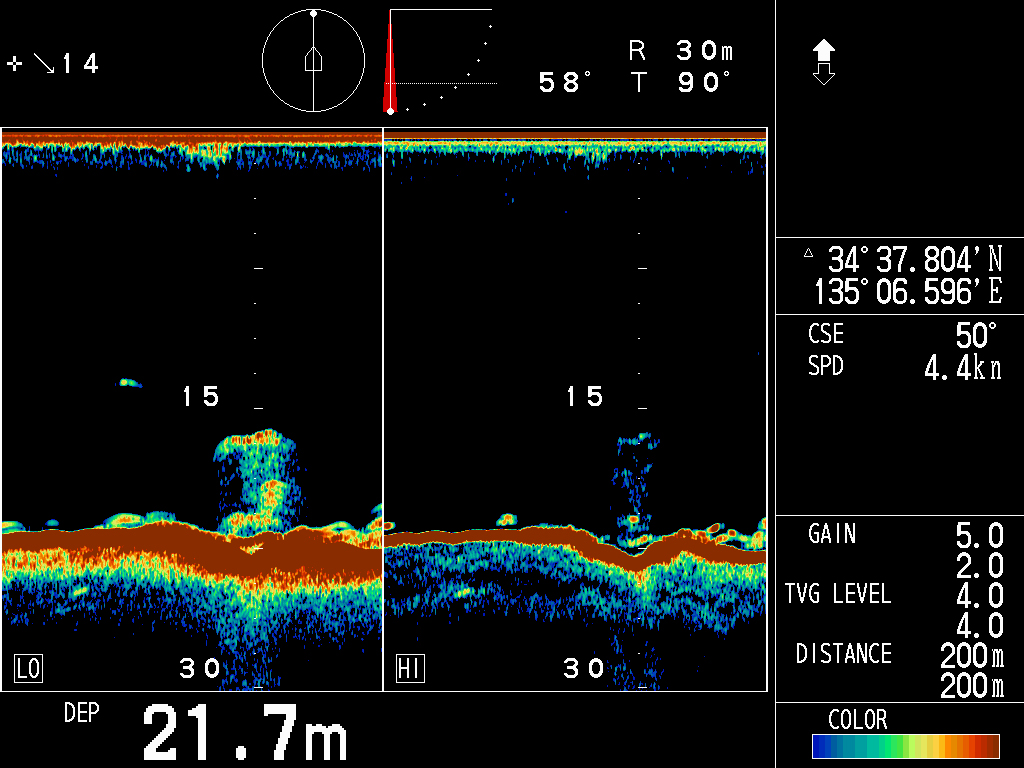

    ・Dual Echo Sounder

    Conventional Displays
    ・Horizontal (zoomed)
    ・Echo sounder
    ・Full-circle A-Scope
    ・Horizontal/ Full-circle A-scope
    ・Horizontal/ vertical (split)
    ・Horizontal/ Vertical (side window)
    ・Horizontal/ A-Scope
    ・Echo Sounder/ A-Scope
  • Image clarity and high resolution echoes

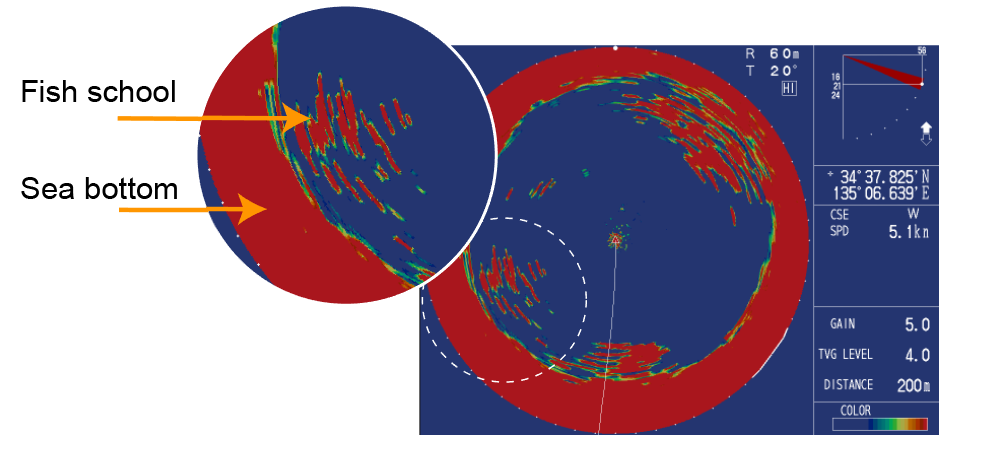

    ■ Advanced signal processing offering high resolution【NEW】

    A powerful signal and image processing based on a unique interpolation technology provides images in high resolution. Even if the fish are located near the seabed, the different echoes are clearly shown and easy to understand. Additionally, the high resolution echo display gives crisp, clear echoes, which reduces stress on the eyes.

    ■ Semi-transparent menu 【NEW】

    Keep an eye on the targets while changing the settings in the menu thanks to a semi-transparent window
  • Designed for all environments

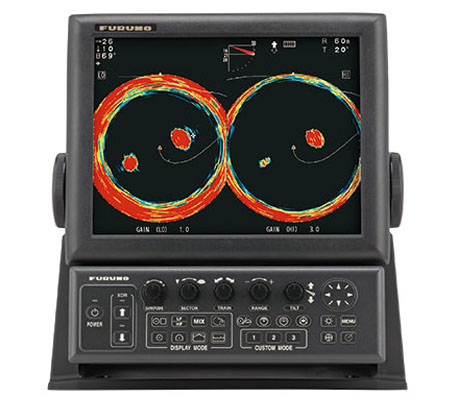

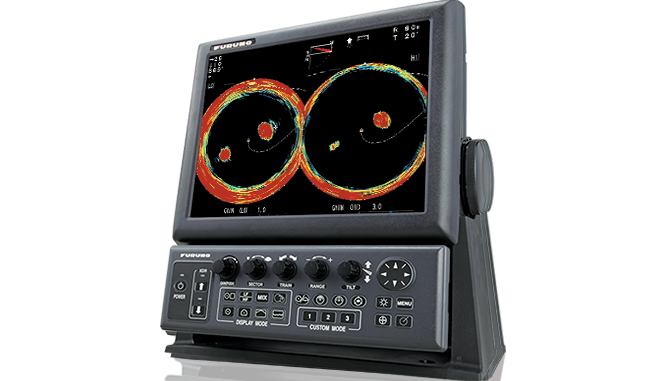

    ■ 12.1 inch, High briliance display (XGA)

    ■ Water-resistant to withstand the most rigorous environments

    Display unit (MU-121) Control Unit (CH-502), Hull unit and Transceiver unit are all water-resistant (IP55)

    ■ Hull unit offering various installation possibilities

    ・ 2 choices of dual-frequency (60/153 kHz and 85/215 kHz)
    ・ 2 types of stroke, 5 types of shaft, various cable lengths
    ・ 2 types of power supply ( VDC 12/24)
    ■  Blackbox configuration allowing use of other displays

    Users can freely install their favorite monitor (local supply) if choosing the blackbox configuration
  • 12 languages available

    English, Thai, Vietnamese, Chinese, Spanish, Indonesian, Malay, Burmese, French, Norwegian, Italian, Japanese


Transceiver Unit

Frequency60/153 kHz or 85/215 kHz (Selectable)
Output Power1 kW
Pulse Length0.2~20.0 ms, according to range
TVGLevel: 100 dB max, Distance: 1000 m max.
RangeHorizontal: 10 to 2400 m, 15 steps (user selectable)
Vertical: 10 to 600 m, 15 steps (user selectable)
Audio Output2 W (8 ohms)
Frequency 0.9 to 1.2 kHz(external speaker required)


Screen type12.1" Color LCD Display、XGA (1024 x 768)
Echo colorEcho color: 32, 16 or 8 colors (Selectable)
Back-ground: 3 colors selected (Selectable)
Display modesNormal screen: Horizontal, Horizontal (zoom), Vertical, Full-circle A-Scope, Echo Sounder
Split screen: Half-Horizontal + Vertical, Horizontal + vertical, Horizontal + Full-circle A-scope, Horizontal + A-Scope, Horizontal + History, Echo Sounder + A-Scope
Dual Frequency: Dual Horizontal + Dual Vertical + Dual Horizontal/Vertical + Dual Horizontal/History + Dual Echo Sounder + Dual Horizontal Expansion + Dual Horizontal/Vertical zoomed + MIX mode

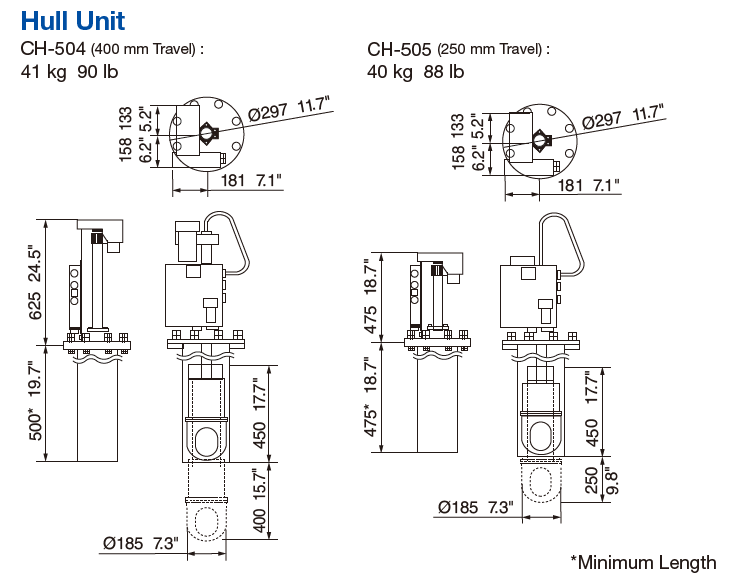

Hull Unit

Raising/Lowering time30 s st 400 mm travel, 20 s at 250 mm travel
Allowable Ship's Speed20 kn or less (15 kn during raise/lower operation)


Ports●Video signal output : 1 port, HDMI, XGA
●NMEA0183 (IEC61162-1): 2 ports, V1.5/2.0/3.0/4.0/4.1, 4800/9600/19200/38400 bps
●NMEA2000 : 1 port
●External KP : 1 port. I/O

Power Supply

Processor Unit12-24 VDC: 4.7-2.3 A
Transceiver Unit12-24 VDC: 4.7-2.3 A
Rectifier100/110/115/220/230 VAC, 1 phase, 50/60 Hz, 13 A max
12-24 VDC: 2.2-1.1 A
(7.2-3.6 A: during raising)


TemperatureDisplay/Transceiver/Control Unit: -15°C to +55°C
Hull Unit 0°C to + 55°C (transducer: -15°C to +35°C)
WaterproofingDisplay/Control Unit IP55
Transceiver/ Hull Unit IP22


WeightDisplay Unit: 4.0 kg , 9 lb
Transceiver Unit: 3.3 kg , 7.2 lb
Hull Unit: 41 kg , 90 lb (Travel: 400 mm), 40 kg , 88 lb (Travel: 250 mm)


Equipment List


  • Display Unit :
  • Control Unit :
  • Transceiver Unit
  • Hull Unit*
    CH-504 (400 mm transducer travel)
    CH-505 ( 250 mm transducer travel)
    *Depending on the selected configuration
  • Installation Materials and Spare Parts


  • Control UnitCH-502
  • Remote Controller CH-256
  • Rectifier Unit RU-1746B-2
  • Loudspeaker CA-151S-ASSY
  • Rectifier Unit RU-1746B-2
  • Display Unit installation kit, Installation kit, Cable, Mounting Bracket , Retraction Tank

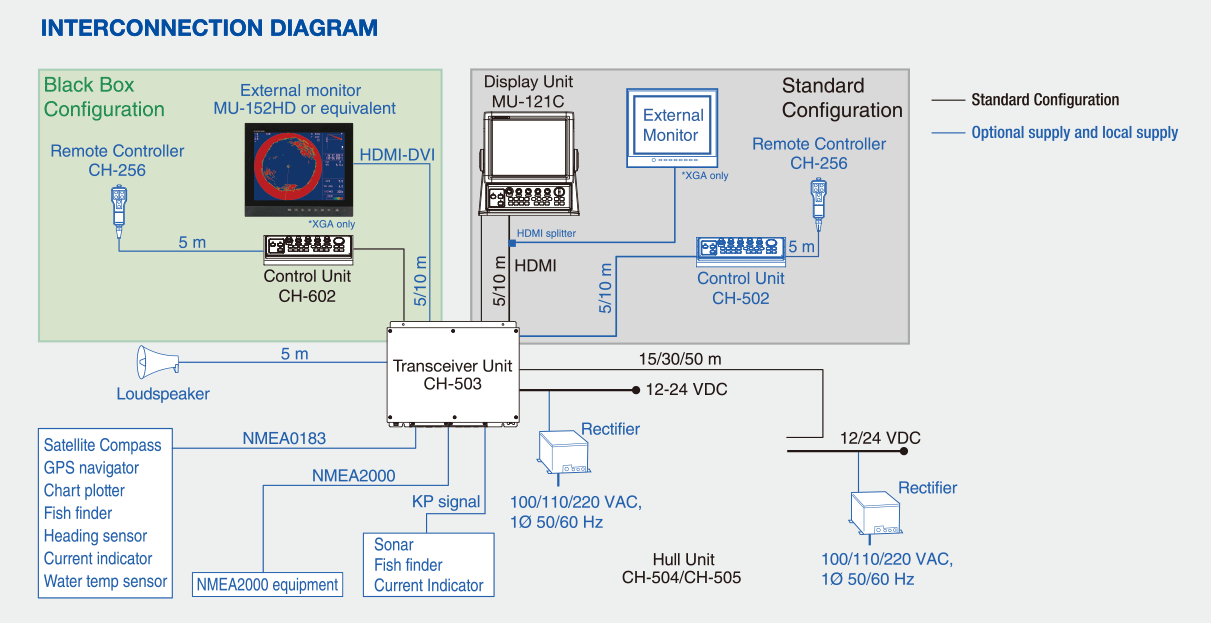

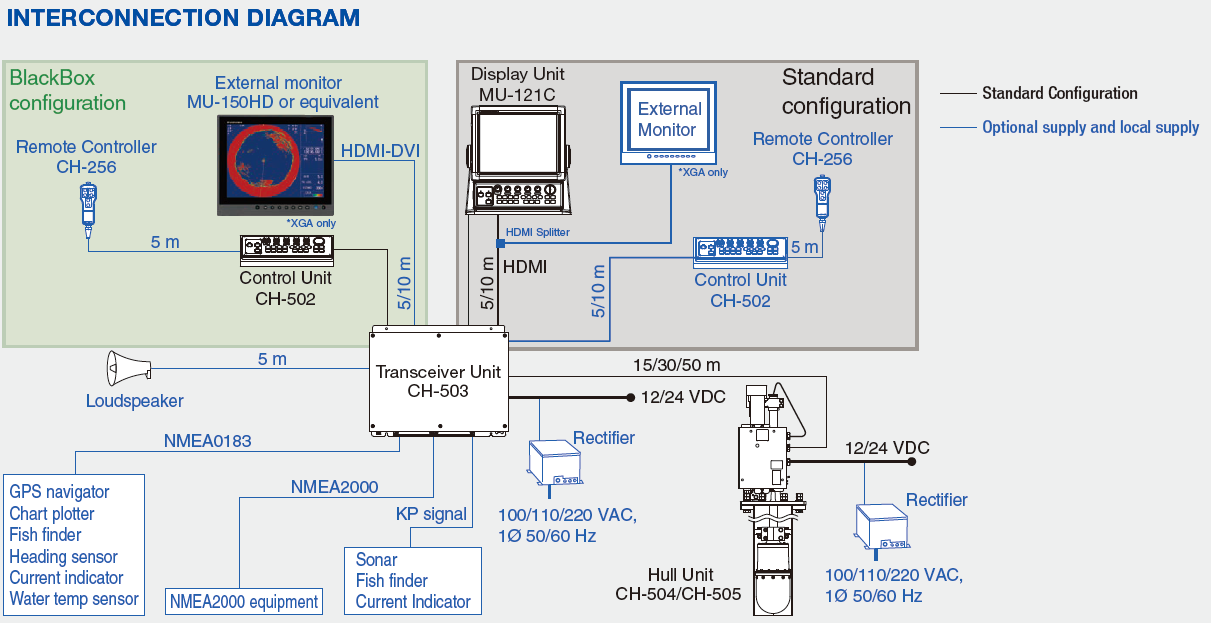

Interconnection Diagram
