FULL-CIRCLE SCANNING SONAR Model CSH-5L MARK-2

For Fishing Vessels For Workboats

High power transmitter for long range fish detection and determining changing seabed conditions

Related Contents

Features

  • Full-circle scanning sonar detects and instantaneously displays fish schools and underwater conditions

  • Vivid 16-color display assists in recognition of bottom structure, concentration and distribution of fish schools

  • Various fishing and navigation data* keeps operator abreast of fishing and navigation conditions

    *Requires appropriate sensors
  • Four user-programmable function keys for quick set up according to fishing conditions or specific functions

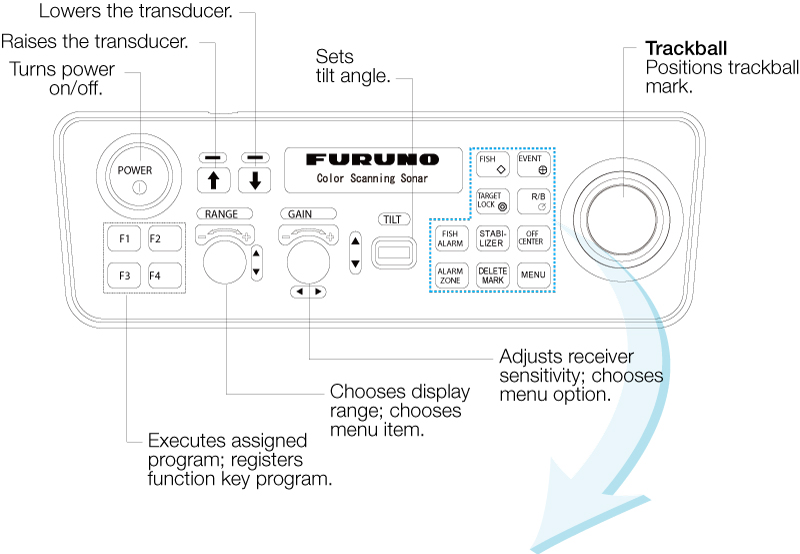

    The control unit of CSH-5L MARK-2 combines ergonomics and functions in a user-friendly manner. All controls quickly respond to the operator’s command and the associated reaction can be seen on the screen immediately. Four user-defined functions can be assigned to Function keys (F1 to F4), providing for rapid setup and operation.



    FISH: Inscribes fish mark. EVENT: Inscribes event mark.
    TARGET LOCK: Tracks trackball-selected position. R/B: Displays range and bearing marks.
    FISH ALARM: Turns fish alarm on/off. STABILIZER: Compensates for affects of ship's pitching and rolling.
    OFF CENTER: Shifts the display. ALARM ZONE: Sets fish alarm zone.
    DELETE MARK: Deletes selected mark. MENU: Opens/closes menu.
  • High power transmitter ensures reliable operation under any conditions

  • Transducer frequency: 55 or 68 kHz

  • With the CSH-5L MARK-2 you can confidently fish in shallow areas and increase your catch

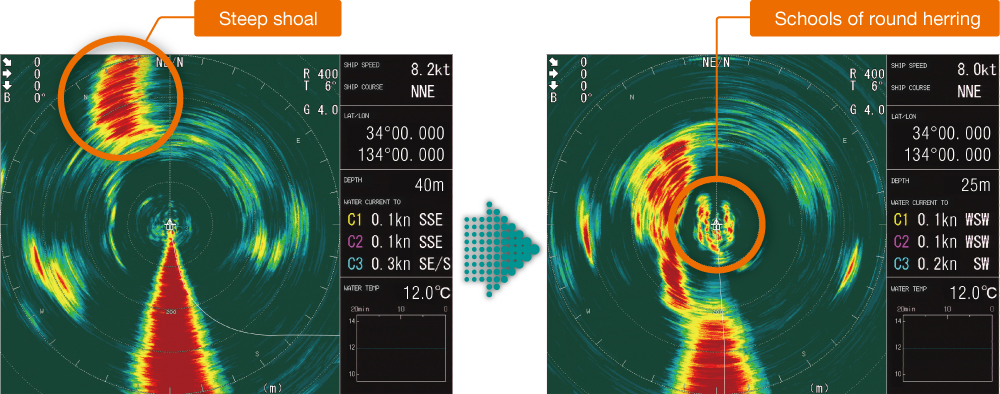

    Left image: To the top left a steep shoal is visible.The vessel follows its structure in order to find fish close by.
    Right image: Schools of round herring close to the shoal can be seen here. The vessel has turned on its lights to attract the fish.

Specifications

General

Frequency55 or 68 kHz
Basic Range50, 85, 100, 200, 250, 300, 350, 400, 450, 500, 600, 800, 1000, 1200, 1600 m

Display Mode

Display unit15" color LCD FURUNO MU-150HD, or PC monitor, 1024 x 768 pixels (XGA)
Pixel numberXGA (1024 x 768)
ColorsScan/echo: 16 colors, mark: 1color

Transceiver Unit

Output Power2 kW

Power Supply

Processor Unit115/230 VAC, 50-60 Hz, 0.4 kVA (Raise 1 kVA)
24 VDC with optional DC-AC inverter

Others

WeightProcessor unit: 3.4 kg
Transceiver unit: 20 kg
Control Unit: 3.5 kg
Hull unit: 70 kg (400 mm travel), 75 kg (600 mm travel)

Equipment List

Standard

  • PROCESSOR UNIT
    CSH-5210-A
  • CONTROL UNIT
    CSH-5211 -A
  • TRANSCEIVER UNIT
    CSH-5130-A-5L
  • PRE-AMP UNIT
    CSH-5020-A
  • Hull Unit
    400 mm or 600 mm travel
  • Installation Materials, Accessories and Spare Parts

Option

  • DC-AC InverterTR-2451
  • E/S InterfaceVI-1100A
  • Retractable TankOP10-5
  • SpeakerSEM-21Q
  • Transducer Cable Extension Kit
  • Motion SensorMS-100
  • Remote ControllerCSH-7040

Connectable Products

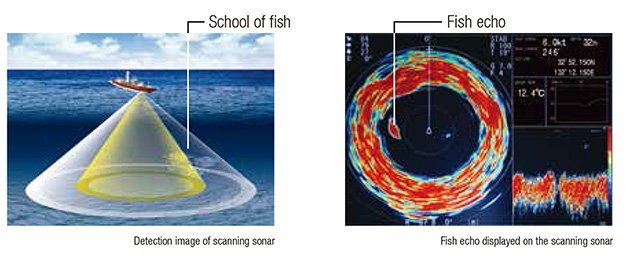

What is Scanning Sonar?

The transducer of a scanning sonar consists of many elements to transmit the echo in all directions simultaneously without rotating the transducer. The echo is redrawn on the display instantaneously according to the latest feedback from the transducer. Because this sonar scans quickly, it greatly improves the fishing operation, especially when searching for/following fast swimming fish.



Extremely Quick Scanning Speed


The CSH-5L MARK-2 completes a scan within 0.54 seconds/scan while the conventional PPI sonar*1 takes 32 seconds to train full circle under the same range/conditions*2
About 60 times more information is provided compared to a PPI sonar.
Fast scanning lessens the chance of missing a small change in underwater conditions. This is especially helpful when range and tilt require frequent adjustment while fishing, offering no frustration on redrawing time.
*1 CH-250 PPI sonar, training at 6° steps.
*2 Based on 400 m range in combination display mode.

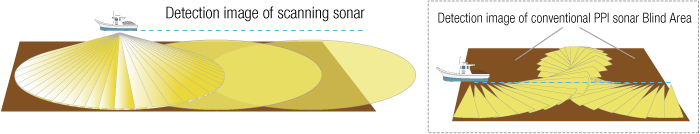

No Blind Area


Scanning Sonar shows the actual situation 360 degrees around the vessel, and gives all the necessary information as needed. No more blind areas to consider, allowing the operator to concentrate on the tilt, range, fishing area, etc.
