FULL-CIRCLE COLOR SCANNING SONAR Model FSV-85

For Fishing Vessels

Advanced Solutions Built on World-Proven Sonar Technology

The FSV series of Furuno Scanning Sonar has long been a favorite among commercial fishermen, and the FSV-85 carries on that tradition. The FSV series provides reliable and consistent detection of fish and seabed conditions with revolutionary, enhanced signal processing technology.

Black Box VIDEO OUT

Related Contents

Features

  • Cylindrical + sphere transducer provides 90 degrees vertical detection

  • Schools of fish can be searched from horizontal (range direction), vertical (depth direction) with vertical and half-circle features

  • Function keys for direct access to desired menu item

  • Dual Display mode

  • User programs for one-touch setup of equipment

  • Menu-driven operation

  • Fish histogram shows signal strength distribution of echo within estimate mark

  • Fish mark estimates fish speed

  • Fish estimate feature to compare the volume of two schools of fish

  • Pitching and rolling compensation for stable picture always

Specifications

General

Basic Range60-2000 m

Power Supply

Processor UnitProcessor unit: 12-24 VDC: 10-5 A
Interface unit: 48 VDC: 1 A or less (from Processor unit)

Transceiver Unit100/110/115/220/230 VAC: 15 A, 1 phase, 50/60Hz
Hull UnitHull unit: 200-220 VAC: 4 A, 3 phase, 50/60Hz

Environment

WaterproofingControl unit: IP22 (panel), IP20 (chassis)
Processor unit: IP20
Interface unit: IP20
Transceiver unit, others: IPX0
Transducer: IPX8

Others

WeightControl unit: 3.8 kg
Processor unit: 15 kg
Interface unit: 3.4 kg
Transceiver unit: 95 kg
Hull unit: 370 kg (800 mm), 930 kg (1100 mm) *with tank

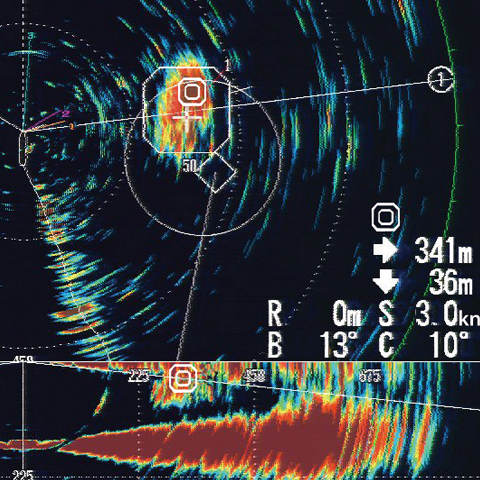

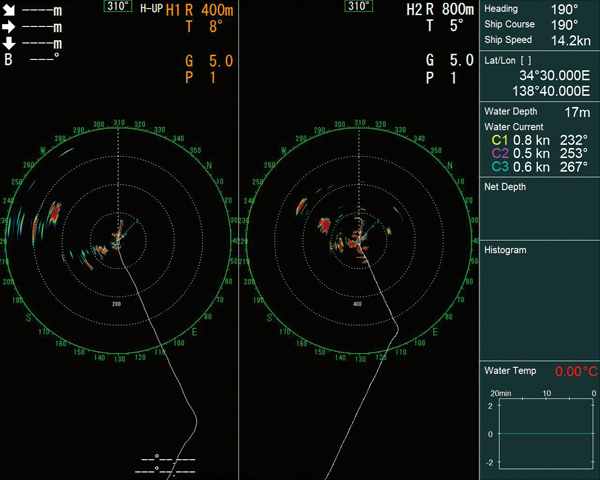

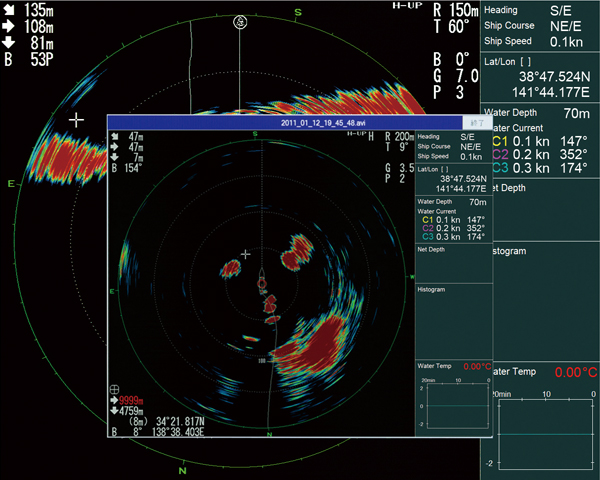

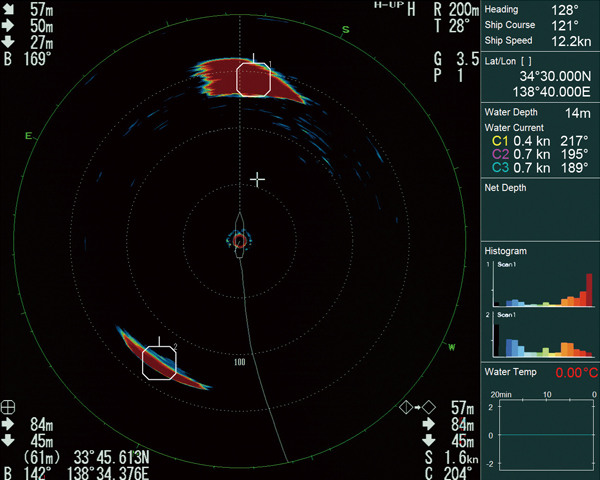

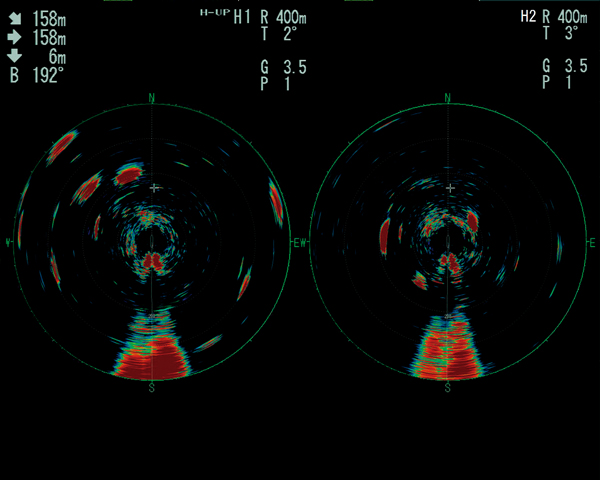

Screenshots

Equipment List

Standard

  • Control Unit
    FSV-8501
  • IF Unit
    FSV-8502
  • Processor Unit
    FSV-8503
  • Transceiver
    FSV-851
  • Hull Unit
  • Installation Materials
  • Spare Parts

Option

  • Control Unit FSV-8501
  • Sub Control Unit FSV-853
  • Rectifier RU-1746B-2
  • Remote Controller FSV-854
  • Junction Box FI-5002
  • Retraction Tank OP10-28/29
  • Attachment Kit OP10-30
  • Fixing Materials OP10-9
  • Flushmount Kit FP03-09870
  • Hull Unit Controller Extension Kit FSV-846
  • Cable VV-SB-CJ0.3SQX5P
  • 8 Core Cable VV-S0.3X8C
  • Cable Assy. MJ-ASPF0012-050C/100C
  • Installation Materials

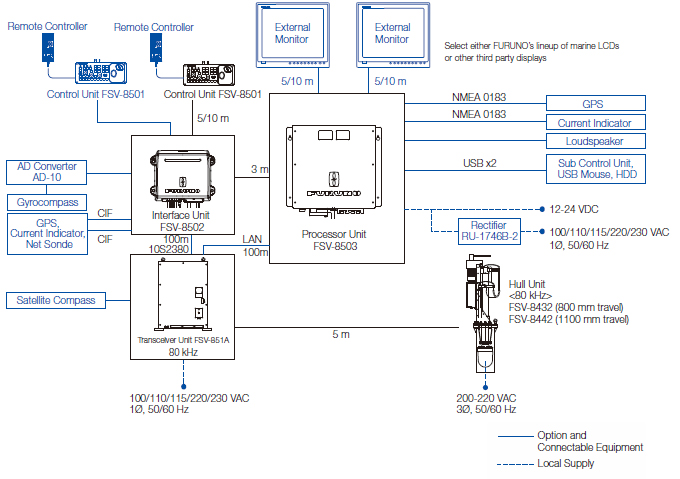

Interconnection Diagram
