X-Treme Radar Performance A whole new class of Radar. RADAR SENSOR DRS X-Class Series(DRS6A X-Class, DRS12A X-Class, DRS25A X-Class)


Compatible with NavNet TZtouch/TZtouch2

Pushing the boundaries of what is possible with conventional Radar technology, the DRS X-Class Series mark yet another leap forward for FURUNO. Improved in almost all aspects features improved short range detection, as well as an impressive long range detection. Utilizing technology previously only available on rugged commercial-grade radars, the DRS6A X-Class offers stunning performance and reliability. For the fisherman, the new "Bird Mode" on NavNet TZtouch/TZtouch2 gives you incredible bird detection performance.

Features

  • Enhanced target detection, both short and long range
  • Minimum detection range of 20 m approx.
  • Fast Target Tracking™, display up to 30 targets simultaneously
  • Instant target vectors show heading and speed info with Fast Target Tracking™
  • Bird Mode, track birds to find the best fishing grounds
  • Moving targets (vessels and birds) display targets trails for easy identification
  • Choose antenna size from 3.5', 4' or 6'
  • New gearbox pedestal unit is 20% lighter than previous DRS Series unit, updated low noise motor
  • No PSU unit required, simple installation

Spot flocks of birds far away, incredible performance without compromise

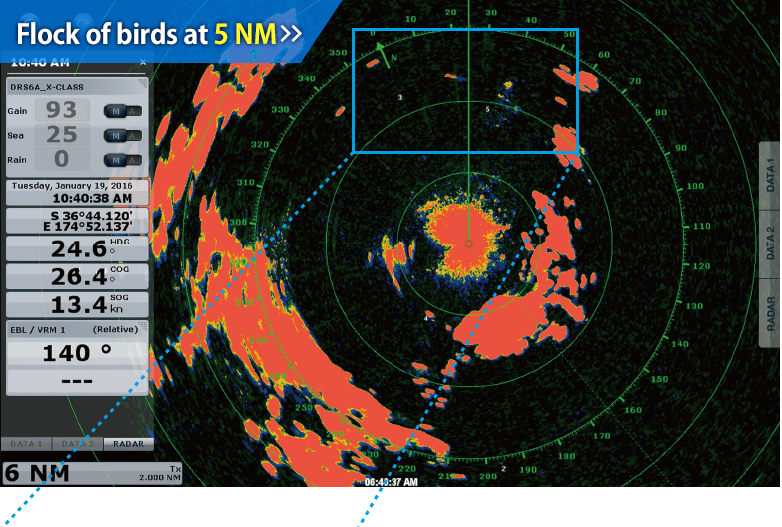

Flock of birds at 5 NM

A Stationary vessel B Moving vessel C Flock of birds

Bird echoes at 5 NM, the echoes can be distinctly separated from the nearby vessel in motion. The vessel shows a straight and clear echo trail, unlike the bird echoes that are identifiable by their random motion.

  • Flock of birds at 4 NM

    At 4 NM the bird echoes are extremely clear, and distinctly visible compared with other targets.
  • Flock of birds at 3 NM

    With echo trails, it's possible to discern individual birds movements.

Long and short range performance improved!

Impressive long range performance

With an excellent long range performance, you can even spot land masses in detail at great distances.

Osaka Harbor, JapanOsaka Harbor, Japan

DRS6A X-Class

Land 36 NM aheadLand 36 NM ahead

Sea 24 NM aheadConventional Radar echoA DRS X-Class Series
B Conventional Radar echo

Excellent target separation at short range

Improved short range detection gives you unprecedented target separation for use in identifying hazardous targets.

Small sailing dinghiesSmall sailing dinghies

DRS6A X-Class

Dinghies at 3 NMDinghies at 3 NM

Conventional Radar echoConventional Radar echo

All the screenshots above are taken on 6kW output.

Specifications


DRS6A X-Class

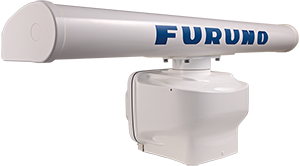

DRS12A X-Class NEW

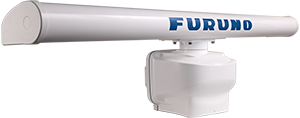

DRS25A X-Class NEW
Antenna XN10A : 1016 mm (3'5)
XN12A : 1255 mm (4')
XN13A : 1795 mm (6')
XN12A : 1255 mm (4')
XN13A : 1795 mm (6')
Peak Output Power 6kW 12kW 25kW
Antenna Rotation Speed 24/36/48 rpm range coupled or 24 rpm fixed
Beam Width XN10A : Horizontal 2.3° Vertical 22°
XN12A : Horizontal 1.9° Vertical 22°
XN13A : Horizontal 1.4° Vertical 22°
Range Scales 0.0625 to 96 NM
Temperature -25°C to + 55°C
Waterproofing IP56
Weight 20 kg (XN10A), 21 kg (XN12A), 23 kg (XN13A) 21 kg (XN12A), 23 kg (XN13A) 22 kg (XN12A), 24 kg (XN13A)
Power Supply 24 VDC
4.0 A 4.5 A 5.6 A

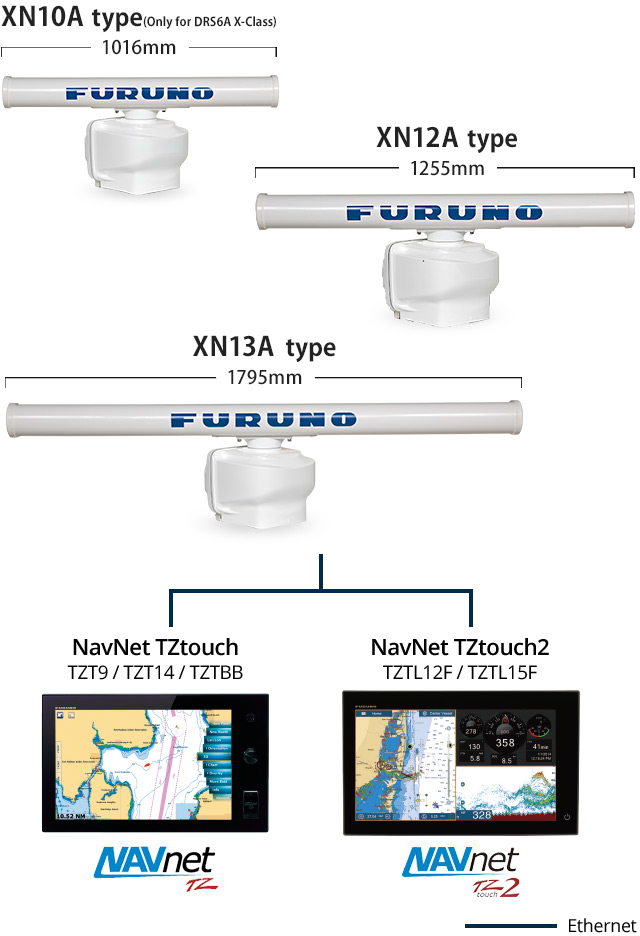

Connectable products

No PSU unit required, simple installation

This Radar unit is only compatible with NavNet TZtouch/TZtouch2.
For more information about our NavNet products, please click the link below.

NavNet.com

Brochure Download

Contact

Contact a local distributor for further details.

Locate a Distributor
