Marine Radar

10.4" LCD RADAR Model MODEL1945

For Recreational Boats For Fishing Vessels For Workboats

Bringing a new level of quality, operability and reliability into marine radars

The MODEL1945 Radar is a high contrast 10.4" color LCD radar designed for a wide range of vessels including pleasure craft, fishing boats and work boats. This new radar offers crystal clear target presentation with automatic Gain/Sea/Rain controls to deliver noise-free radar presentation. It features superb detection of even small targets both at short and long range. It also boasts all-new display modes which will assist you with navigating safely on all waters.

Auto Tuning (Sensitivity) Enhanced Sunlight Viewable Bonded LCD

Related Contents

Features

  • Easy-to-install 10.4" portrait color LCD (350 cd) display

  • Bonded LCD provides clear view in all weather conditions

  • Stable AIS/TT target-tracking with zoom display function

  • Full Screen Mode lets operators observe a wider range around the vessel

  • Enhanced auto tuning/gain/anti-clutter controls

  • Echoes in yellow, green, orange or multiple colors

Specifications

ANTENNA

Peak Output Power6 kW
Type1200 mm Open (4.0')
Frequency9410±30 MHz (X-band)
Beam Width (Horizontal)1.9°
Beam Width (Vertical)22°
Range Scales0.0625-64 nm
Minimum Range25 m
Antenna Rotation Speed24 rpm
48 rpm (option)
Weight25 kg

DISPLAY

Display Unit10.4'' color LCD (640 x 480, VGA)
Display ModeHead-up, Course-up*, North-up*, True view*, True motion**
* Heading data required
** Heading and position data required
Other Mode / FunctionsARP/AIS display*1, Target tracking*2, User programmable keys, Echo trails
*1 Requires AIS transponder/receiver installed
*2 Requires heading and speed data
Weight5.4 kg

ENVIRONMENT

TemperatureDisplay unit : -15°C to +55°C
Antenna unit : -25°C to +55°C
WaterproofingDisplay unit : IP55
Antenna unit : IP26

POWER SUPPLY

Power Supply / Consumption Current12-24 VDC: 7.3-3.5 A (24 rpm)
8.8-4.1 A (48 rpm)

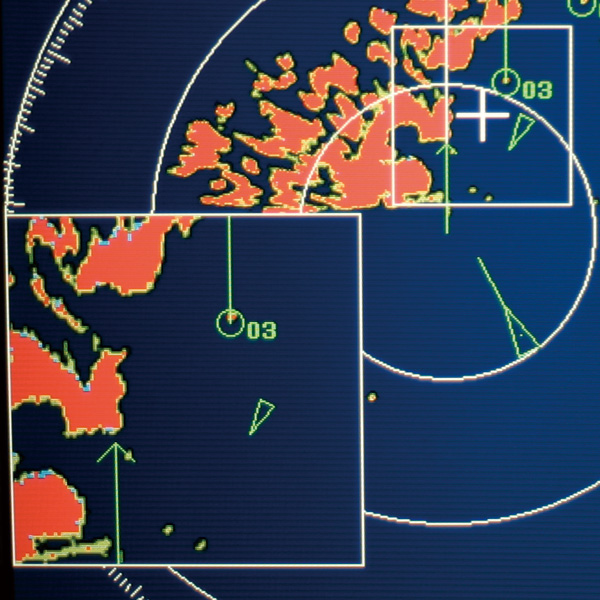

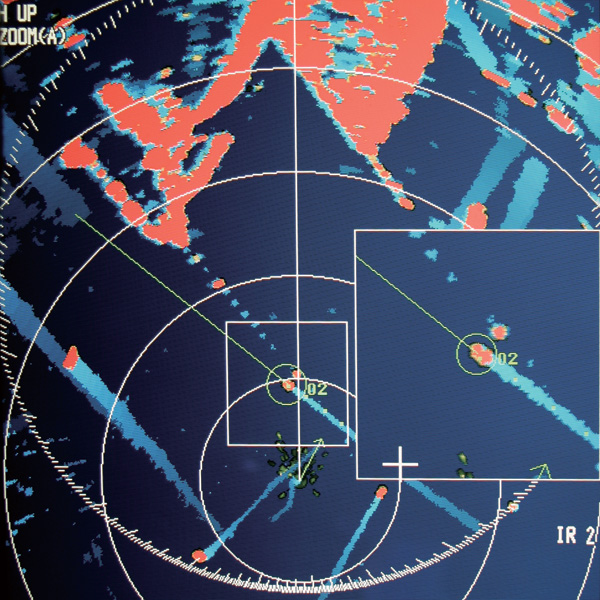

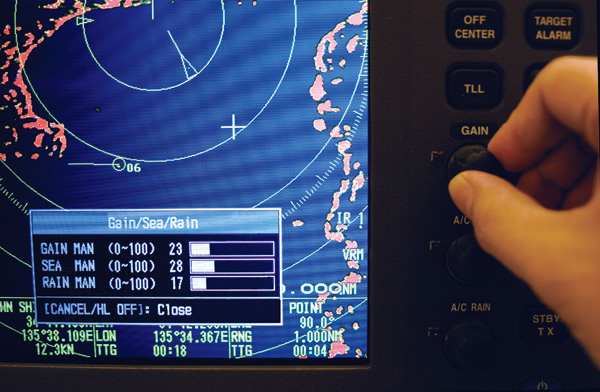

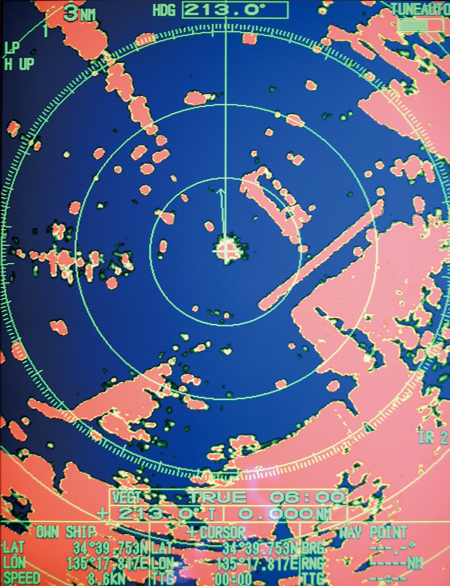

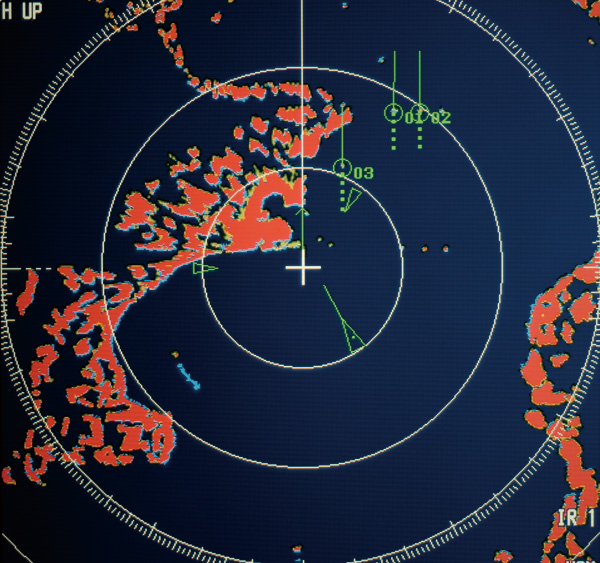

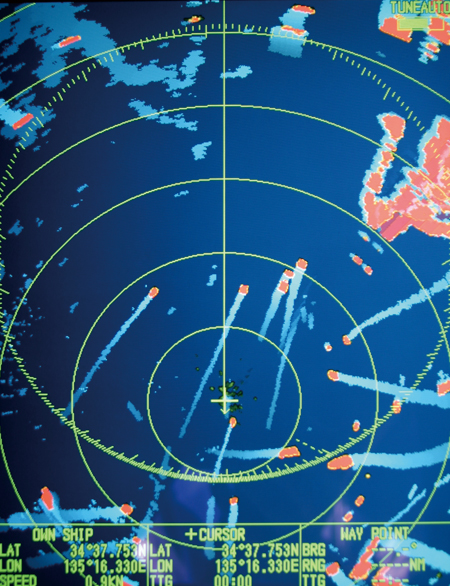

Screenshots

Equipment List

Standard

  • DISPLAY UNIT RDP-152-E
    1 UNIT
  • ANTENNA RADIATOR XN12A
    (4 FT)

    1 UNIT
  • ANTENNA DRIVE UNIT RSB-0070-064 (24 PPM) or
    RSB-0073-064 (48 RPM, optional)

    1 UNIT
  • INSTALLATION MATERIALS including Antenna Cable and SPARE PARTS
    1 SET

Option

  • AUTO PLOTTER ARP-11
  • CABLE ASSEMBLY
  • SIGNAL CABLE ASSEMBLY 5 M
    10 M
  • SIGNAL CABLE ASSEMBLY MJ-A6SPF0003-050C (5 M)
    MJ-A6SPF0007-100C/MJ-A6SPF0009-100C (10 M)
    MJ-A6SPF0012-050C/100C
  • SIGNAL CABLE ASSEMBLY 10 M (for Sub)
    20 M (for Sub)
    30 M (for Sub)
  • EXTERNAL ALARM BUZZER
  • RECTIFIER (CHINA) RU-3423
    (100/220 VAC)

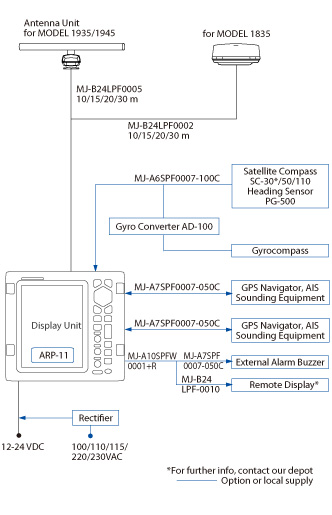

Interconnection Diagram

Connectable Products

Documentation

Contact

Locate a Distributor Contact a local distributor for further details.

* Specifications subject to change without notice.
