Fish Finder

BLACK BOX NETWORK SOUNDER Model DFF1

For Recreational Boats For Fishing Vessels For Workboats

Greatly improved target detection and presentation capability

Furuno's DFF1 is a network sounder featuring Furuno Digital Filter (FDF) Technology designed for use with the NavNet series. This digital Network Sounder can turn any NavNet display into a powerful, dual-frequency digital fish finder. The compact network sounder unit connects directly to a NavNet display or an Ethernet hub with a single Ethernet cable. If it is connected to an Ethernet hub that has multiple displays attached, each of those displays will have access to the Network Sounder.

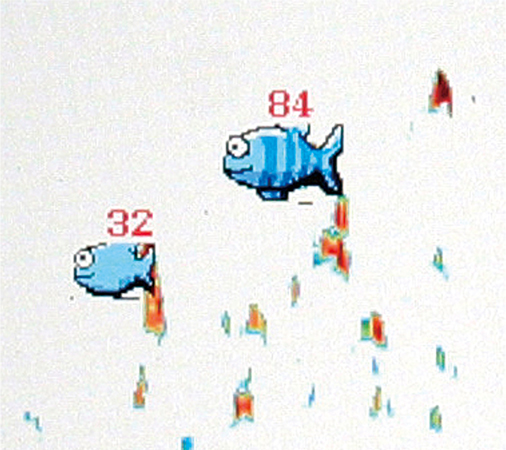

NavNet Connect FURUNO Digital Filter ACCU-FISH™ Auto Tuning (Sensitivity) Black Box Ethernet Plug & Play

Related Contents

Features

  • Works with NavNet series

  • Dual-frequency 50/200 kHz

  • FDF (Furuno Digital Filter) makes the picture clearer and easier to discriminate between baitfish and larger target species

  • FDF technology helps adjust gain and output power as well as suppresses main bang (echoes just below transducer)

  • 8/16/64 color echo presentations

  • 8 range scales up to 1200 m

  • Selectable output power of 600W or 1kW

  • Audio and visual alarms for water depth, fish echoes and water temperature* *Requires appropriate sensors

  • Wide variety of transducer options

  • Selectable automatic cruising or fishing modes to suit your style of boating

  • Automatic function for detecting fish and bottom in both shallow and deep water

  • White line feature helps discriminate fish lying near the bottom

Specifications

FISH FINDER

Frequency50/200 kHz
Transducer600 W or 1 kW (Optional Matching Box, MB-1100 may be required)
Range ScaleMax. 1,200 m

OTHERS

WaterproofingIPX0
Power Supply12-24 VDC, 12 W 1.1-0.4 A
Size219 (H) x 255 (W) x 90 (D)
Weight1.2 kg

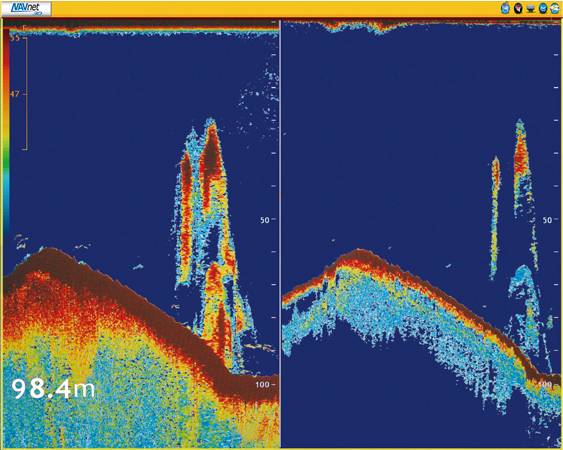

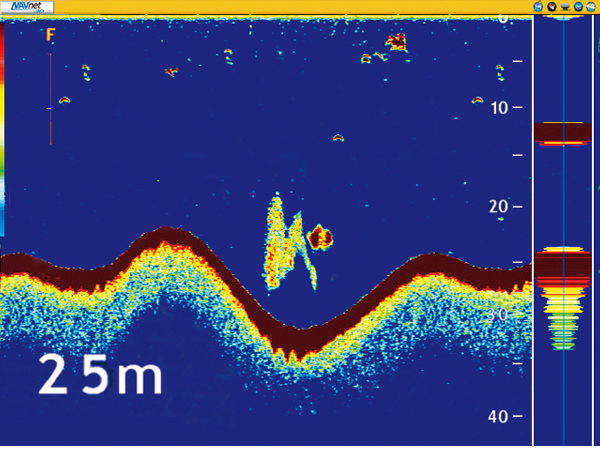

Screenshots

Equipment List

Standard

  • NETWORK FISH FINDER DFF1-E
    1 UNIT
  • POWER CABLE 3.5 M
    1 PC
  • NETWORK CABLE
    1 PC
  • INSTALLATION MATERIALS AND SPARE PARTS
    1 SET

Option

  • CABLE ASSY (FOR ST SENSOR)
  • 1 KW
    TRANSDUCER
    200B-5 (10 M)
    200B-5S (10 M)
    50B-6 (10 M)
    50B-6B (15 M)
    50B-9B(15 M)
  • 1 KW
    DUAL FREQUENCY TRANSDUCER
    50/200-1T (RUBBER)
  • 600 KW (8 M)
    TRANSDUCER
    520-5MSD
    520-5PSD
    520-5PWD
    525STID-MSD (USA)
    525STID-PWD (USA)
  • INNER HULL MOUNTING KIT
  • MATCHING BOX MB-1100
  • LAN CABLE ASSEMBLY 1M (MJ/RJ)
    5M (MJ/RJ)
    10M (MJ/RJ)
    20M (MJ/RJ)
    30M (MJ/RJ)
  • HUB ADAPTOR CABLE (CROSS) MJ6R/RJ45
  • LAN CABLE ASSY (CROSS) 10 M/2 M
  • RECTIFIER (CHINA) PR-62 (220 VAC)
  • SPEED/TEMPERATURE SENSOR ST-02MSB (USA)
    ST-02PSB (USA)
  • TEMPERATURE SENSOR T-04MSB
    T-04MTB

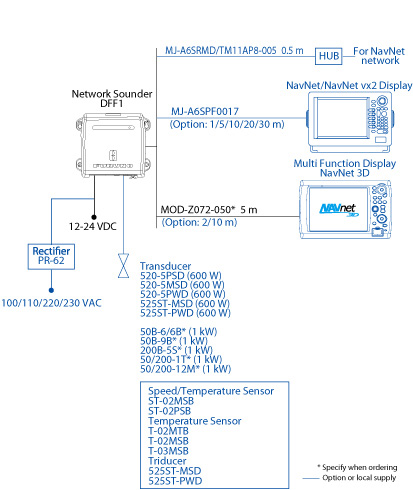

Interconnection Diagram

Connectable Products

Documentation

Contact

Locate a Distributor Contact a local distributor for further details.

* Specifications subject to change without notice.
