Fish Finder

COLOR VIDEO SOUNDER Model FCV-30

Multi directional detection, Split-Beam with FURUNO's stabilizing technology

The FCV-30 is a high-performance echo sounder designed for variety of fishing applications. This echo sounder employs two innovate techniques. One is Multi-Beam and the other is Split-Beam.

Fishing Vessels Workboats
Black Box VIDEO OUT

Features

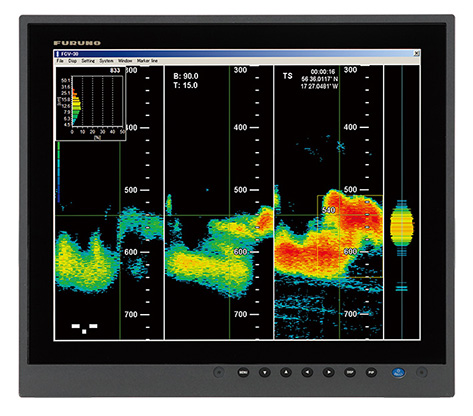

  • Multi-beam system presents images received from up to five beams simultaneously

  • Electronic beam stabilizer eliminates the loss of important targets due to ship's motion in rough seas (within up to 20 degrees)

  • Heaving compensation* provides unwavering echo images

    * The GPS satellite compass works as a heaving sensor.
  • Black Box system works with conventional SXGA/XGA PC monitors

  • 7-degree sharp beam width gives a detailed echo image that is produced by high frequency beams

  • Straightforward operation by use of a trackball control unit

  • Frequency: 38 kHz; Output power: 4 kW

  • Automatic range shift for continuous bottom acquisition and tracking

Specifications

FISH FINDER

Frequency
38 kHz
Transducer
4 kW
Range Scale
Range: 10-5,000 m
Shift: 0-5,000 m
Zoom range: 2-200 m
Display Mode
Split-beam, 3-beam, Split-beam+2-beam, User1, User2, User3

OTHERS

Waterproofing
Control Unit: IP22 (front panel)
Power Supply
Processor Unit: 100-240 VAC, 3-2 A
Transceiver Unit: 100-120/200-240 VAC, 5-3 A
Weight
Control Unit: 1.8 kg 4.0 lb
Transducer: 42 kg 92.6 lb
Transceiver Unit: 34 kg 75 lb
Processor Unit: 7.5 kg 16.5 lb

Equipment List

Standard

  • PROCESSOR UNIT CV-300-E 1 UNIT
  • CONTROL UNIT CV-301 with 5 m Cable 1 UNIT
  • TRANSCEIVER UNIT CV-302-E 1 UNIT
  • 38 KHZ TRANSDUCER CV-303 with 15 m Cable 1 UNIT
  • STANDARD INSTALLATION MATERIALS including 10m LAN Cable and THP TFB-1600 1 SET
  • STANDARD SPARE PARTS 1 SET

Option

  • 15" LCD MU-150HD/19" LCD MU-190HD or commercial monitor Display Unit is not included in the standard supply.
  • ARMORED LAN CABLE KIT 10M/20M/30M
  • TRANSDUCER CV-303 15M
  • JUNCTION BOX CV-304-10 10M
  • JUNCTION BOX CV-304-20 20M
  • FLUSH MOUNT KIT CONTROL UNIT
  • TRANSDUCER TANK T-625
  • THRU-HULL PIPE TFB-1600

Interconnection Diagram
