Fish Finder

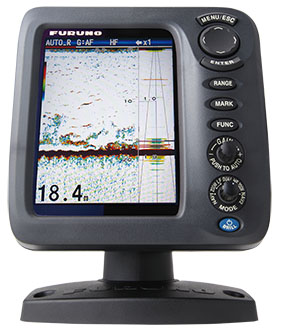

5.7" COLOR LCD FISH FINDER Model FCV-628

High resolution fish echoes with RezBoost™ technology!

FCV-628 uses revolutionary new RezBoost™ technology, providing an incredible boost in resolution and target separation, utilizing a compact narrowband transducer.

Recreational Boats Fishing Vessels
Bottom Discrimination ACCU-FISH™ RezBoost™ Auto Tuning (Sensitivity)

Related Contents

Features

  • Dual-frequency fish finder equipped with revolutionary new RezBoost™ signal processing technology

    Improved clarity and resolution that was previously impossible with conventional narrowband transducers has been made possible thanks to the new RezBoost™ technology.

    *The enhanced mode of RezBoost™ requires a RezBoost™ capable thru-hull or transom mount transducer.
  • ACCU-FISH™ - A unique fish size analyzer based on the latest digital technology

  • Bottom Discrimination - Analyze bottom structure

    Provides an at-a glance recognition of bottom composition with four types of graphical displays
    (Rocks/Sand/Gravel/Mud) when connected to a supported thru-hull or transom mount transducer.


  • White Line feature - Discriminate fish lying near the bottom

    The top edge of the bottom echo is displayed in white to clearly show bottom structures. This feature helps to discriminate between weeds and bottom fish distinctly.

  • Configurable Alarm function (depth, fish echoes, etc.)

  • Share and display information on a chart plotter*

    FURUNO's TLL (Target Lat/Lon) output allows you to interface the FCV-628 with your FURUNO chart plotter so that you can mark fishing grounds with various information (L/L, Depth, Water Temp, Fish size and Bottom type).
     * Requires a chart plotter

  • Fast transmission rate of 3,000 PRR (Pulse Repetition Rate) per minute (at 5 m depth range)

Specifications

DISPLAY

Display unit
5.7" TFT color LCD
Pixel number
VGA 480 x 640

FISH FINDER

Frequency
50 and 200 kHz
Transducer
600 W
Range Scale
2-1200 m
Pulselength & PRR
0.04-3 ms, Max 3,000 pulse/min
Display Mode
Single frequency (50 or 200 kHz), Dual frequency, Zoom, Nav data, A-scope, Marker zoom, Bottom zoom, Bottom-lock, Bottom Discrimination, ACCU-FISH™, RezBoost™
ACCU-FISH™
Bottom Discrimination

OTHERS

Waterproofing
IP56
Power Supply
12-24 VDC, 11-0.5 A
Size
207 (H) x 170 (W) x 132 (D)
Weight
Bracket Mount: 1.3 kg
Flush Mount: 0.9 kg

Equipment List

Standard

  • DISPLAY UNIT FCV-627-E 1 UNIT
  • CABLE ASSEMBLY 1 PC
  • INSTALLATION MATERIALS AND STANDARD SPARE PARTS 1 SET

Option

  • TRANSDUCER 525STID-MSD (USA) 600 W, 8 M
  • TRANSDUCER 525TID-PW (USA) 600 W, 8 M
  • TRANSDUCER EXTENSION CABLE MJ-A10SPF/SRMD-100
  • SPEED/TEMPERATURE SENSOR
    ST-02MSB (USA)
    10 M
  • SPEED/TEMPERATURE SENSOR
    ST-02PSB (USA)
    10 M
  • TEMPERATURE SENSOR
    T-02MSB
    10 M
  • TEMPERATURE SENSOR
    T-02MTB
    10 M
  • TEMPERATURE SENSOR
    T-03MTB
    10 M

Interconnection Diagram

Documentation

  • FCV-628 Brochure
    (Last update: May 29, 2023)

* Specifications subject to change without notice.
