Fish Finder

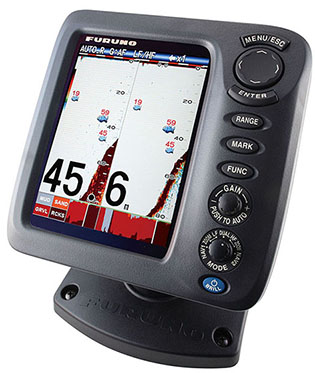

5.7" COLOR LCD FISH FINDER Model FCV-688

For Recreational Boats For Fishing Vessels For Workboats

The FCV-688 provides valuable information to help you locate rich fishing grounds and boost your catch!

The FCV-688 knows fish size and bottom structure under your boat.

FURUNO Digital Filter Bottom Discrimination ACCU-FISH™ Auto Tuning (Sensitivity)

Features

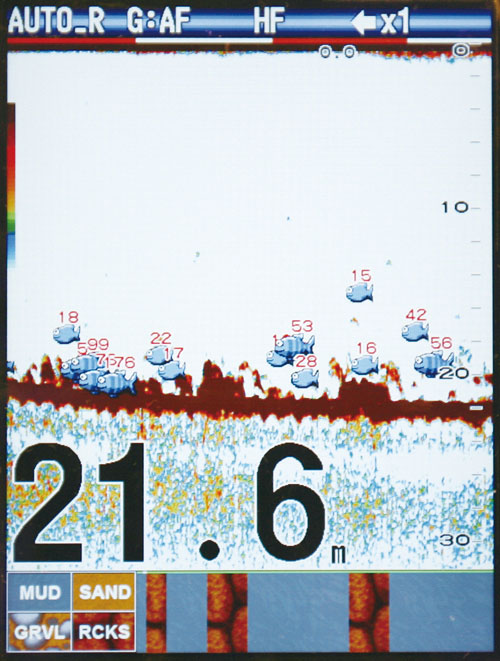

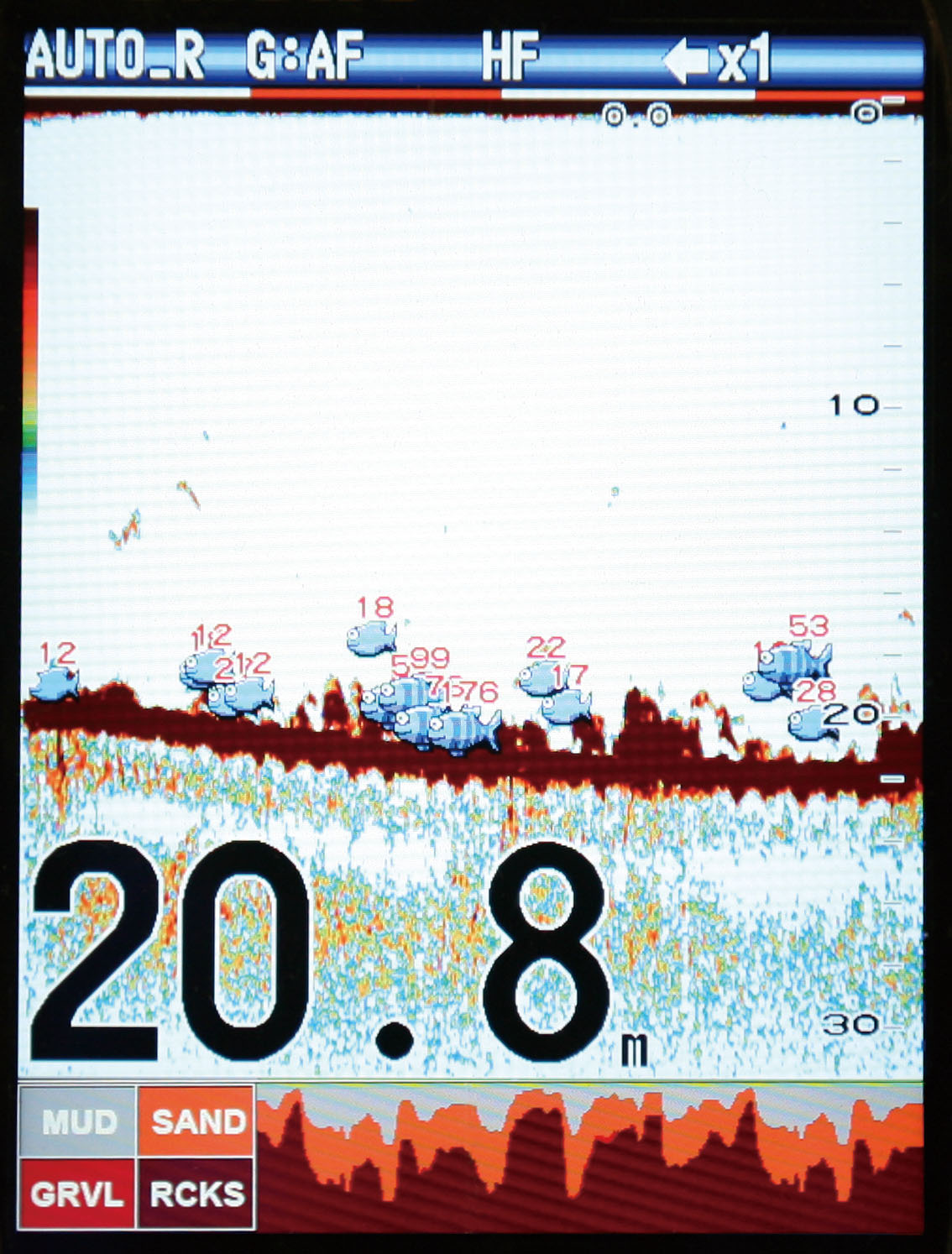

  • Equipped with Furuno’s latest technology: the Bottom Discrimination Function - Analyze bottom structure*

    Provides an at-a-glance recognition of bottom from with four types of graphical displays (Rocks/Gravel/Sand/Mud) when connected to required thru-hull or transom mount transducer.

    * Thru-hull or transom transducer mount required.

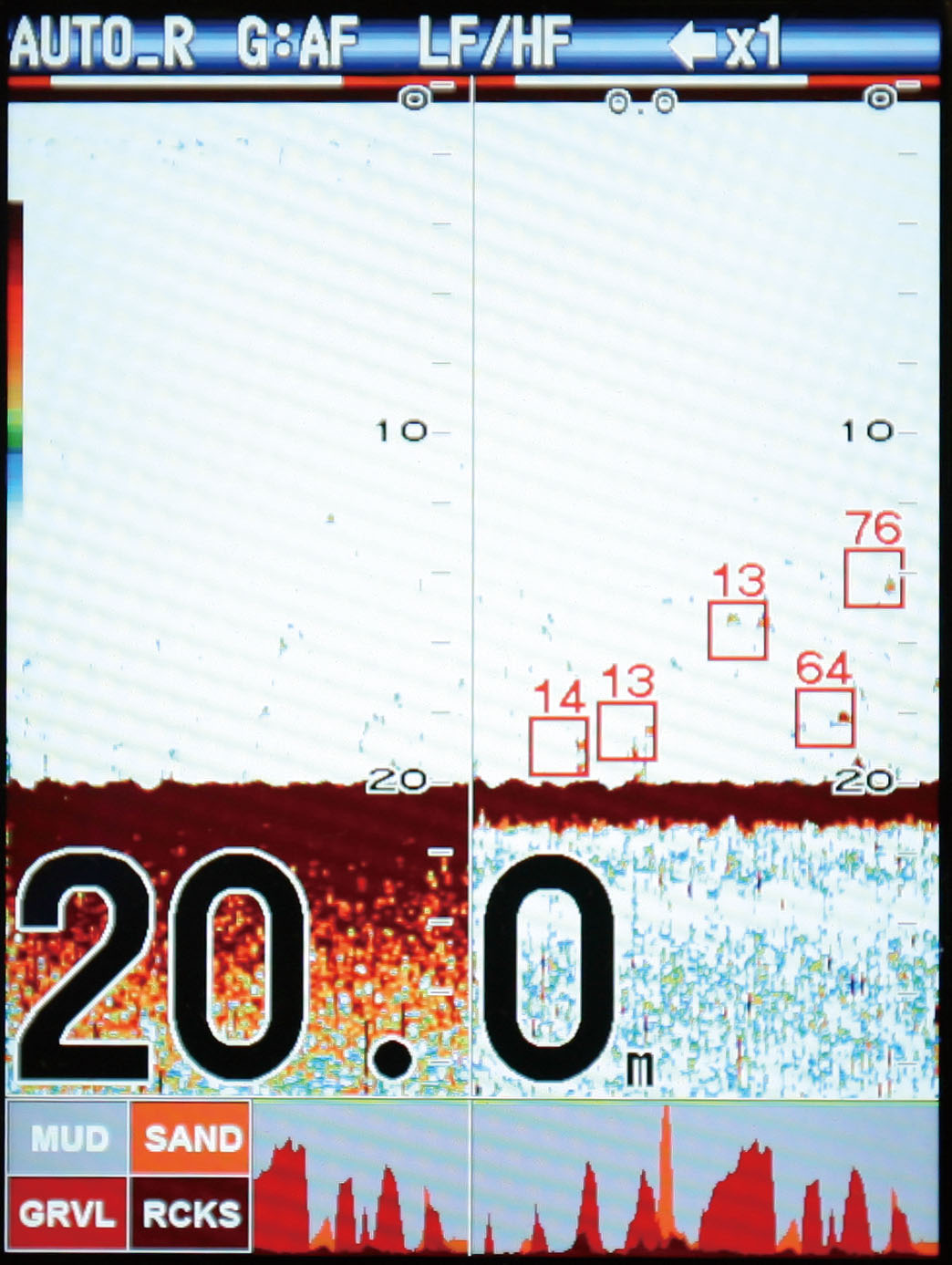

  • ACCU-FISH™ - A unique fish size analyzer based on the latest digital technology

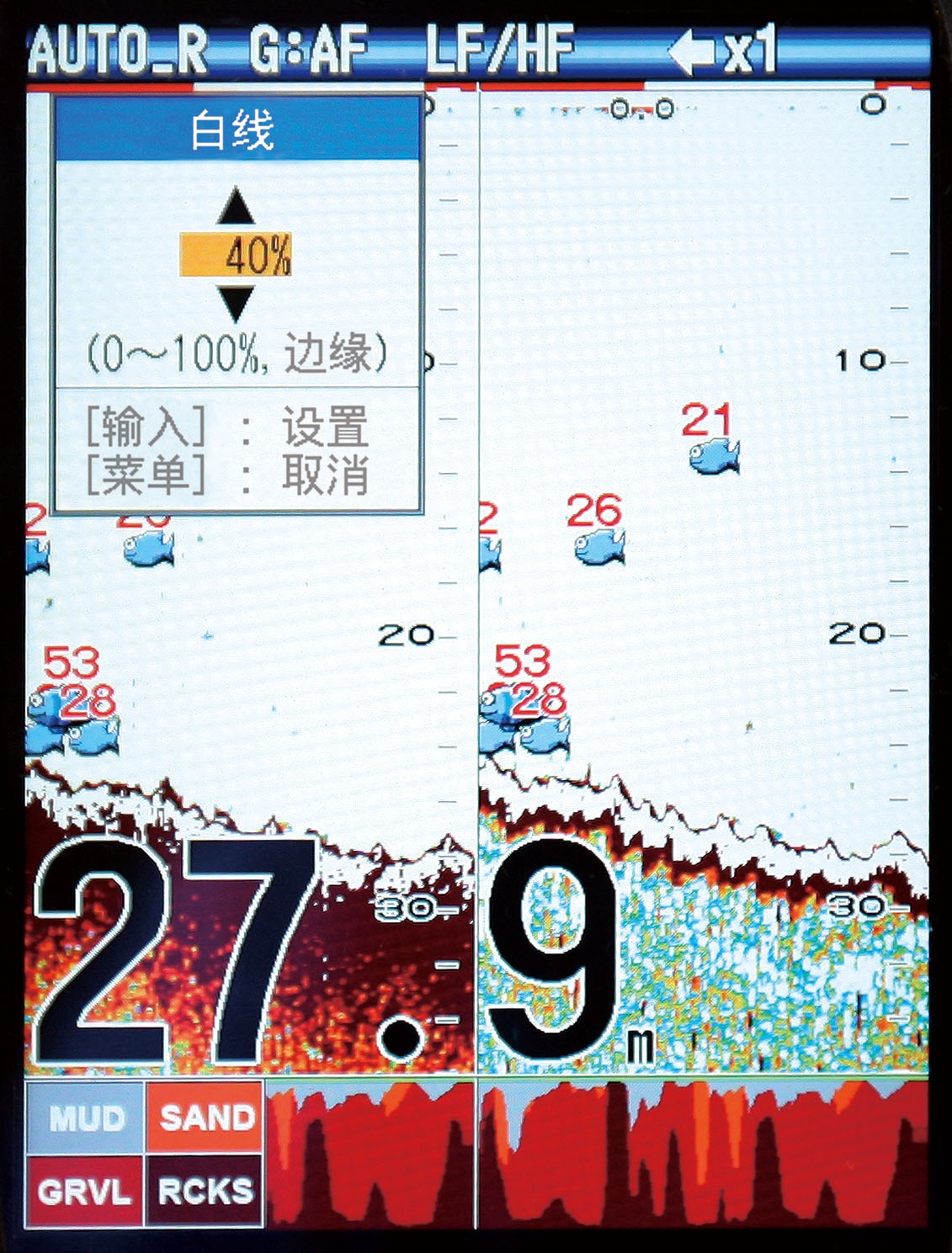

  • White Line feature - Discriminate fish lying near the bottom

    ・ The top edge of the sea floor is displayed in white to clearly show structures.
    ・ This feature helps to discriminate bottom fish distinctly.

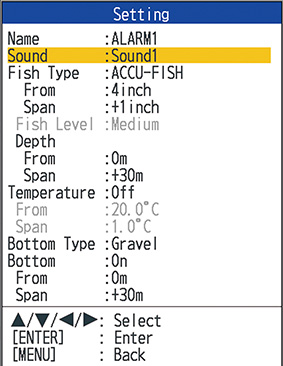

  • Configurable Alarm function (depth, fish echoes, etc.)

  • Post-processing Gain Control applied to all echoes displayed on the screen

  • Share and display information on a chart plotter*

    Furuno's TLL (Target Lat/Lon) output allows you to interface the FCV-688 with your chart plotter so that you can mark fishing spots with various information (L/L, Depth, Water Temp, Fish size, Bottom).

     * Required connection to chart plotter.
  • Fast transmission rate of 3,000 PRR (Pulse Repetition Rate) per minute (at 5 m depth range)

Specifications

DISPLAY

Display unit5.7" COLOR LCD FISH FINDER
Pixel number640 x 480 (VGA)

FISH FINDER

Frequency50 and 200 kHz
Transducer600 W
Range Scale2-1200 m
Pulselength & PRR0.1-3 ms, Max 3,000 pulse/min
Display ModeSingle frequency (50 or 200 kHz), Dual-frequency, Zoom, Nav data, A-scope, Marker zoom, Bottom zoom, Bottom-lock, Bottom discrimination, ACCU-FISH™
Range ShiftBottom-lock expansion: 2-10 m
Sectional expansion: 2-1200 m
ACCU-FISH™
Bottom Discrimination

OTHERS

WaterproofingIP55
Power Supply12-24 VDC, 13 W
Size207 (H) x 170 (W) x 132 (D)
WeightBracket mount 1.3 kg 2.9 lb

Screenshots

Equipment List

Standard

  • Display Unit
    CV-688E (for English)
    CV-688C (for Chinese)
  • Installation materials and standard spare parts

Option

  • Speed/temperature sensorST-02MSB (Thru-hull, bronze), ST-02PSB (Thru-hull, plastic)
  • Connector kit for connection of speed & temperature sensor or temperature sensor
  • Connector kit for connection of speed & temperature sensor or temperature sensor
  • NMEA + Power cable

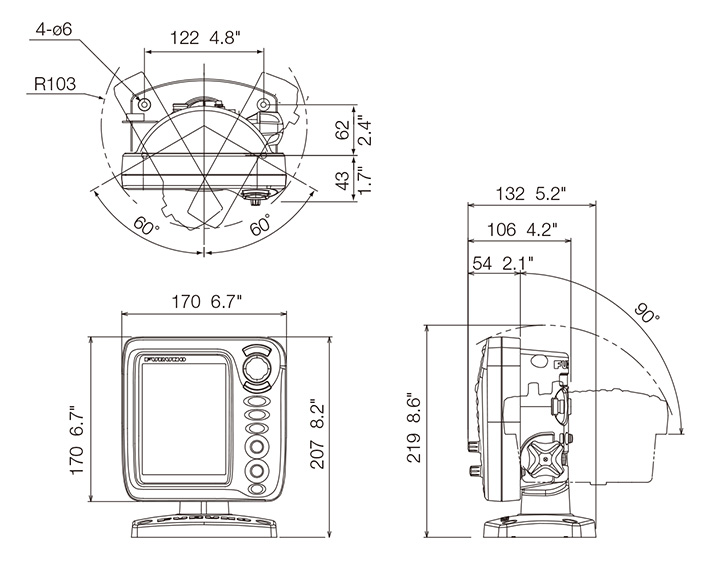

Drawing

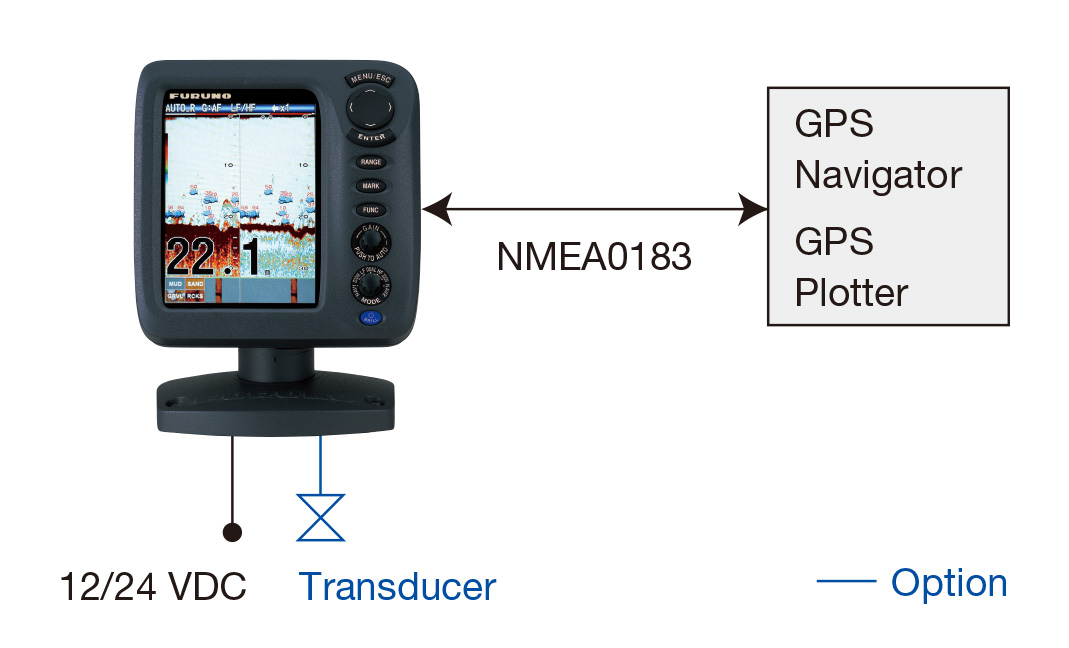

Interconnection Diagram

Documentation

Contact

Locate a Distributor Contact a local distributor for further details.

* Specifications subject to change without notice.
