Multi-Purpose Display

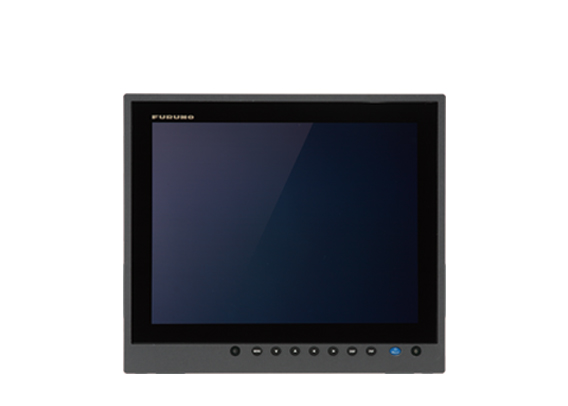

15" MARINE DISPLAY Model MU-150HD

For Recreational Boats For Fishing Vessels For Workboats

Need a bright idea?
How about using FURUNO marine grade monitors in your helm!

The FURUNO MU150HD is a multi-purpose marine LCD that features the unmatched quality and reliability that you have learned to depend on. The MU150HD employs an extremely bright (1,000 cd/㎡ ) color TFT LCD with special AR (anti-reflective) glass filter to cut down on annoying glare. With its bright colors, excellent contrast and wide viewing angles, the MU150HD monitor is perfect for any tropical sunlight or low light conditions. Furthermore, the LCDs and the glass are bonded together ensure fog free operation on open fly-bridge installations.

VIDEO IN (RGB-DVI)

Features

  • Crystal clear 15" marine grade monitor for use as main or remote display

  • Resolution: 1024 x 768 XGA

  • Built-in scaler allows accepting up to SXGA (1280 x 1024) resolution

  • 1,000 cd/㎡ brightness and A/R coating provides superior visibility even in direct sunlight

  • Bonded LCD provides clear view in any weather conditions

  • Automatic dimmer sensor adjusts the display brightness as light conditions change

  • 1 RGB analog, 2 DVI (Digital Video Interface) and 3 NTSC/PAL interfaces available

  • Any of the three NTSC inputs are PIP (Picture-In-Picture) capable, with adjustable size and screen location

  • Table Top or Flush Mount (Table Top bracket is optional)

  • Customizable input names for easy on-the-fly identification and switching between onboard Radar, Sonar, Sounder, Camera, etc.

  • Automatic signal recognition and scaling for easy setup and installation

Specifications

GENERAL

Display unit15" COLOR LCD
Screen Resolution1024 x 768 (XGA)
*Resolution from VGA to SXGA are accepted
Contrast600:1
Viewing Angle(Vertical) up/down 80°or more
(Horizontal) left/right 80°or more
Screen Brightness1000 cd/㎡
InterfaceAnalog RGB (D-SUB/15 pins): 1 port
DVI-D: 2 ports
Composite Video (NTSC/PAL): 3 ports
Temperature−15 ℃ to +55 ℃
WaterproofingIP56 (front panel), IP22 (rear panel)
Power Supply12-24 VDC, 4.5 - 2.2 A
WeightFlush mount:5.4 kg
Bracket mount:7.4 kg

Equipment List

Standard

  • DISPLAY UNIT MU-150HD
  • POWER CABLE
    5 M
  • INSTALLATION MATERIALS AND SPARE PARTS

Option

  • CABLE ASSEMBLY (ANALOG RGB) 5 M
    10 M
  • DVI CABLEDVI-D/D SINGLELINK (5 M)
    DVI-D/D S-LINK (10 M)
  • BRACKET ASSEMBLY (WITH KNOBS)
  • HOOD ASSEMBLY
  • FLUSH MOUNT KIT

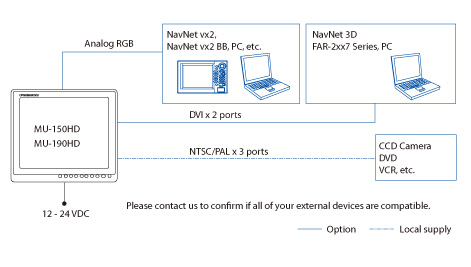

Interconnection Diagram

Documentation

Contact

Locate a Distributor Contact a local distributor for further details.

* Specifications subject to change without notice.
