Multi-Purpose Display

23.1" MARINE DISPLAY Model MU-231

Need a bright idea?
How about using FURUNO marine grade monitors in your helm!

The FURUNO MU-231 is a multi-purpose display that features the unmatched FURUNO quality and reliability that you have learned to depend on. This 23.1" color monitor features a wide range of interface capabilities that will accommodate virtually all of your marine display needs.

Recreational Boats Fishing Vessels Workboats
VIDEO IN (RGB-DVI)

Features

  • Crystal clear 23.1" marine grade monitor for use as main or remote display

  • Resolution: 1600 x 1200 UXGA

  • Any of the three NTSC inputs are PIP (Picture-In-Picture) capable, with adjustable size and screen location

  • Table top/Ceiling or Flush Mount

  • Customizable input names for easy on-the-fly identification and switching between onboard Radar, Sonar, Sounder, Camera, etc.

  • Automatic signal recognition and scaling for easy setup and installation

Specifications

GENERAL

Display unit
23.1" COLOR LCD
Screen Resolution
1600 x 1200 （UXGA）
Contrast
600：1
Viewing Angle
(Vertical) up/down　80°or more
(Horizontal) left/right　80°or more
Screen Brightness
400 cd/㎡
Interface
Analog RGB (D-SUB/15 pins): 1 port
DVI-D: 2 ports
Composite Video (NTSC/PAL): 1 port
Temperature
−15 ℃ to +55 ℃
Waterproofing
IP22
Power Supply
100-230 VAC、0.7−0.4 A
Weight
Flush mount：12.8 kg
Bracket mount：18.9 kg

Equipment List

Standard

  • DISPLAY UNIT MU-231 1 UNIT
  • FLUSH MOUNT PANEL FOR FIXING AT FRONT 1 PC
  • INSTALLATION MATERIALS AND SPARE PARTS 1 SET

Option

  • DUST COVER FOR STANDARD CONSOLE/SLIM CONSOLE/OP26-15
  • CABLE ASSY (ANALOG RGB) 5 M
    10 M
  • DVI-D CABLE ASSY DVI-D/D SINGLELINK (5 M)
    DVI-D/D S-LINK (10 M)
  • FLUSH MOUNT KIT FOR REAR/2 UNITS/3 UNITS
  • BRACKET ASSEMBLY (W/KNOBS) OP26-15
  • HOOD ASSEMBLY OP26-16

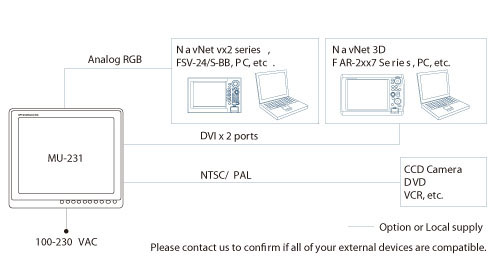

Interconnection Diagram

Documentation

Contact

Locate a Distributor Contact a local distributor for further details.

* Specifications subject to change without notice.
