Speed Log

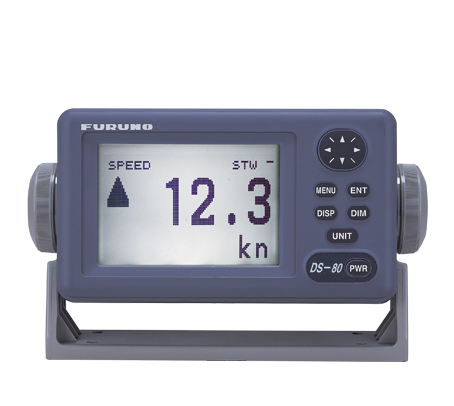

DOPPLER SPEED LOG Model DS-80

High accuracy by utilizing the Doppler principle, paired beam eliminating effect of pitching, and velocity correction for change of water temperature

Speed output to ARPA, radar, ECDIS, AIS, VDR, GMDSS equipment, etc.

Merchant Marine Fishing Vessels Workboats

Features

  • Speed and distance run indicated on a large illuminated LCD display

  • Compact display unit and transducer

  • High accuracy by utilizing the Doppler principle, paired beam eliminating effect of pitching, and velocity correction for change of water temperature

  • Easy speed correction at mile post run

  • Speed output to ARPA, radar, ECDIS, AIS, VDR, GMDSS equipment, etc.

  • Complies with IMO standards MSC.96(72), A.824(19), A.694(17), IEC 61023 and other related standards

  • Fully meets SOLAS carriage requirement for ships over 300GT

  • Fits to the hull either directly or with a gate valve

Equipment List

Standard

  • DISPLAY UNIT DS-800
  • DISTRIBUTION BOX DS-801
  • TRANSCEIVER UNIT DS-810
  • TERMINAL BOX DS-802
  • TRANSDUCER DS-820
  • STANDARD INSTALLATION MATERIALS
  • STANDARD SPARE PARTS

Option

  • JUNCTION BOX CI-630
  • TRANSDUCER TANK (PROJECTION TYP) DS-781
  • TRANSDUCER TANK (GATE VALVE (P)) DS-782
  • TRANSDUCER TANK (FLUSH TYPE) DS-784
  • TRANSDUCER TANK (GATE VALVE) DS-786
  • TERMINAL BOX DS-802 COMPLETE SET
  • DIGITAL INDICATOR DS-830 COMPLETE SET
  • DISTANCE INDICATOR DS-840 COMPLETE SET
  • TRANSDUCER TANK DS-850
  • ANALOG INDICATOR (FLUSH MOUNT, MAX. 30/40) FL-200S-1/2
  • DIMMER FOR ANALOGUE DISPLAY (FLUSH MOUNT) MF-22L-1 AC100/200 V
  • DIMMER FOR ANALOGUE DISPLAY (BULKHEAD MOUNT) MF-22L-2 AC100/200 V
  • THRU-HULL PIPE NO. 5
  • ANALOG INDICATOR
    (BULKHEAD, MAX. 30/40)
    SL-200-1/2

Interconnection Diagram

* Specifications subject to change without notice.
