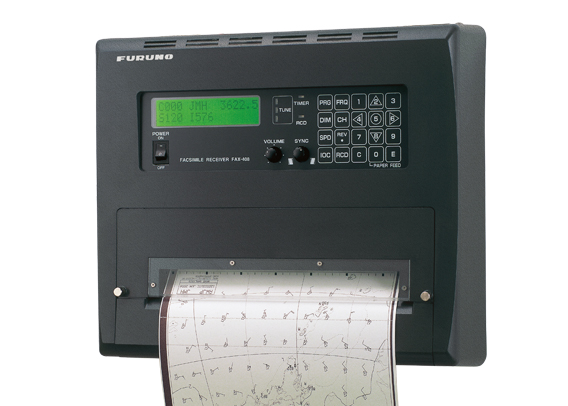

WEATHER FAXIMILE RECEIVER Model FAX-408

Reliable weather facsimile receiver gathers and generates crucial information under all weather conditions at sea

Automatic selection of the frequency with the highest signal quality enables the FAX-408 to print out weather charts with low noise.

Recreational Boats Fishing Vessels Workboats

Features

  • Clear-cut weather charts and satellite images in nine gray levels on 8" thermal paper

  • Automatic channel selection by judging the quality of signal reception

  • All known facsimile channels in 2-25MHz bands are pre-programmable channels available

  • Full automatic operation by a built-in schedule timer (16 programs can be set per week for automatic operation)

  • Quiet thermal printing due to minimal mechanical components

Specifications

GENERAL

Frequency Range
2-25 MHz in 100 Hz steps
Number of Channel
150 Pre-programmed channels and 164 user-programmable channels
Receiving System
SYNTHESIZED DOUBLE SUPERHETERODYNE
Class of Emission
F3C

Equipment List

Standard

  • MAIN UNIT FAX-408
  • RECORDING PAPER TP-0820B 1 ROLL
  • STANDARD INSTALLATION MATERIALS AND SPARE PARTS 1 SET

Option

  • WHIP ANTENNA 2.6 M
  • MATCHING BOX ARD-1
  • WHIP ANTENNA FAW-6R2 W/BRACKET
  • WHIP ANTENNA FAW-6R2A
  • PRE-AMP UNIT FAX-5 15 M
  • ANTENNA CABLE EXTENSION KIT 10 M
    20 M
    30 M
    40 M
    50 M
  • RECTIFIER (CHINA) PR-62
    (100/220 VAC)
  • RECORDING PAPER (58G/M2) (216 MM X 20M) TP-0820B

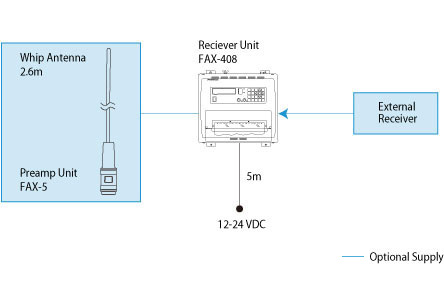

Interconnection Diagram

Documentation

  • FAX-408 Brochure
    (Last update: Aug 26, 2014)

* Specifications subject to change without notice.
