Timing GPS Receiver Module Model GT-8031 Discontinued Products

GT-8031 is the FURUNO Time-Transfer GPS Receiver Modules that delivers highly accurate GPS timing.

Integrity is further improved because of its SBAS (WAAS) capability in addition to traditional T-RAIM (Time-Receiver Autonomous Integrity Monitor) function. Several new command sets have been added for easier use.
PPS output mode is available. For example, in "always output mode", 1PPS is output without satellite signals using the receiver's internal timing (no UTC synchronization). In "fixed observation point mode", one satellite signal is enough to output UTC synchronized 1PPS. application is infinite.

Timing

Features

  • Low cost but powerful, fast 16 Channel GPS receiver

  • Accuracy is not sacrificed 15 nanoseconds with regard to UTC (1 sigma).

  • Low power consumption (58mA@3.3VDC) at full tracking satellites

  • RF pig tail cable with popular connector already soldered for easier, more cost-effective installation.

  • Almanac uploading and downloading.

  • Autonomous transition from "Survey" to "Fixed Observation Point" lets the receiver calculate its position and then use the averaged position as the fixed observation point.

  • Allows you to go back to the fixed position even after power-off.

Specifications

GENERAL

GNSS Reception Capability
GPS L1 C/A, SBAS L1 C/A
GNSS Reception
12 Satellites simultaneously including 1 WAAS supporting channel
Update Rate
1Hz
Sensitivity
Acquisition : -138 dBm
1PPS Stability
30 nanosec (2drms)
TTFF (Typical)
8.4 seconds Hot Start (Open Sky)
36 seconds Warm Start (Open Sky)
44.9 seconds Cold Start (Open Sky)
Supply Voltage
3.0 to 3.6 VDC
Power Consumption
Max 72 mA at 3.6 VDC
Backup Supply
Voltage: 2.1 to 3.6 VDC
Current: max 200 uA when VCC = 3.6 VDC
Operating Temperature
-30°C to +80°C
Storage Temperature
-40°C to +85°C
Antenna Detection
Antenna current detection circuit
Over-flow protection circuit
Outer Size
20.8 mm (W) x 33.8 mm (D) x 6.3 mm (H)
Protocol
NMEA-Like
Interfaces
TTL(Normal High)

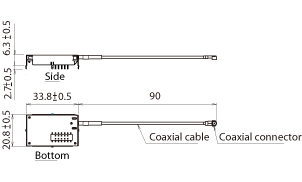

Drawing

Contact

Locate a Distributor Contact a local distributor for further details.

* Specifications subject to change without notice.
