Compact X-band Doppler Weather Radar WR110

The WR110 is a compact and lightweight weather Radar that runs on any standard power outlet. This model is perfect for companies and local communities. It is a smart combination of high performance and ease of installation that offers a wide range of applications and possibilities.

Features

Easy installation
  • Compact and lightweight (ø98 cm, 65 kg)
  • No heavy equipment required for installation
  • Compatible with regular power outlet
Reduced operating costs
  • Solid-State
    - Highly reliable, low maintenance.
    - Long life solid-state transmission device
    - Low power consumption(100V, 200W)
  • Radar status monitoring for optimized performance
Transportability

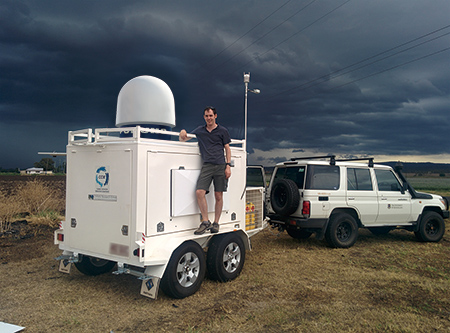

WR110 mounted on a trailer (example)
  • Wide range of transportation choices
    Pickup, Van, Trailer, Small trucks...
  • Heading sensor for azimuth adjustment*
  • Vibration isolator for safe relocation and transport*
    MIL-STD-810G Test Method 514.7 ANNEX C Category 4 Secured Cargo, Common carrier (US highway truck vibration exposure) Test1
  • WR110 case for easy transportation*
*Option
Various software applications available
  • Visualization Application (paid service)
    - Easy monitoring from PC, smartphones and tablets using our standard WR110 visualization software
    - Precipitation graph, alert, short-term predictions available in the registered area.
  • Various file formats available
    - HDF5 (e.g. Vaisala IRIS Focus), NetCDF
    - Others

Specifications

Antenna Polarization Single polarization (Horizontal)
Operating Frequency 9.4 GHz band
Pulse Width 0.5 - 50 μs
Pulse Repetition Frequency(PRF) up to 2,000 Hz
Beam Width 2.7 degrees
Peak Output Power 100 W
Vertical Scan Angle -2 to 182 degrees (adjustable)
Antenna Rotation Speed 0.5 – 10 rpm
Observation Range 70 km max.
Scan Modes PPI, Volume Scan, Sector PPI, Sector RHI
Output Parameters Reflectivity factor Zh (dBZ), Doppler velocity V (m/s),
Doppler velocity width W (m/s), Rainfall intensity Rain (mm/h)
Data Correction Distance and Rain attenuation, Doppler Velocity Folding
Doppler Speed +/-64 m/s
Unwanted Signal Removal Land clutter suppression and Interference Rejection
Available Data Formats CF/Radial, Opera Odim HDF5, CF-compliant NetCDF (rain only) Grib2 (rain only)
Operating Temperature Range -10 to +50°C
Maximum Wind Survival Speed 90 m/s
Power Supply 100-240 VAC, Single phase, 50/60 Hz
Power Consumption 350 W max., 200 W typ.

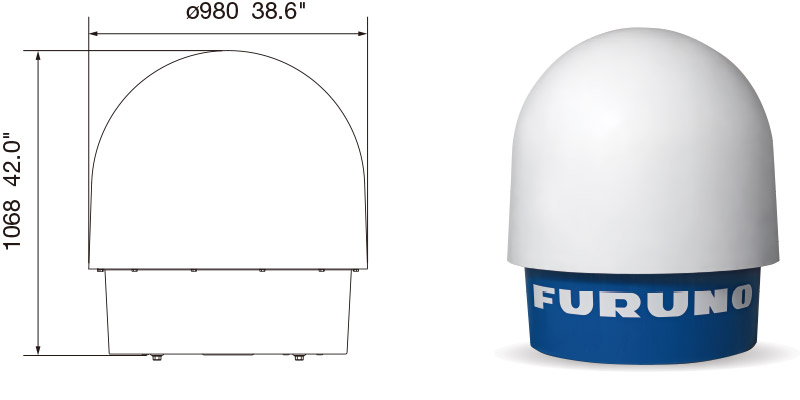

Drawing

The WR110 can be transported through narrow spaces (800 mm) and disassembled if required

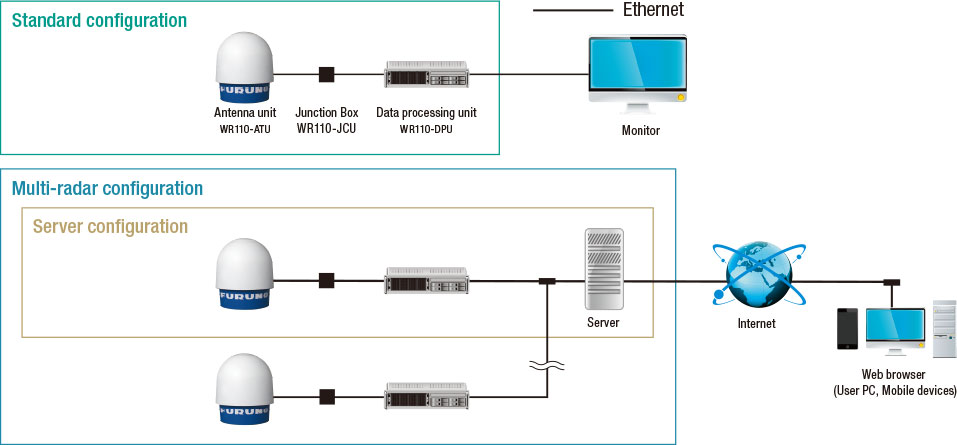

System configurations
