Compact Dual Polarimatric X-band Doppler Weather Radar WR2120

Features

Dual Polarization

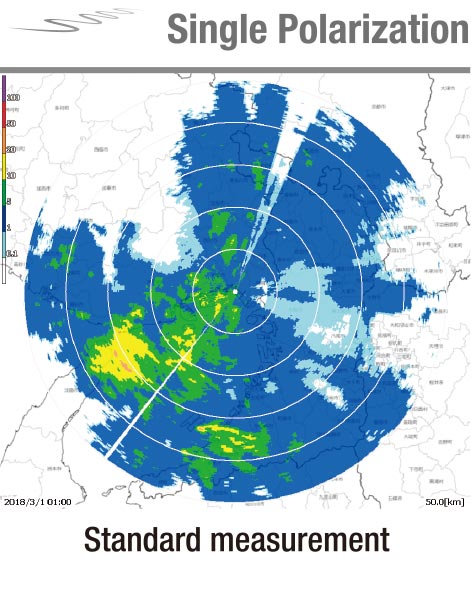

High precision rain observation & accurate measurements

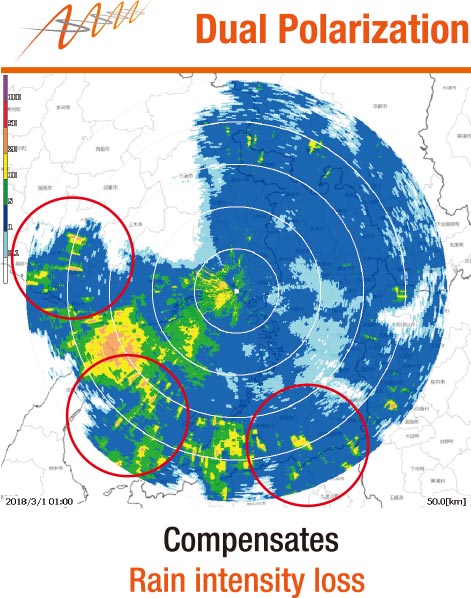

The Dual Polarization of the WR2120 recovers signal intensity loss and attenuation caused by heavy rain.

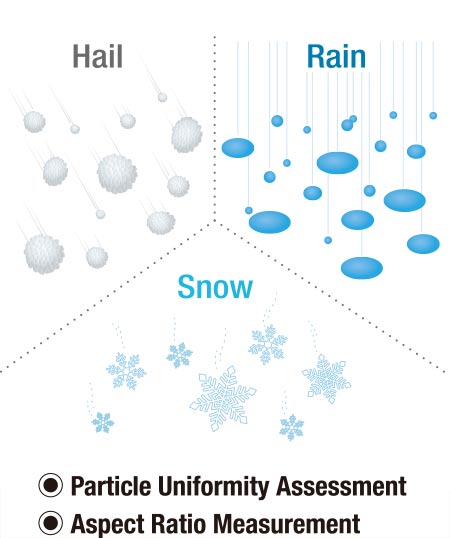

Particle classification

Several data such as echo strength or phase difference, provided by the WR2120, can be utilized to assess the nature of the detected particle and deduct whether it is Snow, Hail or Rain.

Easy installation
  • Very compact and lightweight (ø1m, 65 kg)
  • No heavy equipment required for installation
  • Compatible with regular power outlet
Reduced operating costs
  • Solid-State
    -Reliable, less maintenance, long life solid-state transmission device
    -Low power consumption(100V, 200W)
High resolution & accurate measurements
  • Outputs dual polarimetric Doppler information (Zdr, Kdp) for computing diameter of precipitation particles as well as discriminating types of precipitation (rain, snow, etc.)
  • 3D scan to observe the vertical structure of a cumulonimbus
Various software applications available
  • Visualization Application (Paid service)
    - Easy monitoring with our standard WR2120 visualization software
  • Various data formats used in major software packages, such as Baron Lynx and Vaisala IRIS Focus, are available.
Carbon fiber antenna dish
  • Reduction of the antenna weight
  • Reduction of damage and mechanical stress due to shocks and vibrations

Specifications

Antenna Polarization Dual polarimetric (Vertical and Horizontal), Simultaneous transmission/receiving
Operating Frequency 9.4 GHz band
Pulse Width 0.5-50 us
Pulse Repetition Frequency (PRF) 2000 Hz max.
Beam Width 2.7° (both horizontal and vertical beams)
Peak Output Power 100 W (both horizontal and vertical beams)
Vertical Scan Angle -2°to 182° (adjustable)
Antenna Rotation Speed 0.5-10 rpm max. (adjustable)
Observation Range 70 km max
Scan Modes PPI, Volume Scan, Sector PPI, Sector RHI
Output Parameters Reflectivity factor Zh (dBZ), Doppler velocity V (m/s), Doppler velocity width W (m/s), Cross polarization difference phase φdp (deg), Specific differential phase KDP (deg/km), Correlation coefficient between two polarizations ρHV, Horizontal and Vertical differential reflectivity factor ZDR, Rainfall Intensity R (mm/h)
Doppler Speed +/-64 m/s
Available Data Formats CF/Radial, Opera Odim HDF5, CF-compliant NetCDF (rain only), Grib2 (rain only)
Operating Temperature -10 to +50 °C
Maximum Wind Survival Speed 90 m/s
Sensitivity-reflectivity Typ. 25 dBZ@50 km @Q0N 50 us 2 MHz (SNR = 4dB)
Gain ≧ 33.0 dBi
Transmitter Type Solid state
Occupied Frequency Bandwidth ≤ 6 MHz
Power Supply 100-240 VAC, Single Phase, 50/60 Hz
Power Consumption 650 W max., 470 W typ.

Drawing

System configurations
