Current Indicator

CURRENT INDICATOR Model CI-68

Obtain highly accurate water current measurements using FURUNO's reliable acoustic technology.

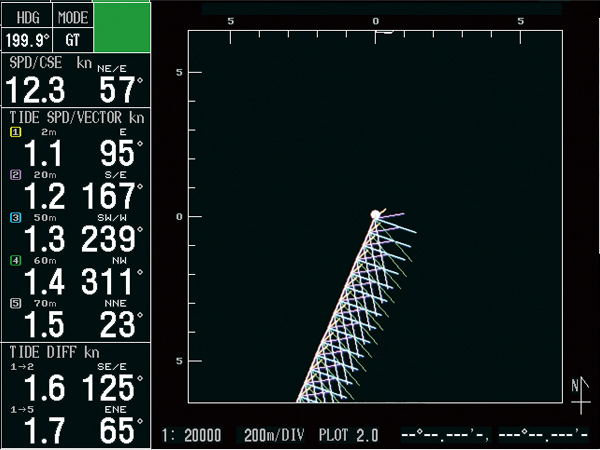

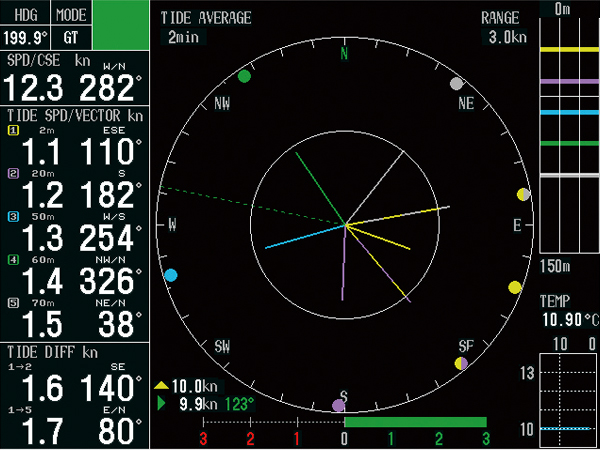

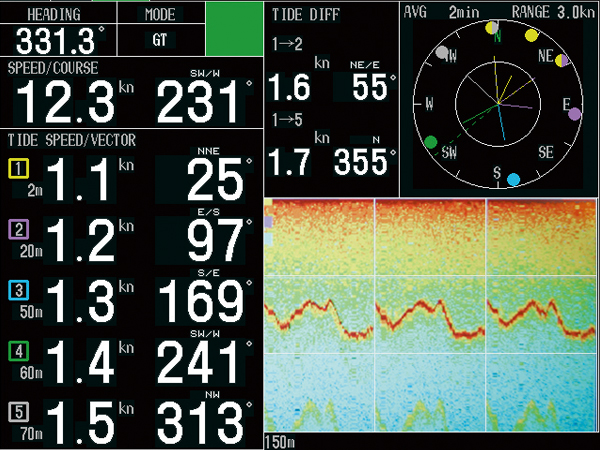

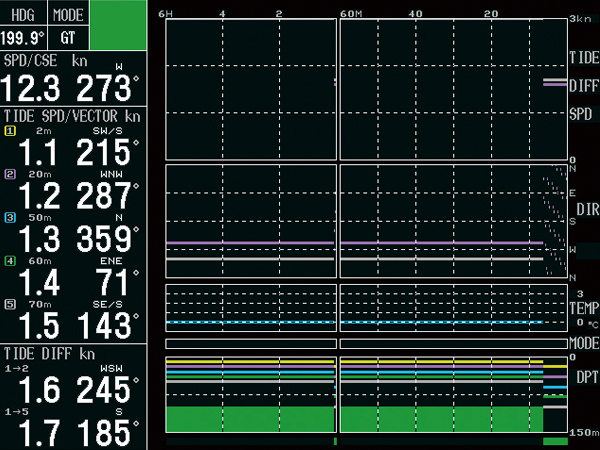

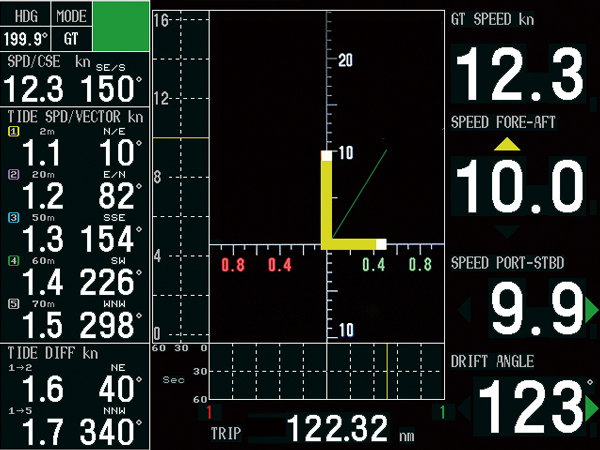

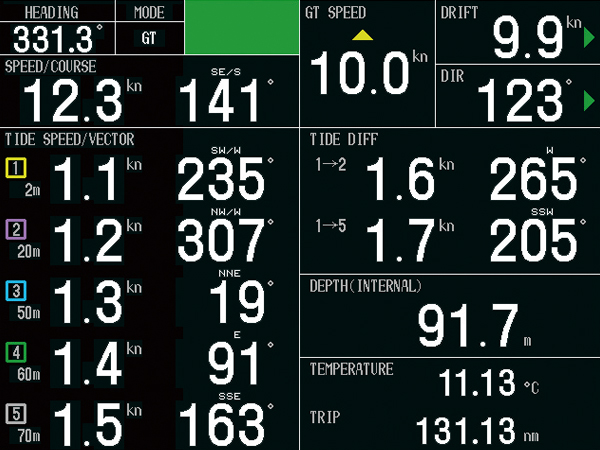

The CI-68 displays tide speed and direction at three depth layers and ship's speed on a high definition 10.4color LCD.

Fishing Vessels Workboats
Black Box VIDEO OUT

Features

  • Compact 3-unit design for ease of installation and maintenance

  • High definition 10.4" color LCD

  • Black box system configuration allows for use of optional CRT or LCD monitors

  • Continuous display of tide speed and direction at five different depth layers

  • Triple-beam system for less error in tide current detection

  • True tide current presentation with external GPS navigator and Satellite compass

Specifications

GENERAL

Display unit
10.4" TFT color LCD, 640 x 480 pixels
Tide Speed
0.0~9.9 kt
Measurements Accuracy
± 2% of ship's speed + 0.2 kt
Number of layers
5 layers
Depth Range
2 to 75% of water depth up to 150 m
(Over 22 m of water depth is required in Ground tracking mode. Over 40 m water depth is required in Water Tracking mode)
Frequency
244 kHz
Waterproofing
Transceiver/Monitor unit: IPX0
Control unit: IPX2 (panel), IPX0 (chassis)
Junction box: IPX4
Transducer: IPX8
Power Supply
115/230 VAC
Size
327 (H) x 290 (W) x 171 (D)
Weight
Display/Control Unit (MU-100C・CI-6888:6.0 kg)
Transceiver Unit (CI-6810:19.0 kg)
Transducer (CI-620-1-68:21 kg)

Equipment List

Standard

  • MONITOR UNIT
    MU-100C or BLACK BOX TYPE (LESS DISPLAY UNIT) Available
    1 UNIT
  • CONTROL UNIT
    CI-6888
    1 UNIT
  • TRANSCEIVER UNIT
    CI-6810-E-100 (100 VAC) /
    CI-6810-E-200 (200 VAC)
    1 UNIT
  • TRANSDUCER CI-620-1-68 with 10 m cable or
    CI-620-2-68 with 20 m cable
    (Specify when ordering)
    1 UNIT
  • TRANSDUCER CASING
    CI-620-T-F
    1 UNIT
  • THRU-HULL PIPE
    CI-620-K-S
    1 UNIT
  • JUNCTION BOX
    CI-630
    with 10 m cable between CI-6810 and CI-630
    1 SET
  • STANDARD INSTALLATION MATERIALS
    including 20 m Signal Cable Assy (CONTROL-TRANSCEIVER)
    1 SET
  • NOTE: for CI-68 Black Box type
    Select Flatpanel Color LCD locally having a capability of VGA (640X480) input.

Option

  • JUNCTION BOX CI-630
  • DC/AC INVERTER TR-2451
  • TRANSDUCER CASING CI-620-T-S
    (for steel ship)
  • THRU-HULL PIPE CI-620-K-S
    (for steel ship)
  • CABLE FOR TRANSCEIVER - JUNCTION BOX
    Z-6FVNV-SX-C 3P+1P
    5M
    10M
    20M
    30M
  • CABLE ASSY 66S1239 (5M)
    66S1239 (10M)
    To separate Control Unit from Monitor MU-100C, optional 66S1239 (with 5 m cable) or 66S1239 (with 10 m cable) is required.
  • FOR FIXING CONTROL UNIT BOX TYPE
    V TYPE
  • MULTI-PURPOSE LCD DISPLAY MU-100C
  • 4P TWISTED PAIR CABLE 5M
    10M
    15M
    20M
    30M

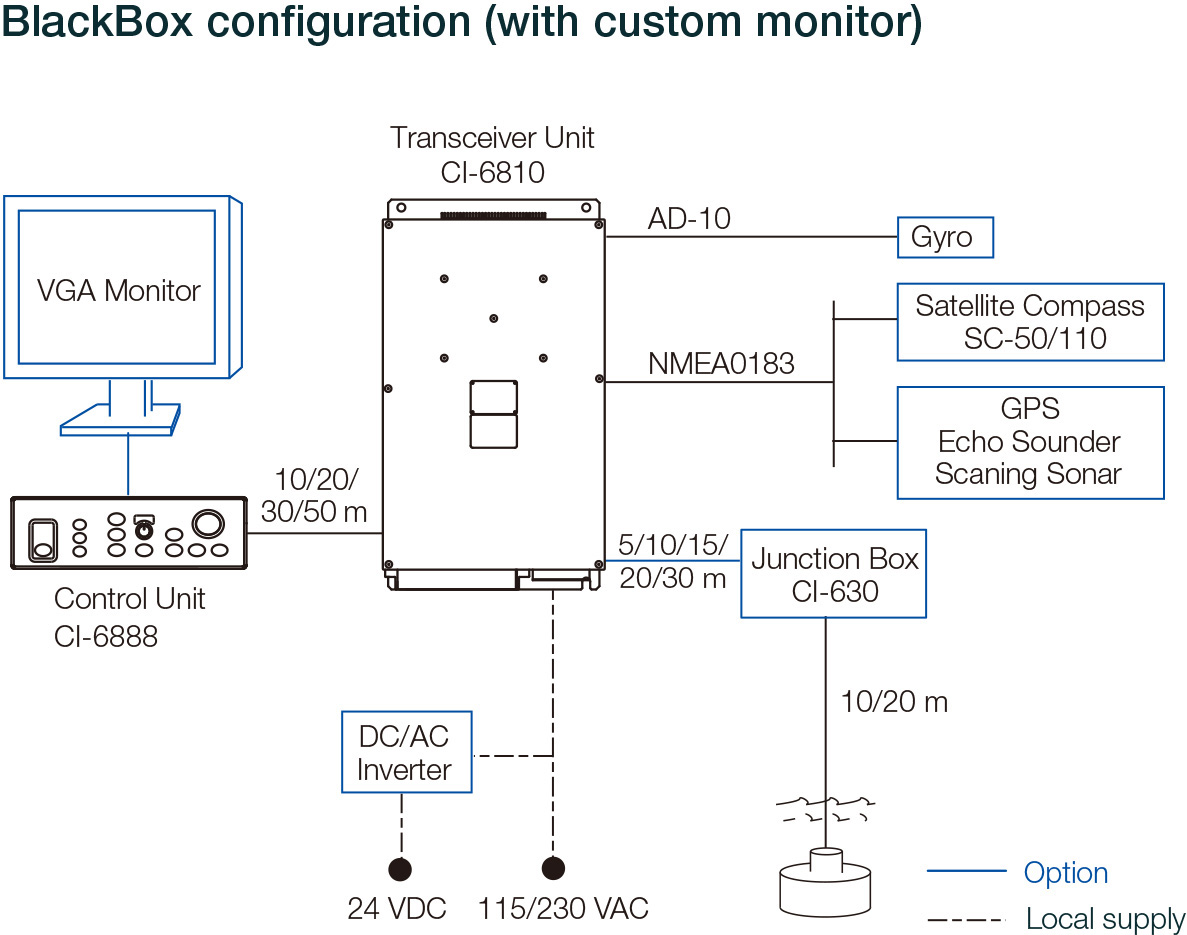

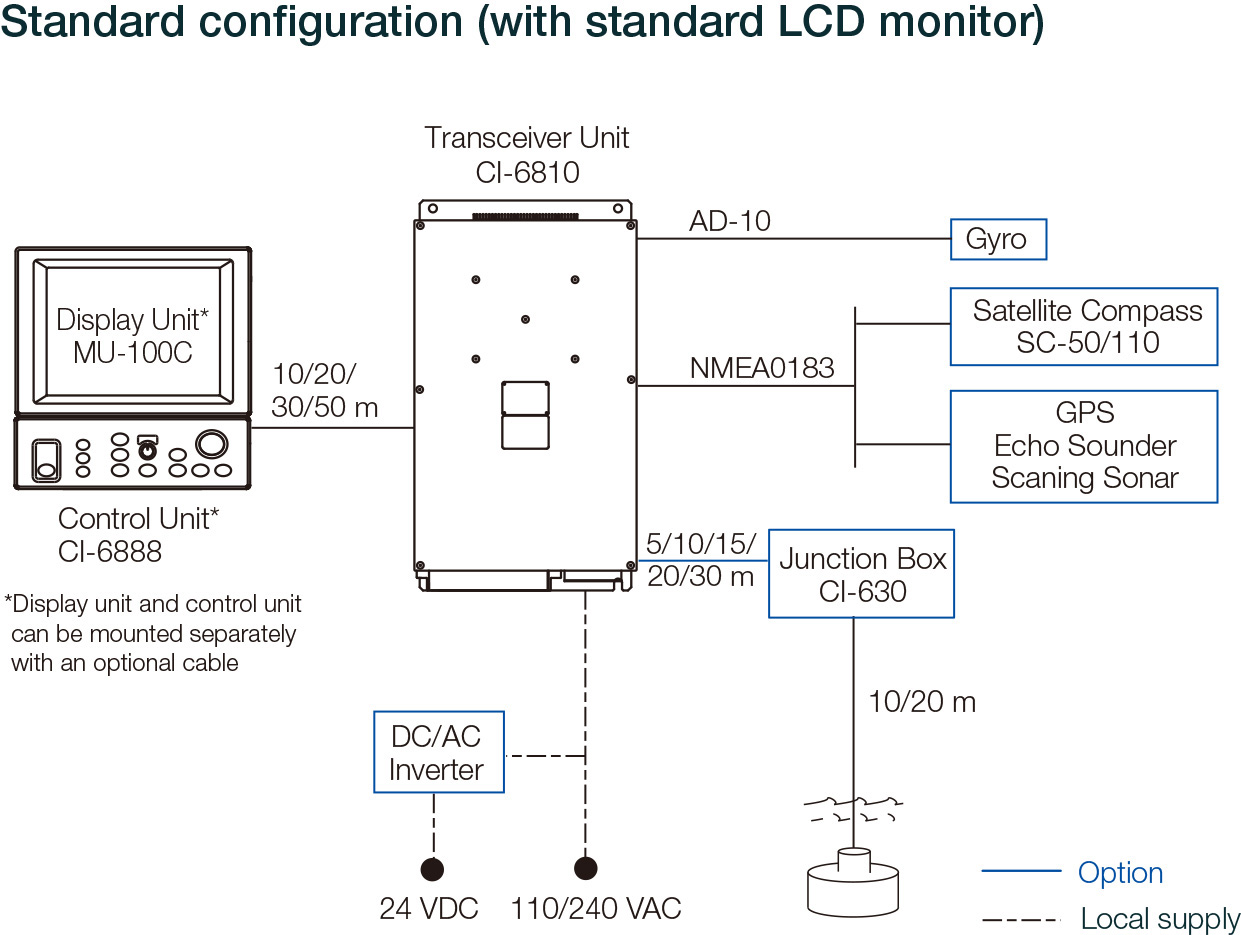

Interconnection Diagram

* Specifications subject to change without notice.
