CURRENT INDICATOR Model CI-88

Doppler Sonar Current Indicator designed for every type of fishing vessels and hydrographic survey vessels

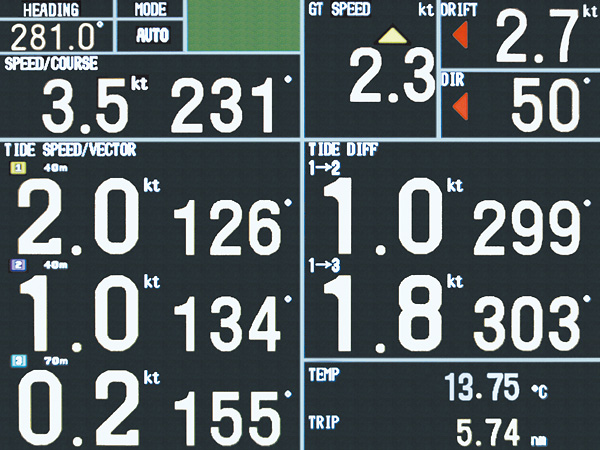

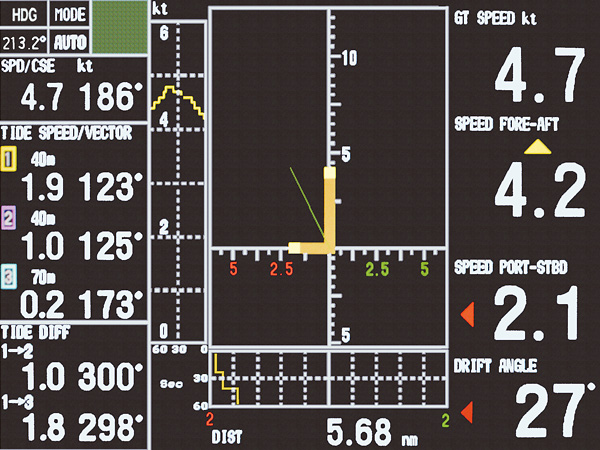

The high-definition 10.4 color LCD continuously presents tide speed and direction at three depth layers simultaneously in addition to ship's speed and drift.

Fishing Vessels Workboats
Black Box VIDEO OUT

Features

  • Compact design and single-mold transducer for ease of installation and maintenance

  • High definition 10.4" color LCD for displaying tide current detections

  • Black box system configuration allows use of commercial VGA monitors

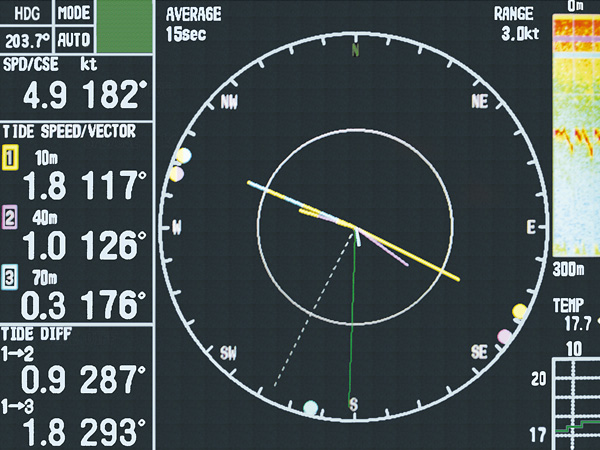

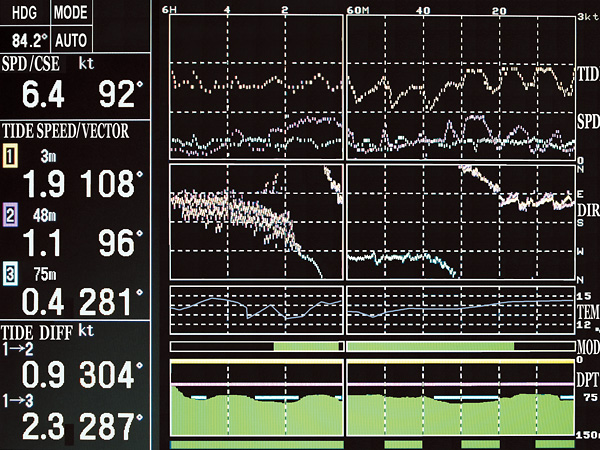

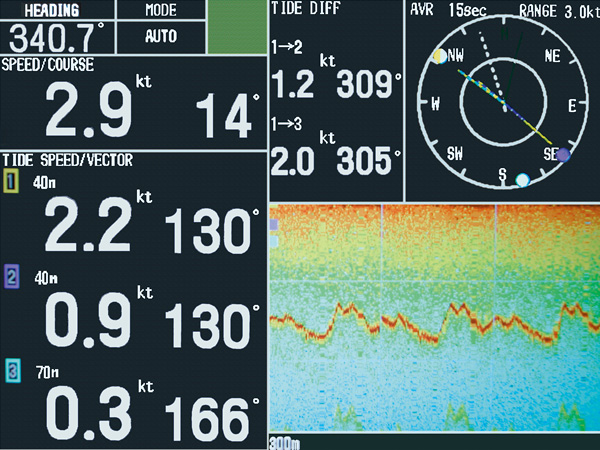

  • Continuous display of tide speed and direction at the three selected depth layers

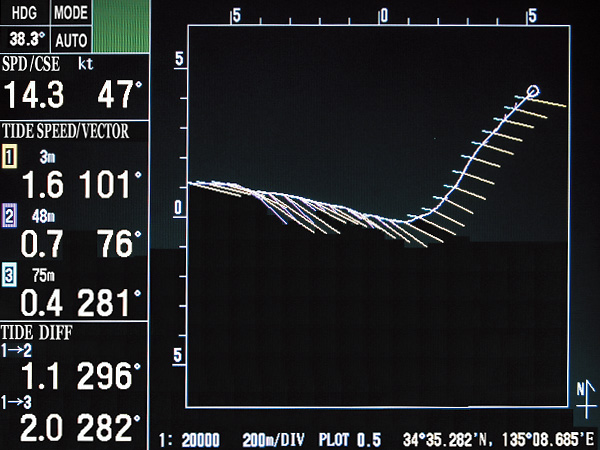

  • Tide speed/direction and ship's track can be plotted on screen for larger area tide observation

  • Triple-beam system for less error in tide current detection

  • True tide current presentation with external GPS navigator and Gyrocompass inputs at deep water locations

  • Water temperature graph helps locate current rip (Temperature sensor required)

Specifications

GENERAL

Display unit
10.4" TFT color LCD, 640 x 480 pixels
Tide Speed
0.0〜9.9 kn
Frequency
288 kHz
Power Supply
DC24 V、2.5 A
Size
327 (H) x 290 (W) x 171 (D)

Equipment List

Standard

  • MONITOR UNIT
    MU-100C or BLACK BOX TYPE (LESS DISPLAY UNIT) Available
    1 UNIT
  • CONTROL UNIT CI-6888 1 UNIT
  • TRANSCEIVER UNIT CI-8810 1 UNIT
  • TRANSDUCER CI-8840-1
    with 10 m cable
    1 PC
  • STANDARD INSTALLATION MATERIALS
    including 10 m Signal Cable Assy (CONTROL-TRANSCEIVER)
    1 SET
  • NOTE: for CI-88 Black Box type
    Select Flatpanel Color LCD locally having a capability of VGA (640X480) input.

Option

  • CABLE (CONTROL - TRANSCEIVER) 10M
    20M
    30M
    50M
  • CABLE ASSY 66S1239 (5M)
    66S1239 (10M)
    To separate Control Unit from Monitor MU-100C, optional 66S1239 (with 5 m cable) or 66S1239 (with 10 m cable) is required.
  • JUNCTION BOX CI-630
  • TANK FOR FRP HULL CI-820
    (KEEL MOUNT)
    CI-822
  • TANK CI-821
    (SIDE MOUNT)
  • TANK FOR STEEL HULL CI-823
  • TRANSDUCER CI-8840-1 (10 m)
    CI-8840-2 (20 m)
  • FOR FIXING CONTROL UNIT BOX TYPE
    V TYPE
  • MULTI-PURPOSE LCD DISPLAY MU-100C
  • FLUSH MOUNT KIT
  • TRANSDUCER FLANGE
  • THRU-HULL PIPE STEEL HULL TFB-5000CI
  • THRU-HULL PIPE TRB-1500 (1)
  • 4P TWISTED PAIR CABLE 5M
    10M
    15M
    20M
    30M

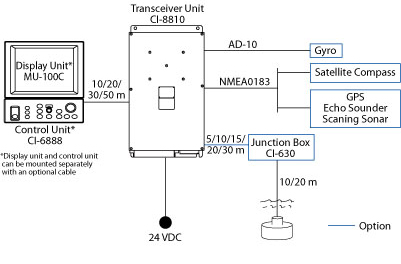

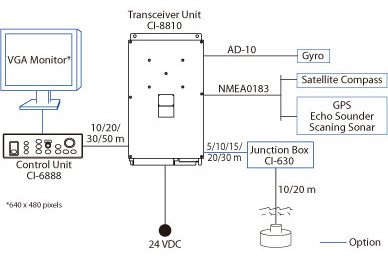

Interconnection Diagram

Documentation

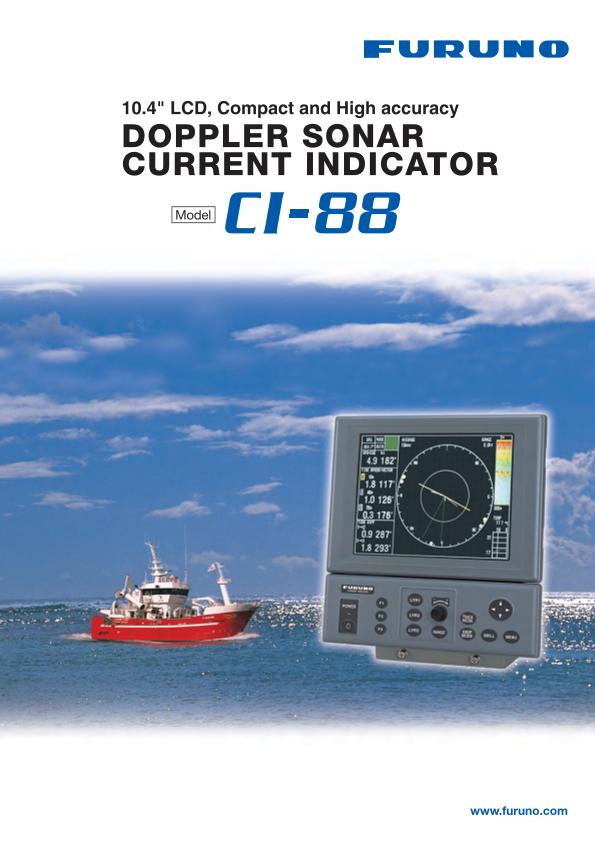

  • CI-88 Brochure
    (Last update: Mar 23, 2023)

* Specifications subject to change without notice.
