Multi-Purpose Display

FLEX Function Display Model SFD-1010,SFD-1012

(SFD-1010/SFD-1012)

Highly Flexible Display

Discover the SFD-1010/1012, 10" and 12" display and control units compatible with a wide range of Furuno sensors from DRS4DL+ Radar to DFF-3D Multibeam Sonar or Fish Finders. These are versatile and highly adaptable Display units that, combined with a hub and your favorite sensors, allow multiple configurations to suit all needs, from recreational boating to workboats.

Recreational Boats Fishing Vessels Workboats
Multi Touch Ultra High Definition Personal Bathymetric Generator

Features

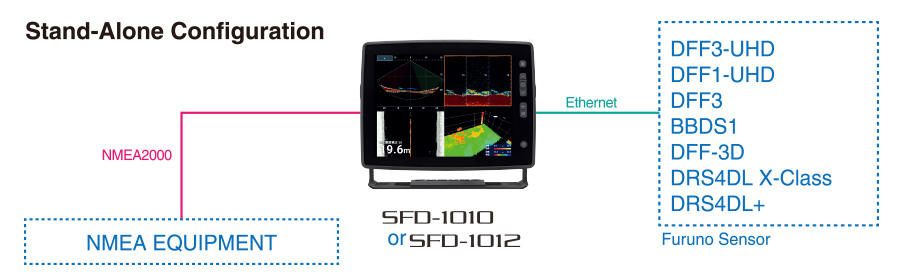

  • Designed to work with our most popular sensors

    SFD-1010/1012 has been designed to work with our most popular sensors such as Radars, Fish Finders and DFF-3D. Each display unit will therefore be able to display the desired mode depending on the configuration.

    Multibeam Sonar

    Connect our popular DFF-3D Multibeam Sonar which displays echoes in high-resolution and gives you access to several useful modes such as Cross Section, 3D history, Triple Beam, or Side-Scan.

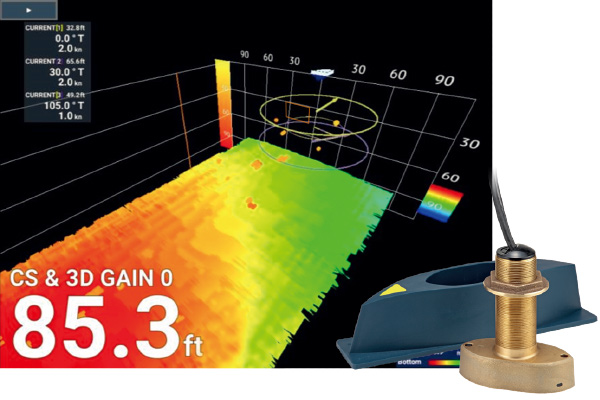

    DFF-3D/SFD Combo features sea current overlay & virtual net mark

    Thanks to a virtual fishing net, you will be able to determine the position of the net's mouth in relation to the targeted school of fish and thus increase the efficiency of your catch. In addition, you can overlay sea current information as shown in the picture.

    * To display current information, Furuno’s CI series must be connected.

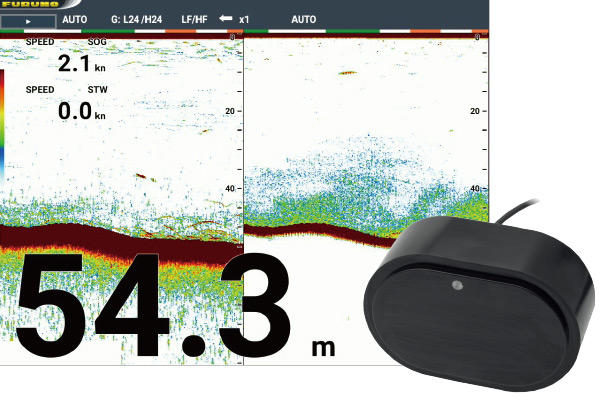

    Fish Finder

    Connect our most powerful Fish Finders and enjoy our best fishing technologies such as TruEcho CHIRP™ and ACCU-FISH™ for maximum clarity.

    • Choose your best Fish Finder Among DFF3-UHD, DFF1-UHD, DFF3, BBDS1 depending on your needs.
    • High Resolution Fish Finders provide better bottom contours & clearer presentation that separates bottom structure from bottom fish.
    Radar

    Connect our Plug-and-Play Radar to ensure your safety at sea with the extremely compact Radome 19" DRS4DL X-CLass* / DRS4DL+ which features Fast Target Tracking™ and requires only one LAN cable and one Power Supply cable for its installation.

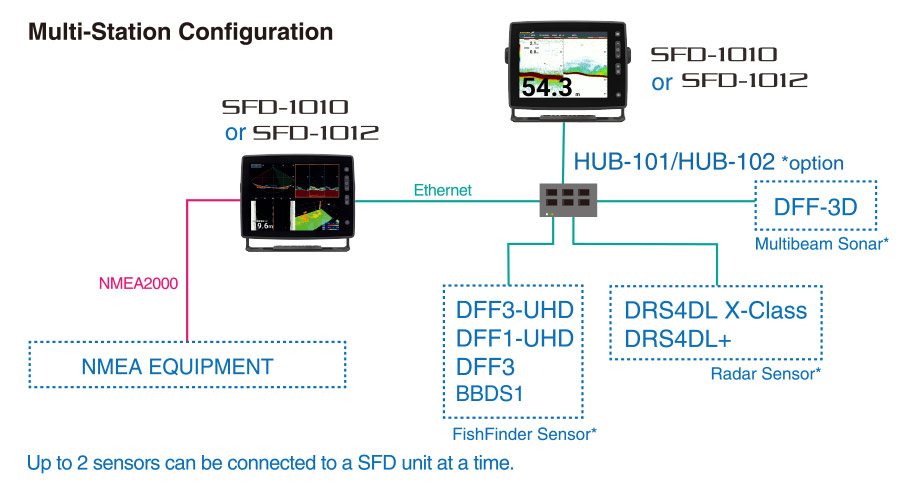

    The Multi-station feature allows you to connect two SFD displays to one Radar. We recommend the vertical orientation when using Off-center. it is perfect for Workboats.

    * The DRS4DL X-Class does not comply with RED, UKCA or ISED regulations.

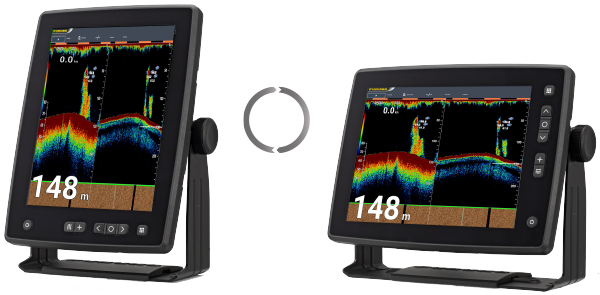

  • Flexible orientation for your favorite display mode

    Touch Control + Control Keys
    Multi TouchThe SFD is also very flexible in its control capabilities, ranging from multi-touch to control keys, as well as operation with an optional mouse.

    * Adjustable bracket to fit your preferred display orientation.
  • Bathymetric shaded relief maps

    Quickly create your own PBG (Personal Bathymetric Generator) Shaded Relief Maps using SFD and the DFF-3D or Fish Finders. Bottom images are drawn with shaded relief, depth contours, and variable colors, making it easy to identify hidden structure and ridges that hold fish in a simple,easy-to-interpret presentation.

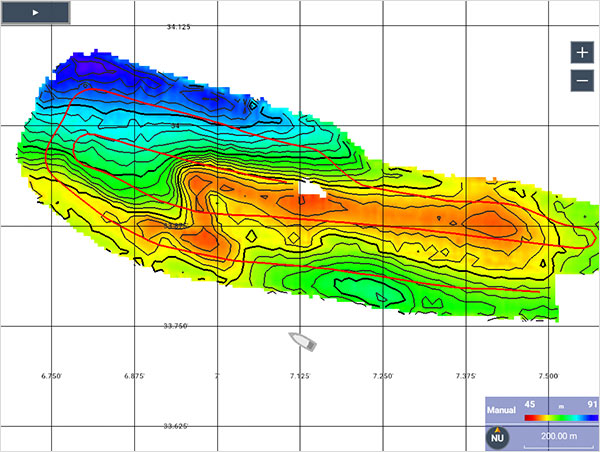

    PBG created with Multibeam Sonar

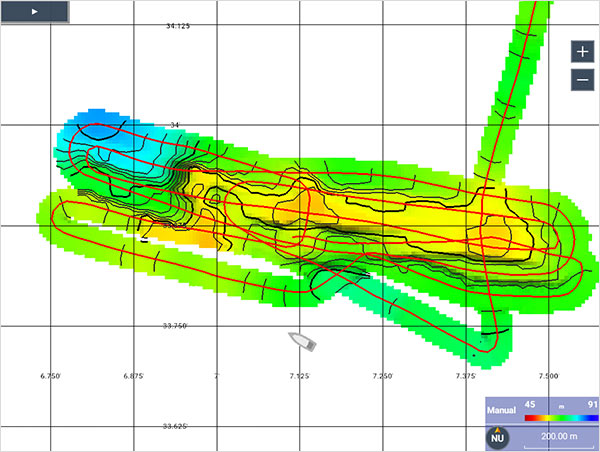

    PBG created with Fish Finder (Single beam)
    PBG compatible Furuno’s Fish Finder
      Model Interface
    FCV Series FCV-38, FCV-2100, FCV-1900/B/G, FCV-295/1150, FCV-585/620, FCV-588/627, FCV-688 NMEA0183
    FCV-600/800 NMEA0183/2000
    Chart plotter with F/F GP-3700F, GP-1871F/1971F NMEA0183/2000
    DFF Series DFF3-UHD, DFF1-UHD, DFF3, BBDS1 Ethernet
    NavNet TZtouch Series TZtouchXL, TZtouch3, TZT2BB Ethernet

    * The above diagram shows almost the same area mapped with each beam. The red line is your ship's wake. A single beam only provides information directly below your ship, whereas a multibeam detects a 120° width to the left and right, making multibeam more efficient at creating seabed maps.
    When using the seabed mapping function with a single beam, it is not possible to display fish finder echoes.
    * Recommend connecting a satellite compass as it reduces the effects of wave swaying.
    * Chart overlay is not possible.

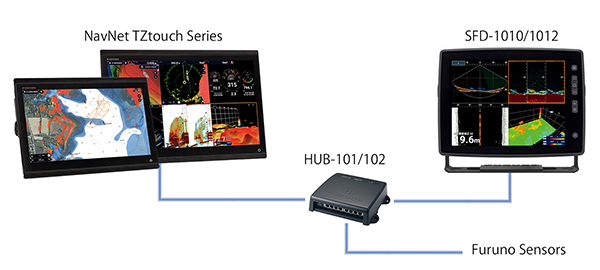

  • Sub-monitor function with NavNet TZtouch Series

    By connecting to the same network as the NavNet TZtouch series, it is possible to display and operate sensor information within the network. The NavNet TZtouch series displays a variety of navigation information, and the SFD allows you to check and operate Fish Finder/Radar/Multibeam Sonar information on a large screen, making it convenient.

Specifications

GENERAL

Display unit
SFD-1010: 10.4” TFT COLOR LCD
SFD-1012: 12.1” TFT COLOR LCD
Screen Resolution
SFD-1010: 1024x768 (XGA)
SFD-1012: 1024x768 (XGA)
Viewing Angle
80° (minimum)
Screen Brightness
800 cd/m²
Interface
Serial: 2 ports, NMEA0183
LAN: 1 port, Ethernet 100Base-TX, RJ45
USB: 1 port, USB2.0 (Type A), For maintenance
NMEA2000: 1 port
HDMI Output: 1 port, 1280 x 720 (HD)

Data sentence
Input: GGA, GNS, HDG, HDT, MDA. MWV, RMA, RMB, RMC, THS, TLL, VHW, VTG, WPT, ZDA
Output: TLL
Temperature
−15 ℃ to +55 ℃
Waterproofing
IP25
Power Supply
12-24 VDC, 3.0 - 1.5 A
Weight
SFD-1010: 2.4 kg 5.3 lbs
SFD-1012: 2.6 kg 5.7 lbs

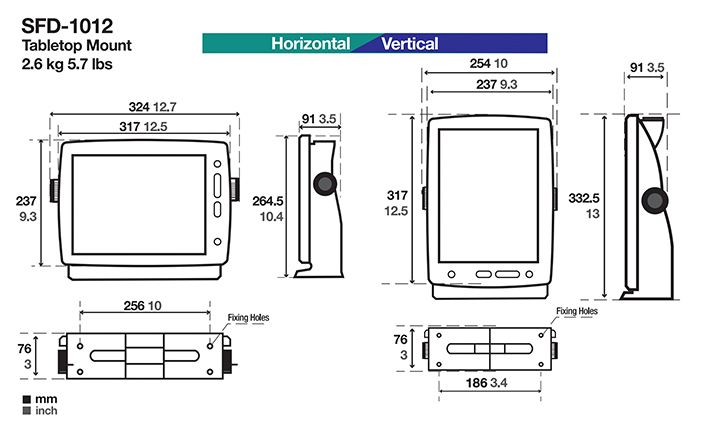

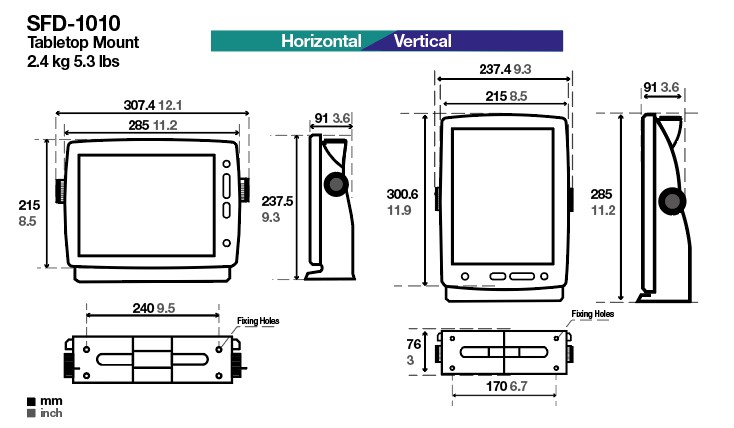

Drawing

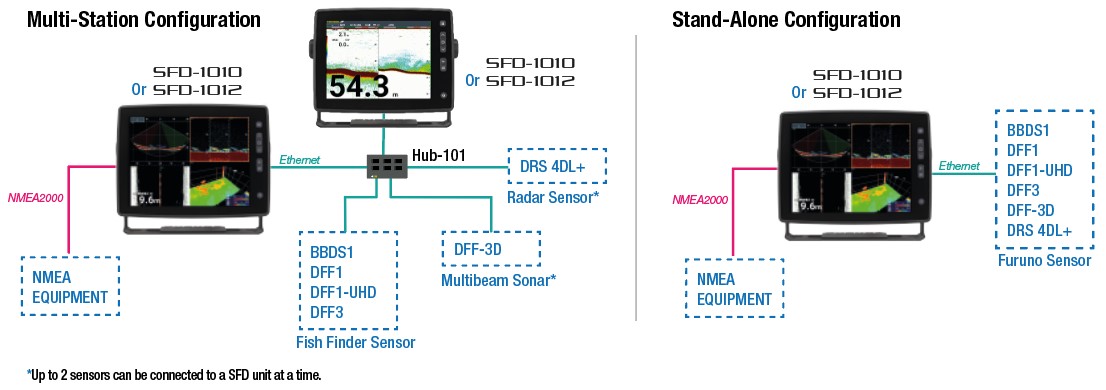

Interconnection Diagram

Documentation

* Specifications subject to change without notice.
