19" MARINE DISPLAY Model MU-190

Features

• Crystal clear 19" marine grade monitor for use as main or remote display

• Resolution: 1280 x 1024 SXGA

• Any of the three NTSC inputs are PIP (Picture-In-Picture) capable, with adjustable size and screen location

• Table top/Ceiling or Flush Mount

• Customizable input names for easy on-the-fly identification and switching between onboard Radar, Sonar, Sounder, Camera, etc.

• Automatic signal recognition and scaling for easy setup and installation

Specifications

GENERAL

Display unit

19" COLOR LCD

Screen Resolution

1280 x 1024 (SXGA)
* Resolution from VGA to SXGA are accepted

Contrast

900：1

Viewing Angle

(Vertical) up/down　80°or more
(Horizontal) left/right　80°or more

Screen Brightness

450 cd/㎡

Interface

Analog RGB (D-SUB/15 pins): 1 port
DVI-D: 2 ports
Composite Video (NTSC/PAL): 1 port

Temperature

−15 ℃ to +55 ℃

Waterproofing

IP22

Power Supply

100-230 VAC、0.5−0.4 A

Weight

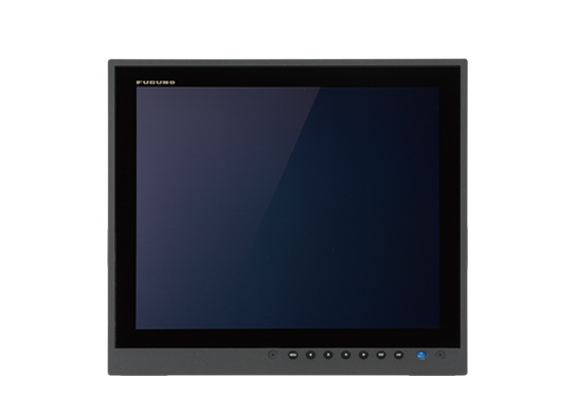

Flush mount：8.8 kg

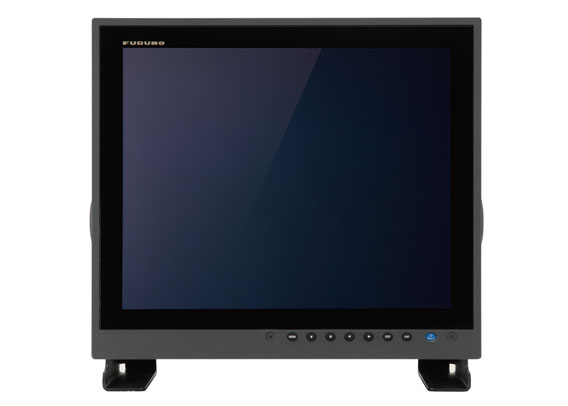

Bracket mount：11 kg

Equipment List

Standard

• DISPLAY UNIT MU-190 1 UNIT
• FLUSH MOUNT PANEL FOR FIXING AT FRONT 1 PC
• INSTALLATION MATERIALS AND SPARE PARTS 1 SET

Option

• DUST COVER FOR STANDARD CONSOLE/SLIM CONSOLE/OP26-5
• CABLE ASSY (ANALOG RGB) 5 M
  10 M
• DVI-D CABLE ASSY DVI-D/D SINGLELINK (5 M)
  DVI-D/D S-LINK (10 M)
• FLUSH MOUNT KIT FOR REAR/2 UNITS/3 UNITS
• BRACKET ASSEMBLY (W/KNOBS) OP26-5
• HOOD ASSEMBLY OP26-6

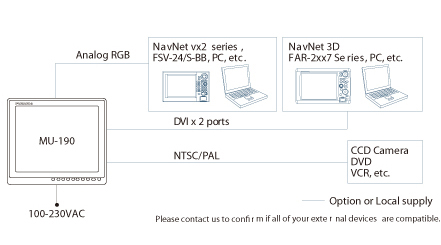

Interconnection Diagram

Documentation

• MU Series Brochure
  (Last update: Mar 24, 2023)

Contact

Locate a Distributor Contact a local distributor for further details.

* Specifications subject to change without notice.
