Multi-Purpose Display

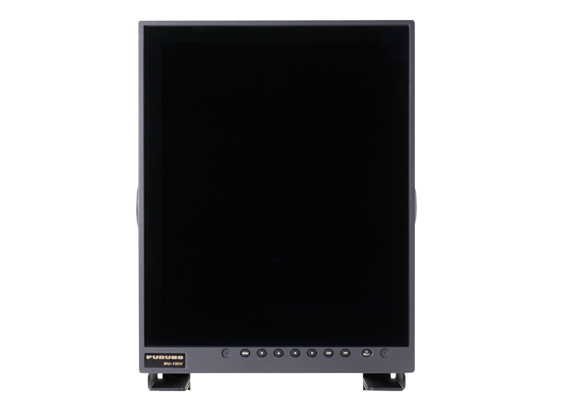

19" VERTICAL MARINE DISPLAY Model MU-190V

Need a bright idea?
How about using FURUNO marine grade monitors in your helm!

The FURUNO MU-190V is a multi-purpose vertical display that features the unmatched FURUNO quality and reliability that you have learned to depend on. This 19" color monitor features a wide range of interface capabilities that will accommodate virtually all of your marine display needs.

Recreational Boats Fishing Vessels Workboats
VIDEO IN (RGB-DVI)

Features

  • Crystal clear 19" marine grade monitor for use as main or remote display

  • Resolution: 1280 x 1024 SXGA

  • Any of the three NTSC inputs are PIP (Picture-In-Picture) capable, with adjustable size and screen location

  • Table top/Ceiling or Flush Mount

  • Customizable input names for easy on-the-fly identification and switching between onboard Radar, Sonar, Sounder, Camera, etc.

  • Automatic signal recognition and scaling for easy setup and installation

Specifications

GENERAL

Display unit
19" COLOR LCD (Vertical type)
Screen Resolution
1024 x 1280 (SXGA)
*Resolution from VGA to SXGA are accepted
Contrast
900:1
Viewing Angle
(Vertical) up/down 80°or more
(Horizontal) left/right 80°or more
Screen Brightness
500 cd/㎡
Interface
Analog RGB (D-SUB/15 pins): 1 port
DVI-D: 2 ports
Composite Video (NTSC/PAL): 1 port
Temperature
−15 ℃ to +55 ℃
Waterproofing
IP22
Power Supply
12−24 VDC、 5.0−2.5 A
Weight
Flush mount:8.0 kg
Bracket mount:11.0 kg

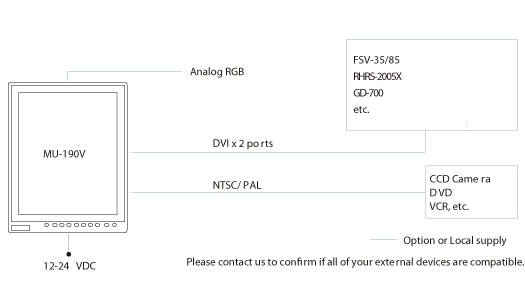

Interconnection Diagram

Documentation

  • MU Series Brochure
    (Last update: Mar 24, 2023)

* Specifications subject to change without notice.
