FULL-CIRCLE COLOR SCANNING SONAR Model FSV-25 MARK-2 NEW

Features

•


• NEW Features coming with FSV-25 Mark-2

  ■[Fish Mark 2] newly added. Maximum of 20 fish marks can be entered per mark type

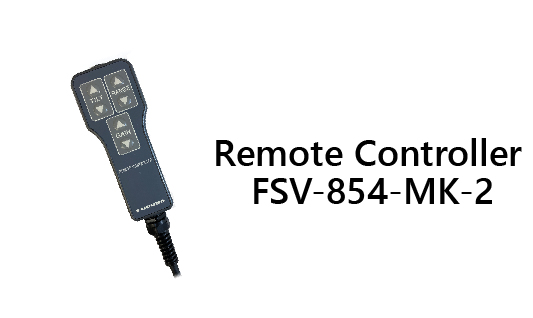

  ■New Control Unit and Remote Controller for quick and easy operation

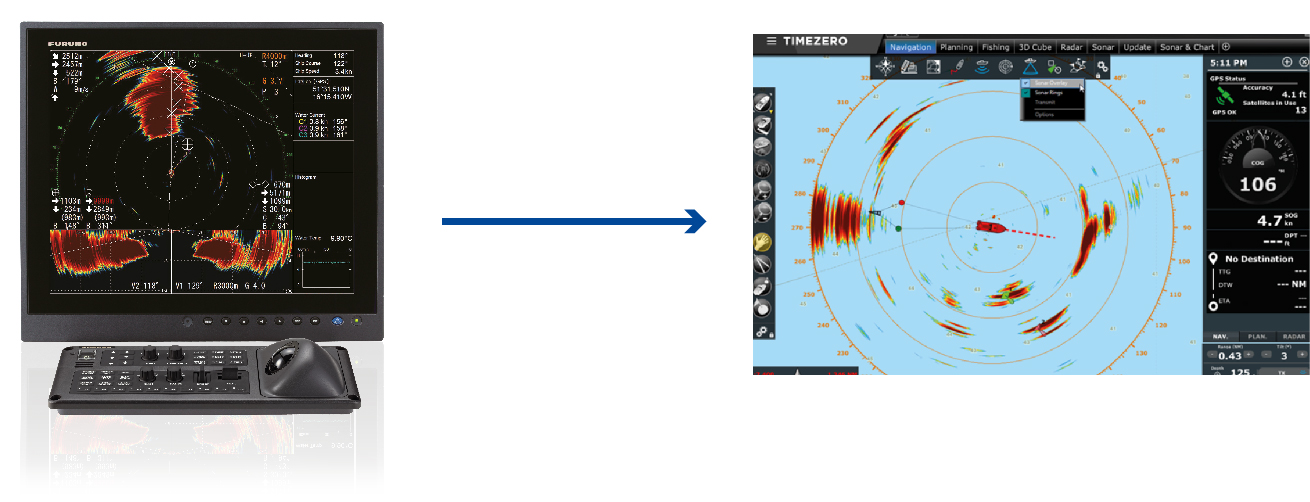

  ■Export of echo data to TZ Professional software

  Learn more about TZ Professional at https://mytimezero.com/

• Fully extend the transducer in just 12 seconds for 1200 mm stroke and in 16 seconds for 1600 mm stroke

  A transducer “throw” time of just 12/16 seconds (respectively) places the FSV-25 MARK-2 among one of the fastest hull units available. You can extend and retract the transducer rapidly for smooth operation.


• Extended detection range to identify schools of fish at great distances

  Thanks to recent advancements in low-frequency transducer elements, signal processing and increased transmission power, the detection range has been greatly improved (by about 30%) with the FSV-25 and FSV-25 MARK-2 series. You can instantly spot and follow schools of fish from several kilometers away.

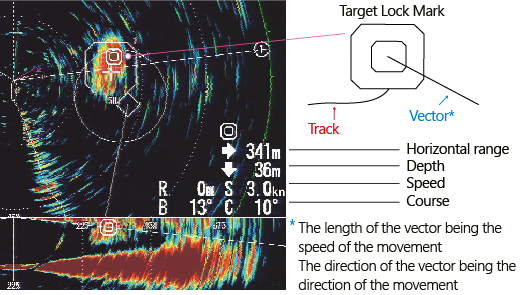

• Automatic target lock function for easy tracking of fast-swimming fish

  FSV-25 MARK-2 will automatically lock onto schools of fish, and display estimates of distance, depth, speed and angle of movement. Target lock is also available for stationary positions (speed and heading information required).

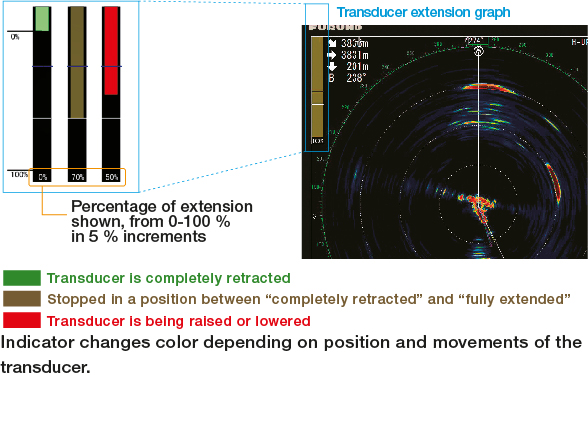

• Graphical hull-unit indicator

  See exactly how much the transducer is lowered directly on your display with a simple graphical interface. Instantly spot if and how much the transducer is lowered or retracted, helping you avoid accidents and increase safety at sea.

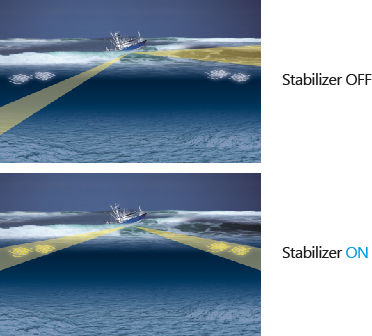

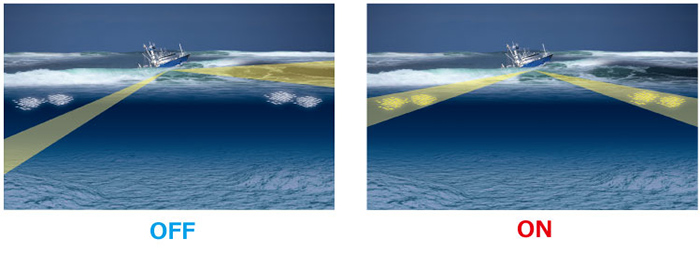

• Stabilization function for unwavering performance

  The stabilizer ensures that echoes are stable when received, regardless of transducer attitude, counteracting the rolling and pitching motions at sea.


• Wired Remote and Sub Control Unit available



• Stop function when extending and retracting transducer

  In order to avoid collisions with drift wood and other material, the transducer can be lowered to the desired position.

• Echo strength distribution histogram

• Auto filter for clear and uninterrupted performance

• 3D Sonar Visualizer™ F3D-S (optional application)

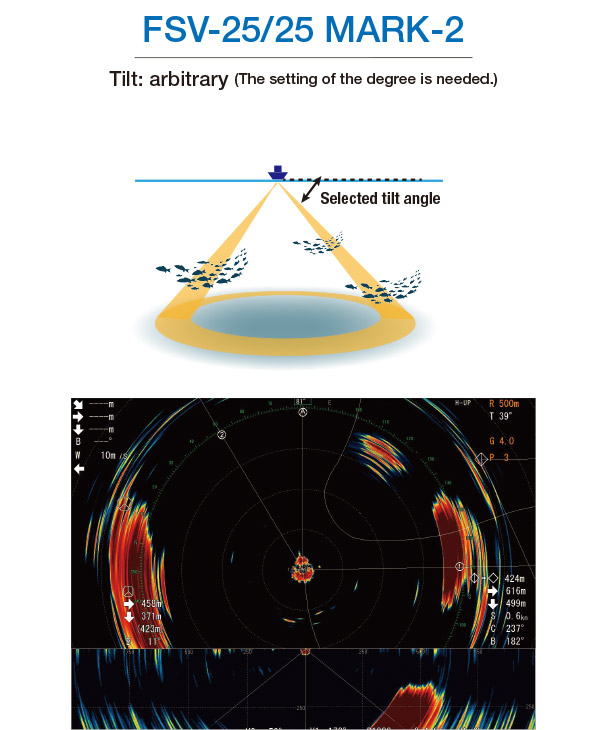

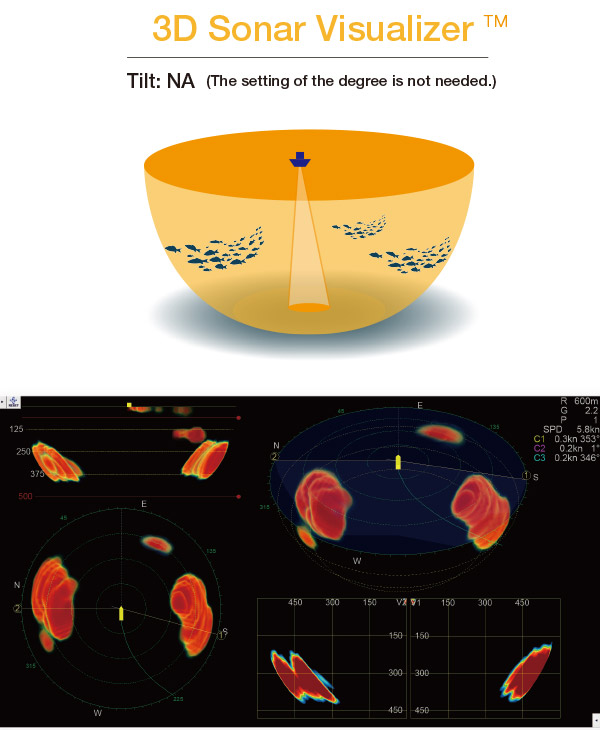

  3D Sonar Visualizer™F3D-S is a new product that works in conjunction with the FSV-25/FSV-25S MARK-2 to show fish and sonar information in 3 dimensions. It uses the hull unit of your existing sonar but then processes the information in a unique way to show fish, peaks and sea floor data in a 3 dimensional "real world" view. Clearly see the size and shape of midwater marks to assess the best way to fish them and, with careful adjustment of the simple depth line control delete the seabed echoes to visualize fish schools close to the seabed.



  For more information, see 3D Sonar Visualizer™ F3D-S

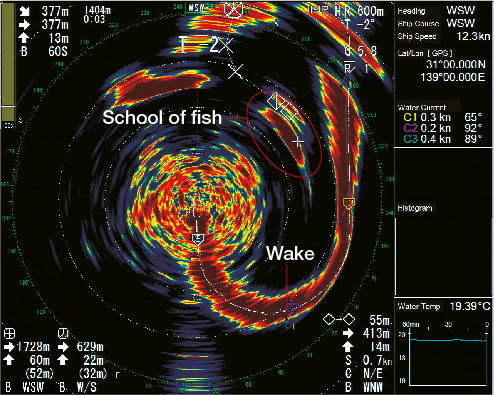

Screenshots

•

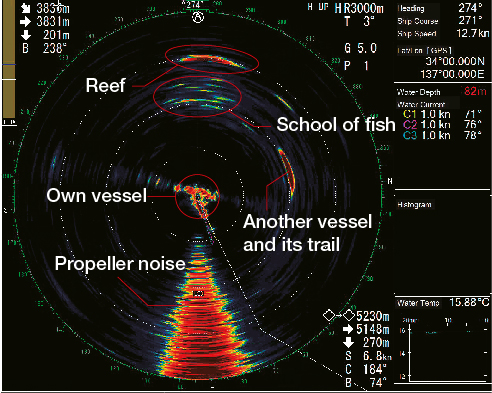

  (3000 m range) A school of fish 2000 m ahead. The fish school appears to swim close to a reef.
•

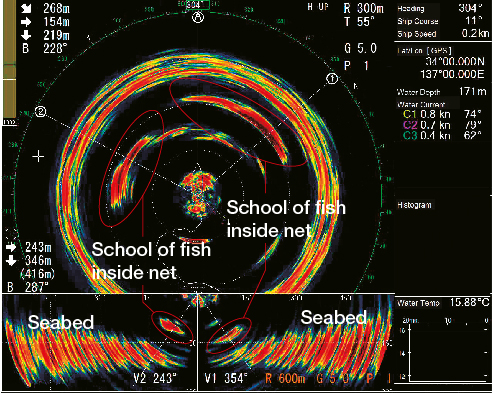

  (300 m range) Two schools of fish can be seen right after the purse-line has been pulled and the net has been closed.
•

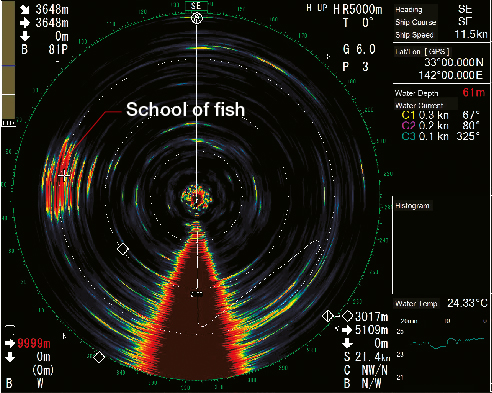

  (5000 m range) A school of bait fish can be seen on the port side of the vessel.
•

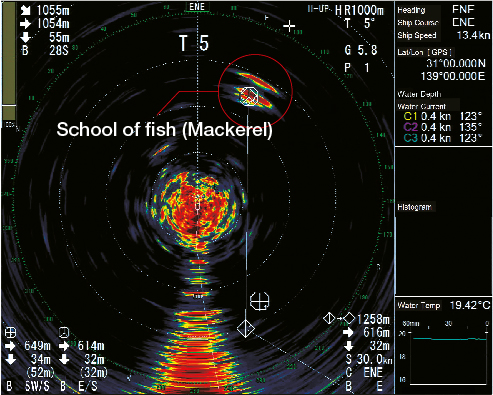

  (1000 m range) Targeted school of fish 650 meters away.
•

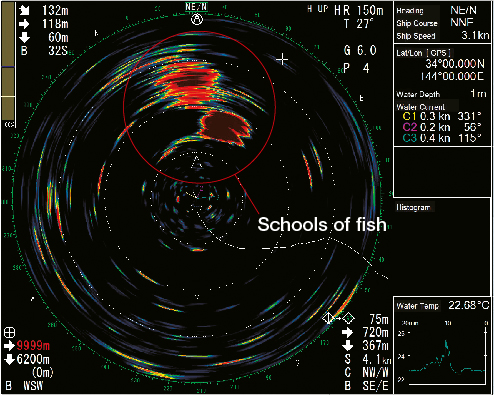

  (150 m range) Schools of tuna and skipjack tuna spotted.
•

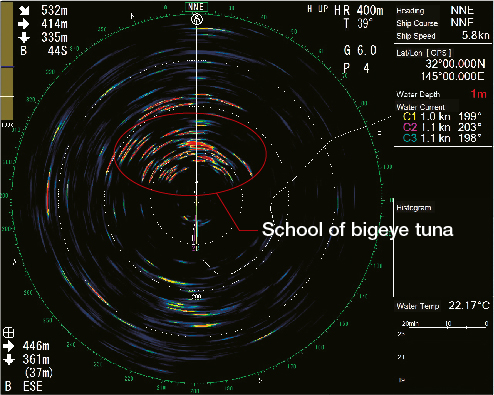

  (400 m range) Individual bigeye tuna can be seen in this fish school.
•

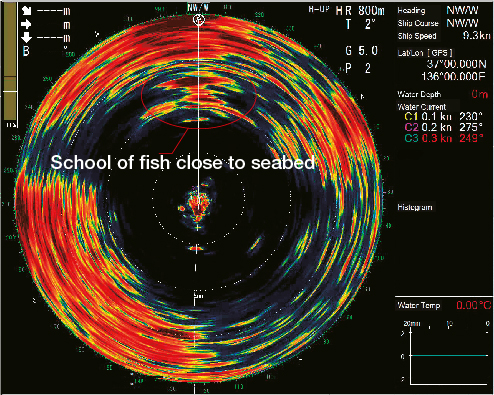

  (800 m range) A school of fish close to the seabed can be distinguished clearly.
•
  (600 m range) Increase your catch by observing how schools of fish move within your net.

Specifications

General

Scanning

Full digital beam forming

Frequency

20 kHz

Basic Range

60, 100, 150, 200, 300, 400, 500, 600, 800, 1000, 1200, 1600,
2000, 2500, 3000, 3500, 4000, 5000 m

60, 100, 150, 200, 300, 400, 500, 600, 800, 1000, 1200, 1600,
2000, 2500, 3000, 3500, 4000, 5000, 10000 m (FSV-25S MK-2)

Audio Search

30°, 60°, 90°, 180°, 330° (selectable)

Audio Output

Audio terminal (requires speaker with amplifier)

Display Unit

Display unit

SXGA(1280×1024), UXGA(1600×1200), WUXGA(1920×1200)

Colors

32 colors (sonar picture), 6 colors (marks)

Orientation

Head-up, North-up*, Course-up* and True Motion*
*External sensor required.

Display mode

Horizontal, Horizontal combination,
Vertical 1 combination, Vertical 2 combination

Additional functions

Custom mode, Interference rejecter, Echo Average, Noise
limiter, Signal level, Auto-tilt, Automatic target tracking
(target lock), Fish alarm, AGC, Reverberation suppression,
Noise suppression, Transducer stop location control,
Over-voltage warning, Unretracted transducer warning

Transceiver Unit

Beam width (horizontal)

TX: 360° x 7°, RX: 12° x 10° (-3 dB full width)
TX: 360° x 10°, RX: 16° x 14° (-6 dB full width)

Beam width (vertical)

TX: 360° x 29°, RX: 12° x 10° (-3 dB full width)
TX: 360° x 47°, RX: 18° x 13° (-6 dB full width)

Tilt

-5° to 60° (downward)

Interface

NMEA0183

5 Ports (Ver1.5/2.0/3.0/4.0/4.1)

Power Supply

Processor Unit

12-24 VDC:10-5 A

Power supply unit

100/110/115/220/230 VAC: 14 A max, 1 phase, 50/60

Hull Unit

200 - 220 VAC:16 A max, 3 Phase, 50/60 Hz

Rectifier

100/110/115/220/230 VAC, 1 Phase, 50/60 Hz

Environment

Temperature

Processor Unit: 0 °C to +45 °C
Transducer: -5 °C to +35 °C
Control Unit: -15 °C to +55 °C
Others: 0 °C to +50 °C
Relative humidity: 93 % max at +40 °C

Relative humidity

Control Unit: IPX2 (panel), IPX0 (chassis)
Processor Unit, Interface Unit,Remote control Unit: IPX0
Transceiver Unit, Power Supply Unit, Junction Box: IPX2
Hull Unit: IPX2
Transducer: IPX8

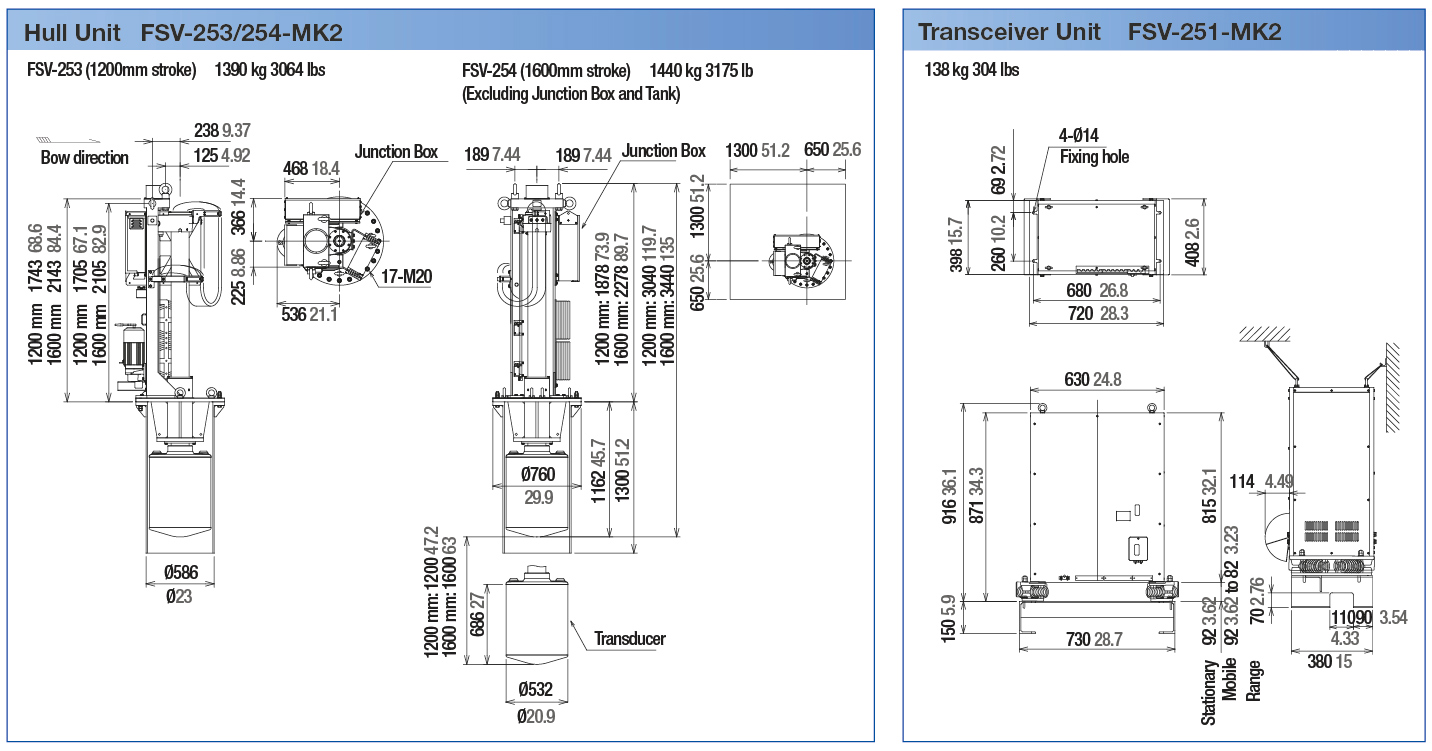

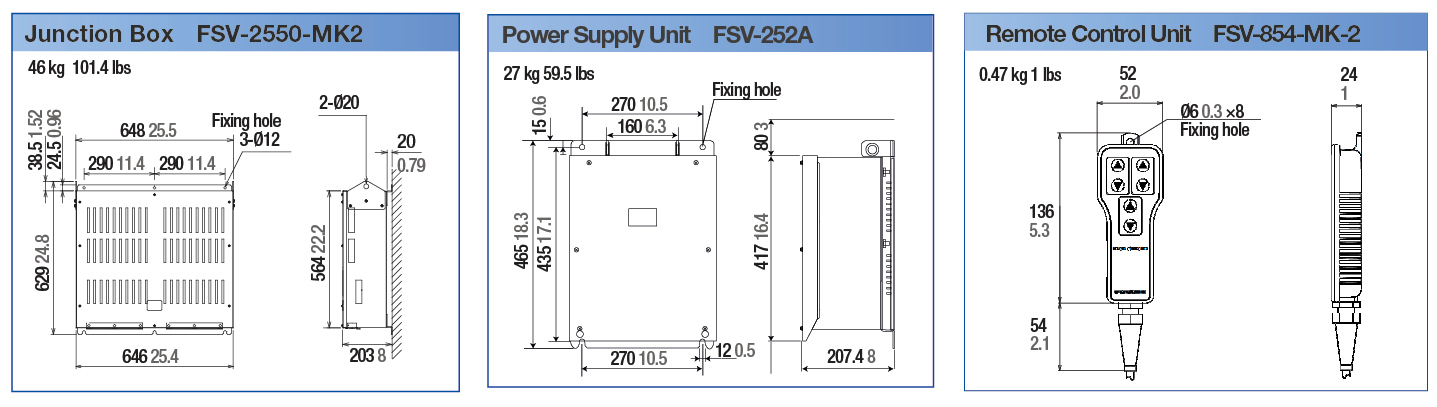

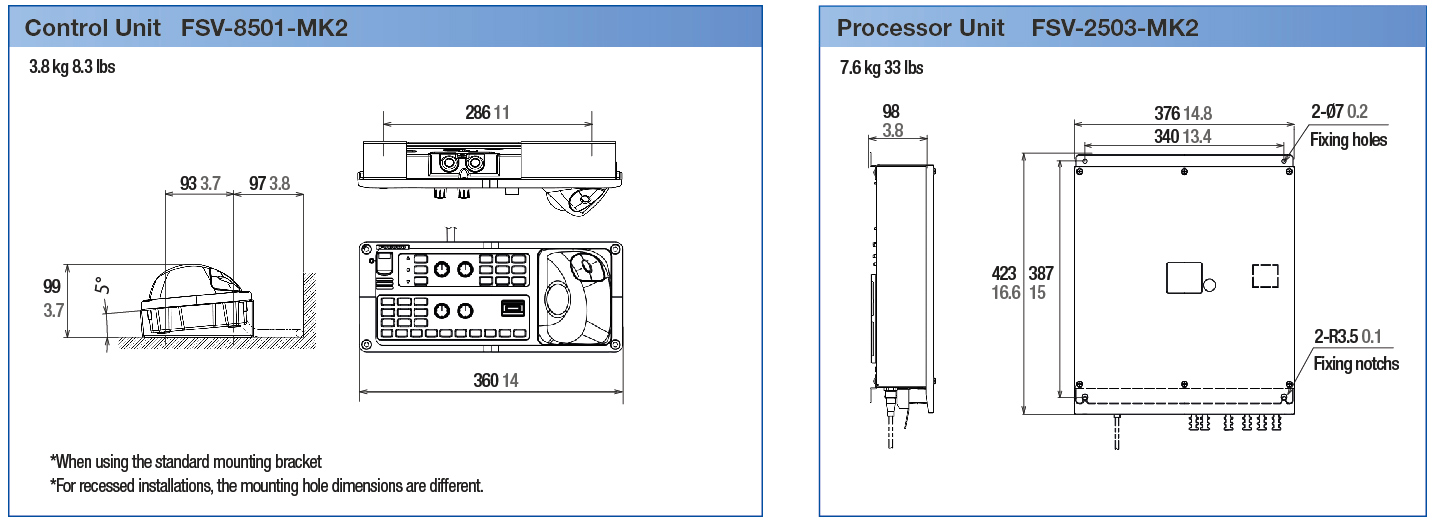

Drawing

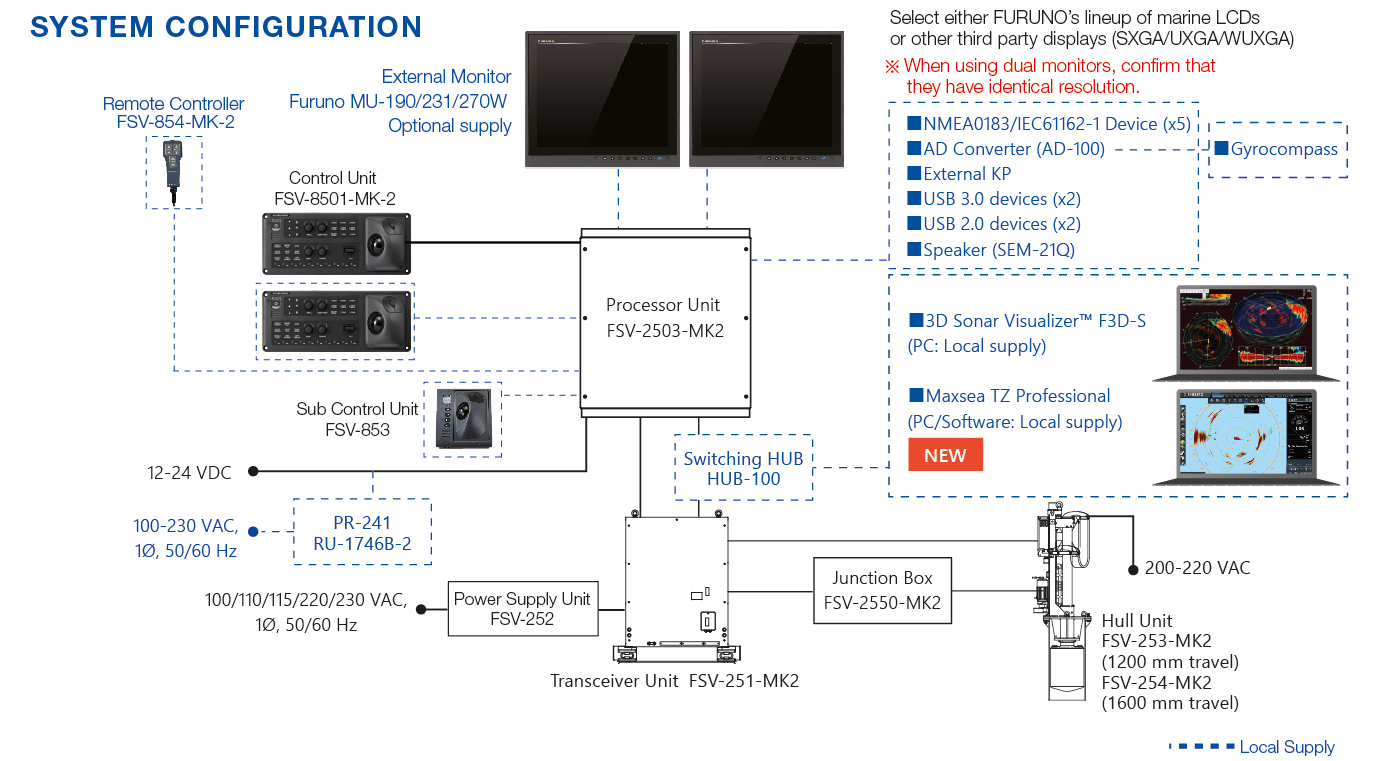

Interconnection Diagram

Documentation

• FSV-25 MARK-2
  (Last update: Jun 23, 2022)

Contact

Locate a Distributor Contact a local distributor for further details.

* Specifications subject to change without notice.
