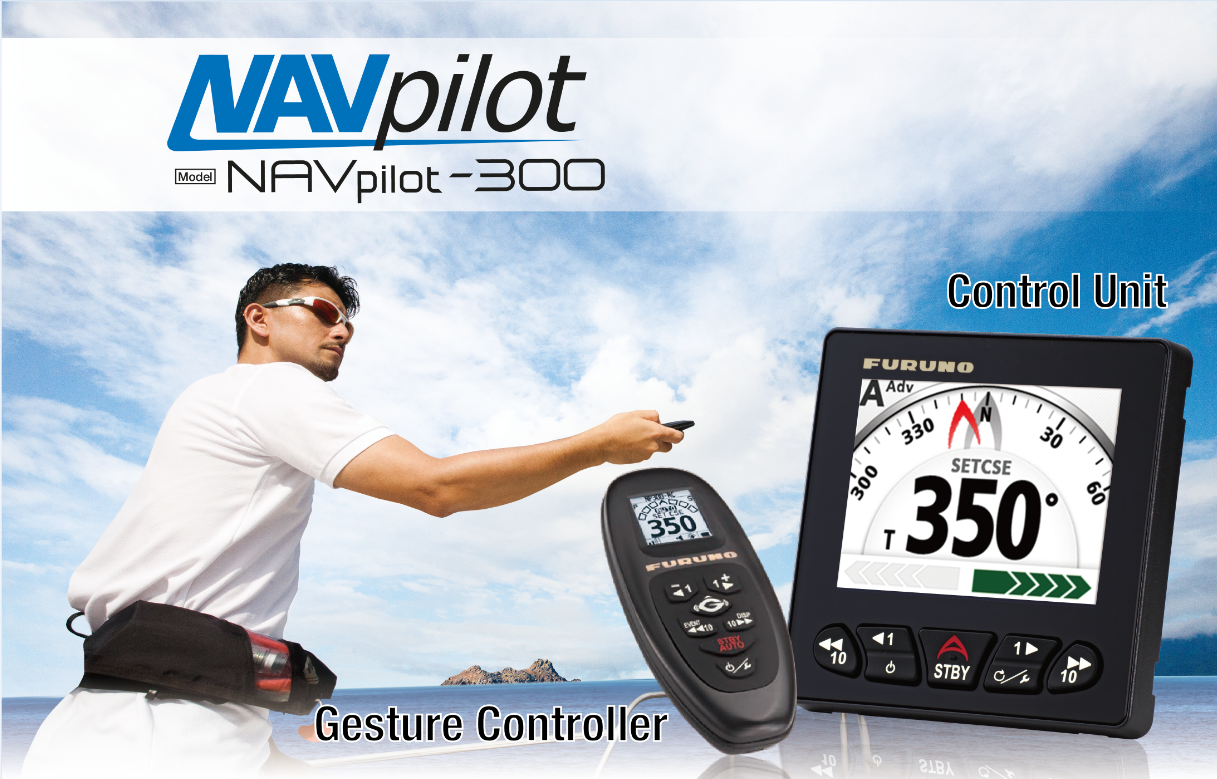

AUTOPILOT Model NAVpilot-300NEW

Features

• GESTURE CONTROLLER

• SABIKI™ mode (NAVpilot-300 and NAVpilot-700 Series)

  SABIKI™ mode lets the autopilot take control while you are drifting astern, so you can focus on fishing instead of steering. Moving astern at a slow pace the SABIKI™ mode is uniquely tailored for sabiki fishing, jigging and bottom fishing.

  SABIKI™ mode is only available on vessels with outboard engines.



  With the SABIKI™mode turned on, the direction can be kept just by adjusting the throttle.
  In order to keep the same direction, it is not sufficient to just reverse the engine and move astern. The steering has to be constantly adjusted to keep direction.


• Compatible with EVC systems

  The NAVpilot series have the capability to work with Volvo Penta IPS, Yamaha Helm Master^TM, Yanmar 8LV engine systems and Seastar Optimus360 Joystick system.


  Volvo Penta IPS system
  (compatible with Volvo Penta IPS drive versions C, D or E type)



  Yamaha Helm Master^TM system


  Seastar Optimus360 Joystick system


  Yanmar VC10 System
  (compatible with Yanmar 8VL and JC10)

• Self learning and adaptive software

  Each time the boat goes to sea, the software learns about sea conditions and automatically calculate the best adjustements for a smooth steering

• FANTUM Feedback™

  Furuno's "Fantum Feedback" NAVpilot software clears the path to a simplified installation, while also delivering enhanced steering control. With Fantum Feedback, NAVpilot outboard installations no longer require use of a physical rudder feedback unit.

  Fantum Feedback is a menu-selectable feature available in the latest NAVpilot-300 and NAVpilot-700 series software. This software was developed and extensively tested on a wide variety of outboard vessels with hydraulic steering and reversing pump control. Fantum Feedback achieves precise course control, from slow trolling speeds to high-speed cruising, utilizing a newly developed gain process, rather
  than traditional rudder angle based control.

• Easy installation and smart network-based system configuration

  ・NMEA2000 certified

• Waterproof Processing Unit (IP55) and Control Unit (IP56)

• SAFE HELM and POWER ASSIST

  SAFE HELM
  The SAFE HELM temporally switches the NAVpilot to manual steering for a specified time interval.
  The POWER ASSIST reduces steering system complexity and costs while increasing fuel economy
  POWER ASSIST
  The POWER ASSIST is a unique helm-activated assisted steering feature that can augment and possibly replace separate electric and power-robbing, engine-driven power steering systems on many vessels. POWER ASSIST reduces steering system complexity and costs while increasing economy.

  *Requires FPS8 Power Steering Module


• Various Display modes

  Various display modes are available on the NAVpilot-300, allowing you to obtain all the necessary data you need thanks to user-friendly menu and graphics, either digital or analog. The NAVpilot-300 also features day/night graphic display, offering perfect viewability no matter the time.







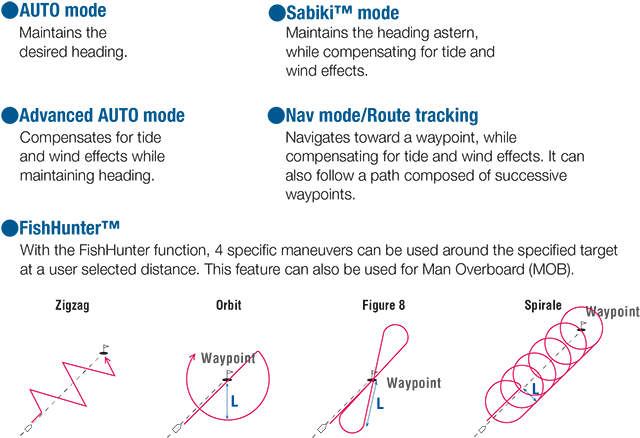

• Navigation modes




• NavNet TZtouch2 Full Control

  (V6.01 or later)

  The NavNet TZtouch2 v6.01 or later software allows full control of the NAVpilot-300. Not only can the modes be changed or the course adjusted, the user is also able to change installation settings, function parameters and use Fish Hunter™ modes.


  NAVpilot-300 controls can be displayed in two ways on your NavNet TZtouch2 MFD, depending on your preference. You can have a Side data panel on the left side of the screen, which quickly slides in and out with a swipe of your finger. This is perfect when you want to use a full or two-way split screen for other functions. The other option is to display the NAVpilot-300 controls in a quarter screen instrument window. Both methods allow for easy and intuitive control of the Autopilot.

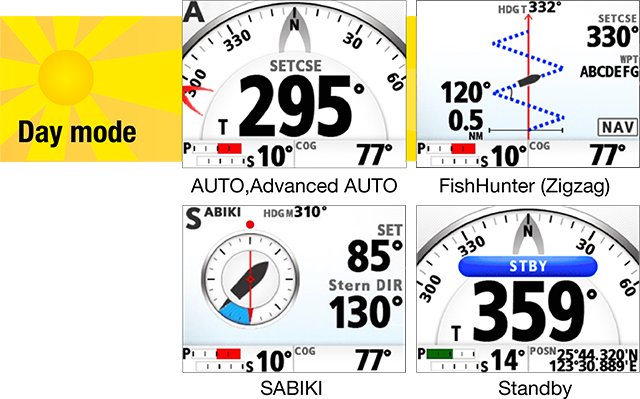

  NAVpilot controls window (day mode)

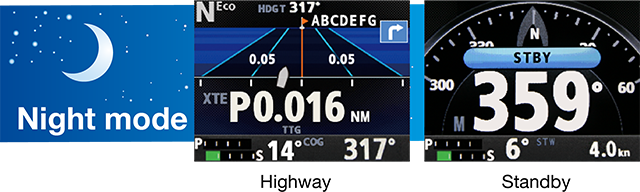

  NAVpilot controls window (night mode)


Specifications

CONTROL UNIT

Display

4.1" Color LCD

Effective Display Area

85.2 (W) x 85.2 (H) mm

Pixel Number

QVGA (320 x 240)

Backlight

700 cd/m² typical

PROCESSOR UNIT

Steering modes

STBY, Auto, Dodge, NFU (Non-follow up), Turn, Advanced auto*, Navigation*, FishHunterTM*, Override
*external data required

Sea Condition Adjustment

Auto/Manual-Calm/Moderate/Rough

Alarm

Deviation alarm, Watch alarm

INTERFACE

Ports

NMEA2000 x1, CAN bus x1 (DBW control)
Control signal x3, Bluetooth

Input

059392/904, 060160/416/928, 061184, 065240,126208/464/720/992/996, 127237/250/258, 128259,129025/026/029/283/284/285/538, 130577/818/821/827/841

Output

059392/904, 060928, 126208/464/720/993/996/998, 127237/245, 130816/821/822/823/827/841

WATERPROOFING

Processor Unit

IP55

Control Unit

IP56

Gesture Controller

IP65/67

OTHERS

Power Supply

Processor Unit 12-24 VDC 0.22 A max.
Control Unit 15 VDC 0.29 A max.
Gesture Controller 3 VDC, Dry cell battery (AAA, 2 pcs)

Equipment List

Standard

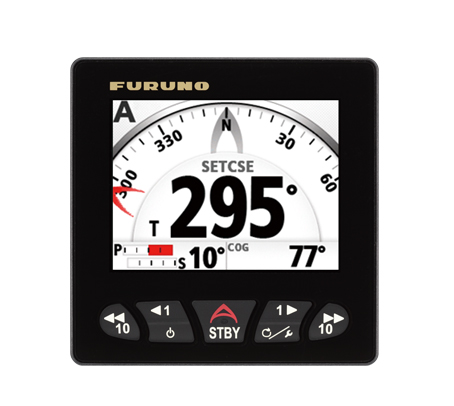

• Control Unit FAP-3011
• Processor Unit FAP-3012

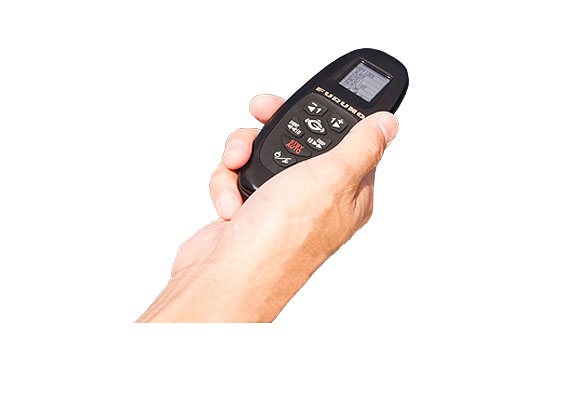

• Gesture Controller GC-001
• Installation Materials and Spare Parts

Option

• Control Unit FAP-3011
• Bracket-mount kits
• Cables
• Connectors
• Junction Box
• Pump Unit
• Rudder Reference Unit
• FPS8 Power Steering Module
• Volvo Interface Kit
• YAMAHA HM Gateway

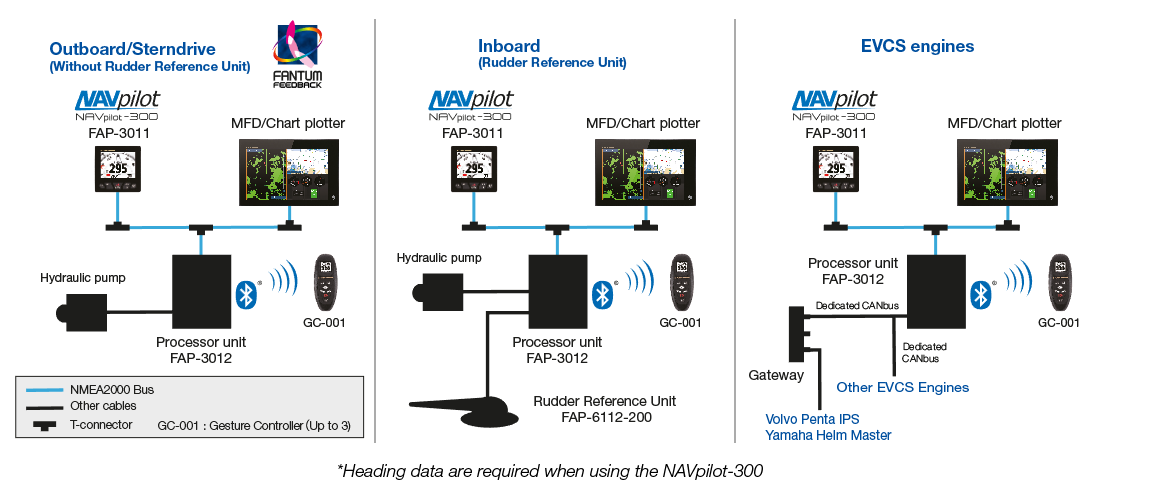

Interconnection Diagram

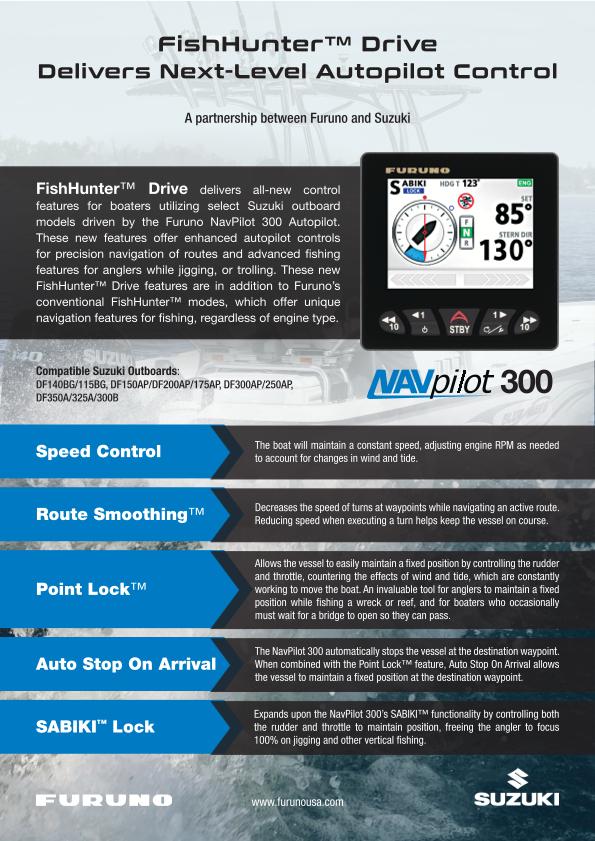

Documentation

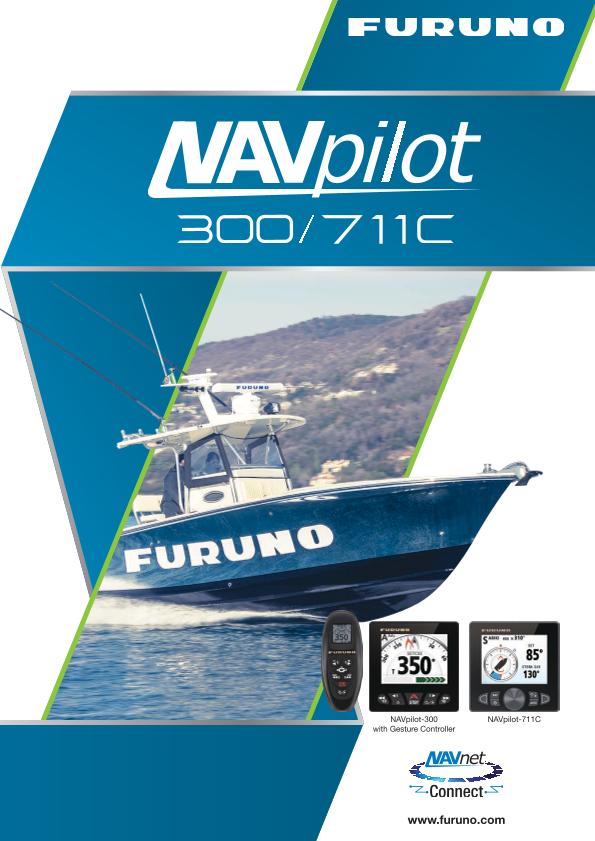

• NAVpilot-300 Brochure
  (Update: Mar 19, 2018)
