Timing GPS Receiver Module Model GT-86 Old Products (available)

High sensitivity and high accuracy timing GPS module

The GT-86 is the high-sensitivity, high-accuracy timing GPS receiver.
The GT-86 supports TRAIM and Various position modes, allowing it to outputs accurate and robust 1PPS synchronized with UTC time.

>> New Product:GT-88 (Extremely high stability of 4.5ns (1sigma) using a single band receiver)

Timing

Features

  • Supports GPS, QZSS and SBAS

    • In addition to high position accuracy, GV-86 achieves superior performance as regular GPS Receiver Modules such as fast TTFF, highly improved Noise Tolerance
    • Galileo Ready. The software can be upgraded to support concurrent Multi-GNSS reception with GPS, Galileo, QZSS and SBAS

  • Simultaneous output of time pulse (1PPS) and low jitter clock (configurable, 4 kHz to 40 MHz) synchronized with the 1PPS

  • Enable to output accurate and robust UTC time and 1PPS synchronized with UTC time

    ・1PPS stability: 15 nsec (1σ)

  • Single satellite tracking capable operations (except Navigation Mode)

  • Detect/Disable low integrity satellites (TRAIM function)

    ・Suitable for infrastructure development which needs high integrity.

  • Improved Noise Tolerance

    Reduces effects of internal and external noise
    ・Active Anti-Jamming
    ・Advanced Multipath Mitigation

  • Embedded Flash ROM

    Suitable for long-term use backed by FURUNO’s continuous support and function enhancement

  • Enhance performance in combination with recommended antenna

    Multi-GNSS antenna AU-217 receives GPS signal (L1 band) and GLONASS signal (G1 band), and has highly noise resistant as well as highly environmental resistant equivalent to IP67. Multi-GNSS antenna AU-217 is suitable for use with Furuno timing Multi-GNSS modules and disciplined oscillators.
    Here's more on  Multi-GNSS antenna AU-217

Specifications

GENERAL

GNSS Reception Capability
GPS L1 C/A, QZSS L1 C/A, SBAS L1 C/A
(Ready): Galileo E1B/E1C, QZSS L1S
GNSS Reception
16 channels (GPS, QZSS, SBAS)
Update Rate
1Hz
Sensitivity
GPS
Tracking: -161 dBm
Hot Start: -161 dBm
Warm Start: -147 dBm
Cold Start: -147 dBm
Reacquisition: -161 dBm

*Measurement platform with recommended active antenna
Position Accuracy (Horizontal)
GPS: 2.5m(CEP)
GPS+SBAS: 2.0m(CEP)

*Measurement platform with recommended active antenna
1PPS Stability
15ns(1σ)
Clock Output
4 KHz to 40 MHz
TTFF (Typical)
Hot Start: <5 sec (@-130 dBm)
Warm Start: 35 sec (@-130 dBm)
Cold Start: 35 sec (@-130 dBm)

*Measurement platform with recommended active antenna
Supply Voltage
3.3VDC
Power Consumption
Acquisition Mode: 58.5 mA
Backup Supply
1.4 to 3.6VDC / 9 μA (Typ)
Operating Temperature
-40°C to +85°C
Storage Temperature
-40°C to +85°C
Package
24Pin LCC (Leadless Chip Carrier)
12.2mm×16.0mm×2.8mm
Protocol
eSIP (NMEA 0183 Standard Ver 4.10)
Interfaces
UART, Time Pulse (1PPS), Clock
Anti-Jamming
Available
Multipath Mitigation
Available

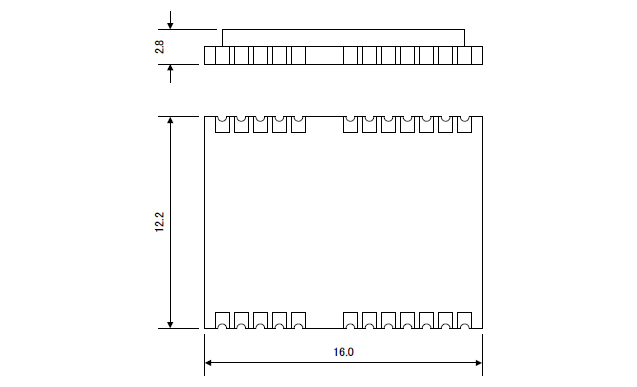

Drawing

Evaluation Kit


GT-86 Evaluation Kit is available to evaluate the performance of GT-86.
The Evaluation Kit can supply power and communicate with USB interface.

FEATURES
  • 5VDC Power supply through USB bus power
  • Serial communication through USB
  • 1PPS output from the SMA connectors
  • SMA antenna connection
  • Outer size is (w) 110mm x (D) 112mm x (H) 30mm
  • Weight is about 260g
  • Accessories are USB cable, GPS Antenna and CD ROM containing the Communication Software, the USB driver and the documentations

Documents, Software

Download documents and software related to this product and other GPS/GNSS products (Specifications document, Drivers and Monitor software).


Download page

Contact

Locate a Distributor Contact a local distributor for further details.

* Specifications subject to change without notice.
