INTEGRATED HEADING SENSOR Model PG-700

Fluxgate magnetic sensor with enhanced stability by a solid-state rate gyroscope

The PG-700 is a rate compensated heading sensor that incorporates innovative electromagnetic compass technology for highly accurate and stable readouts of your ship's heading. These sophisticated components are contained within a rugged, compact case. Unique design elements make the PG-700 virtually maintenance-free and easy to install. The PG-700 heading sensor detects terrestrial magnetism and produces compass data that can be utilized in CAN bus network.

Recreational Boats Fishing Vessels Workboats
NavNet Connect CAN bus

Features

  • A fluxgate magnetic sensor in conjunction with a solid-state angular rate heading

  • Offers a high level of accuracy and stability : 0.5°RMS

  • Compact unit with L-bracket allows flexible installation

  • Automatic magnetic field distortion correction

  • Provides precision heading data to FURUNO CAN bus devices

Specifications

GENERAL

Heading Accuracy
±1.0° (horizontal)
Heading Resolution
0.1°
Follow-up
100°/s rate-of turn
Interface
CAN bus: 1
Temperature
-15°C to +55°C
Waterproofing
IP55
Power Supply
12 VDC (9-16 VDC)
Weight
floor mounting: 0.31 kg
bulkhead mounting: 0.35 kg

Equipment List

Standard

  • SENSOR UNIT PG-700-E
  • 6M CABLE FOR CAN bus AND INSALLATION MATERIALS

Option

  • JUNCTION BOX FI-5002
  • DROP CABLE ASSY

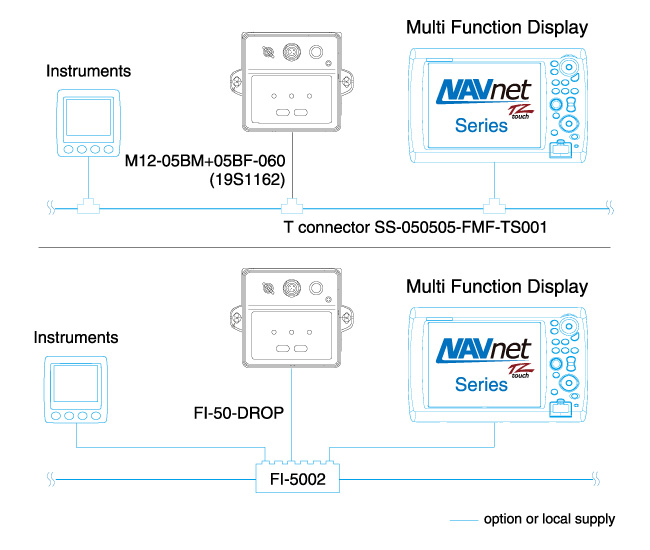

Interconnection Diagram

Documentation

  • PG-700 Brochure
    (Last update: Mar 1, 2024)
