SATELLITE COMPASS™ Model SCX-20

AMAZING MULTI-GNSS SATELLITE COMPASS™
RELIABLE ACCURACY IN THE MOST CHALLENGING SITUATIONS

NMEA2000 Network Configuration

Recreational Boats Fishing Vessels Workboats
NavNet Connect CAN bus Multi-GNSS

Features

  • Quad-antenna design for extreme accuracy

    Utilizing four separate GNSS Antennas for the ultimate in responsiveness, the SCX-20 set a new standard for reliable and accurate heading for all of your marine electronics. Traditionally, a Satellite Compass™ calculates heading using one baseline between two antennas; the SCX-20 four antennas can calculate heading information using any one of the six baselines drawn between the four antennas. The unprecedented quad-antenna design of the SCX-20 makes it capable of calculating extremely accurate heading, pitch, roll, and heave information. It is the perfect heading solution for complex vessel installations where the view of satellites may sometimes be obstructed.
  • Superior accuracy for all your sensors

    The SCX-20 and SCX-21 enhance the performance of onboard equipment such as Radar, Fish Finders, Sonar and Autopilots. Accurate heading information empowers your NAVpilot keep a better course, saving time, fuel, and money on every voyage; meanwhile, precise pitch, roll ad heave information stabilizes the display for many Furuno Fish Finders and Sonars, allowing for an accurate presentation even in the roughest of seas.


    RADAR/PLOTTER

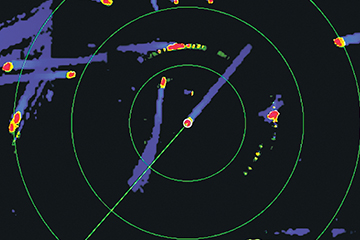

    True echo trails are available when the SCX-20 or SCX-21 is connected to your Furuno Radar, helping to determine own ship’s movement as well as the movement of other vessels. Accurate speed and heading data ensures that target trails are displayed smoothly and accurately, without the jagged, zig-zag appearance common to compasses with a higher degree of devlation.


    TRUE MOTION TARGET TRAILS


    FISH FINDER

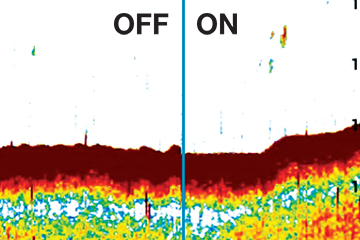

    Even in heavy seas, accurate heave compensation from SCX-20 or SCX-21 enable Fish Finders such as the FCV-1150 or NavNet TZtouch/TZtouch2/TZtouch3 to show you an unwavering presentation of the seabed, without the undulations causes by sea conditions.



    HEAVING COMPENSATION

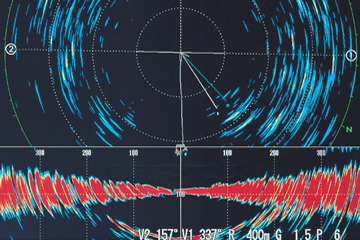

    SONAR

    Accurate pitch and roll information allows Furuno Sonar systems to display a steady image on the screen, even in foul weather.


    PITCH & ROLL COMPENSATION

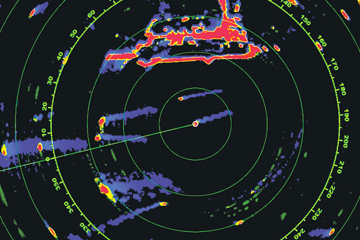

  • Radar Echo Trail ZIG-ZAG Domination

    FURUNO SCX-20/21
    When connected to Furuno SCX-20/21, the Radar’s echo trails hold steady and clearly depict an accurate echo trail thanks to the SCX-20/21’s amazing accuracy.

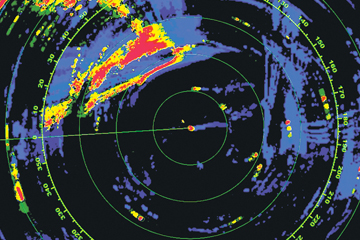

    Company A
    Company A’s satellite compass fails to uphold a steady heading, making echo trails virtually unintelligible.

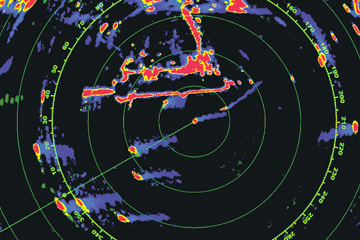

    Company B
    Company B’s heading accuracy fluctuates by +/- 3˚ with a slower update, causing an echo trail that has a wide zig-zag pattern.

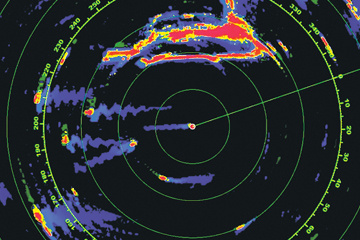

    Company C
    Company C’s heading accuracy fluctuates by +/- 5˚ with a faster update, causing an echo trail that is indistinguishable and confusing.

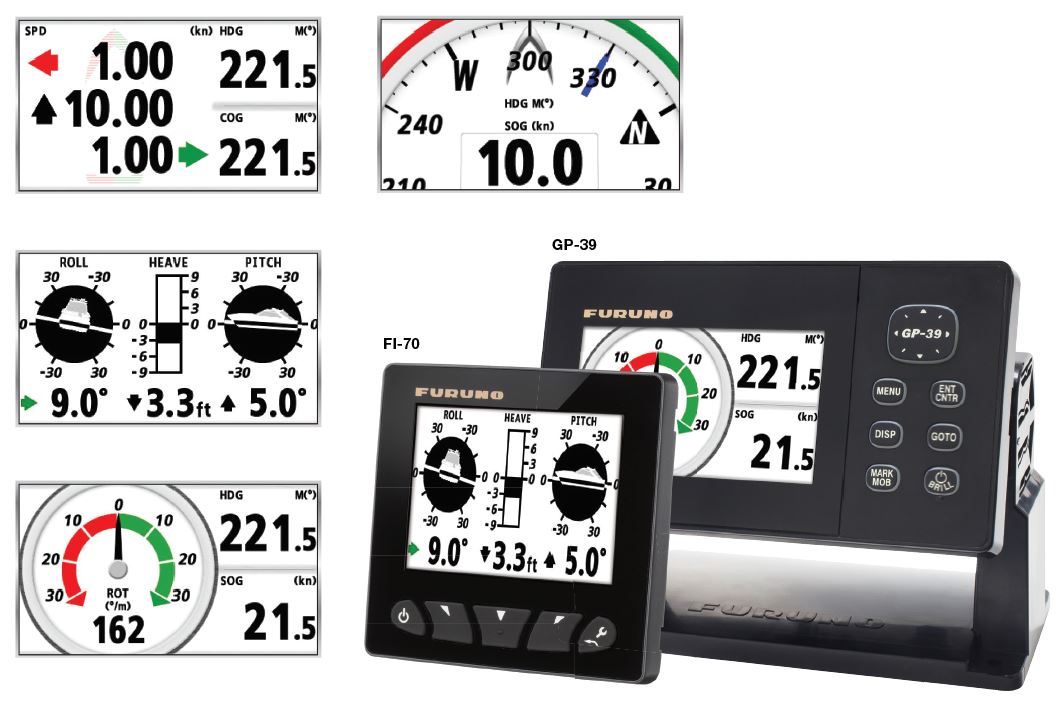

  • Relay Critical Data

    Effortlessly connect with existing Furuno systems in order to elevate your awareness of own vessel and the surrounding area by displaying critical information across several products including NavNet TZtouch MFD’s, FI-70, and GP-39*! Initial setup can be done from NavNet series MFD, NAVpilot-300 and GP-39*.
    *SCX-21 only

    3-Axis Speed
    Pitch, Roll, Heave
    Rate of Turn (RoT)
    Heading (HDG)

  • Perfect for NavNet TZtouch MFD, NAVpilot-300, and WASSP* installations

    *SCX-21 only
  • Outputs accurate Time, Position, Heading, COG/SOG, ROT, Roll/Pitch/Heave 3-Axis Speed, Air Temperature and Air Pressure data

  • Unprecedented heading accuracy for Radars, Sonars, and Navigation

  • Utilizes four Multi GNSS (GPS, QZSS, GLONASS, Galileo) antennas

  • 1.0 degree heading accuracy, 0.02 knot speed accuracy

  • Lightweight antenna - only 1.0kg!

  • A comparison that says it all


    Test Conditions:
    Roll - Amplitude 20°, 10 sec. period
    Pitch - Amplitude 10°, 6 sec. period
    Heading - 5°, 15 sec. period
    Standard - ISO22090-3 (2015)

Specifications

GENERAL

Frequency
1575.42 MHz (GPS/Galileo/QZSS/SBAS)
1602.5625 MHz (GLONASS)
Tracking code
C/A (GPS/QZSS/SBAS), E1B (Galileo), L1OF (GLONASS)
Heading Accuracy
Heading/Roll/Pitch: 1.0° rms (static) 0.5° rms (dynamic)
Follow-up
45°/sec
Settling time
60 seconds approx.
Position Accuracy
GPS: 5m approx. (2 drms, HDOP < 4)
MSAS: 4m approx. (2 drms, HDOP < 4)
WAAS: 3m approx. (2 drms, HDOP < 4)
Interface
1 Port NMEA2000
Input: 059392/904, 060160/416/928, 061184, 065240, 126208/720, 130847
Output: 059392/904, 060928, 061184, 065280,126208/464/720/992/993/ 996/998, 127250/251/252/257/258, 129025/026/029/538/539/ 540,130310/312/314/316/577/578/816/817/818/819/822/823, 130833/834/842/843/845/846/847
Temperature
-25°C to +55°C (storage: -30°C to 70°C)
Waterproofing
IP56
Power Supply
12-24 VDC: 0.2-0.1 A (4 LEN @ 9 VDC)

Equipment List

Standard

  • Cable Assembly FRU-NMEA-PMMFF cable (6m)
  • Installation kit Roof or Pole mount(Selectable)

Option

  • Installation materials, spare parts
  • Interface Unit FI-70

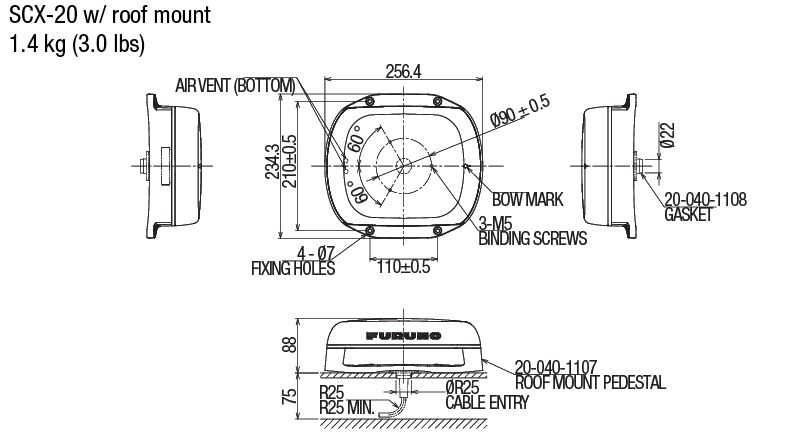

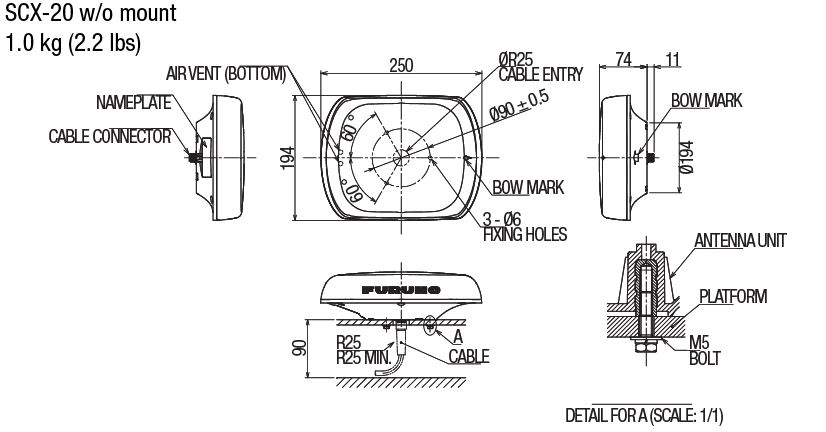

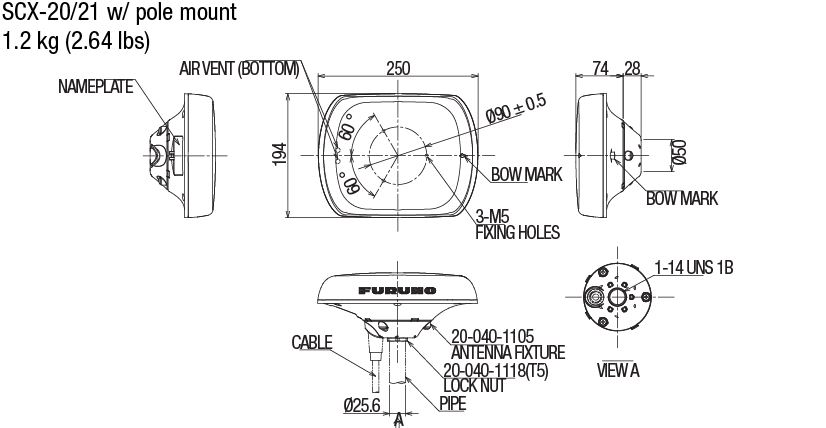

Drawing

Interconnection Diagram

Software

Setting tool download link: Click here

Documentation

  • SCX-20 Brochure
    (Last update: Mar 23, 2023)

* Specifications subject to change without notice.
