GPS Antenna (For Timing) Model GPA-017 Old Products (available)

Antenna for GPS, Galileo and QZSS L1 (1575.42MHz) reception.
Ideal for outdoor installation in harsh weather conditions

The GPA series is a GPS/GNSS antenna for Timing that is intended for installation on buildings.
GPA-017 is a compact and lightweight package designed to withstand harsh outdoor environments including rain, wind, sunlight and temperature changes.

Documents, Software

New Products: Dual/Single-band GNSS Antennas AU-500/300 deliver both high stability and high robustness

Timing

Features

  • Standard type GPS antenna

  • Standard TNC Connection

  • Easy installation with optional use of antenna mounting bracket

Specifications

General

Input Frequency
1575.42MHz±1.023MHz
Polarization
R. H. C. P. (Right Hand Circular
Polarization)
Antenna Gain
>= 2.0dBi (at 90° elev. angle)
>= -4.0dBi (at 10° elev. angle)
Output Impedance
50 Ω
Pre. Amp Gain
27.5±5.5dB
Pre. Amp Noise Figure
<= 1.6dB
VSWR
<= 2.0
Supply Voltage
4 to 5.5VDC
Current Consumption
<= 25mA
Operating Temperature
-25°C to +70°C
Storage Temperature
-35°C to +75°C
Operating Relative Humidity
<= 95%RH
Note
Standard type
Weight
120 g
Connector Type
TNC-J

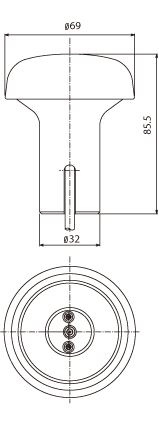

Drawing

Three essential points when installing a GNSS antenna

When installing a GNSS antenna, components such as the coaxial cables and amplifiers should be selected to satisfy the antenna specifications of the GNSS receiver. It is also necessary to consider the propagation delay between the antenna and the receiver.

In the following document, we explain how to calculate the required specification values with concrete examples from the viewpoint of a GNSS receiver manufacturers.

  • Total gain
  • Total NF
  • ropagation delay in coaxial cables

It is especially useful for those who are new to GNSS receivers. We have prepared an Excel tool for calculating "Total Gain" and "Total NF" due to their complex formulas.

Please fill in the form to download the document and calculation tool.

Download form

Documents, Software

Download documents and software related to this product and other GPS/GNSS products (Specifications document, Drivers and Monitor software).


Download contents for GPA-017

  • GNSS Antenna Installation Appendix
    - Three essential points when installing a GNSS antenna -
  • Hardware Specifications (Surge Protective Device)
  • Surge Protection Device Test Report

Download page
