15" MULTI-COLOR LCD RADAR Model FAR-1426

Enhance your safety at sea and enjoy more productive fishing with the new Target Analyzer function!

25 kW, High-Performance Marine Radar with Chart Plotter
– Simple operation with “point-and-click” menu functionality –

Fishing Vessels
Target Analyzer Auto Tuning (Sensitivity) Traget Tracking AIS

Related Contents

Features

  • Target Analyzer function* spots hazardous targets instantly!

    FURUNO's new technology makes it possible to distinctly display targets closing in, while detecting and eliminating sea surface reflection and rain patches. With the Target Analyzer function turned on, each moving target, rain patches, and sea surface reflection are colored according to the degree of the hazard. This helps improve your safety and situational awareness by displaying different, easy to see colors.

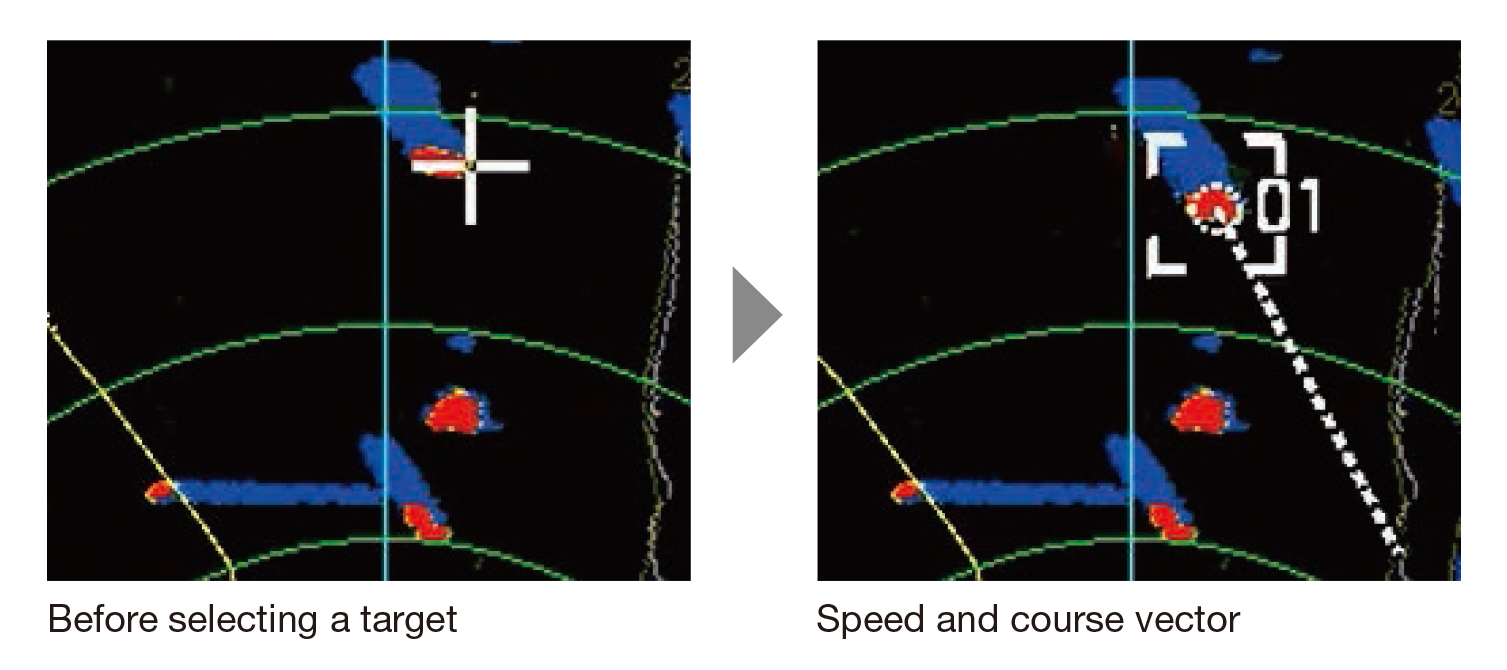

  • Fast Target Tracking™ (TT) to Immediately Grasp Your Surroundings

    After selecting a target, it only takes a few seconds for a speed and course vector to be displayed. With accurate tracking information, estimation of other vessels course and speed is made easier.




    * Heading data and position data required.

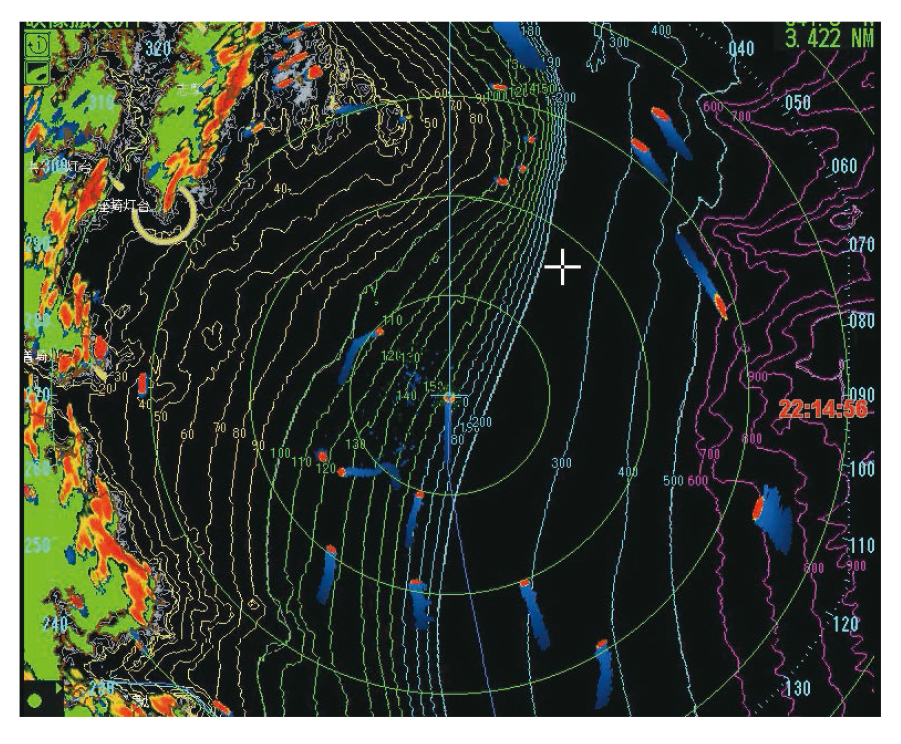

  • Chart overlay on radar presentation

    By overlaying the radar presentation with MapMedia vector charts, you can clearly

    recognize coastlines and buoys at a glance. Records of your vessel’s track points and

    waypoints will help memorizing shing spots. North-up, Course-up, and Head-up direction

    modes are available.

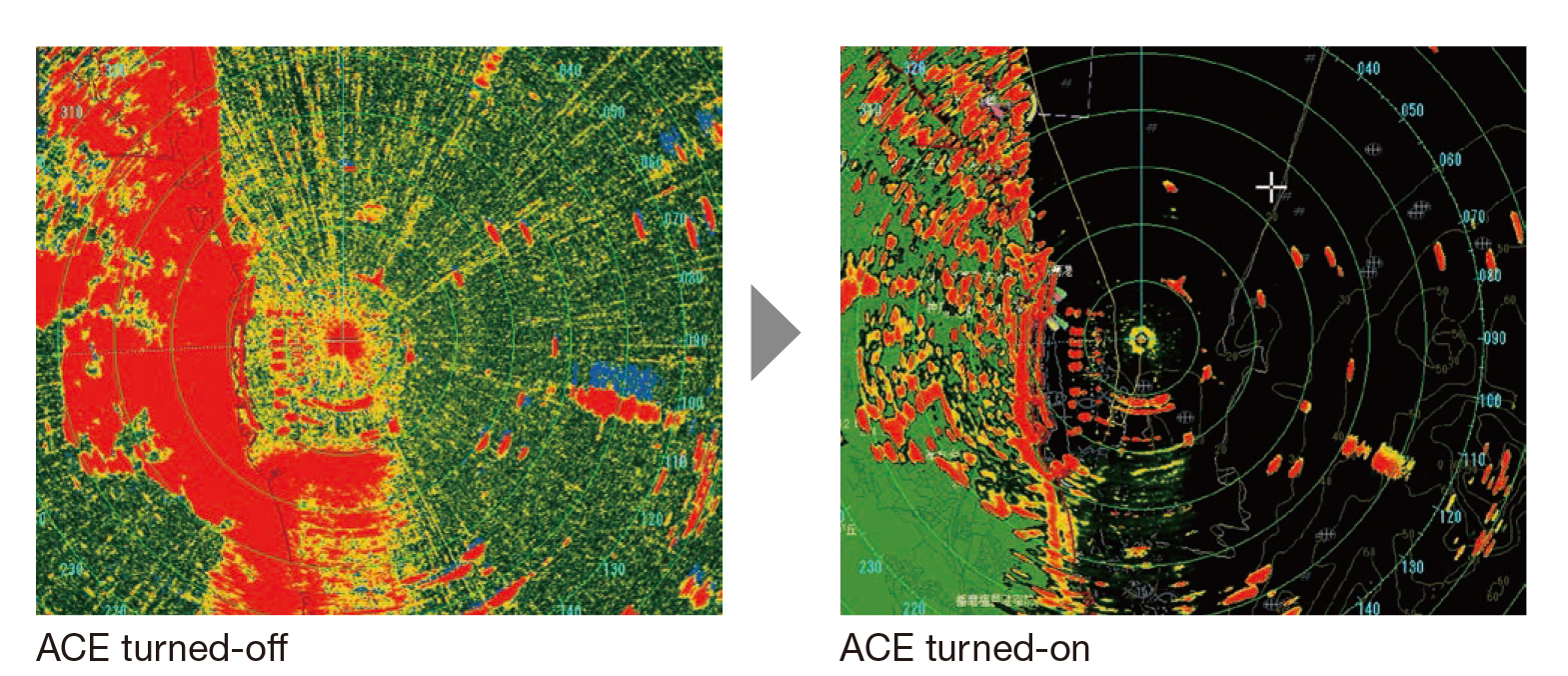

  • Automatic Clutter Elimination (ACE) for unprecedented echo clarity

    Quickly adjust the radar image with the push of a single button. With ACE activated, the system automatically adjusts clutter reduction lters and gain control according to sea and weather conditions selected by the user (calm/rough sea/hard rain). You will be free from the trouble of adjusting the image and be able to concentrate on the operation of the vessel.

  • Seamless Zoom and Cursor operation

  • Easy Operation

    Enjoy a very intuitive operation, with the use of shortcut keys and the trackball.

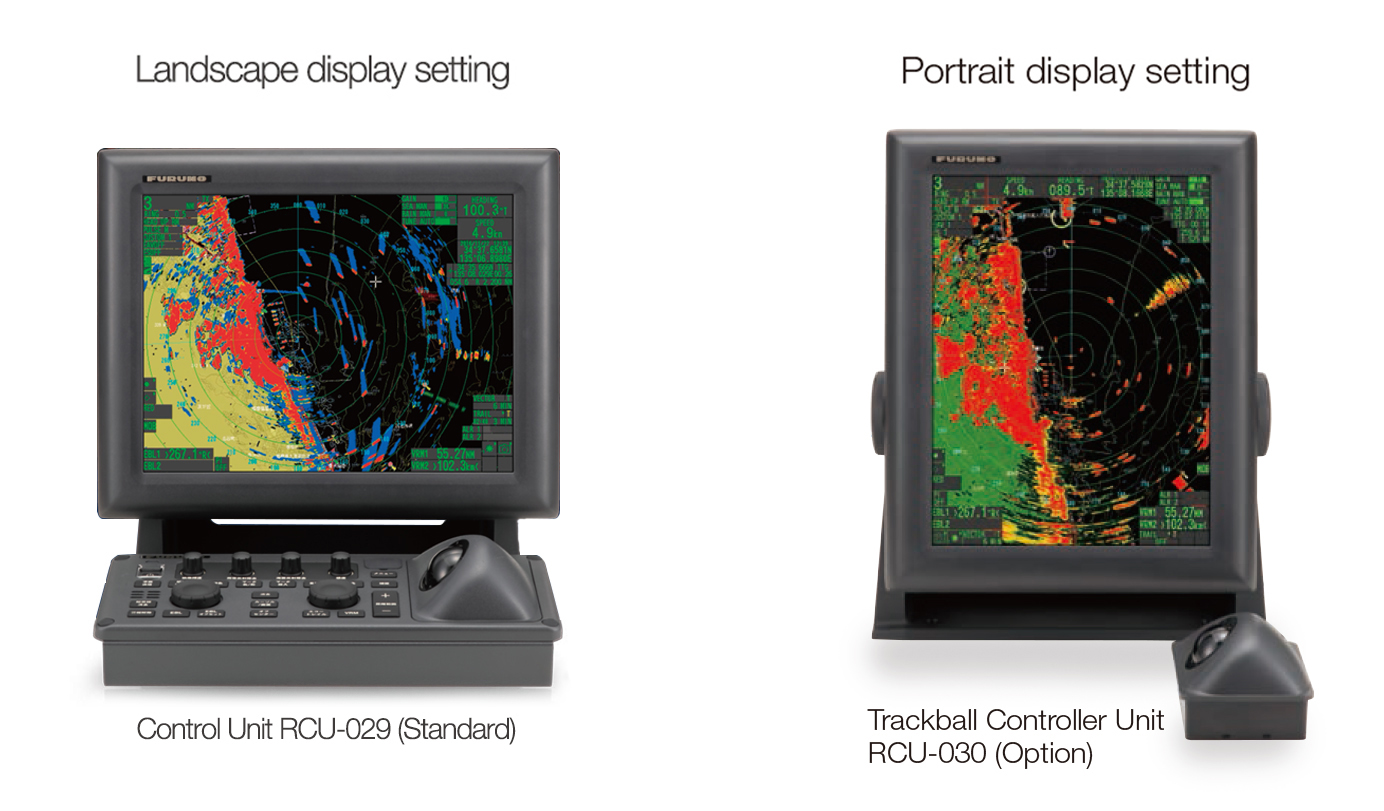

  • Space-saving and straightforward installation with the display unit built-in processor

    Both Portrait and landscape are available to fit customers’ preference.

  • Easily Upgrade from FR-8002/8005 Series

    Utilizing the antenna of FURUNO FR-8002/8005 series, you can easily install this new radar FAR-1416/1426 and upgrade the radar function.

Specifications

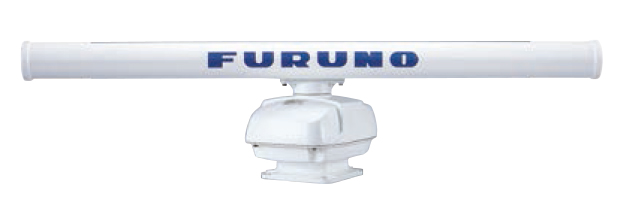

ANTENNA

Peak Output Power
25 kW
Frequency
9410±30 MHz (X-band), P0N
Beam Width (Horizontal)
XN12A: 1.9°, XN13A: 1.4°
Beam Width (Vertical)
22°
Range Scales
0.125 to 96 NM
Antenna Rotation Speed
24 rpm or 48 rpm*
*Specify the antenna length and rotation speed when ordering.
Weight
XN12A: 25 kg
XN13A: 27 kg

ENVIRONMENT

Temperature
Antenna Unit: -25 °C to +55 °C
Display Unit: -15 °C to +55 °C
Waterproofing
Antenna Unit: IP26
Display Unit: IP22
Control Unit: IP22

POWER SUPPLY

Power Supply / Consumption Current
24 VDC: 5.6 A max

Equipment List

Standard

  • Display Unit RDP-155
  • Control Unit RCU-029
  • Antenna Unit RSB-0070 or RSB-0073
    specify when ordering
  • Antenna Cable
  • Spare Parts & Installation Materials

Option

  • Flush Mount Kit
  • Trackball Controller Unit RCU-030
  • Remote Controller RCU-019
  • AD Converter AD-100
  • Rectifier RU-1746B-2/RU-3424
  • AD-DC Power Supply Unit PR-240/PR-850A
  • Switching Hub HUB-100
  • LAN Cable 2 m/5 m/10 m
  • NMEA2000 Connector
  • Cable Assembly

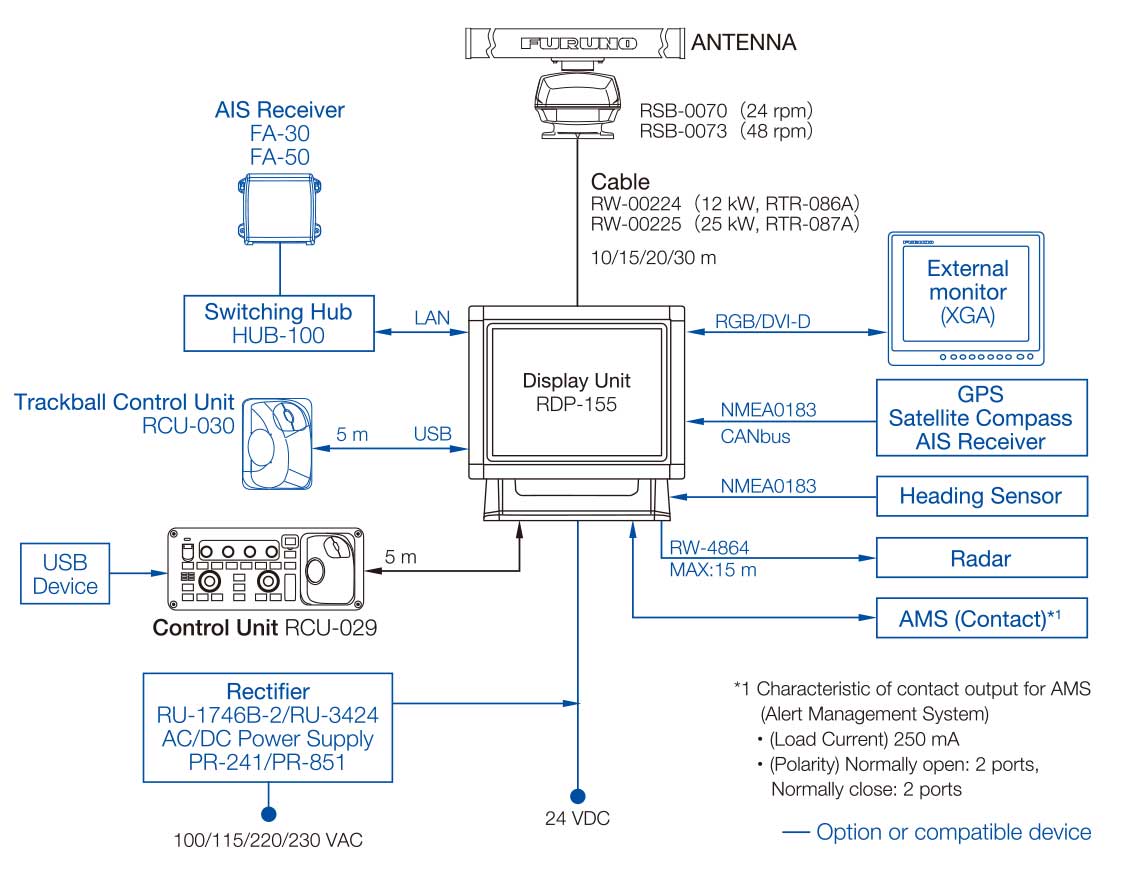

Interconnection Diagram

Documentation

Contact

Locate a Distributor Contact a local distributor for further details.

* Specifications subject to change without notice.
