High Power X-band Fishing Radar (50kW) Model FAR-2258 NEW

Powerful X-band Fishing Radar

New high performance Radar with excellent signal processing technology offering high resolution echoes and with long range detection. Perfect for fishing.

Fishing Vessels

Features

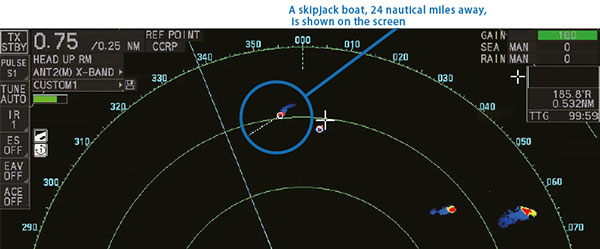

  • Powerful Radar delivering stronger and farther detection with very high resolution

    With a high output power of 50 kW, it is an excellent Radar for long-range detection. The new and improved receiver reduces noise and ensures that even the
    weakest echoes are not missed and are presented clearly.

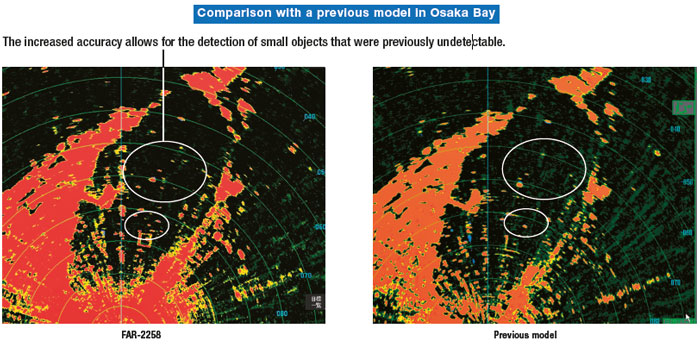

  • Improved detection performance compared to previous models

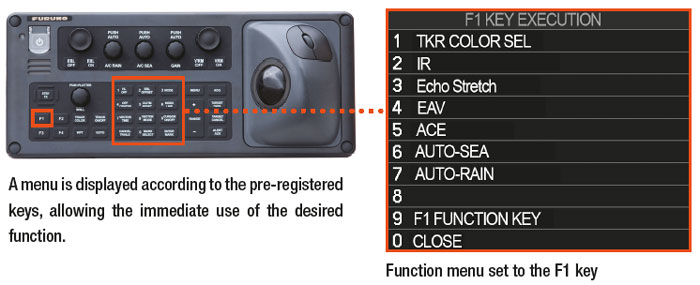

  • Function keys support up to 32 customizable features & settings

    Each key can be assigned a single function or multiple functions. When [multiple functions] is selected, up to eight functions can be assigned to one key, which can be utilized by pressing the function key and then the numeric keypad. It is possible to assign up to 32 functions.
  • A total of 40 origin marks can be entered

    The number of origin marks that can be entered has been increased from 20 (previous model) to a maximum of 40. By displaying a list of origin marks, the distance and direction from the registered position to the cursor can be determined at a glance. Additionnally, users can choose between “sea fixed” (blue) and “land fixed” (green), plus, land fixed origin marks are backed up even after the power is turned off.

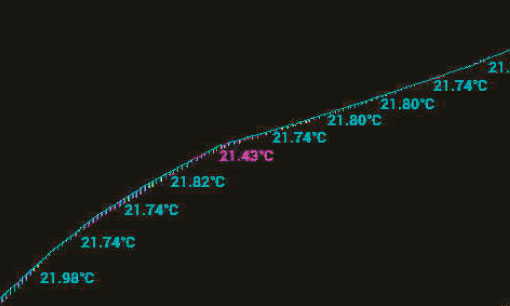

    Easily identify fishing grounds with colored track lines

    The water temperature is automatically displayed in the vessel track line, with the color changing according to water temperature. This allows the user to intuitively
    understand changes in water temperature and easily identify fishing grounds.
  • Intuitive off-center function with trackball

    To off-center the display, the user can either move the cursor to the desired area or do so directly with the trackball when the cursor is hidden, which allows for
    intuitive use.

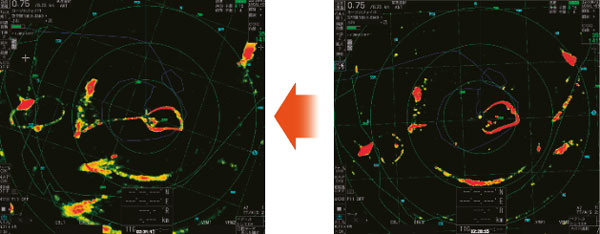

  • Fishing gear echoes easily visible with the addition of the Echo Average feature (EAV) and its wide dynamic range

    The new wide dynamic range of the EAV function allows the display of both weak and strong echoes in a richly colored image as shown on the right.


    Echo Average with the wide dynamic range

    The new wider dynamic range EAV removes unwanted echoes and clearly shows the shape of the net


    Did you Know?
    EAV stands for Echo Average
    It is a signal processing technology that suppresses unnecessary echoes on the screen by utilizing image correlation techniques, making it easier to distinguish echoes

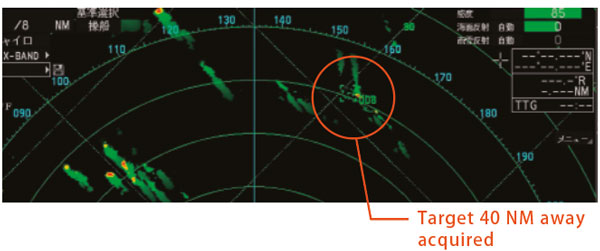

  • TT target acquisition up to a distance of 48 NM

    The FAR-2258 is capable of capturing targets within a range of 48 NM, whereas the previous model was limited to a distance of 32 NM. This allows users to keep a close eye on more distant targets.

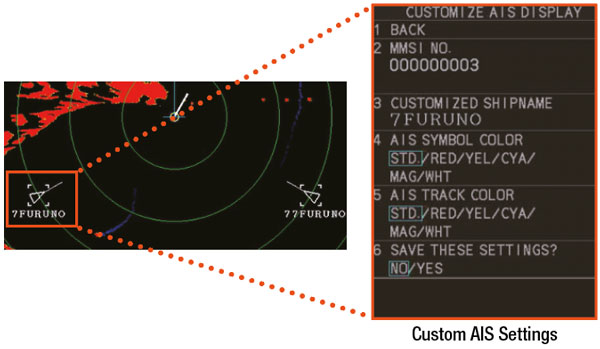

  • AIS customization helps you keep an eye on other vessels

    Users can register a color and a ship track color for each AIS target, so that you can identify other ships at a glance. (Maximum number of entries is 100).

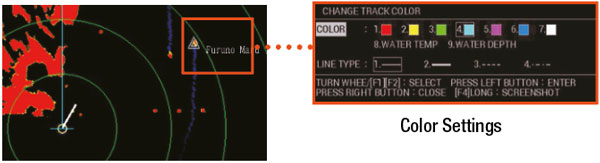

  • TT custom settings make it easier to distinguish other ships!

    Users can set the name, color, shape and track color of the acquired TT target. Custom TT settings can be pre-registered (up to 10) and these can be quickly assigned to targets.

Specifications

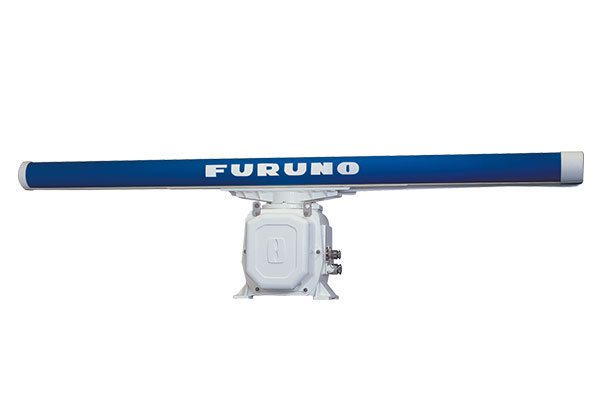

ANTENNA

Peak Output Power
50 kW
Type
240 / 300 cm Slotted Array
Frequency
9410 MHz±30 MHz,P0N
Beam Width (Horizontal)
0.95°(240 cm)、0.75°(300 cm)
Beam Width (Vertical)
20°
Range Scales
0.125~96 NM
Antenna Rotation Speed
24 rpm

DISPLAY

Display Unit
19-inch color LCD  1280×1024(SXGA)
23.1-inch color LCD 1600×1200(UXGA)
27-inch color LCD  1920×1200(WUXGA)
Display Mode
Head-up, STAB head-up, Course-up, North-up, (RM/TM), Stern-up
Other Mode / Functions
Target Tracking(TT), Plotter function, AIS

ENVIRONMENT

Temperature
Antenna Unit:-25℃~+55℃(Storage: -25℃~+70℃)
Other:-15℃~+55℃(Storage: -20℃~+70℃)
Waterproofing
Antenna Unit:IP56
Processor Unit/Display Unit:IP22
Control Unit:IP20(RCU-014/015/016), IP22 (RCU-031)
Hub:IP20(HUB-100)、IP22(HUB-3000)

POWER SUPPLY

Power Supply / Consumption Current
・Antenna Unit
100-115/220-230 VAC: 3.1/1.5 A、Phase、50-60 Hz

・Processor Unit
100-230 VAC: 2.2-1.1 A、Phase、50-60 Hz

・Display Unit
MU-190 : VAC100-230 : 0.7-0.4 A、Phase、50-60 Hz
MU-190HD : VDC12-24 / 8.4-3.9 A
MU-231 : VAC100-230 : 1.0-0.6 A、Phase、50-60 Hz
MU-270W : VAC100-230 : 0.7-0.4 A、Phase、50-60 Hz

・Hub(Option)
100-230 VAC:0.1 A, 1 Phase、50-60 Hz

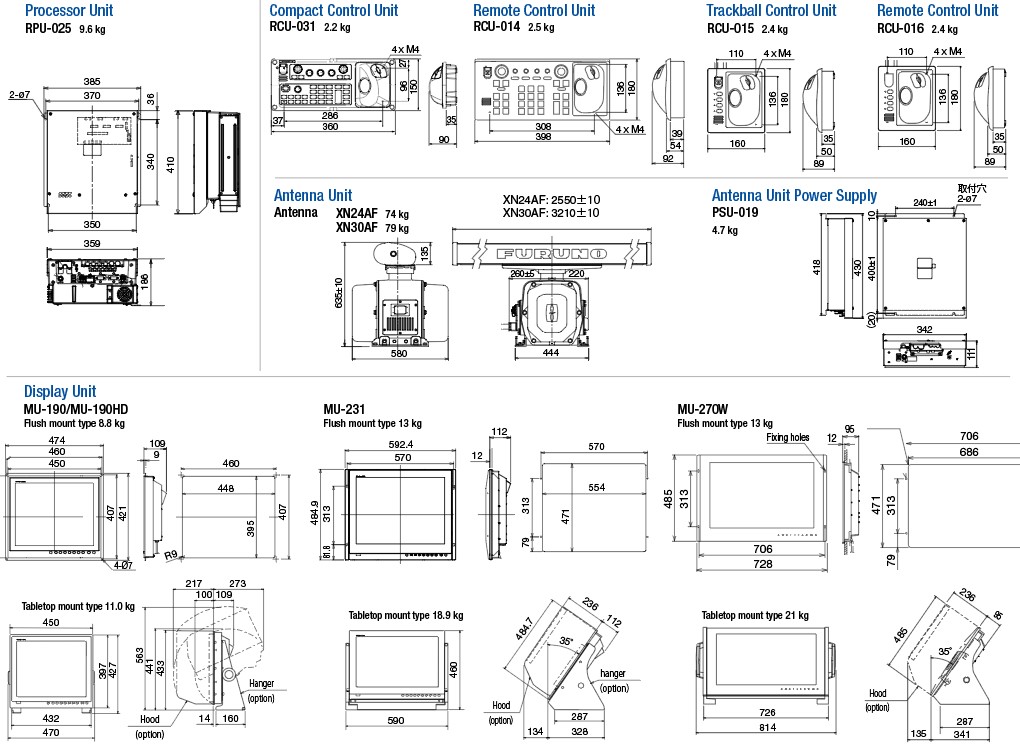

Drawing

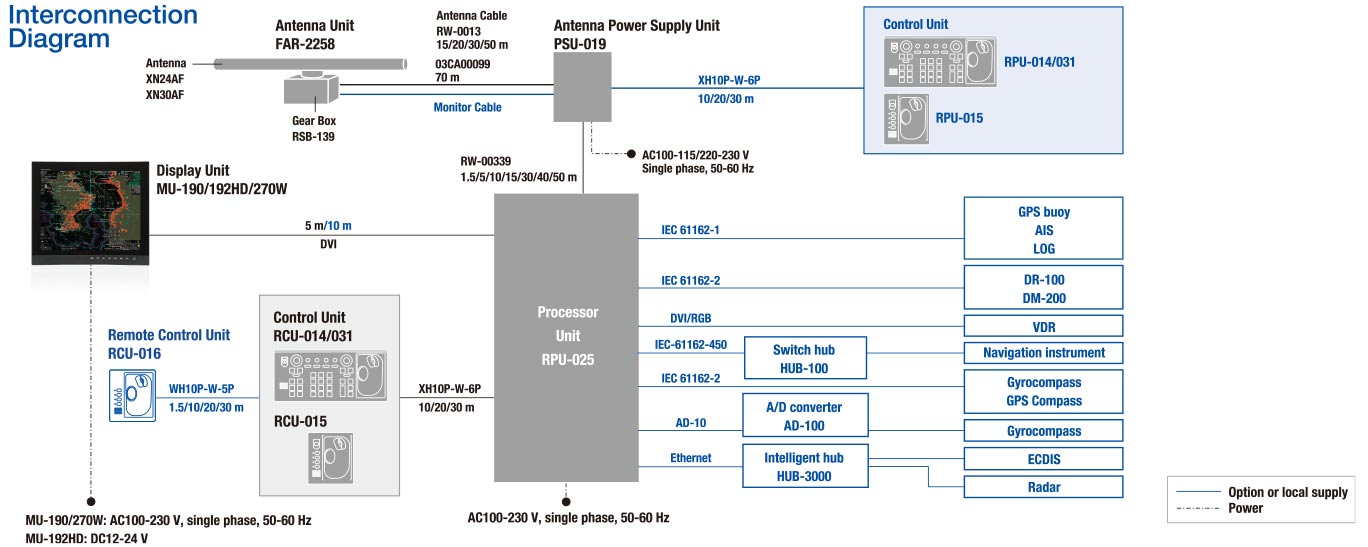

Interconnection Diagram

Documentation

  • FAR-2258 Brochure
    (Last update: Jan 6, 2022)

* Specifications subject to change without notice.
