Marine Radar


For Fishing Vessels

Enhance your safety at sea and enjoy more productive fishing with the new Target Analyzer function!

12 kW, High-Performance Marine Radar with Chart Plotter
– Simple operation with “point-and-click” menu functionality –

Target Analyzer Auto Tuning (Sensitivity) Traget Tracking AIS


  • Target Analyzer function* spots hazardous targets instantly!

    FURUNO's new technology makes it possible to distinctly display targets closing in, while detecting and eliminating sea surface reflection and rain patches. With the Target Analyzer function turned on, each moving target, rain patches, and sea surface reflection are colored according to the degree of the hazard. This helps improve your safety and situational awareness by displaying different, easy to see colors.

  • Fast Target Tracking™ (TT) to Immediately Grasp Your Surroundings

    After selecting a target, it only takes a few seconds for a speed and course vector to be displayed. With accurate tracking information, estimation of other vessels course and speed is made easier.

    * Heading data and position data required.

  • Chart overlay on radar presentation

    By overlaying the radar presentation with MapMedia vector charts, you can clearly recognize coastlines and buoys at a glance. Records of your vessel’s track points and waypoints will help memorizing shing spots. North-up, Course-up, and Head-up direction modes are available.

  • Automatic Clutter Elimination (ACE) for unprecedented echo clarity

    Quickly adjust the radar image with the push of a single button. With ACE activated, the system automatically adjusts clutter reduction lters and gain control according to sea and weather conditions selected by the user (calm/rough sea/hard rain). You will be free from the trouble of adjusting the image and be able to concentrate on the operation of the vessel.

  • Seamless Zoom and Cursor operation

  • Easy Operation

    Enjoy a very intuitive operation, with the use of shortcut keys and the trackball.

  • Space-saving and straightforward installation with the display unit built-in processor

    Both Portrait and landscape are available to fit customers’ preference.

  • Easily Upgrade from FR-8002/8005 Series

    Utilizing the antenna of FURUNO FR-8002/8005 series, you can easily install this new radar FAR-1416/1426 and upgrade the radar function.



Peak Output Power12 kW
Frequency9410±30 MHz (X-band), P0N
Beam Width (Horizontal)XN12A: 1.9°, XN13A: 1.4°
Beam Width (Vertical)22°
Range Scales0.125 to 72 NM
Antenna Rotation Speed24 rpm or 48 rpm*
*Specify the antenna length and rotation speed when ordering.
WeightXN12A: 25 kg
XN13A: 27 kg


TemperatureAntenna Unit: -25 °C to +55 °C
Display Unit: -15 °C to +55 °C
WaterproofingAntenna Unit: IP26
Display Unit: IP22
Control Unit: IP22


Power Supply / Consumption Current24 VDC: 5.0 A max

Equipment List


  • Display Unit
  • Control Unit
  • Antenna Unit
    RSB-0070 or RSB-0073
    specify when ordering
  • Antenna Cable
  • Spare Parts & Installation Materials


  • Flush Mount Kit
  • Trackball Controller UnitRCU-030
  • Remote ControllerRCU-019
  • AD ConverterAD-100
  • RectifierRU-1746B-2/RU-3424
  • AD-DC Power Supply UnitPR-240/PR-850A
  • Switching HubHUB-100
  • LAN Cable2 m/5 m/10 m
  • NMEA2000 Connector
  • Cable Assembly

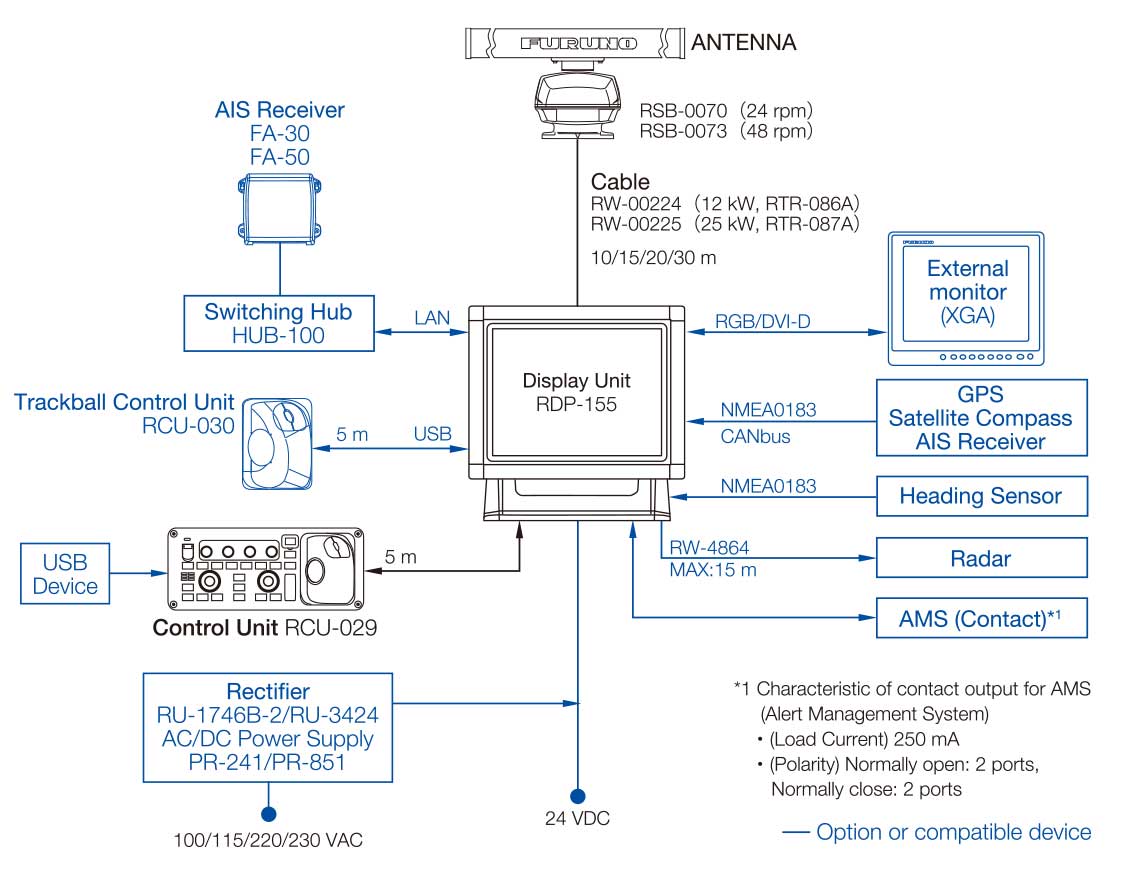

Interconnection Diagram



Locate a Distributor Contact a local distributor for further details.

* Specifications subject to change without notice.
