Marine Radar

6" SILVER LCD RADAR Model MODEL1623

High-performance 2.2 kW transceiver in a 15" radome

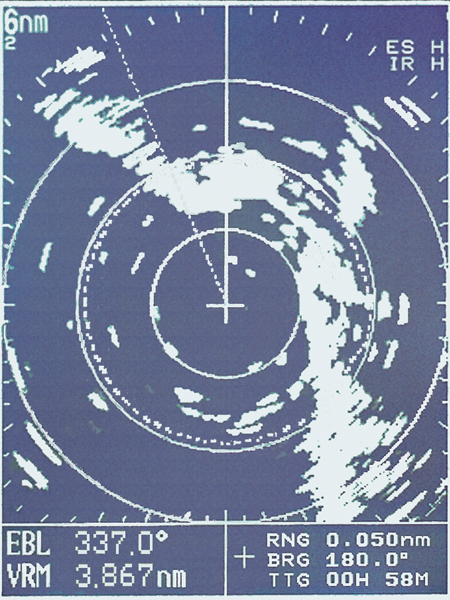

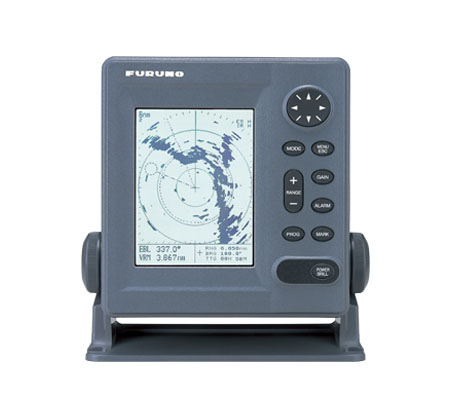

The MODEL 1623 is a high contrast LCD radar designed for pleasure craft and small fishing boats. Radar echoes are presented in four shades of gray on the 6 Silver Bright LCD.

Recreational Boats
Auto Tuning (Sensitivity)

Features

  • High Contrast 6" Silver Bright LCD

  • 13 range scales from 0.125 to 16 nm

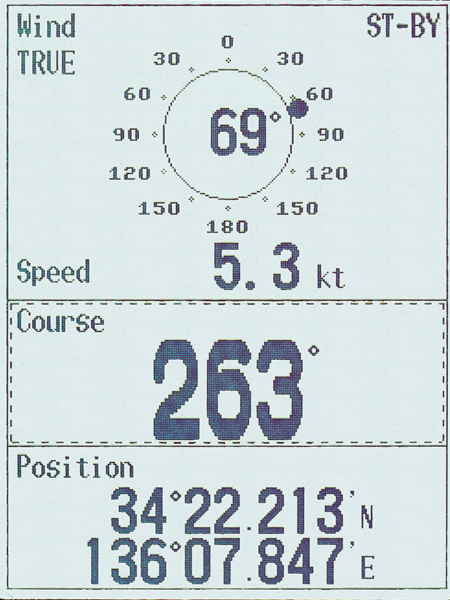

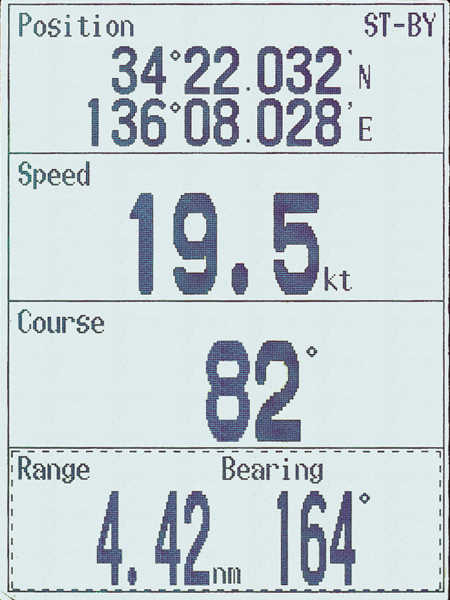

  • Optional GPS/DGPS/WAAS navigator shows waypoint position with "lollipop mark"

  • Low power consumption 8 Watts in Watchman mode

  • Reverse video feature for effective use at night

  • Improved short range target detection by using narrower pulselengths and dual IF bandwidths

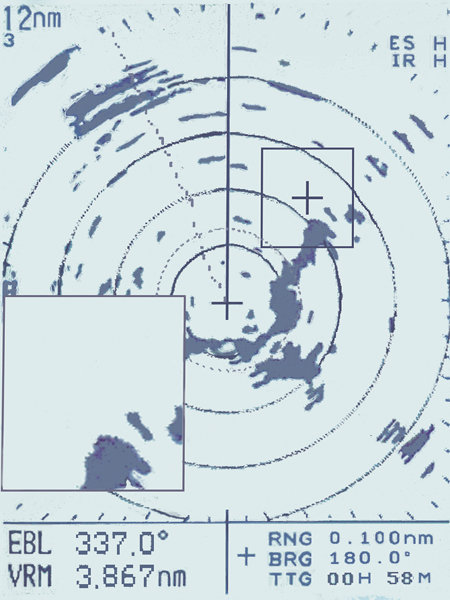

  • Zoom window for close observation of a specific area

Specifications

ANTENNA

Peak Output Power
2.2 kW
Type
ø380 mm radome (15.0'')
Frequency
9410±30 MHz (X-band)
Beam Width (Horizontal)
6.2˚
Beam Width (Vertical)
25˚
Range Scales
0.125-16nm
Antenna Rotation Speed
24/31/41 rpm (auto-select according to pulselength)
Weight
4.6 kg

DISPLAY

Display Unit
6'' monochrome LCD
Weight
1.3 kg

ENVIRONMENT

Temperature
Display unit: -15°C to +55°C
Antenna unit: -25°C to +70°C
Waterproofing
Display unit: IPX5
Antenna unit: IPX6

POWER SUPPLY

Power Supply / Consumption Current
12-24 VDC: 3.2-1.4 A

Equipment List

Standard

  • DISPLAY UNIT 1 UNIT
  • RADOME ANTENNA UNIT RSB-0093 1 UNIT
  • STANDARD INSTALLATION MATERIALS 1 SET
  • STANDARD SPARE PARTS 1 SET

Option

  • NMEA CABLE MJ-A15A7F0004-005
  • SIGNAL CABLE ASSEMBLY 5 M
  • RADOME MOUNT
  • RECTIFIER (CHINA) PR-62 (100/220 VAC)
  • EXTERNAL ALARM BUZZER

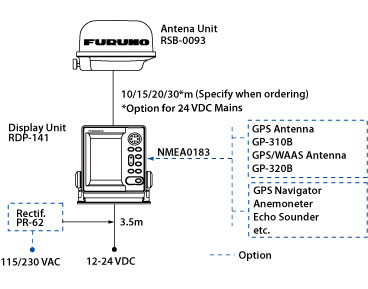

Interconnection Diagram

Documentation

  • MODEL1623 Brochure
    (Last update: Mar 23, 2023)

* Specifications subject to change without notice.
