19" RADOME RADAR SENSOR Model DRS4DL+

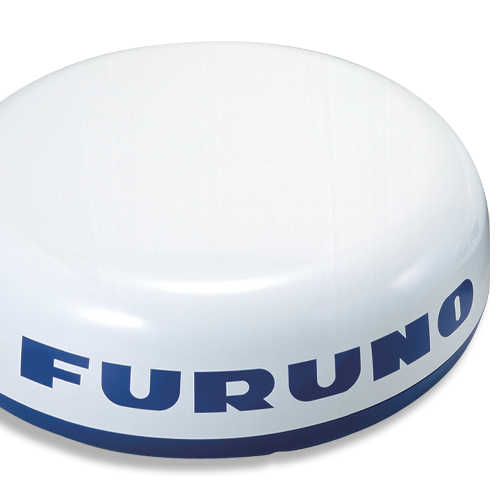

4 kW Radar Antenna in a compact 19" radome

DRS4DL+ is a compact 19" radome Radar Sensor for NavNet TZtouch2/TZtouch Series. This 4 kW Radar with an effective range of 36 NM that offers simple installation without the need to purchase a separate power supply unit. FURUNO's automatic, real-time digital signal processing presents navigators with some of the clearest targets they"ll ever find from a Radar of this compact size.

Recreational Boats Fishing Vessels Workboats

Features

  • For NavNet TZtouch and TZtouch 2

    The DRS4DL+ spins at a fixed 24 rpm, and has range scales from 1/8 NM to 36 NM. The DRS4DL+ is designed to work with NavNet TZtouch and TZtouch2 systems.
  • Single wire Radar solution

    The DRS4DL+ is a 19" dome Radar Sensor for NavNet TZtouch and NavNet TZtouch2. This 4kW Radar is presented in a compact, rugged 19" dome with a 5.2 degree horizontal beamwidth antenna. Furuno's automatic, real-time digital signal processing presents navigators with some of the clearest targets they'll ever find from a Radar of this compact size. The DRS4DL+ utilizes a wired connection with NavNet TZtouch and TZtouch2. In combination with the TZTL12F/15F, this single-wire solution results in a very simple installation.
  • Fast Target Tracking™ (TT) function

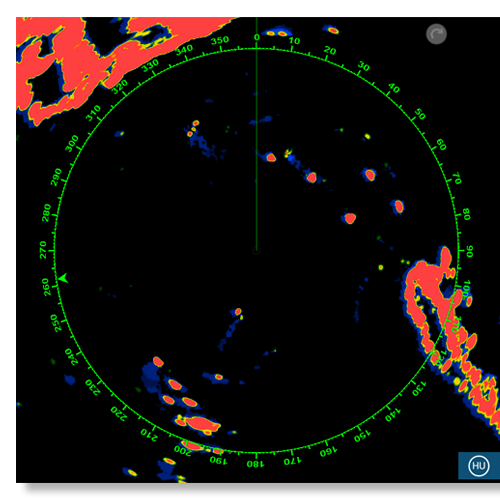

    Fast Target Tracking™/ARPA on the DRS4DL+ manually or automatically acquires and tracks 10 targets*. After selecting a target, it only takes a few seconds for a speed and course vector to be displayed. With accurate tracking information, extimation of other vessel's course and speed is made simple.
    * heading sensor required

Specifications

ANTENNA

Peak Output Power
4 kW
Type
ø488 mm Radome (19'')
Frequency
9410MHz±30MHz, P0N
Beam Width (Horizontal)
5.2° typical (3 dB)
Beam Width (Vertical)
25°(3 dB)
Range Scales
0.0625 to 36 NM
Antenna Rotation Speed
24 rpm
Weight
5.7 kg

ENVIRONMENT

Temperature
-25°C to +55°C
Waterproofing
IPX6

POWER SUPPLY

Power Supply / Consumption Current
12-24 VDC: 2.1-1.0 A

Interconnection Diagram

* Specifications subject to change without notice.
