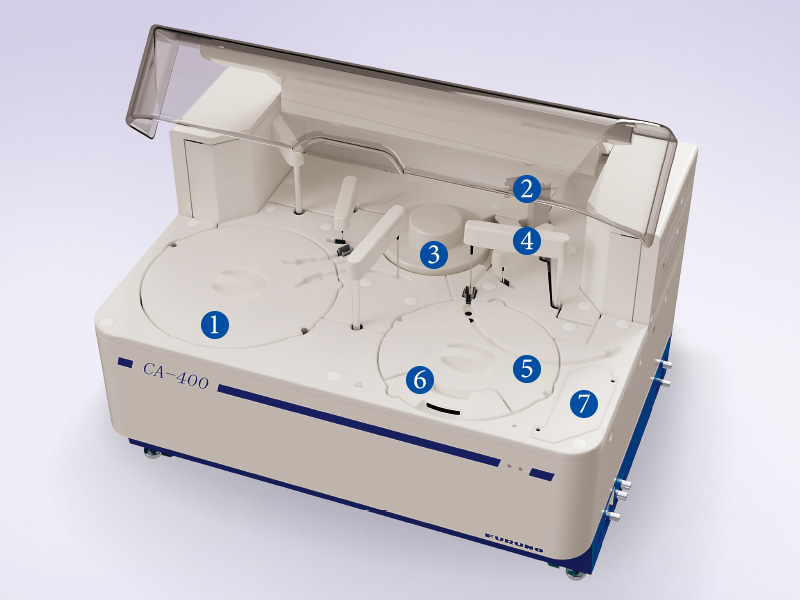

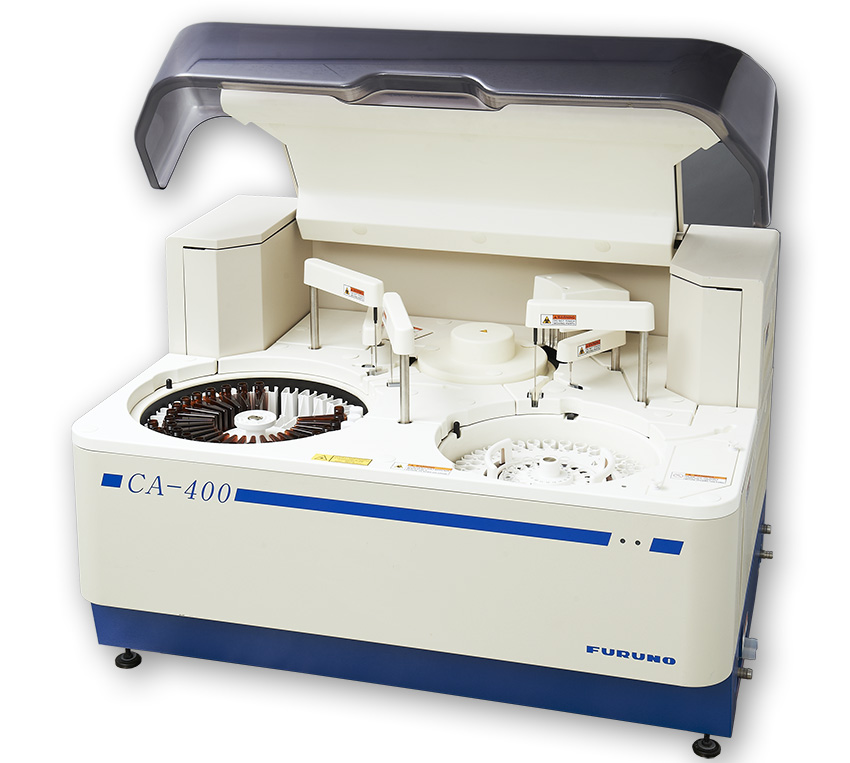

Model CA-400

Desktop fully automated clinical chemistry analyzer

General chemistry as photometric assay
Immunology as photometric assay (Latex reagents available)

End point, 2 point end, rate, 2 point rate and electrolytes

400 tests per hour (Up to 560 tests per hour with optional ISE module)

10 minutes after applying sample for one-reagent assay
5 minutes after applying second reagent for two-reagent assay

Serum, plasma and urine

Type:
Removable tray with sample tube holder

Capacity:
Up to 70 samples (handling of STAT available)

QC sample and Calibrator:
20 positions on designated inner tray

Type:
Micro pipette with liquid level detector and clot detector

Rinsing:
Inside and outside with purified water

Type:
Micro syringe

Volume:
2.0 to 35.0 μl (increment by 0.1 μl)

Type:
Removable tray with reagent bottle holder on a turntable

Capacity:
60 reagent positions on a tray (30 each for 70 ml and 20 ml bottles)

Inventory:
Calculation of remaining reagent volume available

Cooling:
Cooling with peltier element (8 to 15 degrees Celsius)

Numbers of pipettors:
2

Type:
Micro pipette with liquid level detector

Rinsing:
Inside and outside with purified water

Other function:
Detection of remaining reagent volume available

Type:
Micro syringe

R1 Volume:
20 to 350 μl (increment by 1 μl)

R2 Volume:
20 to 350 μl (increment by 1 μl)

Number of cuvettes:
90 cuvettes on reaction line

Type:
Semi-disposable cuvette with onboard washing system

Material:
Glass

Volume for measurement:
Minimum 150 μl

Maximum volume:
450 μl in total

Type:
Direct heating system

Temperature:
37.0 degrees Celsius

Method:
Direct measurement of absorbance in cuvette
Bi-chromatic or Mono-chromatic

Wavelength:
340 nm, 380 nm, 415 nm, 450 nm, 510 nm, 546 nm, 570 nm, 600 nm, 660 nm, 700 nm, 750 nm, 800 nm (12 wavelengths)

Light source:
Halogen tungsten lamp

Type:
Stick type rotating stirrer

970 mm (W) x 690 mm (D) x 580 mm (H) (Analyzer only)

ISE module, external tank sensor, clot detection sensor
