Clinical Chemistry Analyzer
Model CA-800
800 tests/hour throughput capability (maximum 1200 tests/hour with ISE). Fully direct automatic HbA1c measurement without manual sample pretreatment.
Optional rack system available for place and go sample process.
Optional rack system available for place and go sample process.

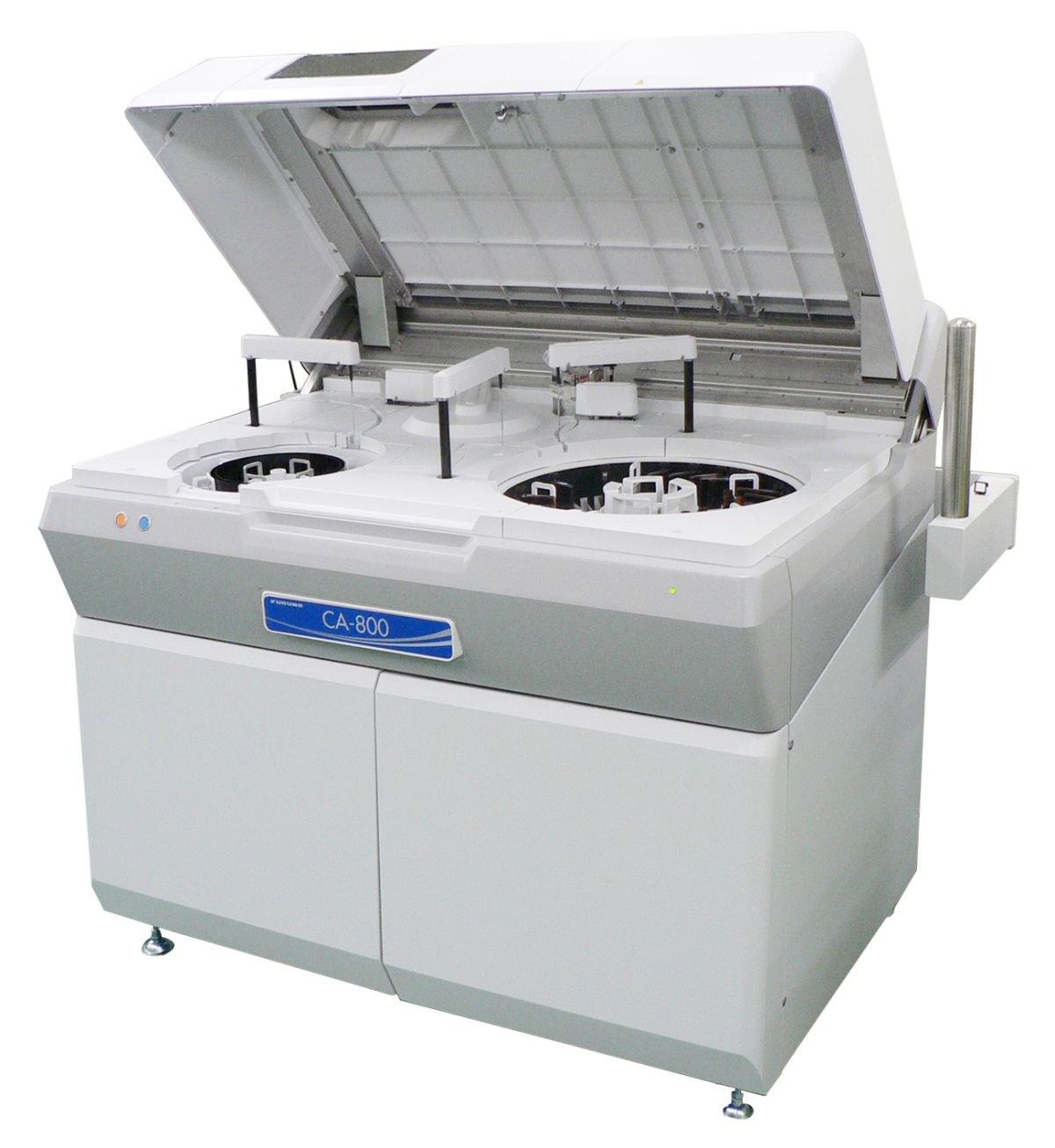

Floor model analyzer with throughput of maximum 800 tests/hour (1200 tests/hour with ISE) combined with minimum reaction volume of 50ul. User-friendly interface on a touch screen display provides a new solution to your laboratory. Also, connection with sample transfer line is possible.
- Healthcare
Features
Benefits provided to customers
- The CA-800 can be combined with a rack handler to perform more tests in less time.
- The system has the technical capability to perform measurements even with small amounts of reaction fluid.
- It is environmentally friendly as reagents do not need to be changed frequently and less waste is generated.
- The HbA1C automatic pre-treatment function improves the efficiency of testing operations.
- Improves the quality of healthcare with accurate test results.
- Rapid test results increase laboratory efficiency and productivity.
- The interface is easy for operators to use.
New Definition of Precision

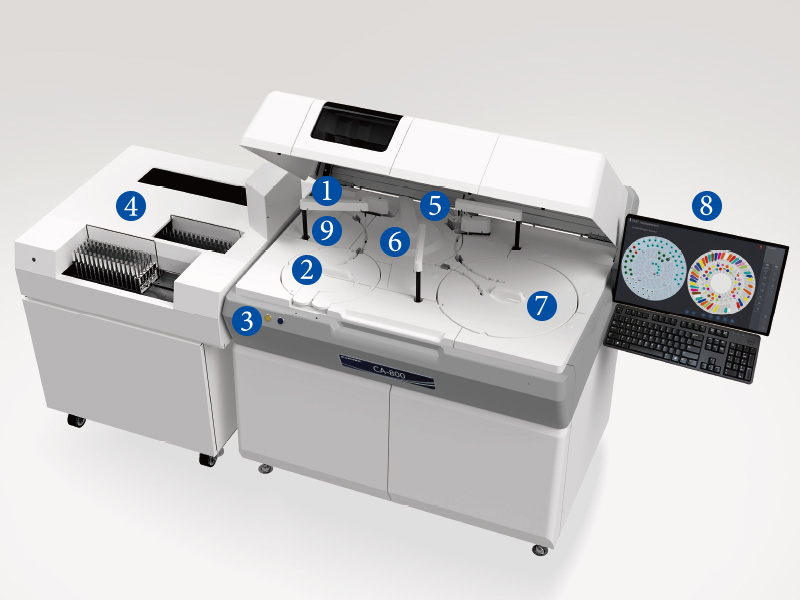

Comprehensive solution to high complex demand
- Sample Probe
High precision adjustable sample clot detection
Minimum sample volume of 0.5 μl, lowest of its class - Sample Tray
Double rotation sample tray for on the fly STAT samples - Sample Addition
"Stop" and "Go" buttons for simple sample addition - Rack Handler
Intelligent automatic rack system for seamless sample processing
Easy and quick rack loading/collection by rack basket - Wash Unit
Minimum water usage with high quality test result - Cuvette
Lowest reagent volume requirement of its class - Reagent Tray
10 fully independent reagent racks make reagent loading hassle-free - User Interface
Simple touch operation allows quick access to each function
Effective color coding for easy status identification
Comprehensive test result data for in depth analysis - Integrated ISE Module (Optional)
Measurement of Na, K and Cl
Throughput of 600 tests/hour
HbA1c Measurement
Simple, fast and accurate HbA1c measurement by onboard sample pretreatment.
User Friendly Interface
Intuitive GUI provides fast and simple operation for any level of operator.
- High operability with easy-to-understand layout
- Effective use of informative graphics and charts
- Comprehensive assessment of analyzer condition

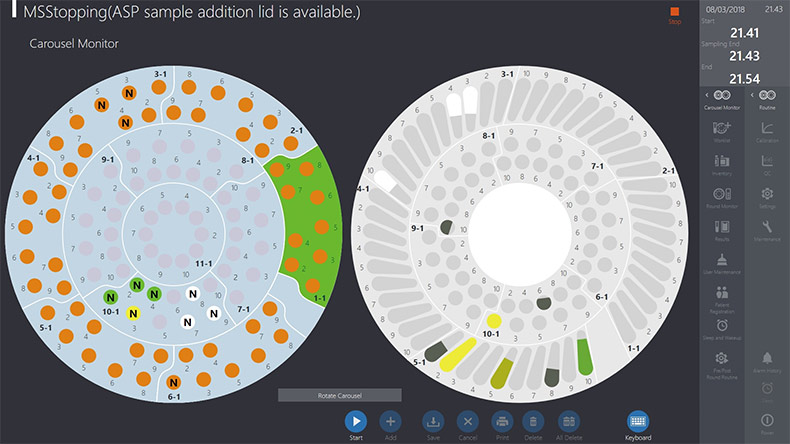

Run-Monitor
Visually shows sample status.

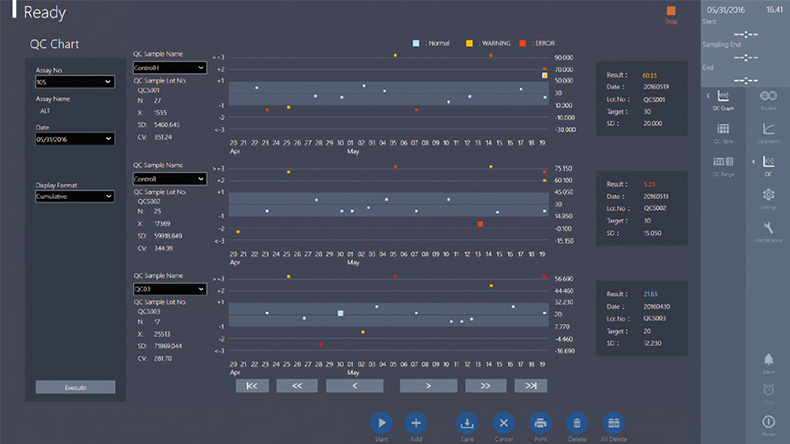

Quallity Control(QC)
Displays QC results in various formats.

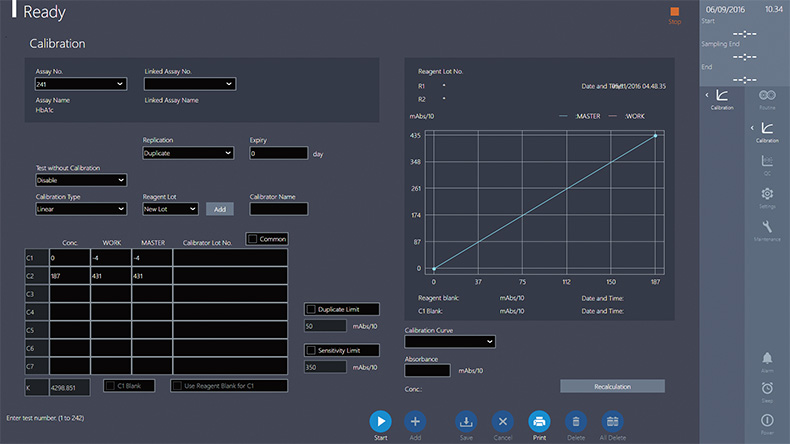

Callibration
Manages calibration settings and calibration curves on one screen.

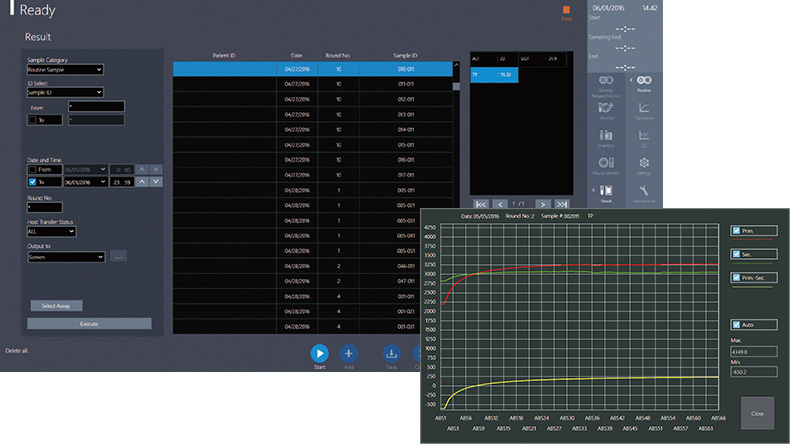

Results
Results can be displayed, printed out, or saved as electronic files.
Specifications
General
Type
Fully automated clinical chemistry analyzer
Usage
General chemistry as photometric assay
Immunology as photometric assay (Latex reagents available)
Assay type
End point, 2 point end, rate, 2 point rate and electrolytes
Throughput
800 tests per hour (Up to 1200 tests per hour with optional ISE module)
Incubation time
10 minutes after applying sample for one-reagent assay
5 minutes after applying second reagent for two-reagent assay
Sample type
Serum, plasma and urine
Sample input system
Type:
Removable tray with sample tube holder on a turntable
Capacity:
Up to 94 samples (handling of STAT available)
QC sample and Calibrator:
10 positions on designated inner tray
Sampling pipette
Type:
Micro pipette with liquid level detector and clot detector
Rinsing:
Inside and outside with purified water
Sampling pump
Type:
Micro syringe
Volume:
0.5 to 25.0 μl (increment by 0.1 μl)
Reagent system
Type:
Removable tray with reagent bottle holder on a turntable
Capacity:
100 reagent positions on a tray (50 each for 70 ml and 20 ml bottles)
Inventory:
Calculation of remaining reagent volume available
Cooling:
Cooling with peltier element (8 to 15 degrees Celsius)
Reagent pipette
Numbers of pipettors:
2
Type:
Micro pipette with liquid level detector
Rinsing:
Inside and outside with purified water
Other function:
Detection of remaining reagent volume available
Reagent pump
Type:
Micro syringe
R1 Volume:
20 to 250 μl (increment by 1 μl)
R2 Volume:
5 to 180 μl (increment by 1 μl)
Cuvette system
Number of cuvettes:
153 cuvettes on reaction line
Type:
Semi-disposable cuvette with onboard washing system
Material:
Resin or glass
Volume for measurement:
Minimum 50 μl
Maximum volume:
250 μl in total
Reaction system
Type:
Direct heating system
Temperature:
37.0 degrees Celsius (+/- 0.2)
Detector
Method:
Direct measurement of absorbance in cuvette
Bi-chromatic or Mono-chromatic
Wavelength:
340 nm, 380 nm, 415 nm, 450 nm, 478 nm, 510 nm, 546 nm, 570 nm, 600 nm, 660 nm, 700 nm, 750 nm, 800 nm (13 wavelengths)
Light source:
Halogen tungsten lamp
Stirring system
Type:
Stick type rotating stirrer
Dimensions
1,300 mm (W) x 850 mm (D) x 1,150 mm (H) (Analyzer only)
Option
ISE module, glass cuvette
Rack Handler (Option)
Model Name:
RH-150
Sample Rack:
5 sample rack
Loading sample:
150 samples
Dimensions:
Outside dimensions:890 mm (W) x 850 mm (D) x 924 mm (H)
Rack handler for CA-800
The RH-150 is a rack handler designed to meet the needs of large laboratories with a high number of tests. It significantly reduces the time and energy required for manual labor and allows a greater number of inspections to be performed in a shorter time, improving overall operational efficiency. Based on customer needs, there are options to purchase either the device alone or the device with a rack handler.

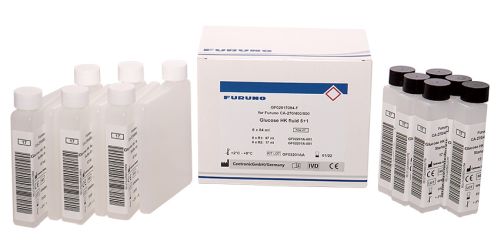

Reagents for clinical chemistry
Reagents designed for automatic chemistry analyzer and optimised chemistry parameters offer the precise and reliable data to the laboratory.
- Reagents
Clinical chemistry reagents, Immunoturbidimetric reagents - Calibrators
Clinical chemistry calibrator, Immunoturbidimetric calibrator - Quality control samples
Clinical chemistry quality control sample, Immunoturbidimetric quality control sample - Utility reagent
Analyzer consumables
Furuno Clinical Chemistry Analyzer
We provide extensive support to our customers based on our extensive knowledge of both reagents and instruments.
MODEL | Features |
|---|---|
Compact desk-top instrument with 270 test/hour (maximum 450 tests/hour with ISE). | |
Mid-range desk-top instrument with 400 test/hour (maximum 560 tests/hour with ISE). | |
800 tests/hour throughput capability (maximum 1200 tests/hour with ISE). |
Registered CA series in UNIDO's STePP
Furuno's CA series has been registered in STePP by UNIDO (United Nations Industrial Development Organization), Tokyo Office.
The STePP (Sustainable Technology Promotion Platform) is an online database to introduce outstanding Japanese technologies for sustainable industrial development in developing and emerging countries. In this STePP, Furuno's CA-series was evaluated as a product that contributes to achieving the goals of SDGs 3 [Good health and well-being] and 9 [Industry, innovation and infrastructure].
Quality and Service Information
FURUNO works daily with quality in mind, not only in the production and quality departments, but in all departments to provide users with high-quality products. FURUNO works as one company to provide safe, high-quality products and services and to achieve customer satisfaction.

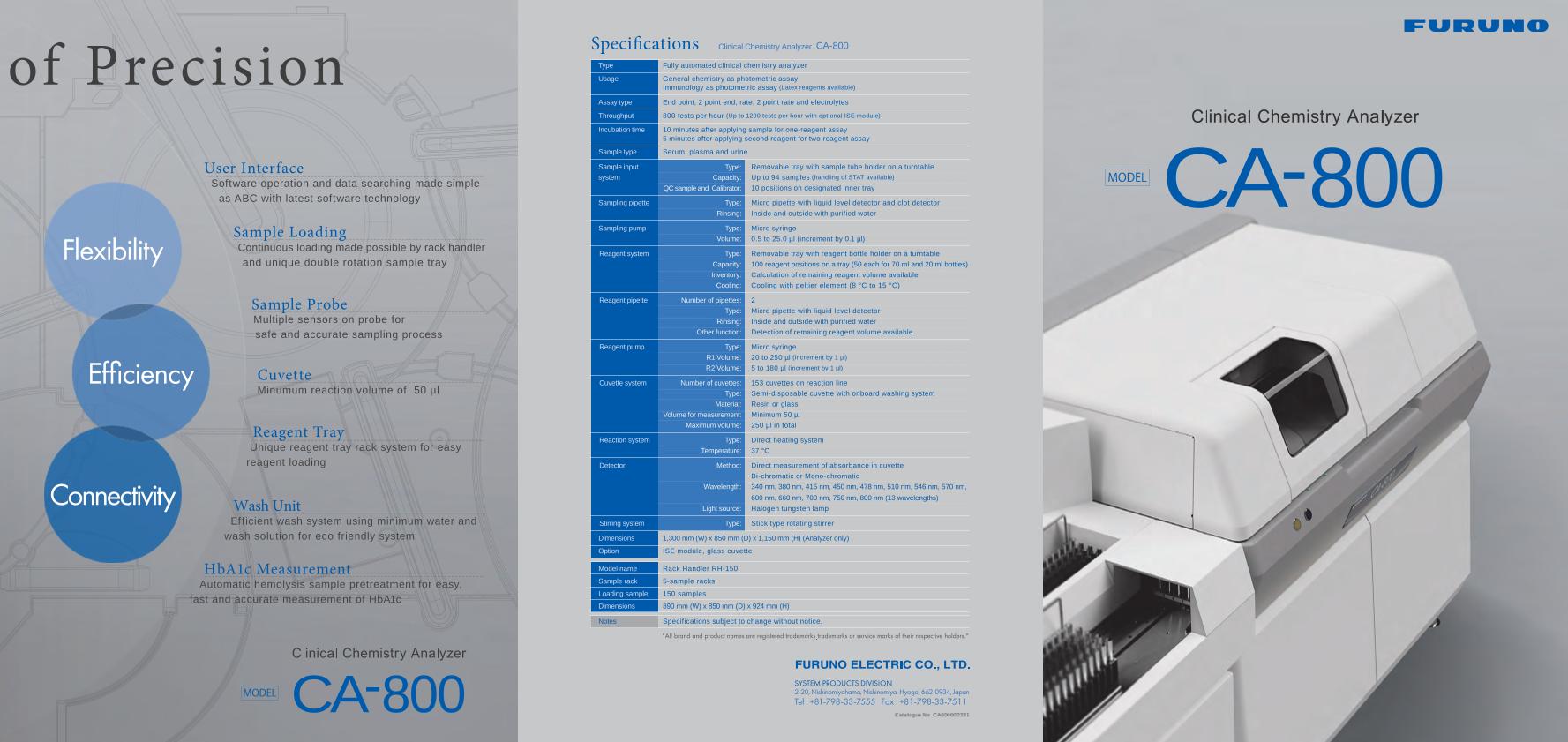

Downloads
Inquiries about Healthcare Products
- Specifications subject to change without notice.
