- GNSS Antennas・Accessories
Model
AFB-01/AFB-02
- NEW
These are dedicated mounting kits for installing GNSS antennas at a fixed point, such as for time synchronization applications.
- GNSS (Timing, Automotive/Industrial)
Features
Antenna Mounting Kit for AU-500 & AU-300
The parts required for antenna installation are packaged together as a set.

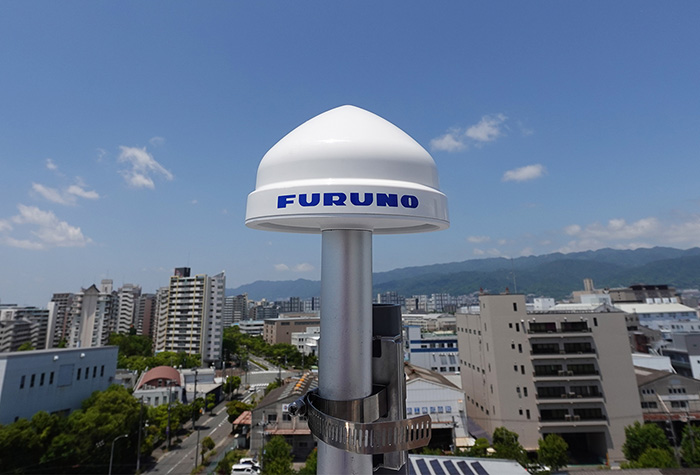

Installation example (AFB-01)
Two models, AFB-01 and AFB-02, selectable to suit the installation location
AFB-01 supports installation on poles and masts, while AFB-02 supports installation on traffic signal posts.

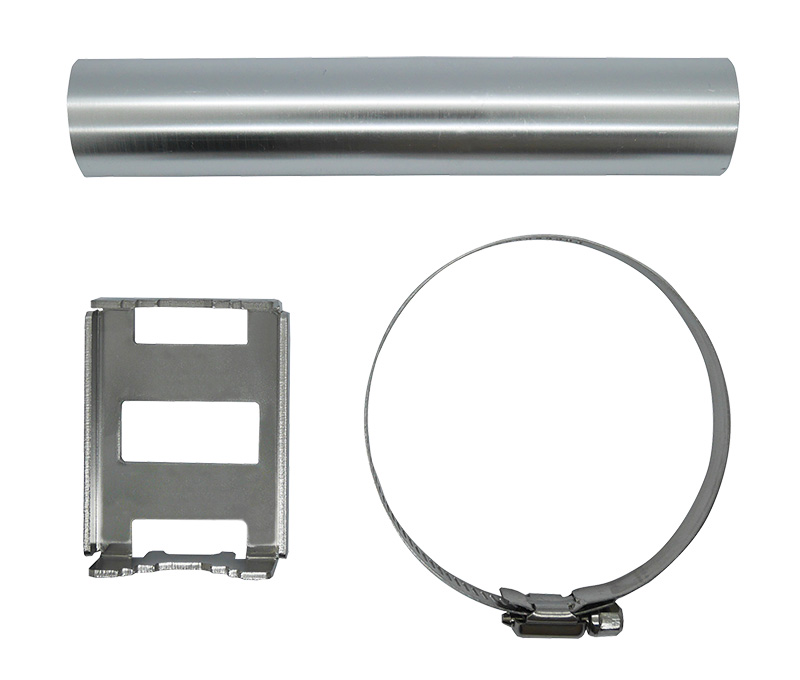

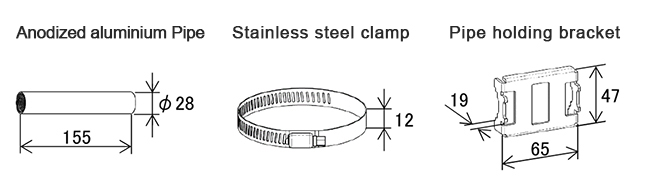

AFB-01
- Anodized aluminium Pipe
- Stainless steel clamp
- Pipe holding bracket

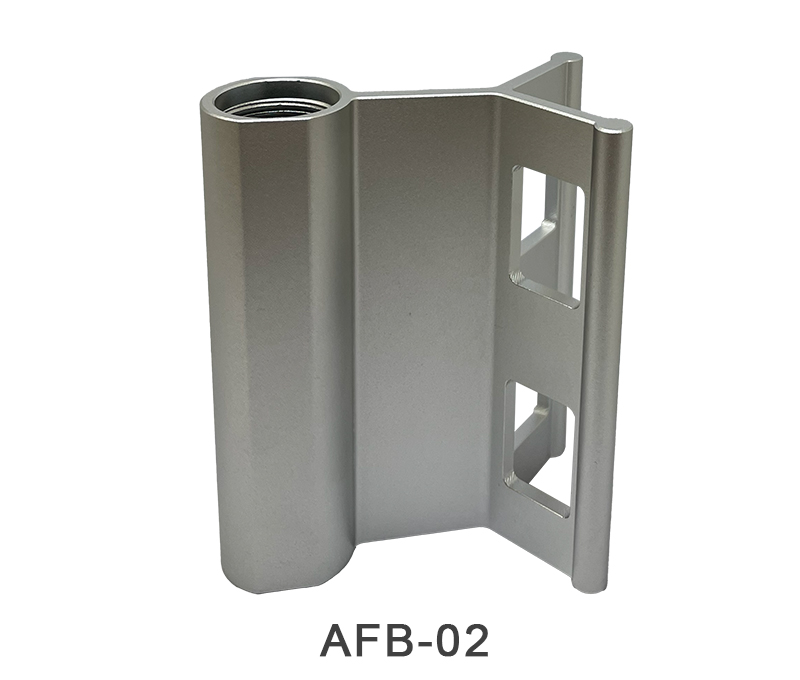

AFB-02
- Pipe holding bracket
Metal bands are not included. Please prepare them separately.
Compatible metal band: Iwabuchi IBT-208 x 2

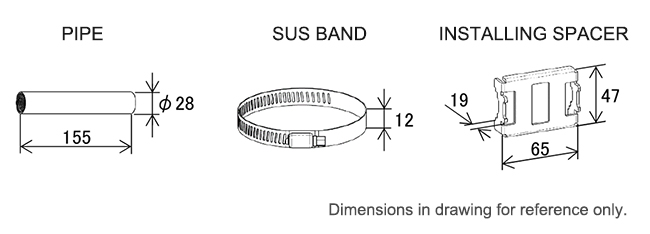

- Dimensions in drawing for reference only.
Streamline installation work
Using dedicated mounting parts suited to the installation target ensures secure fixing of the GNSS antenna and helps streamline installation work.
Proper antenna installation prevents poor reception and allows the GNSS receiver to deliver its full performance.

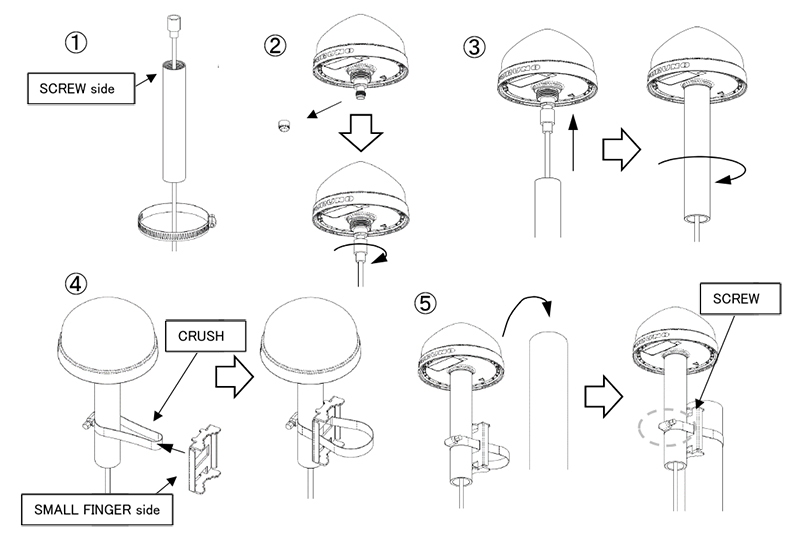

AFB-01 installation procedure

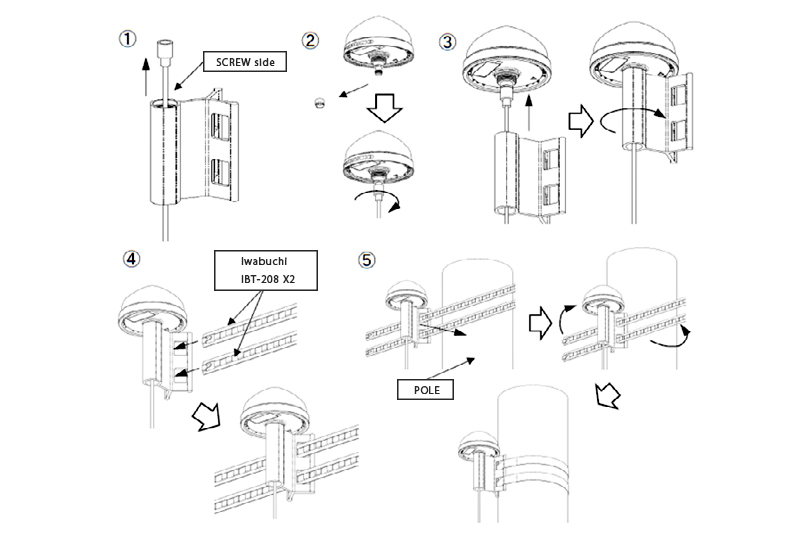

AFB-02 installation procedure
Quote Request
This is a quote form only for GNSS receivers for time synchronization.
For other contents, please contact us using the respective inquiry form.
Downloads
| Name | Last update |
|---|---|
| Nov 6, 2024 |
Inquiries about GNSS Products
- Specifications subject to change without notice.
