GPS Antenna

Model AU-15

Antenna for GPS signal reception

This antenna is designed especially for Automotive and industrial GPS receiver.

  • GNSS (Timing, Automotive/Industrial)

Features

Antenna for GPS signal reception (L1 band)

For timing applications and with high noise resistance, Multi-GNSS antenna AU-500/300 offer the best solution.

The antenna consists of the antenna for receiving GPS signal and the preamplifier for signal amplification.

Power supply for preamplifier operation is supplied by overlapping the signal line.

The antenna connector type consists of BNC, GT-5 and SMB.

The antenna has an internal magnet so that it can be fixed on a metallic surface.

Specifications

General

Input Frequency

1575.42MHz±1.023MHz

Polarization

R. H. C. P. (Right Hand Circular Polarization)

Antenna Gain

>= 2.0dBi (at 90° elev. angle)
>= -6.0dBi (at 10° elev. angle)

Output Impedance

50Ω

Total Gain

20±6dBi (AU-15-5B, AU-15-5G, AU-15-5S)
24±6dBi (AU-15-1.0B)

Pre. Amp Noise Figure

<= 2.3dB

VSWR

<= 2.0

Supply Voltage

5.0 ±0.5VDC

Current Consumption

<= 30mA

Operating Temperature

-30°C to +85°C

Storage Temperature

-40°C to +100°C

Operating Relative Humidity

<= 95%RH

Series Lineup (Connector, Cable)

AU-15-5B (BNC, 1.5DS×5m)
AU-15-1.0B (BNC, 1.5DS×1m)
AU-15-5G (GT-5, 1.5DS×5m)
AU-15-5S (SMB,1.5DS×5m)

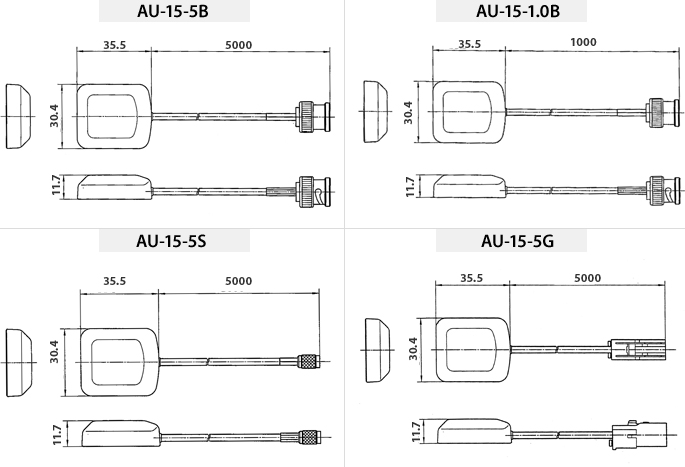

Drawing
