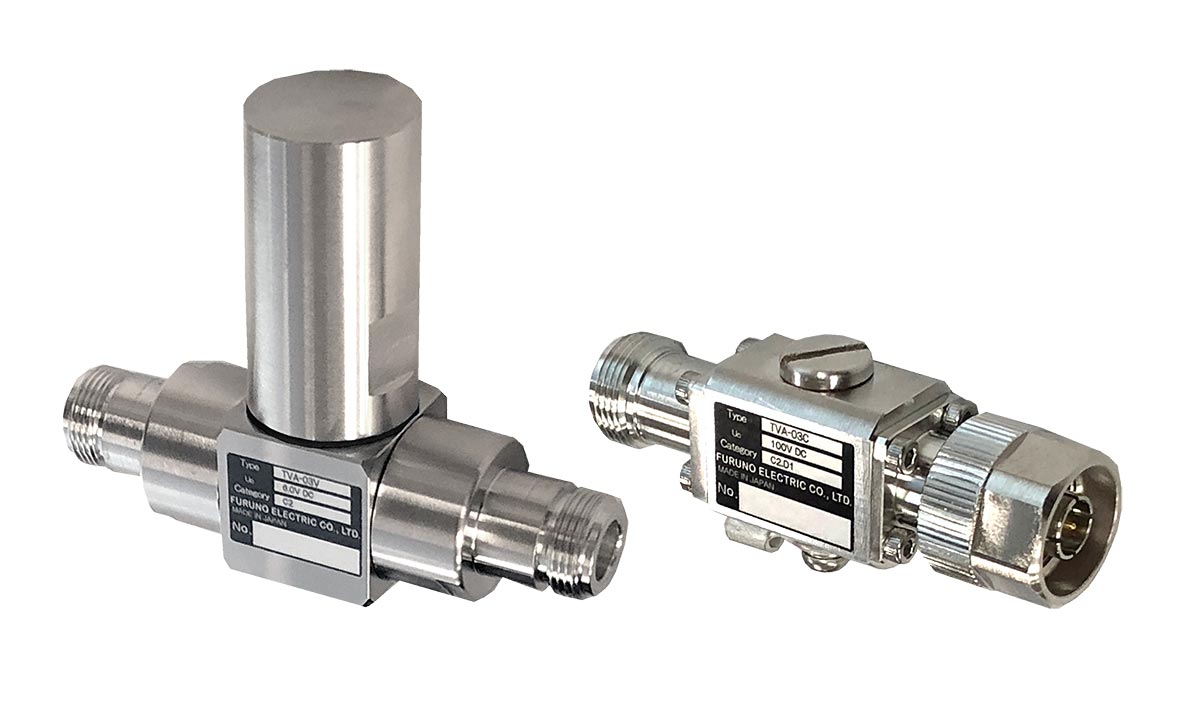

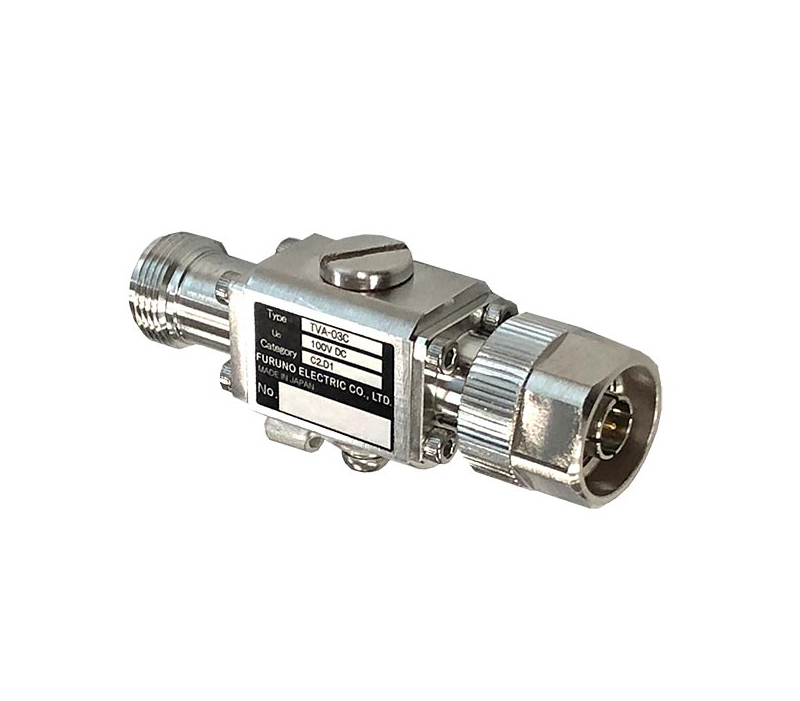

Model TVA-03C/TVA-03V
The coaxial lightning arrestor covers GPS (L1), GLONASS (L1), and Galileo(E1). It supports combination with GPS receivers as well as multi-GNSS receivers. It demonstrates safe lightning surge performance that clears IEC61000-4-5 and JIS C 5381-21.
- GNSS (Timing, Automotive/Industrial)
Features
Protect GPS/GNSS receiver from lightning surges.
TVA-03C supports direct lightning surges, and TVA-03V supports induced lightning surges.
The best lightning surge performance can be achieved by combining two models with proper grounding.
Recommended products
For all Furuno GPS/GNSS receivers.

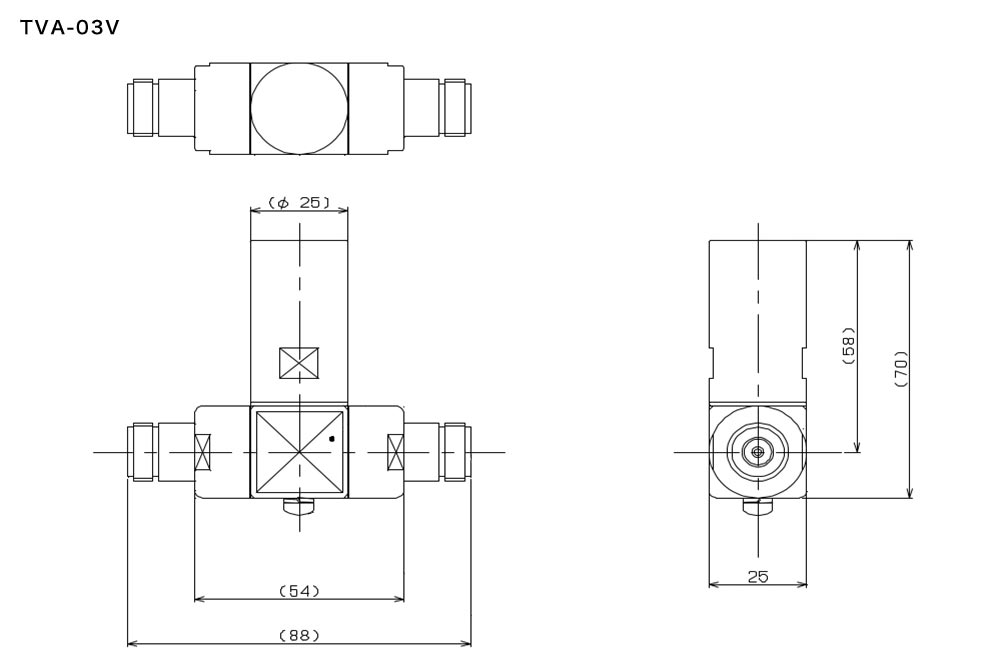

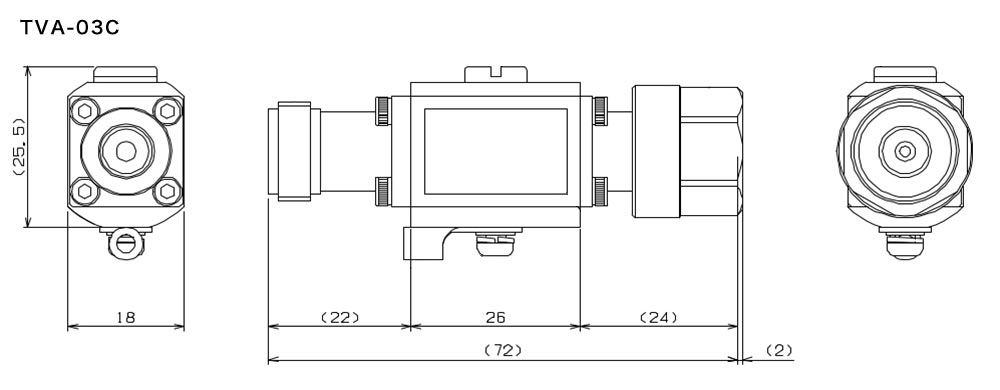

Drawing
Characteristics table
Model | TVA-03C | TVA-03V |
|---|---|---|
Water-proof* | IPX5 | IPX5 |
Frequency band | Center frequency | |
Maximum continuous working power Uc | 100V DC | 6.0V DC |
Maximum allowable power | 50W | 10W |
Insertion loss | 0.2dB or less | 0.2dB or less |
VSWR | 1.2 or less | 1.2 or less |
Connecotr | N type | N type |
Impedance | 50Ω | 50Ω |
Voltage protection level Up | 800V or less | 10V or less |
Impulse durability | Category C2 20kA | Category C2 10kA |
- Only when the connector part is drip-proofed.
Downloads
| Name | Last update |
|---|---|
| Aug 20, 2021 | |
| Aug 20, 2021 |
| Name | Remarks |
|---|---|
|
|
Inquiries about GNSS Products
- Specifications subject to change without notice.
