- GNSS for Time Sync

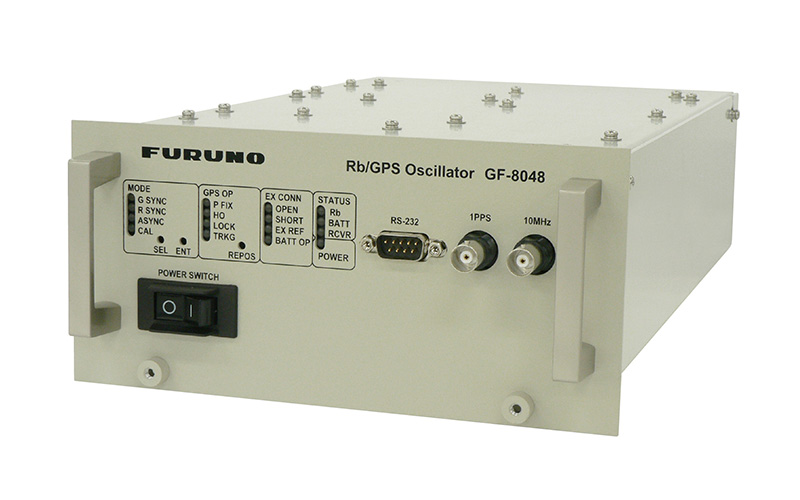

Model GF-8048
The GF-8048 can be used at the digital terrestrial broadcasting main stations as well as at satellite stations since it can output highly accurate and stable 1PPS and 10MHz even in blocked spaces or in severe conditions such as high electrical field areas.
The GF-8048 has a GPS receiver and a rubidium oscillator. It receives GPS signals and generates 1PPS (pulse per second) synchronized with UTC as well as 10MHz sine wave coherent to 1PPS.
The GF-8048 offers completely maintenance-free stability. Periodic maintenance work is not necessary.
- GNSS (Timing, Automotive/Industrial)
Features
Highly-stable frequency and high accurate UTC time can be easily obtained worldwide.
The GF-8048 incorporates rubidium oscillator as a base oscillator. The excellent low phase noise is realized by the combination of OCXO and GPS.
The GF-8048 can continuously output high accurate and stable 1PPS and 10MHz even if GPS receiver loses the GPS satellite signals in holdover mode.
The GF-8048 realizes the coherency within +/- 10ns accuracy between the falling edge of 1PPS and the zero crossing of 10MHz sine wave.
Every rubidium oscillator needs periodical calibration to maintain high accuracy output. The GF-8048 has an “Automatic calibration function” by using GPS as a reference. The real time control by GPS realizes complete maintenance-free GPS-steered Frequency
Designed specially for digital terrestrial broadcasting transmitter (Main stations/Sub stations).
Enhance performance in combination with recommended antenna

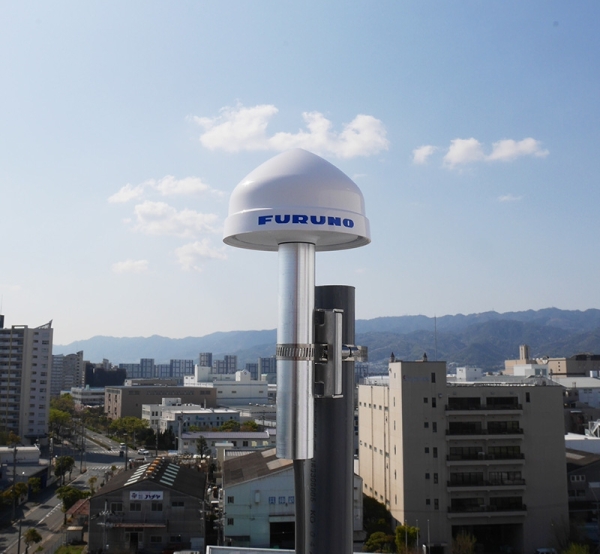

AU-300 Multi-GNSS Timing Antenna delivers both high stability and high robustness.
Specifications
General
GPS L1 C/A
12 channels (GPS)
-133dBm to -110dBm
Frequency Accuracy:< ±1×10⁻¹¹
1PPS Accuracy: < ±100ns ( 95%)
Holdover: ±2×10⁻¹¹/1h, ±3×10⁻¹¹/12h
1PPS Accuracy: < ±400ns/1h
Free running Rubidium: Frequency Accuracy :< ±5×10⁻¹⁰/year
48VDC
-10°C to +45°C (Performance Assurance Temperature)
-20°C to +60°C (Operating Temperature)
Short and Open Detection
Open Collector Output, LED Display
207mm×327mm×98.5mm
NMEA 0183

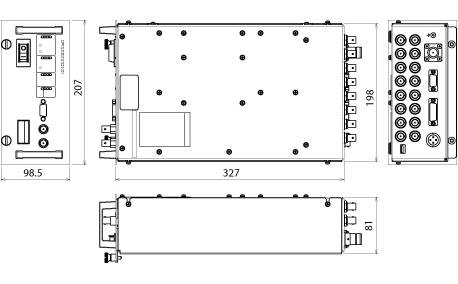

Drawing

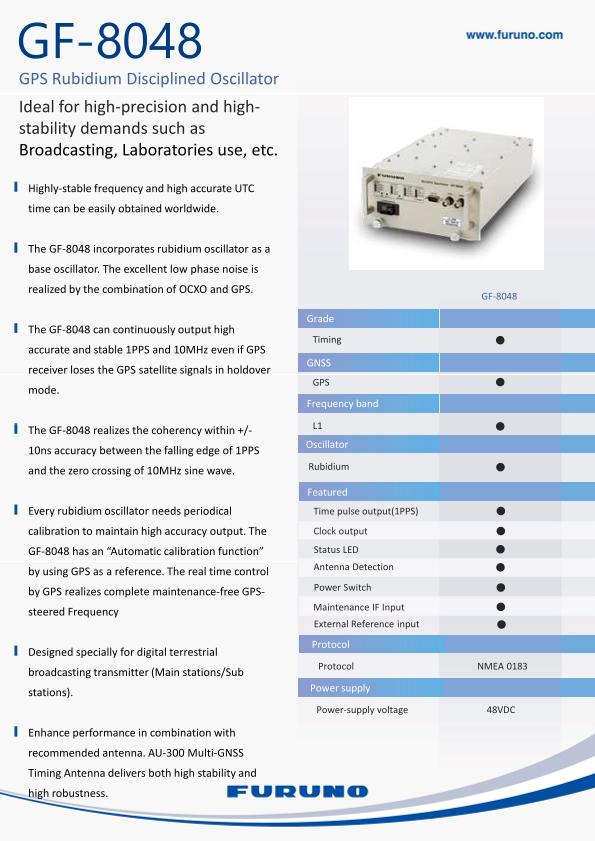

Downloads
Inquiries about GNSS Products
- Specifications subject to change without notice.
